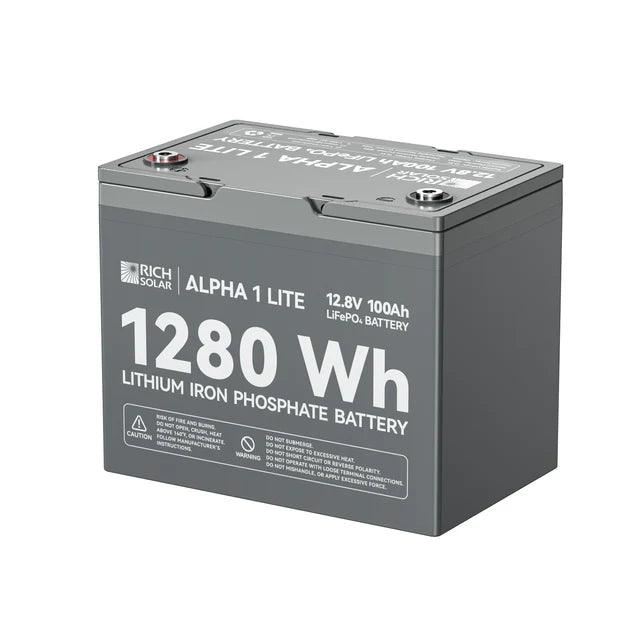

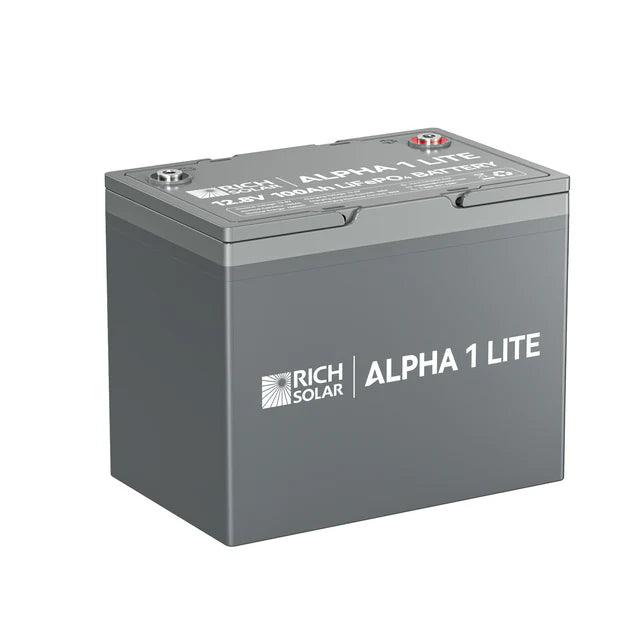

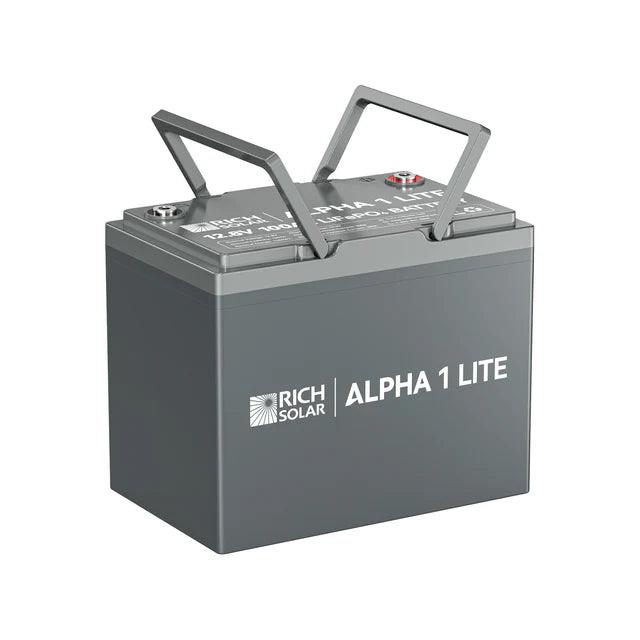

Rich Solar ALPHA 1 LITE | 12V 100Ah LiFePO4 Battery
The Rich Solar ALPHA 1 LITE is a lightweight 12V lithium battery designed for RVs, trailers, vans, boats, and off-grid use. With 4,000 lifetime cycles, it offers the best value for reliable and long-lasting power. Trust in its superior performance and lightweight design for all your energy needs.
Compact Battery and Packed with Energy
Built with quality materials that are built to last, RICH SOLAR's new ALPHA 1 LITE is a 12V 100Ah battery packed to the brim with premium lithium-ion-phosphate (LiFePO4) cells. Experience a full day of high-quality power output with the ALPHA 1 LITE's capacity of 100Ah, setting you up for a full day on the open road in your RV, camper, or van. With it's low-maintenance, deep-cycle capabilities, and RICH SOLAR premium materials, you can store your energy with ease.
Specifications
BATTERY
- Nominal Voltage:12.8V
- Nominal Capacity:100Ah
- Minimum Capacity:99.5Ah
- Cycle Life:>4000 cycles
Operating Specifications
- Operating Voltage:12.8 V
- Capacity:100 Ah
- Energy:1280 Watt Hours
- Charge Voltage:14.4V
- Continuous Charge Current:100A
- Continuous Discharge Current:100A
- Self Discharge:< 5%/month
TEMPERATURE
- Charge Temperature:32℉ to 131℉ (0℃ to 55℃)
- Discharge Temperature:-4℉ to 140℉ (-20℃ to 60℃)
- Storage Temperature:14°F-113°F / -10℃~45℃ 90%RH Max (More than 3 months)
Physical Specifications
- Battery Dimensions(L*W*H):10.2x6.6x8.3 in
- Weight:24.3 lb
Over Charge Protection
- Over charge detection voltage:3.75V±0.03V
- Over charge detection delay time:1000ms±500ms
- Over charge recovery voltage:3.55V (Min 3.40V, Max 3.60V)
Over Discharge Protection
- Over discharge detection voltage:2.20V±0.08V
- Over discharge detection delay time:1000ms±500ms
- Over discharge recovery voltage:2.70V±0.10V
Warranty: 5 years
