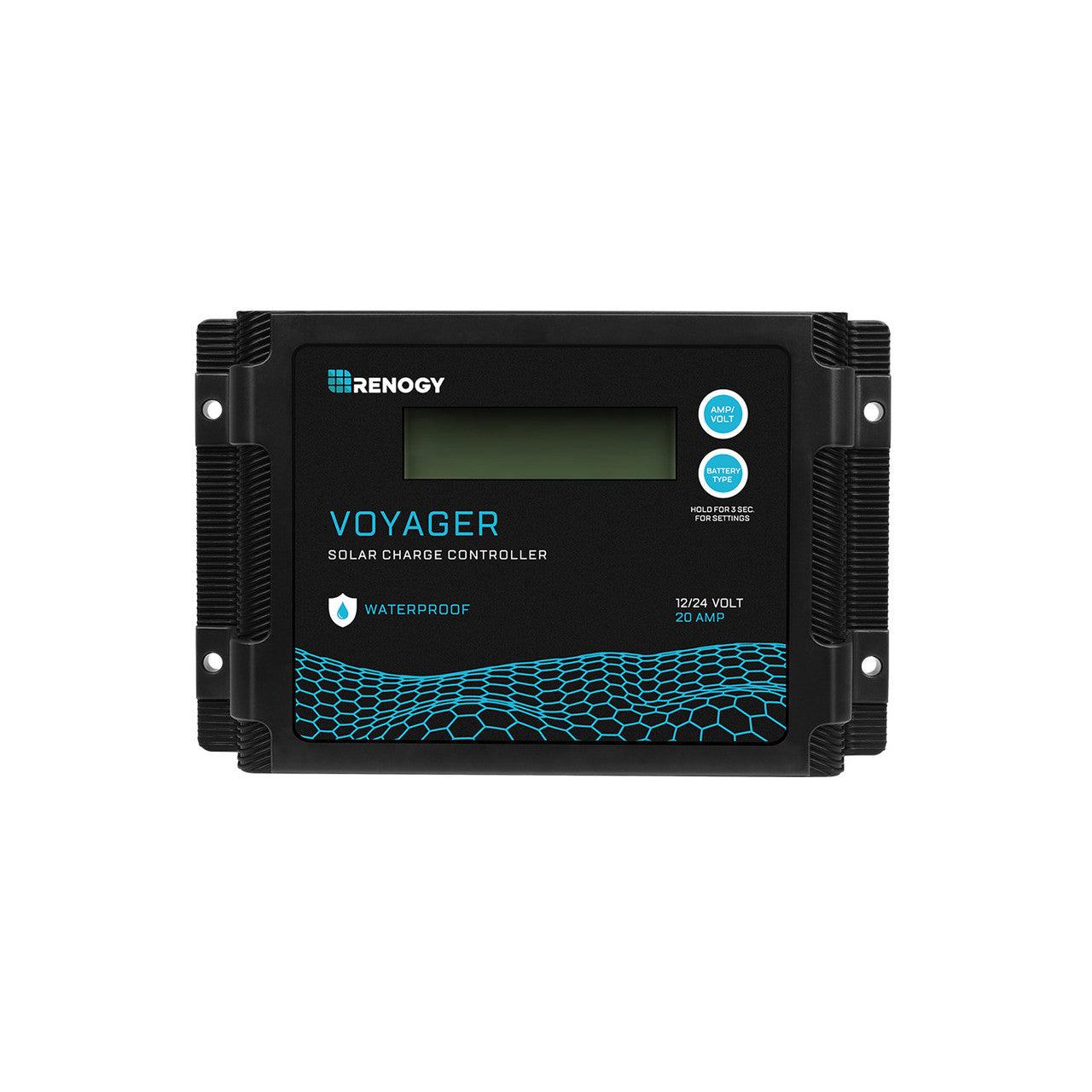

The Voyager 20A is a class leading 20-amp charge controller with an IP67 rating. It is perfect for outdoor use, and can withstand water spray, rain, and condensation. Equipped with advanced PWM technology, it supports both 12V and 24V off-grid applications, and is compatible with 4 different battery types, including Lithium Iron Phosphate. The Voyager 20A also ensures your system's longevity with solar panel, battery, and controller protections.
Note: Please set the voltage manually to charge lithium batteries.
Efficient, Stable, and Safe Charging
Utilizing smart PWM technology, the Voyager provides 4-stage charging (Bulk, Absorption, Float and Equalization) in order to protect the battery. It also provides multiple battery, controller, and PV electronic protections to ensure charging and usage safety.
Compact and lightweight
The Renogy Voyager PWM Waterproof Controller is compact and lightweight, making it perfect for applications with limited space. With a weight of only 0.55lb, a height of 3.84 inches and a width of 6.08 inches, this controller is ready to be installed in small spaces.
Common Positive Ground
The Voyager PWM Waterproof Controller is a common positive ground charge controller, beneficial in ensuring charging safety.
Temperature Monitor and Compensation
Fitted with a Remote Temperature Sensor Port, the Voyager can measure battery temperature in real-time and use this data for very accurate temperature compensation, assuring stable and constant charging.
Extremely Low Self-Consumption
In a 12V system, the Voyager PWM Waterproof Controller only needs 0.22w/h or 1.92kmh/365days. Therefore, consuming extremely low levels of energy while working to charge your battery.
Automatic Voltage Detection
The Voyager PWM Waterproof Controller supports both 12V and 24V systems and can automatically identify system voltage once connected to a Gel, AGM, Flooded battery bank. Please set the voltage manually to charge lithium batteries.
Package Includes:
- New Edition Voyager 20A PWM Waterproof Solar Charge Controller x 1
Speciifications:
Electrical Parameters
- Nominal System Voltage: 12/24V Auto-Detection (For Non-Lithium Batteries)
- Rated Charge Current: 20A
- PV Input Voltage Range: 15V-55V
- Max. Pv Open Circuit Voltage: 12V@25V 24V@55V
- Max. PV Input Power: 12V @ 260W / 24V@520W
- Battery Types: SLD/AGM, GEL, FLD. LI
- Power Consumption: 12V @ 0.24W / 24V@0.74W
- Max Battery Voltage: 32V
- Ground Type: Positive
- Electrical Protection: Battery/Controller over-temperature protection, PV/Battery reverse polarity, Over-voltage, Over-current protection
- Communication Port: N/A
Environmental Data
- Protection Level: IP67
- Operating Temperature Range: -31°F - 113°F
- Storage Temperature Range: -31°F - 167°F
- Operating / Storage Humidity: 10%-90%, No Condensation
- Temperature Compensation: '-3mV/C/2V excludes LI
Mechanical Specifications
- Dimensions: 6.08*3.83*1.40 in
- Weight: 0.55Ibs
- Max. Cable Size: 6 AWG
- Controller Terminals: 20 - 6 AWG, 2-pin terminals
- Optional Accessories
- Temperature Sensor RTSVOY-US: 22AWG 10FT
WARRANTY INFORMATION
- Accessories: 2-year material warranty
- Charge Controllers: Voyager
