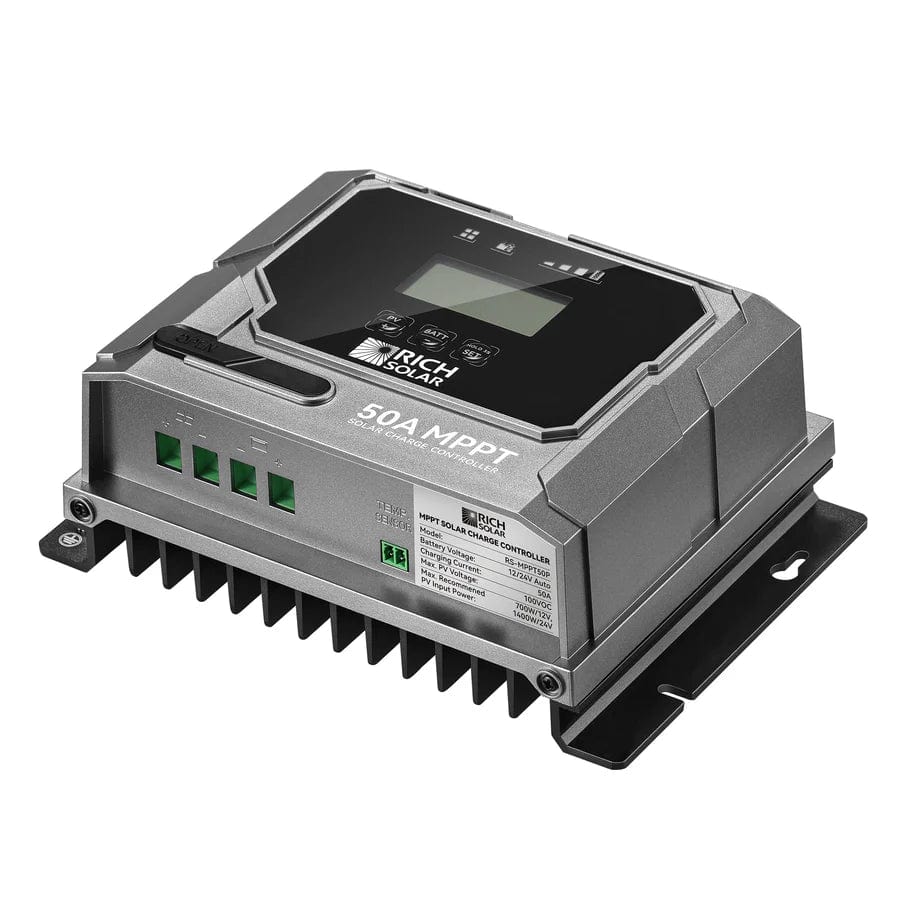

Introducing the BRAVO 50 | 50 Amp MPPT Solar Charge Controller by Rich Solar. With premier 50A 12V/24V MPPT technology, this controller is perfect for RVs, trailers, campers, vans, boats, and off-grid living. Awarded #1 Solar Controller 2024, trust in its advanced features for efficient and reliable solar charging.
Features:
- True MPPT, the Latest Algorithm
- Tracking Efficiency Above 99.5%
- Charge Conversion Efficiency as high as 98%
- 12V / 24V DC System Self-Adaptation
- Reverse Discharge Protection
- Targeted for Accurate CUSTOM Setting
- Overvoltage Protection
- Common Negative Connection
- Charging Data Storage
- Conformal Coating For Inside Board
- Designed According to UL1741, EN/IEC 62109 1
- In-house Design And Manufacture
- Extensive Internal Electronics In-Circuit Protections And Safety Protections
- Targeted For Lead Acid Batteries: Gel, AGM, WET, CRYSTAL, CALCIUM Batteries Type Selections
- Targeted For Lithium Batteries: LiFePO4, LTO (Lithium Titanium Oxide), LCO Batteries Type Selections
Unique Performance:
- Splash Proof IP43
- 8+1 Battery Type Option
- Rubber Mask For Connectors Protection
- Unique Charge Management Technology For Safe And
Optimized Charge
- Unique Multiple Peaks Detected Technology For Maximum
PowerPoint Tracking
- Housing Enclosure In Patent Application
- Large and Informative LCD Display To Show Solar, Battery
and Setting Parameters
- Unique Fully Discharged Battery Recovery Or Re-Start For
Lead Acid or Lithium Battery
-
Unique and Concise LED Bar / Transparent Windows
Indications In Patent Application
Specifications:
| ATTRIBUTE |
VALUE |
| System Nominal Voltage: |
12/24V Auto |
| Max PV Open Circuit Voltage: |
100V DC |
| Charging Technology: |
MPPT |
| Max PV Charging Current: |
50A |
| Max. Recommended PV Input Power |
700 Watt (12V) / 1400 Watt (24V) |
| Battery Type Preset: |
Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO |
| Housing Case Color: |
Black / Grey |
| IP Grade: |
IP43 for Inside PCBA, IP22 for Connection Area |
| Net Weight: |
1.40kg / 3.09lb |
| Dimensions (L*W*H): |
195*140*74 mm / 7.7*5.5*2.9 in |
