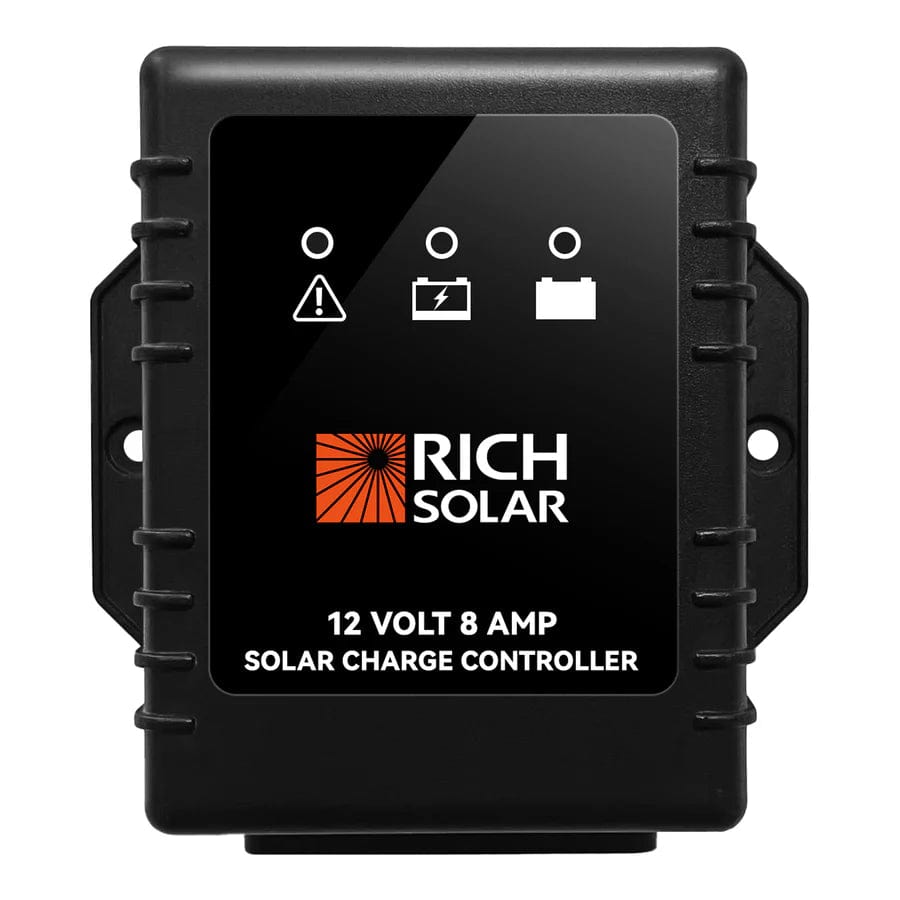

Rich Solar BRAVO Waterproof 8 | 8 Amp Waterproof PWM Solar Charge Controller

by Rich Solar
SKU BDRS-PWM8
$29.00

Notify me when back in stock

The Rich Solar BRAVO Waterproof 8 is the top-rated waterproof solar charge controller, perfect for off-grid living. With its 8 amp PWM technology, this controller is designed for RVs, trailers, campers, vans, boats, and other outdoor vehicles. Keep your battery charged and protected no matter the weather conditions.

Features:

  • PWM technology, switching control by MOSFET
  • Common Positive Grounding connection
  • High efficiency and low power consumption
  • Battery type setting via DIP switch
  • Smart charging control
  • Charging time management
  • LED indication for the battery condition and charging status
  • Thermal protection
  • No sparks
  • Waterproof
  • Corrosion-resistant terminals and connectors.
  • Conformal coating supplied to the inside board against moisture
  • Overvoltage protection, Short circuit protection, Reverse polarity protection
  • Suitable for most of the rechargeable Lead acid battery, including Flooded (WET), AGM, GEL, Lithium (LiFePO4) battery
  • Designed according to CE standards, EMC, and FCC compliance

Specifications:

ELECTRICAL PARAMETERS

Rated solar panel amps: 8AMP Max.
Normal input Solar cell array voltage: 15-22VDC
Max. solar cell array voltage (output has no load): 25VDC Max.
The controller lowest operating voltage (at solar or battery side): 9VDC Min.
Standby current consumption at night 2mA Max.
Maximum voltage drop-Solar panel to battery: 0.25VDC Max.


CHARGING CHARACTERISTICS

Minimum battery start charging voltage: 3VDC Min.
Soft start charging voltage: 3-10±0.2VDC
Soft start charging current (50% PWM duty): Up to 4AMP
Bulk charge voltage: 10-14±0.2VDC
Equalization charging voltage at 25 ℃ 15.5±0.2VDC
Equalization charging timer timed out: 2 Hours
Battery temperature compensation coefficient -24mV/°C
Temperature compensation range: -20~+50°C


PROTECTION

Over temperature protection during charging: 65°C


ELECTRICAL PARTS

Input output terminal: M4 terminals


PHYSICAL PARAMETERS

Controller material: Plastic, Standard ABS
Power terminal maximum stranded wire size: #12AWG stranded-3mm²
Mounting: Vertical wall mounting
IP grade: IP65
Net weight: Approx. 0.2kg/0.44lb


ENVIRONMENTAL CHARACTERISTICS

Operating temperature: -25~50°C(-13～122℉)
Storage temperature: -40~85°C(-40～185℉)
Operating Humidity range: 100% no condensation
