ST-15CF Sunstar Freezer with Solar Kit B

Are you looking for a reliable solution to keep your food fresh and your beverages cold, even in off-grid locations. Look no further than the ST-15CF Sunstar Solar Freezer Kit. With the ST-15CF Sunstar Solar Freezer Kit B, you can enjoy reliable, off-grid refrigeration, ensuring your perishable items stay fresh wherever you are.

This kit is for the following states: SC. GA. FL. AL. MS. LA. AR. TX. OK. KS.
NB. WY. CO. NM. AZ. UT. OR. NV. CA.

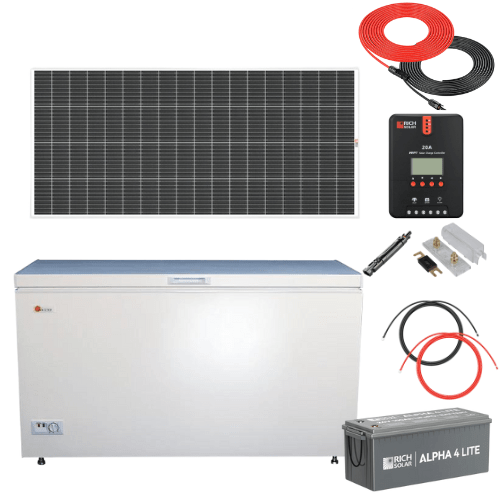

What's Included in the ST-15CF Sunstar Freezer Kit B:

• 1 x ST-15CF Solar Freezer
• 1 x 24V 100AH Lithium Battery - One battery will last 3.5 days (Option: Add another battery for additional days of autonomy)
• 1 x  200W Panel

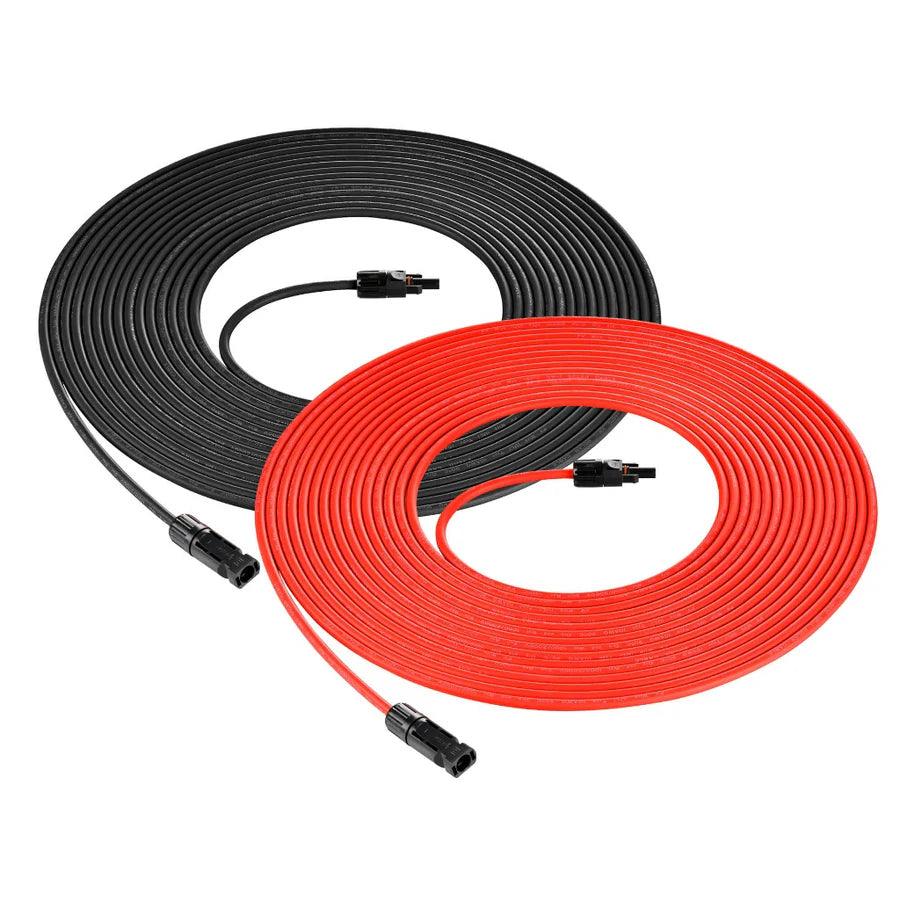

• 1 x 10 Gauge (10AWG) Cable Wire Connect Solar Panel to Charge Controller (Red & Black) 30ft

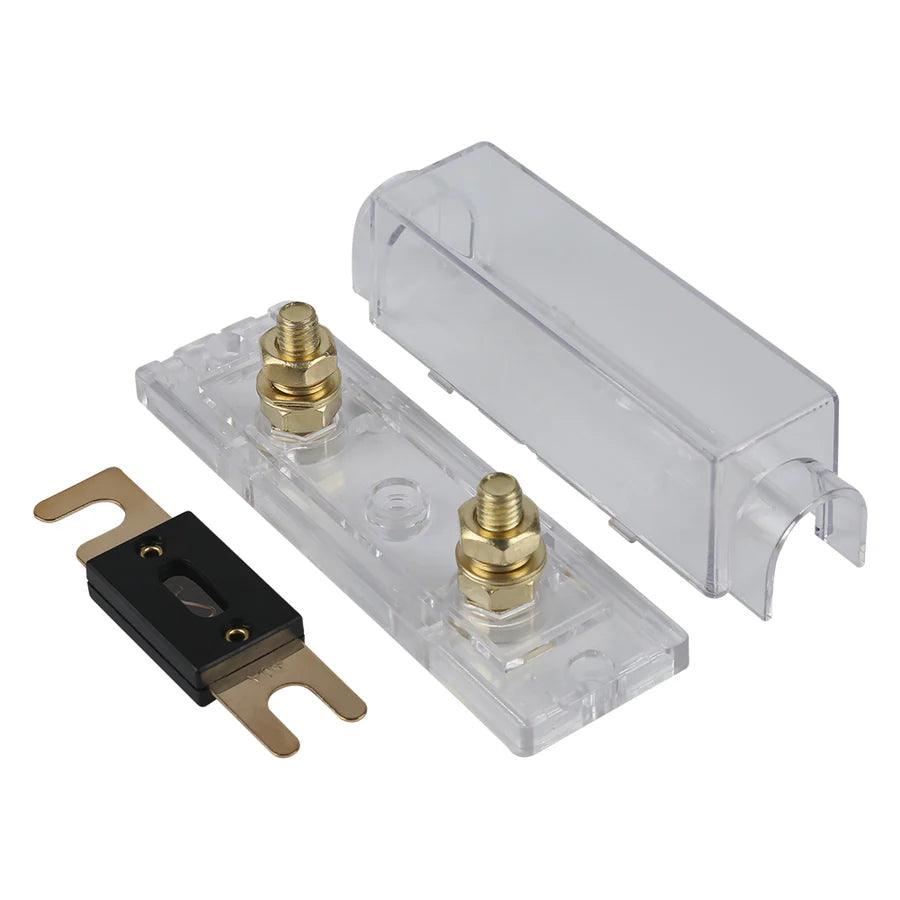

• 1 x 20A ANL Fuse (CC to Battery)

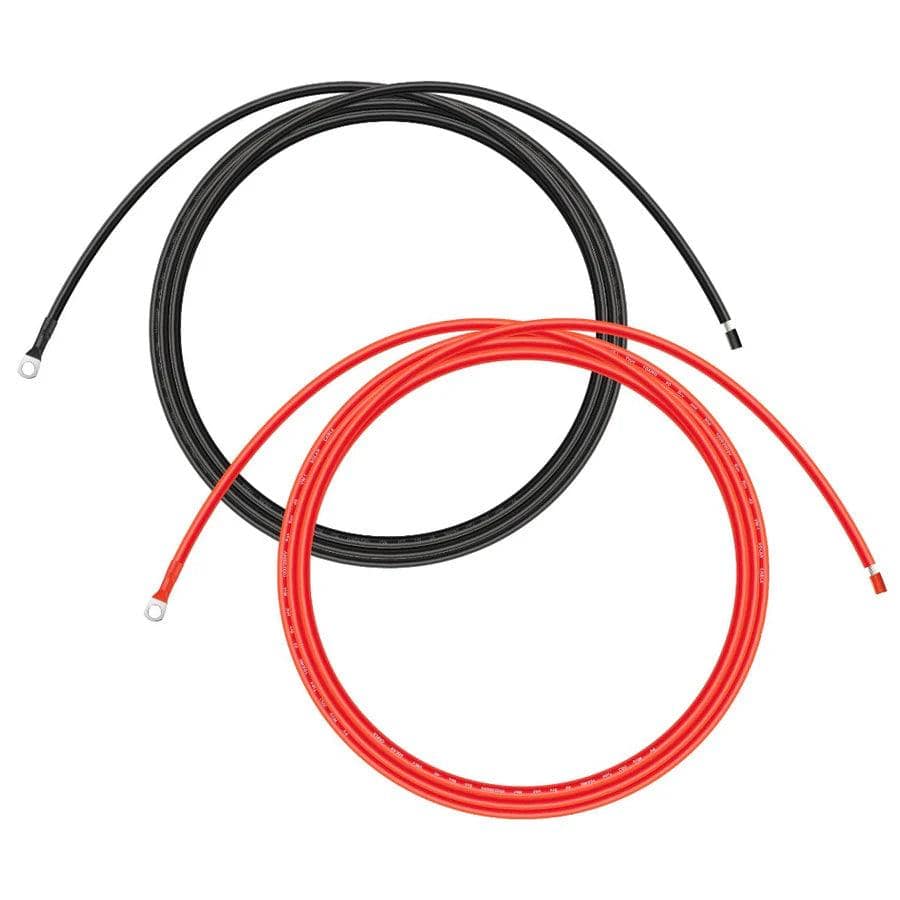

• 1 x 10AWG Cable Wire Connect Charge Controller to Battery (Red & Black) 10ft.
• 1 x  20 Amp MPPT Solar Charge Controller
• 1 x 15A Inline Fuse Holder with Fuse

Note:

Available with 12V battery. Contact us (1-800-771-7702) for more information.

Specifications:

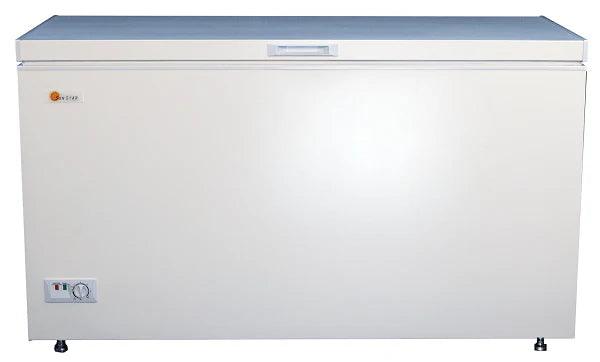

ST-15CF Solar Freezer:

• Manual
• Total Volume:    425 Liters / 15 Cu Ft
• Cooling System:    Direct Cooling
• Temperature Control:    Mechanism
• Rated Operating Voltage:    115V AC / 60 Hz
• Fuse Rating (A):    15 Amp
• Typical Power Draw:    80 Watt / 115V 0.69 Amp
• Refrigeration Agent:    R134A
• Inside Product Dimension (in):    W 54.25 / H 27.375 / D 19.5
• Outside Product Dimension (in):    W 63.75 / H 37.75 / D 30.75
• Carton Box Dimension (in):    W 67 / H 41 / D 32
• Weight Per Carton / Net Weight:    215 lb. / 190 lb.
• Performance Warranty:    2 Year


Energy Consumption Guide (based on a 24-hour time period)

• Ambient Temp (Below): 77 ℉ (25 ℃)
• +38 ℉ (+3 ℃): 220 Watt Hours
• +0 ℉ (-18 ℃): 545 Watt Hours

24V 100Ah LiFePO4 Lithium Iron Phosphate Battery

• Specifications

BATTERY

• Nominal Voltage:25.6V
• Nominal Capacity:100Ah
• Minimum Capacity:99.5Ah
• Cycle Life:>4000 cycles

Operating Specifications

• Capacity:100 Ah
• Energy:2560 Watt Hours
• Charge Voltage:28.8V
• Continuous Discharge Current:100A
• Self Discharge:< 5%/month

Temperature Performance

• Charge Temperature:32℉ to 131℉ (0℃ to 55℃)/p>
• Discharge Temperature:-4℉ to 140℉ (-20℃ to 60℃)
• Storage Temperature:14°F-113°F / -10℃~45℃ 90％RH Max (More than 3 months)

Physical Specifications

• Battery Dimensions(L*W*H):20.9x8.1x8.5 in
• Weight:52.9 lb

BMS Operation

Over Charge Protection

• Over charge detection voltage:3.75V±0.05V
• Over charge detection delay time:1000ms±500ms
• Over charge recovery voltage:33.55V±0.05V

Over Discharge Protection

• Over discharge detection voltage:2.20V±0.08V
• Over discharge detection delay time:1000ms±500ms
• Over discharge recovery voltage:2.70V±0.10V

Short Circuit Protection: Yes

Warranty: 5 years warranty

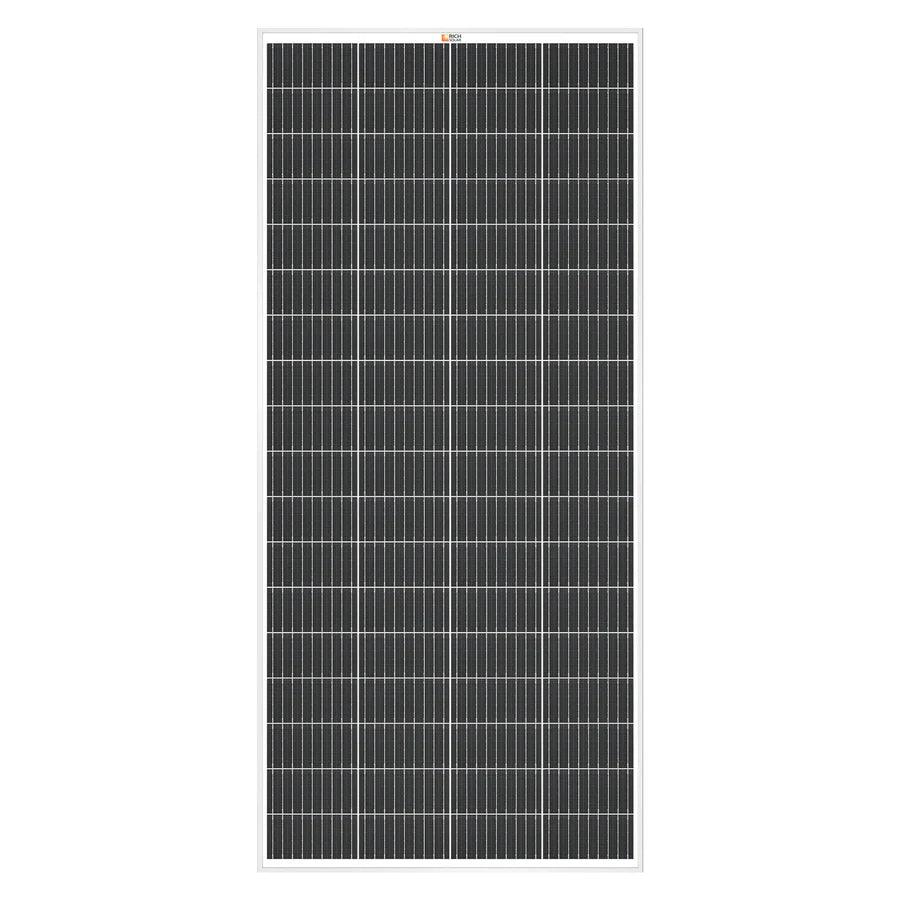

MEGA 200 Watt Monocrystalline Solar Panel

• Specification Sheet
• Certification
• Maximum Power(Pmax): 200W
• Maximum Power Voltage(Vmp: 37.6V
• Maximum Power Current(Imp): 5.32A
• Open Circuit Voltage(Voc): 45.4V
• Short Circuit Current(Isc): 5.83A
• Maximum System Voltage(Vmax): 1000VDC
• Temperature Range: -40°F~+185°F
• Max Series Fuse Rating: 15A
• Weight: 26.5 lbs
• Dimensions: 58.7 x 26.8 x 1.4 in

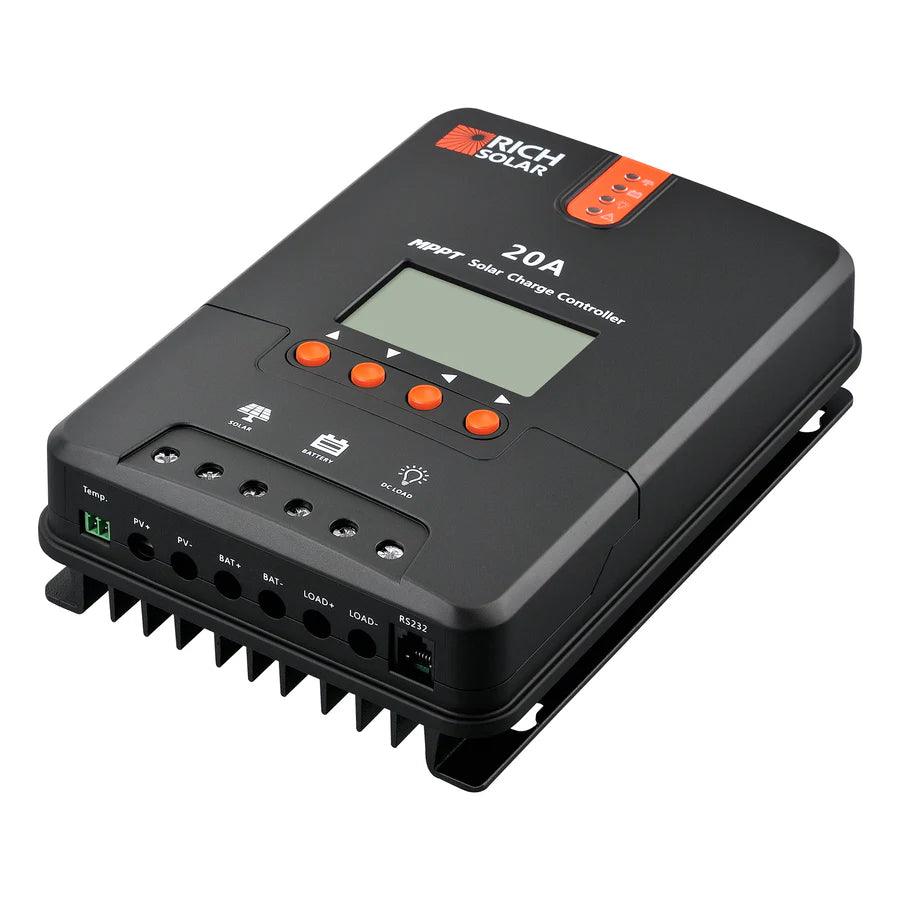

20 Amp MPPT Solar Charge Controller

• Manual
• Specification
