Are you looking for a reliable solution to keep your food fresh and your beverages cold, even in off-grid locations. Look no further than the ST-8CF Sunstar Solar Freezer Kit. With the ST-8CF Sunstar Solar Freezer Kit A, you can enjoy reliable, off-grid refrigeration, ensuring your perishable items stay fresh wherever you are.
This kit is for the following states: IN. IL. MO. IA. MN. WI. MI. OH. KY. TN. NC. VA. WV. ML. PA. NY. MA. VT. CO. MA. DE. NJ. SD. ND. MT. ID. RI. WA. TX.

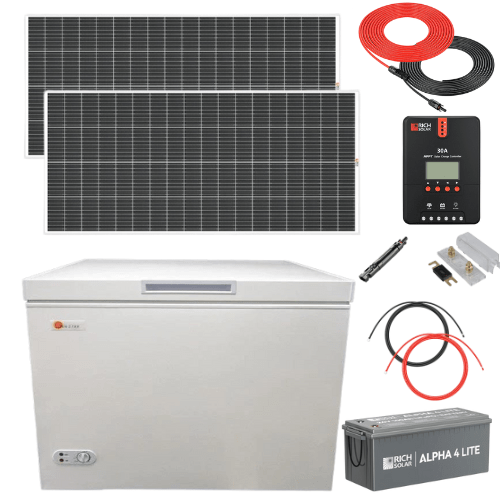

What's Included in the ST-8CF Sunstar Freezer Kit A:
- 1 x ST-8CF Solar Freezer
- 1 x 24V 100AH Lithium Battery - One battery will last 5 days (Option: Add another battery for additional days of autonomy)
- 2 x 200W Panel

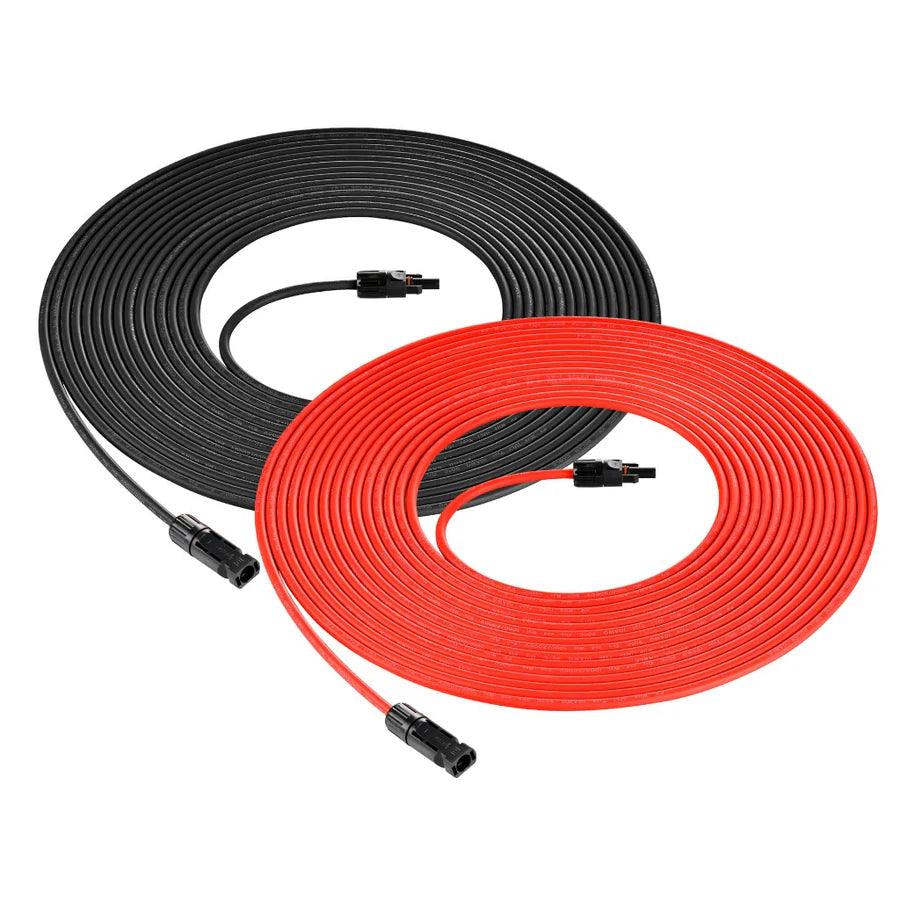

- 1 x 10 Gauge (10AWG) Cable Wire Connect Solar Panel to Charge Controller (Red & Black) 30ft

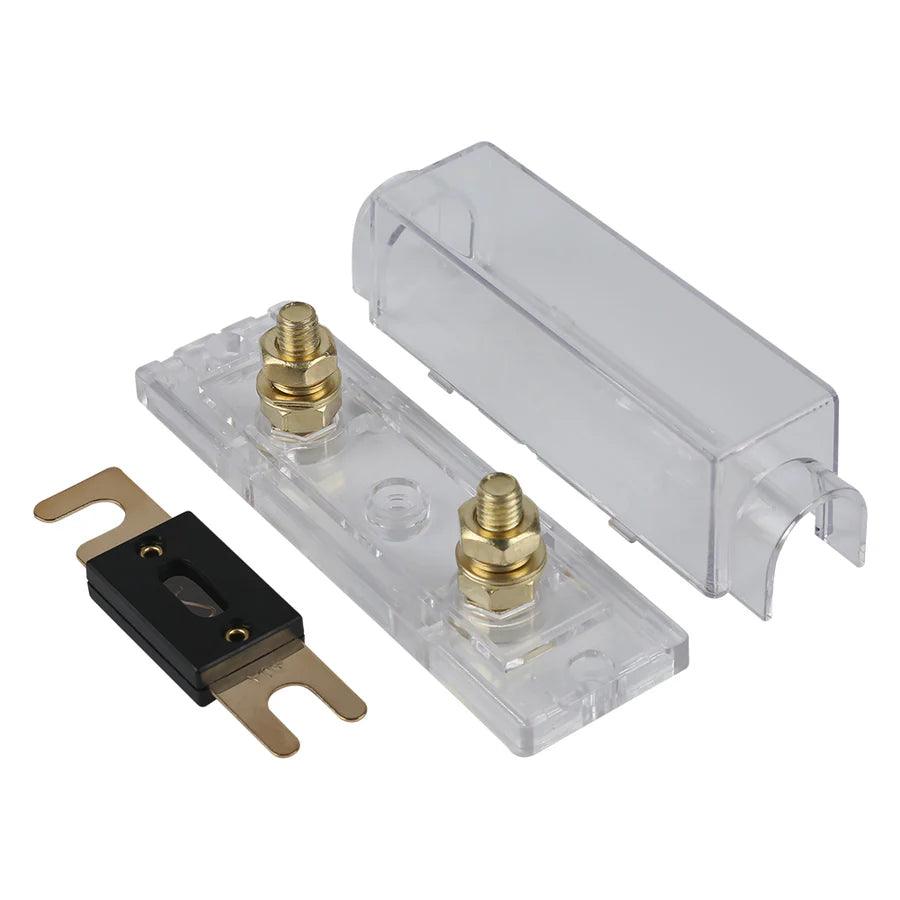

- 1 x 30A ANL Fuse (CC to Battery)

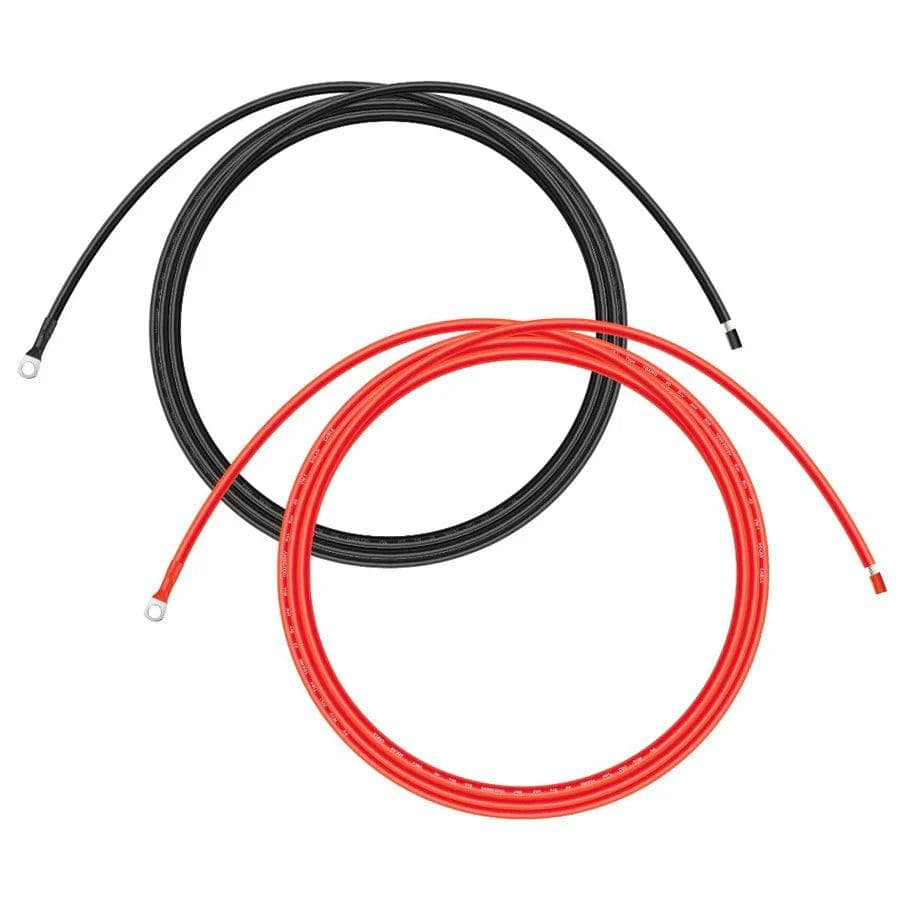

- 1 x 10AWG Cable Wire Connect Charge Controller to Battery (Red & Black) 10ft.
- 1 x 30 Amp MPPT Solar Charge Controller

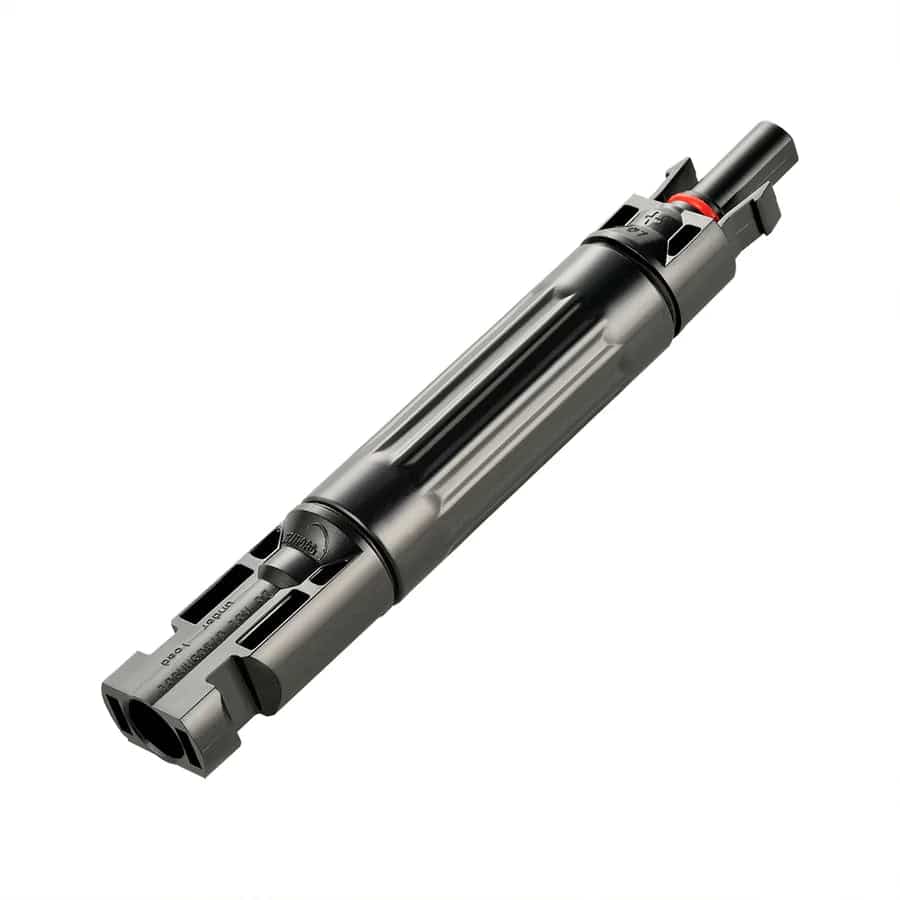

- 1 x 15A Inline Fuse Holder with Fuse
Specifications:
ST-8CF Solar Freezer:
- Manual
- Total Volume: 227 Liters / 8 cu ft
- Cooling System: Direct Cooling
- Temperature Control: Mechanism
- Rated Operating Voltage: 12V 9.6 - 17V / 24V 21.3 - 31.5V
- Rated Current (A): 20 / 10 Amp 12/24 VDC
- Typical Power Draw: 55 Watt
- Refrigerant Agent: R134A
- Blowing Agent: Polyurethane
- Product Dimensions (inches): Width 41" x Height 37" x Depth 28.75"
- Carton Box Dimension (inches): Width 44" x Height 42" x Depth 36"
- Product Weight: 130 lbs.
- Shipping Weight: 144 lbs
- Performance Warranty: 2 Yrs
- Energy Consumption Guide (Based on 24 Hr Time Period) @ 12VDC with No Door Openings
| Room Temp (Below) |
@ 38° F (+3° C) |
@ 0° F (-18° C) |
| 70° F (21° C) |
125 WHR |
345 WHR |
| 90° F (32° C) |
195 WHR |
495 WHR
|
24V 100Ah LiFePO4 Lithium Iron Phosphate Battery
BATTERY
- Nominal Voltage:25.6V
- Nominal Capacity:100Ah
- Minimum Capacity:99.5Ah
- Cycle Life:>4000 cycles
Operating Specifications
- Capacity:100 Ah
- Energy:2560 Watt Hours
- Charge Voltage:28.8V
- Continuous Discharge Current:100A
- Self Discharge:< 5%/month
Temperature Performance
- Charge Temperature:32℉ to 131℉ (0℃ to 55℃)/p>
- Discharge Temperature:-4℉ to 140℉ (-20℃ to 60℃)
- Storage Temperature:14°F-113°F / -10℃~45℃ 90％RH Max (More than 3 months)
Physical Specifications
- Battery Dimensions(L*W*H):20.9x8.1x8.5 in
- Weight:52.9 lb
BMS Operation
Over Charge Protection
- Over charge detection voltage:3.75V±0.05V
- Over charge detection delay time:1000ms±500ms
- Over charge recovery voltage:33.55V±0.05V
Over Discharge Protection
- Over discharge detection voltage:2.20V±0.08V
- Over discharge detection delay time:1000ms±500ms
- Over discharge recovery voltage:2.70V±0.10V
Short Circuit Protection: Yes
Warranty: 5 years warranty

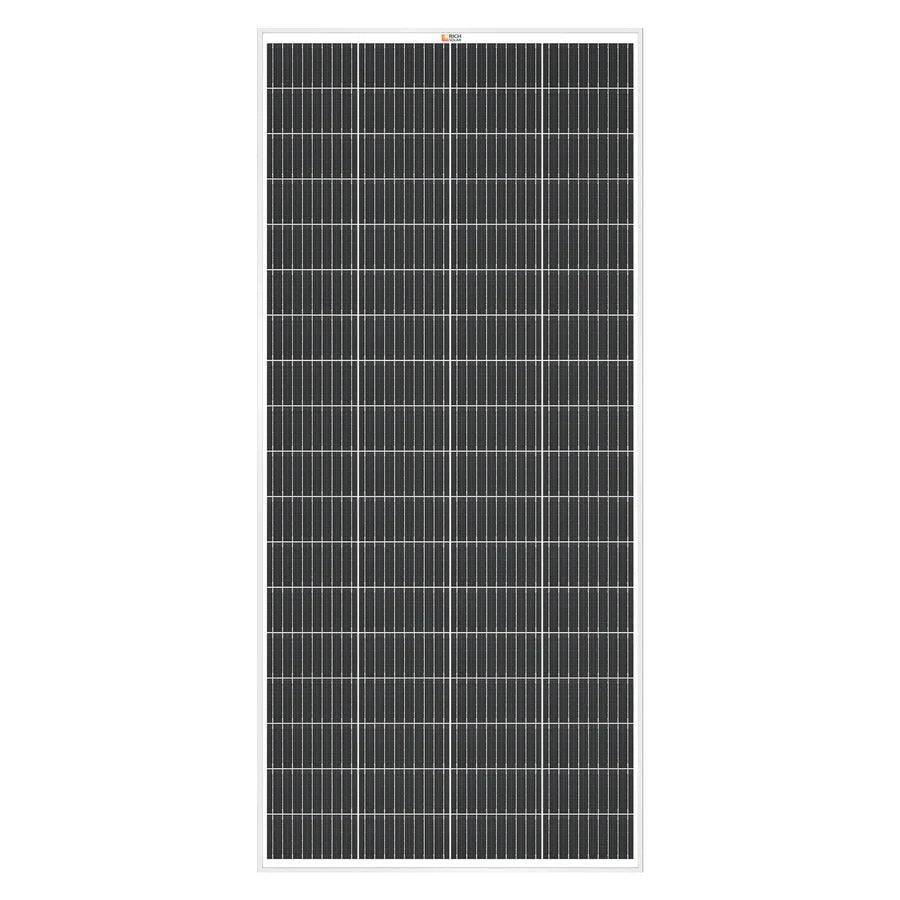

MEGA 200 Watt Monocrystalline Solar Panel
- Specification Sheet
- Certification
-
Maximum Power(Pmax):200W
- Maximum Power Voltage(Vmp: 37.6V
- Maximum Power Current(Imp): 5.32A
- Open Circuit Voltage(Voc): 45.4V
- Short Circuit Current(Isc): 5.83A
- Maximum System Voltage(Vmax): 1000VDC
- Temperature Range: -40°F~+185°F
- Max Series Fuse Rating: 15A
- Weight: 26.5 lbs
- Dimensions: 58.7 x 26.8 x 1.4 in

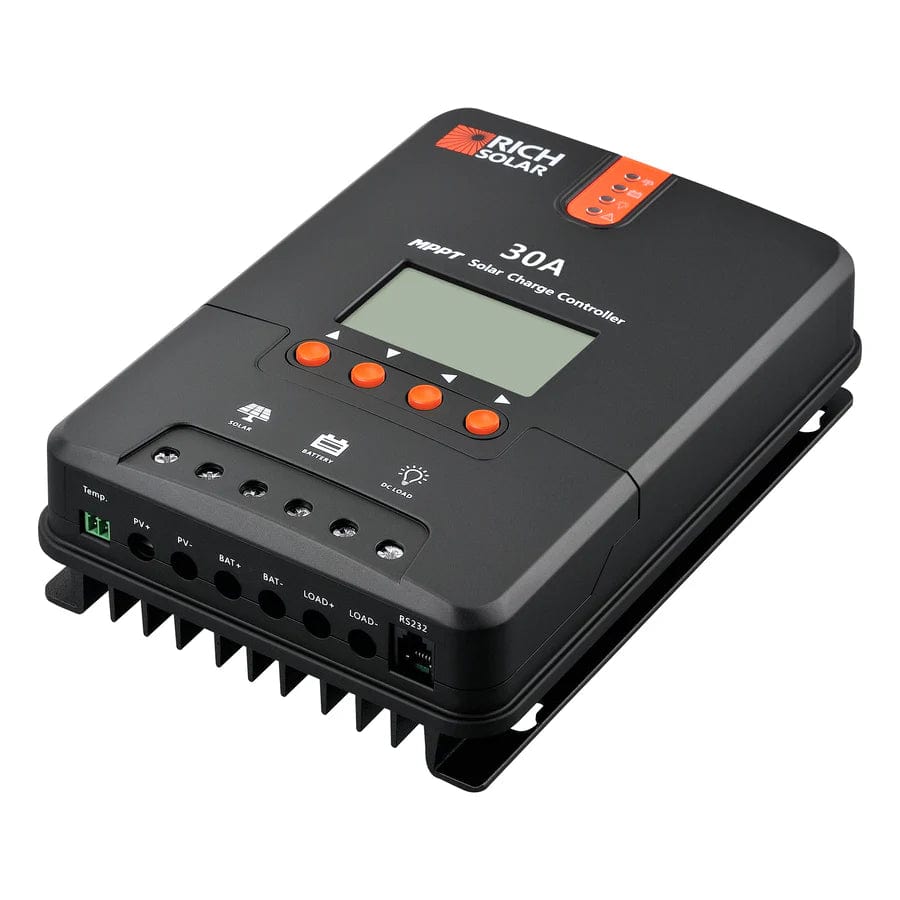

30 Amp MPPT Solar Charge Controller
| Nominal System Voltage: |
12V/24V Auto
|
| Rated Charging Current: |
30A |
| Rated Load Current: |
20A |
| Max Solar Input Voltage: |
100V(25?), 90V(-25?)
|
| Discharge Circuit Voltage drop: |
= 0.15V |
Net Weight:
|
4.41lbs
|
| Overall Dimension: |
9.37 x 6.81 x 2.85in
|
Battery Wire Diameter:
|
6mm²
|
Load Wire Diameter:
|
5mm²
|
No-load Loss:
|
0.7W to 1.2W
|
Battery Voltage:
|
9V to 35V
|
Max. Power Point Voltage Range:
|
Battery Voltage +2V to 75V
|
Max. Photovoltaic System Input Power:
|
400W/12V, 800W/24V
|
Conversion Efficiency:
|
=98%
|
MPPT Tracking Efficiency:
|
>99%
|
Temperature Compensation Factor:
|
-3mv//2V Default
|
Operating Temperature:
|
-35°C to +45°C
|
Protection Degree:
|
IP32
|
Communication Method:
|
RS232
|
Altitude:
|
=3000m
|
Max. Capacitive Load Capacity:
|
1000uF |
