Fully featured 2-door refrigerator-freezer and compact microwave with USB ports and a built-in allocator for one-plug operation
Summit's innovative MRF series offers combination refrigerator-microwaves with one-plug operation, ideal for hotels and other settings looking to maximize user convenience.

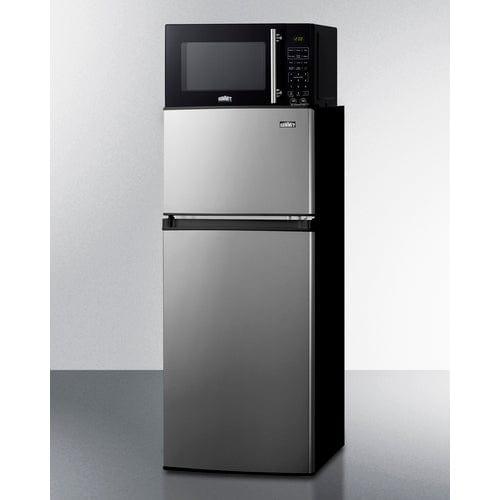

Model MRF73PLA combines a fully featured compact microwave with our two-door mid-sized CP73PL refrigerator-freezer. The complete unit is sized at just 19" wide for an easy fit. The refrigerator-freezer comes in a black cabinet finish with user-reversible doors in a stainless steel look, offering an attractive appearance without the need to clean off fingerprints and smudges. The microwave includes a built-in allocator, allowing you to plug the fridge directly into the microwave. The allocator will temporarily disable the power of the refrigerator while the microwave is in use, resuming after the cooking cycle is complete in order to protect against power surges.
The SM903BSA1 microwave comes in a jet black finish with an easy-grab handle in brushed stainless steel to complement the refrigerator. Two USB ports are included to charge mobile devices. The microwave has a door window and digital touchpad control panel with one-touch settings for common meals, including frozen food, potatoes, pizza, and popcorn. The display and end-of-cycle alerts can be disabled and muted as needed. We include two brackets that let you set the microwave on top of the refrigerator and gently secure with included adhesive.
The MRF73PLA ships on one pallet in three boxes (refrigerator-freezer CP73PL, microwave SM903BSA1, and our MRFKit bracket set). If you prefer to have the unit fully assembled before shipping, add option "MRFAssembly" upon order (note: this will incur an additional charge and added lead time). Alternate combinations can be created by ordering your choice of a Summit refrigerator, the SM903BSA1 microwave, and our MRFKit. For more information, contact our product specialists at 718-893-3900 ext. 507.
|
Overview
|
| Height of Cabinet |
54.38" (138 cm) |
| Width |
18.5" (47 cm) |
| Depth |
19.13" (49 cm) |
| Depth with door at 90° |
36.0" (91 cm) |
| Capacity |
4.5 cu.ft. (127 L) |
| Defrost Type |
Cycle |
| Door |
Stainless Look |
| Cabinet |
Black |
| US Electrical Safety |
CSA |
| Canadian Electrical Safety |
CSA-C |
| Amps |
15.0 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
95.0 lbs. (43 kg) |
| Shipping Weight |
87.0 lbs. (39 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101084602 |
|
Microwave-Refrigerator
|
| Refrigerator Included |
CP73PL |
| Refrigerator Door Swing |
RHD |
| Reversible |
Yes |
| Adjustable Shelves |
Yes |
| Shelf Type |
Glass |
| Shelf Qty |
6 |
| Crisper Qty |
1 |
| Crisper Finish |
Transparent |
| Crisper Cover |
Glass |
| Full Door Shelves |
2 |
| Half Door Shelves |
4 |
| Can Storage |
Yes |

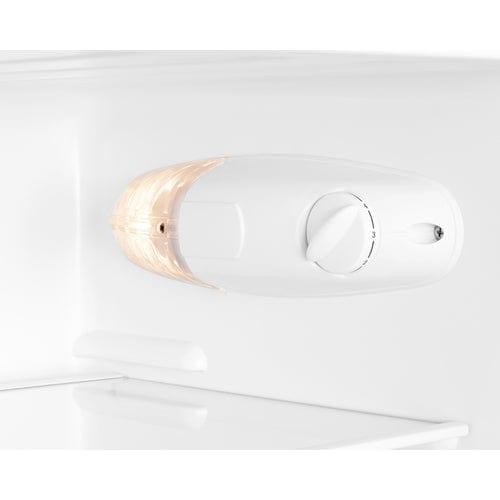

| Thermostat Type |
Dial |
| Interior Light |
Yes |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
1.37 oz. |
| High Side PSI |
150.0 |
| Low Side PSI |
60.0 |
| Refrigerator Interior Height |
27.0" (69 cm) |
| Refrigerator Interior Width |
15.5" (39 cm) |
| Refrigerator Interior Depth |
14.5" (37 cm) |
| Freezer Interior Height |
9.63" (24 cm) |
| Freezer Interior Width |
14.0" (36 cm) |
| Freezer Interior Depth |
14.0" (36 cm) |
| Compressor Step Height |
7.5" (19 cm) |
| Compressor Step Width |
15.5" (39 cm) |
| Compressor Step Depth |
4.0" (10 cm) |
| Level Legs |
2 |
| Microwave Wattage |
700.0 |
| Microwave Controls |
Digital |
| Specialized Cooking Buttons |
Yes |
| Exterior |
| MRFAssembly - Have the microwave pre-installed on top of the refrigerator before shipping |
LHD - Left hand door swing |
| Latch - Factory-installed door latch requires manual release to open unit |
|

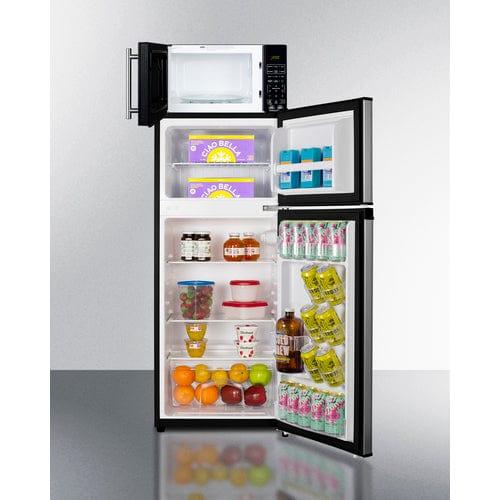

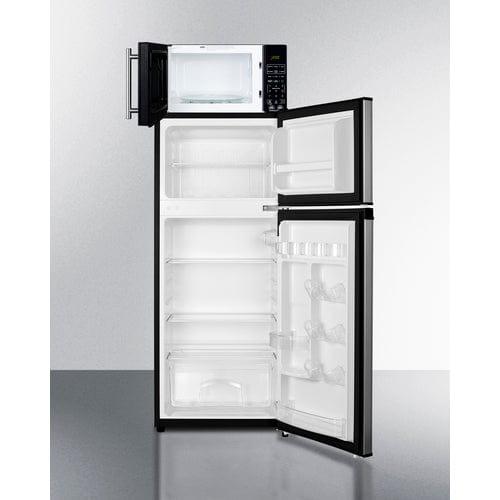

CP73PL Refrigerator-freezer
Two-door mid-sized refrigerator-freezer with cycle defrost and deluxe interior that includes glass shelving, door racks, can holders, and a crisper
SM903BSA1 microwave
Compact microwave in black with window, stainless steel handle, and digital controls for easy operatoin

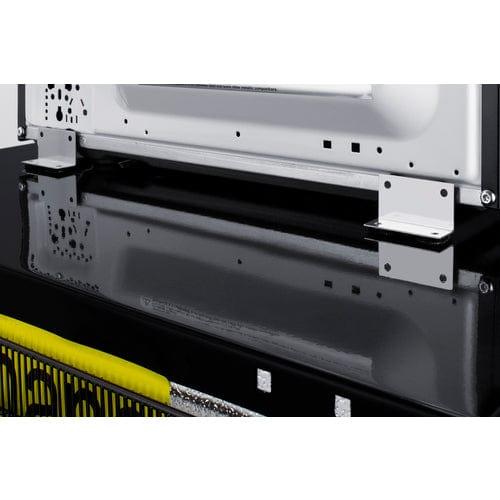

Easy assembly

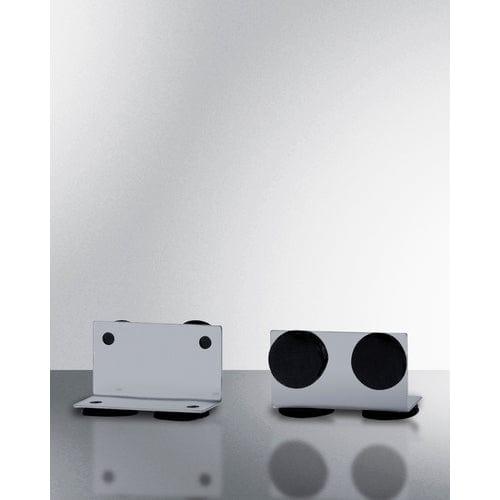

Ships with two removable brackets that let you secure the microwave on top of the refrigerator

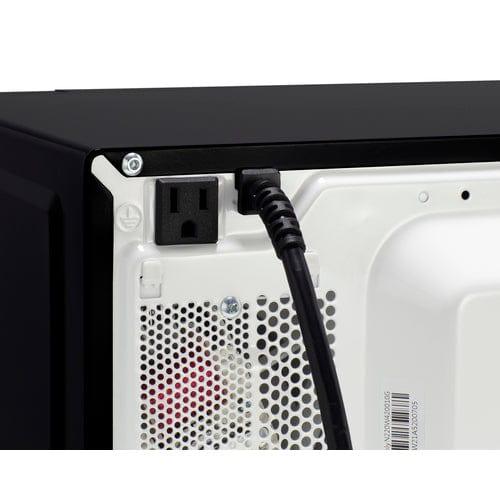

Built-in power allocator
Plug the refrigerator into the microwave's rear outlet for easy 1-plug operation that will temporarily disable the fridge while the microwave is in use to prevent power surges

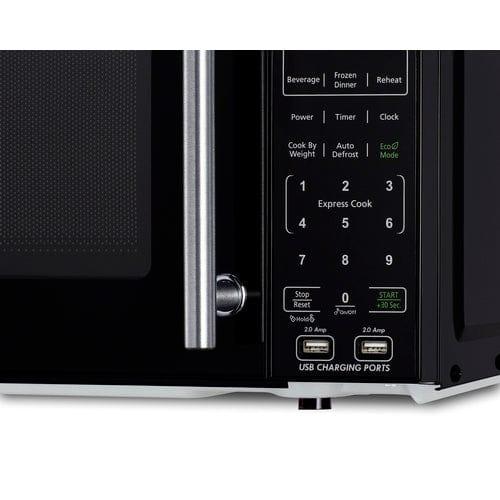

(2) USB ports
Charge your mobile devices through the pre-installed ports, located on the microwave's front for added convenience
Cycle defrost
Combines an automatic defrosting refrigerator with a static manual defrosting freezer to minimize maintenance while protecting freezer contents
Reversible doors (refrigerator)
User-reversible door swing for added flexibility
Sealed back
Allows for a better fit and easier cleanability
Stainless steel handle (microwave)
Easy-grab handle in brushed stainless steel elevates the look for the microwave
One-touch cooking
Pre-programmed settings for potatoes, pizza, beverages, popcorn, frozen dinners, and reheating, as well as options for multi-stage cooking, cook by weight, and auto defrost
Mute function
Press and hold ON/OFF for 3 seconds to disable the sound of your microwave
Eco Mode
Power-saving option lets you disable the digital display
Right angle plug (microwave)
Microwave's cord design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Stainless steel look and black cabinet finish
Microwave and refrigerator cabinet comes in black, with the refrigerator doors offering the look of brushed stainless steel but in a fingerprint-resistant finish for easier cleaning
Thin-line design
Limited space is no problem for our thin-line models, designed specifically for those hard-to-fit spots
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
