Coil elements offer easy cooking and reliable durability, with a design manufactured in the USA.
Summit offers an extensive selection of slim-fitting cooktops designed and manufactured in the USA.

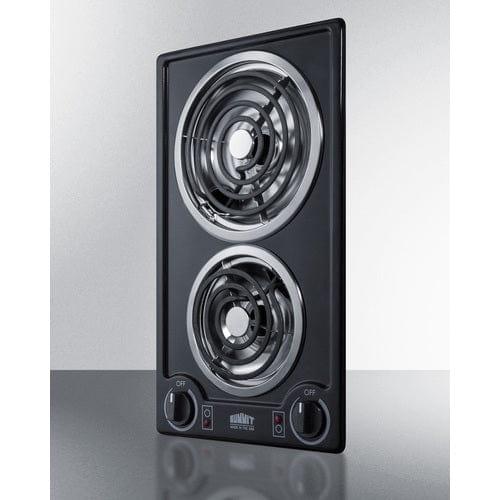

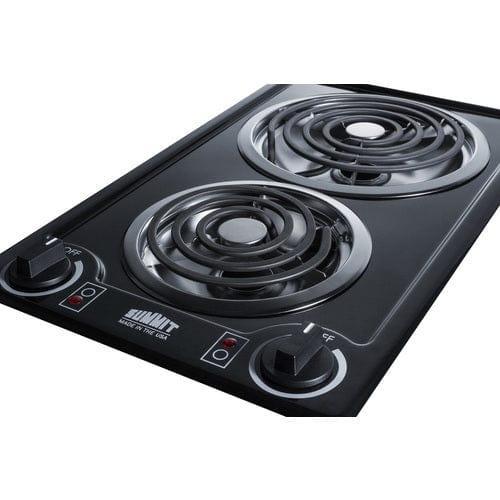

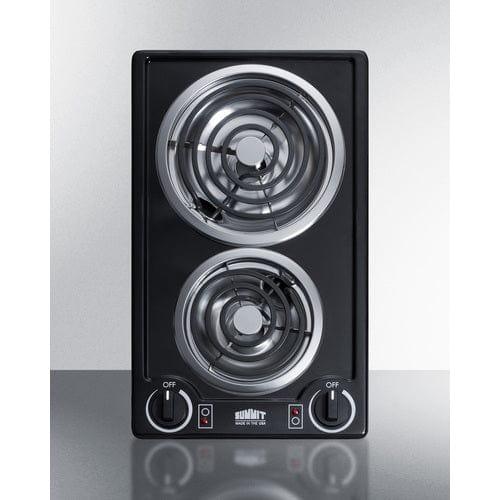

The CCE226BL is a 220-240V cooktop with a porcelain surface in a jet black finish. Two coil elements (6" 675W in front and 8" 950W in rear) offer durable heating that holds up to everyday use. Designed to meet the most recent UL safety standards, the elements operate at low wattage, allowing for a slow but steady heating process that will not cycle off. Each element includes a removable chrome drip pan for easier cleanup. Upfront push-to-turn knobs are simple and intuitive, with indicator lights that show which burner is in use for added safety. The recessed design helps to contain spills for a cleaner cooking experience.
This cooktop is designed to fit common 11 1/8" W x 19 1/8" D counter cutouts. This unit does not ship with a power cord and must be hard-wired by a professional. Additional choices are available in 115V, as well as white and stainless steel. Browse our website for our complete selection of slim-fitting cooking appliances.
|
Overview
|
| Height of Cabinet |
3.25" (8 cm) |
| Width |
12.0" (30 cm) |
| Depth |
19.75" (50 cm) |
| Cabinet |
Black |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Amps |
7.0 |
| Voltage/Frequency |
230 V AC/60 Hz |
| Weight |
14.0 lbs. (6 kg) |
| Shipping Weight |
20.0 lbs. (9 kg) |
| Parts & Labor Warranty |
1 Year |
| UPC |
761101060811 |
|
Electric Cooktop
|
| Surface |
Porcelain |
| Element Type |
Coils |
| Number of Elements |
2 |
| Controls |
Dial |
| Countertop Cutout Height |
5.0" (13 cm) |
| Countertop Cutout Width |
11.13" (28 cm) |
| Countertop Cutout Depth |
19.13" (49 cm) |
| Power Source |
230V |
| Element #1 Size |
6.0" (15 cm) |
| Element #1 Wattage |
675.0 |
| Element #2 Size |
8.0" (20 cm) |
| Element #2 Wattage |
950.0 |
| Power Cord Included |
No |
Made in the USA
Designed and constructed domestically
Fits popular cutout size
Designed for 11 1/8" W x 19 1/8" D cutouts for an easy fit in smaller kitchens
Black exterior
Jet black exterior for an easy complement to any kitchen space
Porcelain surface
Scratch-resistant design for lasting durability
Recessed top
Curved design helps to contain spills on the surface
Coil elements
Traditional design offers reliable heating and strong durability for everyday cooking
8" rear element
Larger element is ideal for heating wider pots and pans
6" front element
Standard burner accommodates most heating needs
Safety elements with low wattage outputs
Complies with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off
Chrome drip bowls
Removable drip pans for easier cleanup
Push-to-turn controls
Knobs require a small amount of force for added safety
Indicator lights
Upfront lights illuminate to show which burners are in use
ADA compliant design
Upfront controls and easy-to-operate knobs offer easier accessibility that complies with the Americans for Disabilities Act (ADA) guidelines
220-240V operation
Requires a 15 amp circuit
Professional installation required
Designed for hard-wired installation (cord not included)
