Made in the USA
Summit Appliance offers a wide selection of American-made household cooktops built for long-lasting durability in space-challenged kitchens.

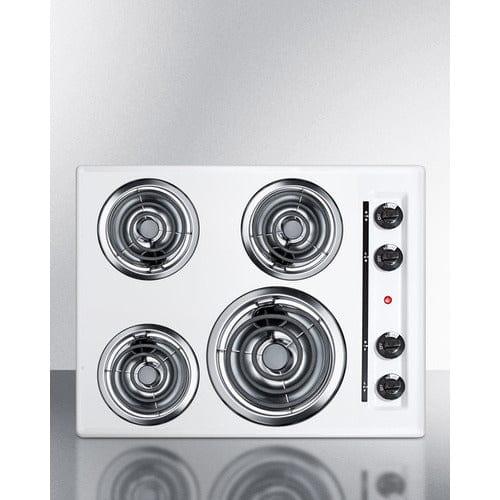

The WEL03 is a 24" wide 220-240V electric cooktop designed to fit 22 5/8" wide x 18 5/8" deep cutouts. It features a porcelain surface in a classic white finish, with a recessed design that helps to contain spills. Side-located push-to-turn knobs offer easy and safe use, with an indicator lights to show when the cooktop is on.
Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric cooktops, allowing for a slow but steady heating process that will not cycle off. Each element includes a removable chrome drip pan for easier cleanup. This is a 220V cooktop and requires professional installation. It is compatible with a standard 40 amp 3 or 4-wire range cord.
The WEL03 is designed and constructed in the USA. Additional finishes are available, as well as 30" sizes for larger kitchen spaces and matching wall ovens. Browse our website to explore our complete selection.
|
Overview
|
| Height of Cabinet |
3.75" (10 cm) |
| Width |
24.0" (61 cm) |
| Depth |
20.0" (51 cm) |
| Cabinet |
White |
| US Electrical Safety |
UL |
| Canadian Electrical Safety |
ULC |
| Amps |
30.0 |
| Voltage/Frequency |
230 V AC/60 Hz |
| Weight |
22.0 lbs. (10 kg) |
| Shipping Weight |
26.5 lbs. (12 kg) |
| Parts & Labor Warranty |
1 Year |
| UPC |
761101000732 |
|
Electric Cooktop
|
| Heating Type |
Radiant |
| Surface |
Painted |
| Element Type |
Coils |
| Number of Elements |
4 |
| Controls |
Dial |
| Countertop Cutout Width |
22.63" (57 cm) |
| Countertop Cutout Depth |
18.63" (47 cm) |
| Element #1 Size |
6.0" (15 cm) |
| Element #1 Wattage |
675.0 |
| Element #2 Size |
8.0" (20 cm) |
| Element #2 Wattage |
950.0 |
| Element #3 Size |
6.0" (15 cm) |
| Element #3 Wattage |
675.0 |
| Element #4 Size |
6.0" (15 cm) |
| Element #4 Wattage |
675.0 |
| Power Cord Included |
No |
Made in the USA
Designed and constructed domestically
Classic fit
Fits 22 5/8" W x 18 5/8" D counter cutouts
Porcelain cooking surface
Scratch-resistant top in a clean white finish
Coil elements
Traditional design offers reliable heating and strong durability for everyday use
Safety burners with low wattage outputs
Complies with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off
8" burner
Larger element is ideal for heating wider pots and pans
Three 6" burners
Standard burners accommodate most heating needs
Chrome drip pans
Each coil element includes a removable chrome pan to catch spills for easier cleanup
Recessed top
Curved design helps to contain spills on the surface
Side controls
Cooktop knobs are located on the right side of the cooktop, reducing the risk of accidentally adjusting the heating in busy kitchens
Push-to-turn controls
Knobs require a small amount of force for added safety
220-240V operation
Professional installation required
Cord not included
Compatible with standard 40 amp 3 or 4-wire range cords
