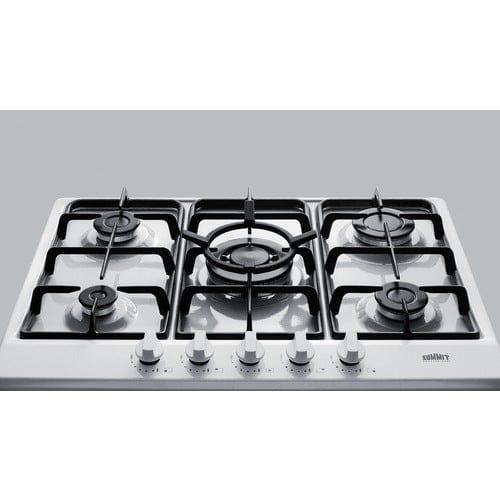

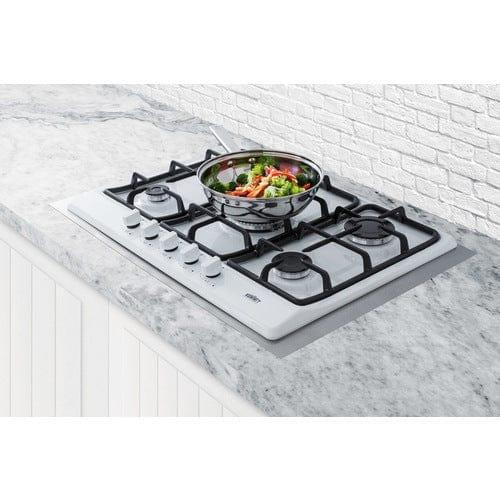

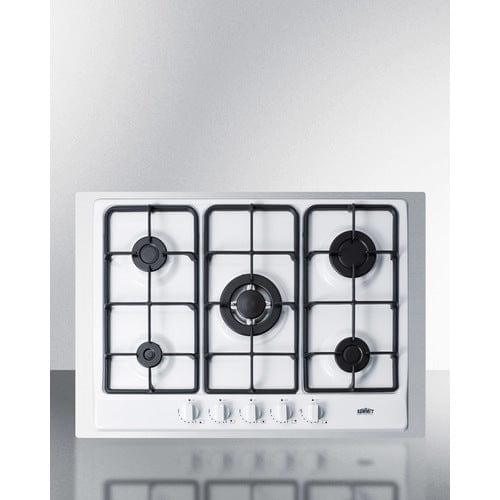

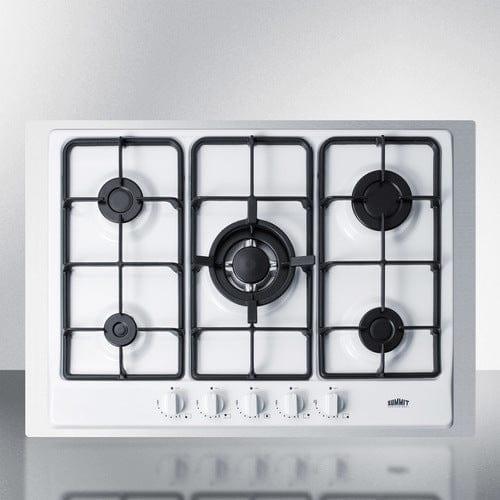

Made in Italy with sealed burners and continuous cast iron grates
Made in Italy for SUMMIT, our deluxe gas cooktops offer the ideal cooking experience for modern kitchens.
The GC5271WTK30 comes with an enamel steel surface in a classic white finish, with color-matched knobs centrally located for easy use. The cooktops is uniquely sized at 27" wide, but ships with a stainless steel trim kit that allows the cooktop to be placed in standard 30" wide counter openings.
Continuous cast iron grates are designed to hold up to heavy duty pots and pans, making it easy to side cookware from one burner to another. This unit is equipped with thermocouple flame failure protection to ensure gas will turn off if the flame is extinguished. It utilizes electronic spark ignition and comes with a pre-installed 115V power cord. For added safety, the knobs require a gentle push-to-turn motion to ignite.
Five sealed Sabaf burners provide a range of cooking power to help accommodate a variety of heating needs. The center ultra rapid 11,000 BTU burner includes a dual flame and removable cast iron wok stand to offer more even heating for large cooking vessels. The right rear burner offers a 10,000 BTU cooking performance, ideal for boiling pots of water or cooking large dishes. The front right and rear left semi-rapid 6,100 BTU burners meet most general cooking needs, while the auxiliary 1,200 to 3,550 BTU front left burner allows you to achieve more precision in gentle heating.
The GC5271WTK30 comes preset for natural gas operation. We include a conversion kit that lets you adjust for LP gas connections. This unit is also available in black (GC5272BTK30) and stainless steel (GC527SSTK30).
|
Overview
|
| Height of Cabinet |
4.0" (10 cm) |
| Width |
30.0" (76 cm) |
| Depth |
20.63" (52 cm) |
| Cabinet |
White |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Amps |
1.0 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
35.0 lbs. (16 kg) |
| Shipping Weight |
32.0 lbs. (15 kg) |
| Parts & Labor Warranty |
1 Year |
| UPC |
761101056722 |
|
Gas Cooktop
|
| Ignition |
Spark |
| LP Convertible |
Yes |
| Number of Burners |
5 |
| Controls |
Dial |
| Surface |
Painted |
| Grate Material |
Cast Iron |
| Cutout Height |
6.0" (15 cm) |
| Cutout Width |
21.77" (55 cm) |
| Cutout Depth |
18.63" (47 cm) |
| Burner #1 BTU |
11000.0 |
| Burner #2 BTU |
6100.0 |
| Burner #3 BTU |
10000.0 |
| Burner #4 BTU |
6100.0 |
| Burner #5 BTU |
3550.0 |
| Power Cord Included |
Yes |

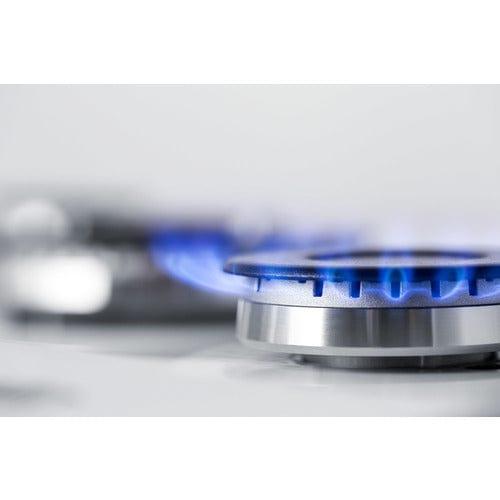

Sealed Sabaf® burners
Quality burners with cast iron caps ensure lasting durability and easier cleanup

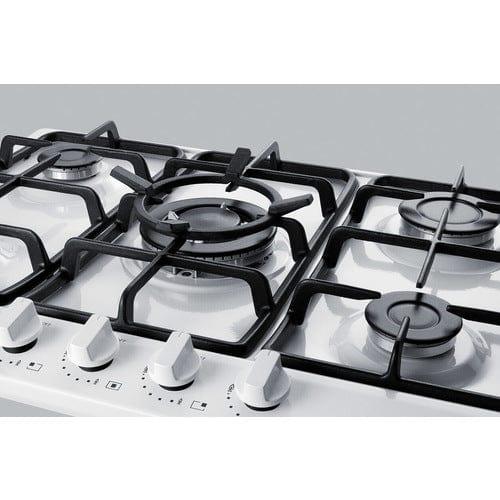

Continuous cast iron grates
Solid grates make it easy to slide cookware to different burners
Trim Kit for 30" wide applications
Ships with a seamless stainless steel exterior trim kit that allows users to install this cooktop in 30" wide cutouts

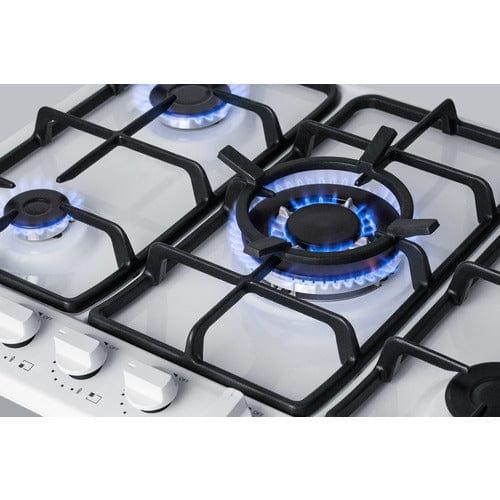

Ultra rapid burner with dual flame
Center burner features a 4,400 to 11,000 BTU output with a dual ring flame for powerful but even heating
Wok ring included
Removable wok ring included to safely hold a wok over the flame when cooking on the center burner
Fast burner
Rear right burner features a wide range output from 2,500 to 10,000 BTUs
Two semi-rapid burners
Front right and rear left burners offer 1,500 to 6,100 BTU output to handle most cooking needs
Auxiliary burner
Front left burner operates between 1,200 and 3,550 BTUs to best handle dishes and sauces that require low heat
Painted enamel steel surface
Cooktop surface has a glossy white finish for a clean look to complement any kitchen decor
Curved design
Gently curved surface offers a uniquely modern look for the kitchen while also containing spills for easier cleanup
Centralized controls
Conveniently located controls offer easier and safer cooking, preventing users from reaching over hot burners to adjust the temperature
Color-matched knobs
Knobs come in a polished white finish for a seamless look
Conversion kit included
Unit is preset for natural gas but can be converted to LP with included kit
Push-to-turn knobs with safety cut-off
Safety feature requires you to turn the knob to the "full-on" position before pushing down, waiting for the ignition, and adjusting to your preferred heating level
Thermocouple flame failure protection
Automatically turns gas off after 12 seconds if flame is extinguished
Power cord included
Standard 3-pronged 115V cord included for the electronic ignition
Designed for built-in installation
Fits counter cutout sizes that are 21.77" wide by 18.63" deep, with a trim kit that allows the cooktop to fill 30" wide openings
