Versatile design allows for indoor/outdoor uses, with a panel-ready drawer front for added custom style
Summit offers a quality line of commercially approved drawer refrigerators fully featured for indoor or outdoor use.

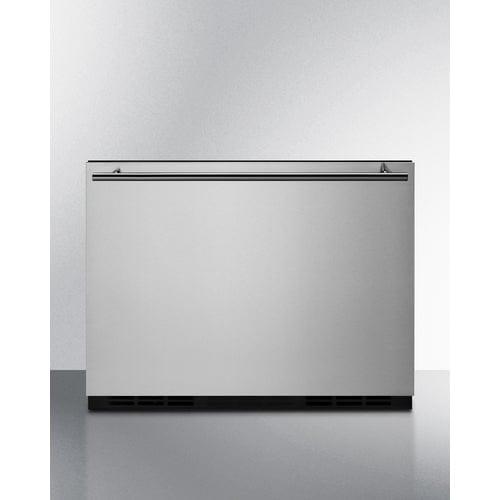

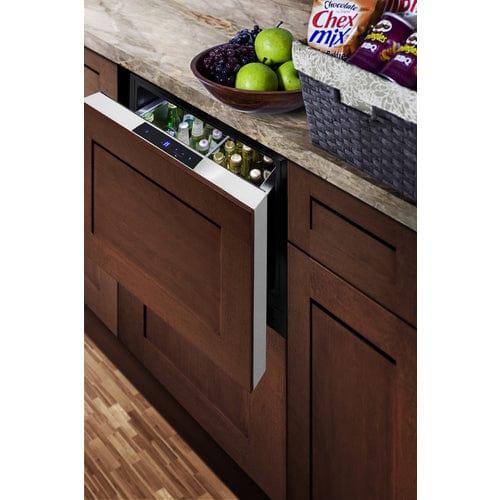

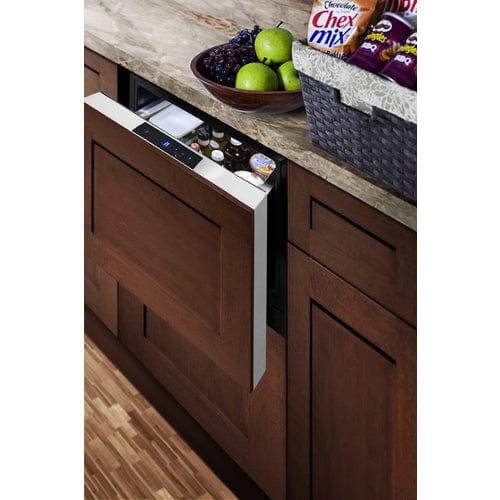

The FF1DSS is a single drawer all-refrigerator that meets NSF-7 and UL-471 commercial standards and is also approved for residential settings. At just 21.5" wide, it has a front-breathing design that allows built-in installation, while the fully finished black cabinet also enables freestanding use. Its versatile 304 grade stainless steel drawer with a full-width pro handle provides durable, weatherproof protection, perfect for use in outdoor kitchens, bars, or similar spaces. Additionally, the drawer is panel-ready and can be customized with an overlay panel (not included) to match or accent an existing cabinetry design (panel dimensions: 15.6" H x 21.4" W at 3/4" maximum thickness). The included ground fault circuit interrupter (GFCI) 3-prong plug helps protect users from electrical shocks for added safety, ideal for outdoor spaces.

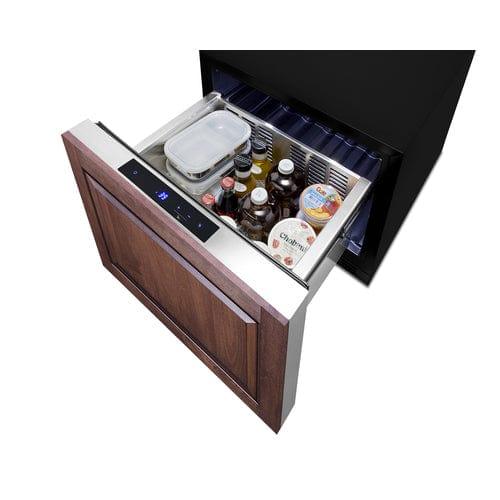

Inside, the FF1DSS has a 1.6 cu.ft. capacity to accommodate your storage needs. Frost-free operation with fan-forced cooling ensures even temperature distribution with minimal user maintenance. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two removable dividers let you separate the drawer into one, two, or three zones to accommodate a variety of sizes. LED lighting affords a convenient view of store contents, while a child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, while a temporary memory function helps to recover all settings in the event of power loss. The Sabbath Mode setting disables certain electrical features during periods of religious observance.
With its fully-featured, weatherproof design, the FF1DSS is the perfect cooling compartment or beverage holder in outdoor or indoor home kitchens, as well as hotel spaces, foodservice areas, and more. For this unit sized to fit 24" wide spaces, see the SDR24.
Note: This unit ships with a polycarbonate strip over the control panel to protect it from the elements. If installing this drawer in outdoor kitchens, keep the cover in place.
|
Overview
|
| Height of Cabinet |
17.75" (45 cm) |
| Width |
21.5" (55 cm) |
| Depth |
22.25" (57 cm) |
| Depth with Handle |
23.75" (60 cm) |
| Depth with door at 90° |
35.5" (90 cm) |
| Capacity |
1.6 cu.ft. (45 L) |
| Defrost Type |
Frost-Free |
| Door |
Stainless Steel/Panel-Ready |
| Cabinet |
Black |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S |
| Energy Usage/Year |
273.0kWh/year |
| Amps |
1.0 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
53.0 lbs. (24 kg) |
| Shipping Weight |
83.5 lbs. (38 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101066974 |
|
Refrigerator Features
|
| Sabbath Mode |
Yes |
| Door Swing |
Drawer |
| Reversible |
No |
| Thermostat Type |
Digital |
| Fan Type |
Interior and Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
0.78oz. |
| High Side PSI |
270.0 |
| Low Side PSI |
105.0 |
| Level Legs Qty |
4 |
| Interior Light |
Yes |
| Temperature Range |
36 to 43ºF |
| Sound Level |
33.3 dB |
|
Dimensions
|
| Interior Height |
13.0" (33 cm) |
| Interior Width |
16.0" (41 cm) |
| Interior Depth |
11.5" (29 cm) |
| Compressor Step Height |
7.0" (18 cm) |
| Compressor Step Width |
16.0" (41 cm) |
| Compressor Step Depth |
1.0" (3 cm) |
Commercially approved
ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings
Indoor/outdoor compatible
Durable construction designed to hold up to the elements

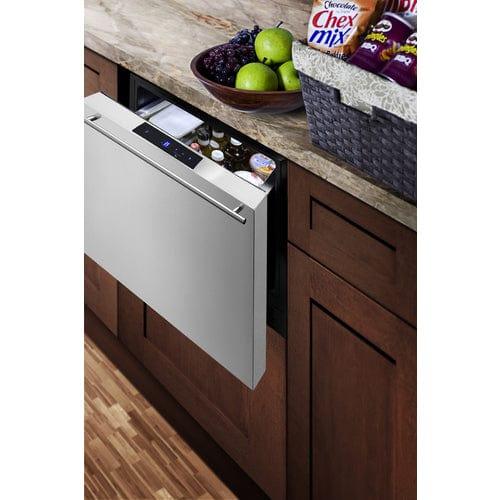

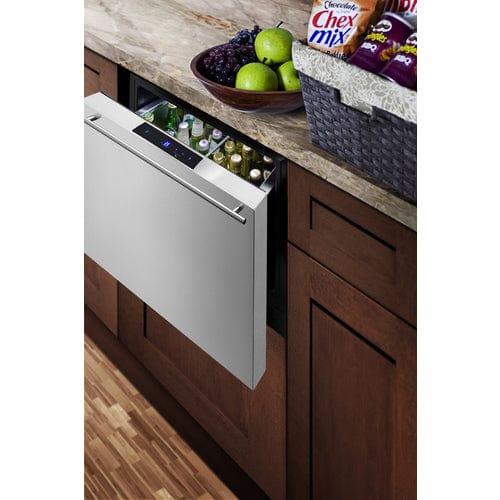

Built-in capable
Front-breathing design allows you to build the drawer into cabinetry

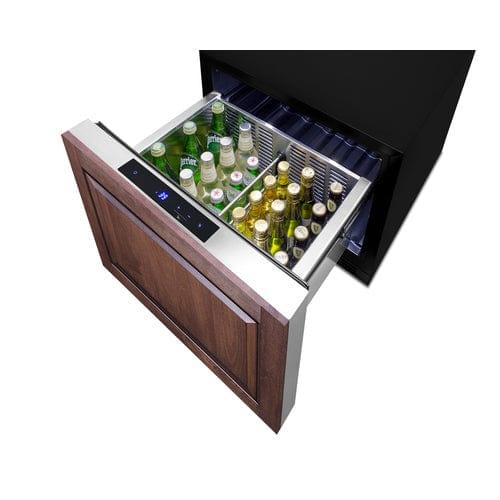

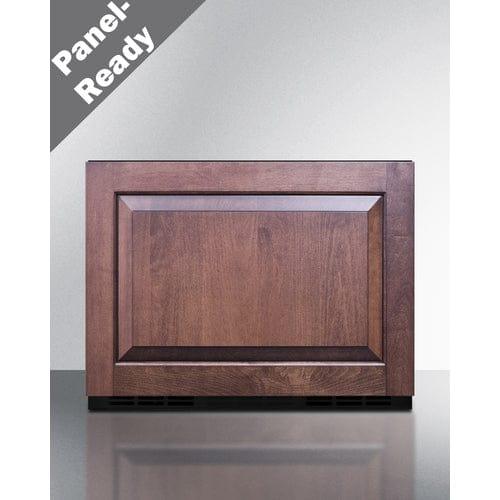

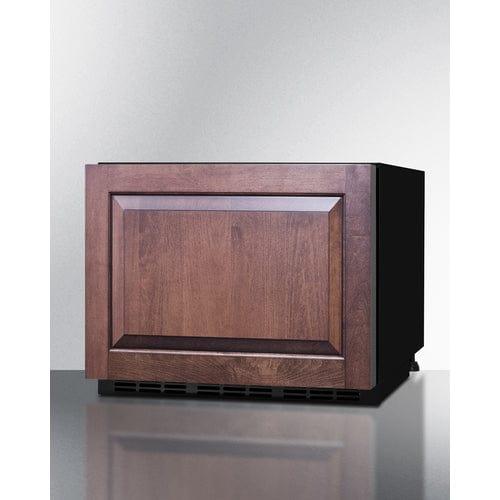

Panel-ready drawer front
Drawer accepts an overlay panel to let you seamlessly blend the unit into an existing cabinetry design (panel dimensions: 15.6" H x 21.4" W at 3/4" maximum thickness)

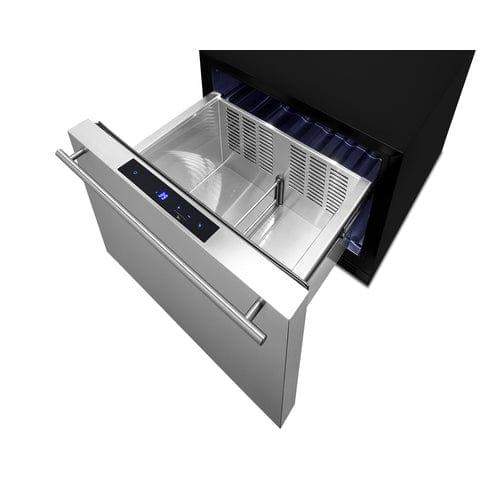

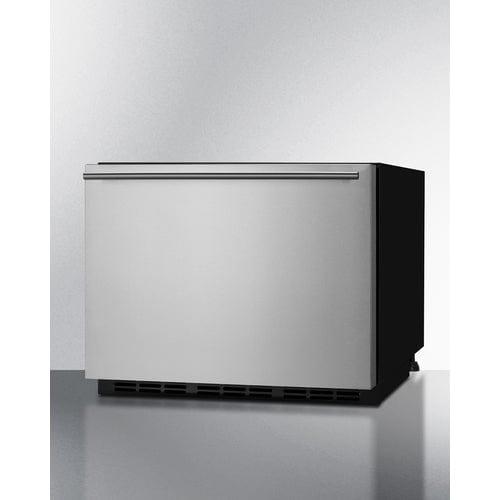

304 grade stainless steel drawer
Drawer front and interior constructed from stainless steel for added durability and easy cleanability
Frost-free operation
Minimum user maintenance with a fully no-frost operation system

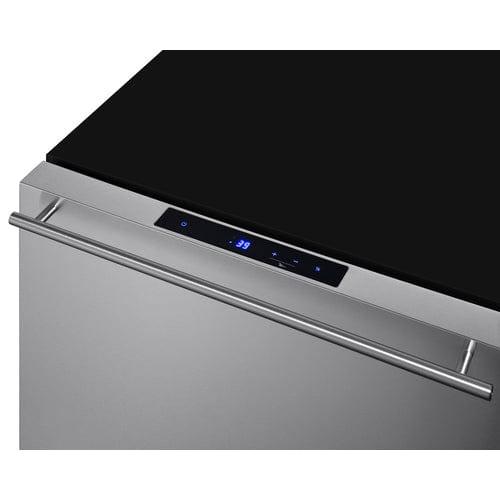

Digital thermostat

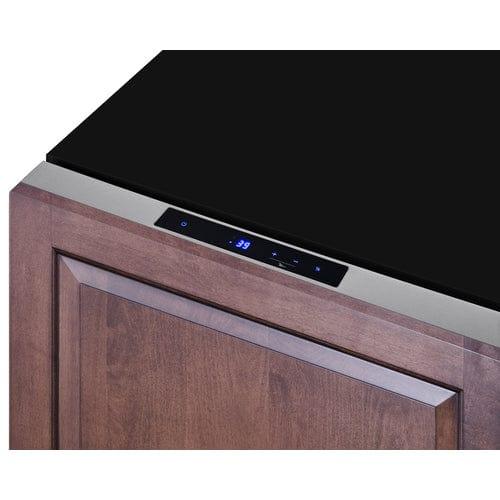

Electronic controls located on the top drawer ensure easy temperature management, with an external readout of Celsius or Fahrenheit
LED lighting
Elegant LED lighting in a gentle white hue illuminates the refrigerator for an easy view of the interior

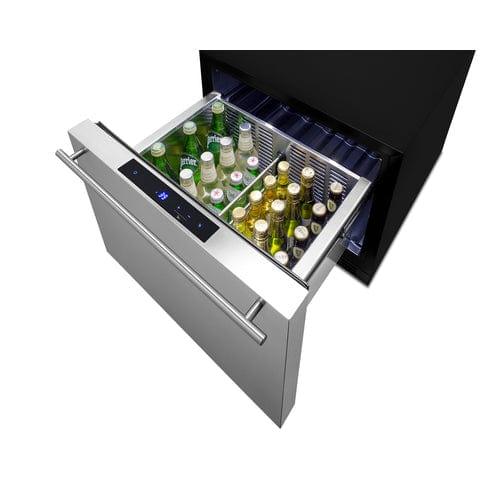

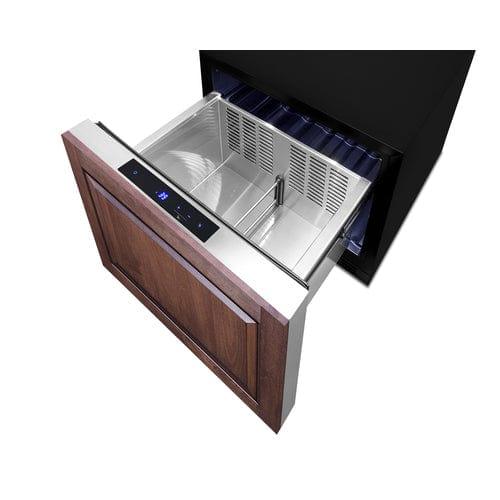

Drawer dividers
Two dividers make it simple to organize the drawer interior
Internal fan
Fan-forced cooling ensures the unit is evenly cooled
Temperature Memory Function
Unit will retain its last settings when power is restored in the event of power loss
Professional handle
A sleek stainless steel handle adds an elegant touch to any setting
Temperature alarm
High temperature alarm sounds if the unit's interior goes out of the recommended range
Open drawer alarm
Audible alarm will sound if the drawer is left open longer than one minute
Sabbath Mode
Optional setting lets you disable certain electrical functions during periods of religious observance for 48 hours
Quiet operation
Runs at under 34 dB for a quiet performance in any setting
Child lock
Disables digital controls after two minutes of activity for added safety
Fully finished black cabinet
Allows the unit to be used freestanding
Ground Fault Circuit Interrupter (GFCI) plug
Included 3-prong plug helps to protect users from electrical shocks for added safety, ideal for outdoor spaces
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
