Made in North America in a slim 24" width ideal for apartment kitchens
SUMMIT brings outstanding value to small kitchens with fully featured electric ranges in 24" wide fits.

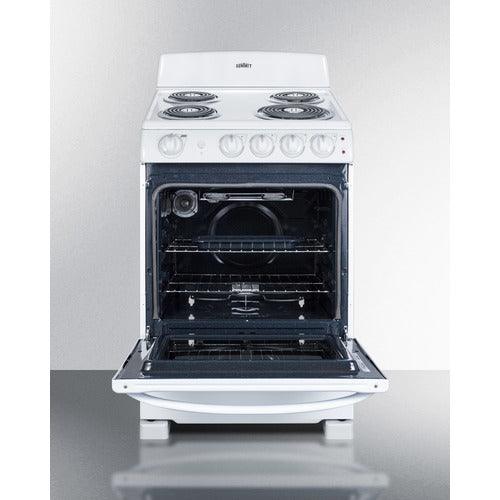

Made in North America, the RE2411W is a 220V electric range designed for 24" wide spaces. One 8" and three 6" coil burners include removable chrome drip pans for easy cleaning. For added safety, each coil is equipped with a sensor that will automatically cycle the element off if it reaches dangerous flashpoint temperatures. Heating will resume automatically. All cooking controls are located upfront on push-to-turn knobs for safe and easy use. Indicator lights illuminate when the burners and oven are on.
The RE2411W features a large oven window with an interior light to make it easy for users to monitor their cooking. Inside, the 2.9 cu.ft. interior is made from durable porcelain and includes two adjustable racks. The waist-high broiler is conveniently located inside, letting you finish your cooking without transferring contents to an inconvenient drop-down compartment on the floor. The lower compartment is a slide-out storage drawer for added convenience.
The RE2411W comes in a white exterior finish with color-matched knobs and handle. With its slim fit and user-friendly features, this unit is the ideal choice for space-challenged kitchens on a budget. For more options, including smooth-top ranges and 20" wide choices, browse our website.
Note: this item replaces the RE241W.
|
Overview
|
| Height of Cabinet |
42.0" (107 cm) |
| Width |
23.5" (60 cm) |
| Depth |
23.5" (60 cm) |
| Depth with Handle |
25.75" (65 cm) |
| Depth with door at 90° |
43.25" (110 cm) |
| Door |
White |
| Cabinet |
White |
| US Electrical Safety |
UL |
| Voltage/Frequency |
220 V AC/60 Hz |
| Weight |
135.0 lbs. (61 kg) |
| Parts & Labor Warranty |
1 Year |
| UPC |
761101058290 |
|
Electric Range
|
| Oven Capacity |
2.9 cu.ft. (82 L) |
| Cooktop Surface |
Metal |
| Element Type |
Coils |
| Number of Elements |
4 |
| Element #1 Size |
8.0" (20 cm) |
| Element #1 Wattage |
2400.0 |
| Element #2 Size |
6.0" (15 cm) |
| Element #2 Wattage |
1250.0 |
| Element #3 Size |
6.0" (15 cm) |
| Element #3 Wattage |
1250.0 |
| Element #4 Size |
6.0" (15 cm) |
| Element #4 Wattage |
1250.0 |
| Burner Controls |
Dial |
| Oven Controls |
Dial |
| Oven Light |
Yes |
| Backguard |
Yes |
| Cleaning Type |
Manual |
| Oven Rack Qty |
2 |
| Oven Window |
Yes |
| Oven Interior Height |
15.0" (38 cm) |
| Oven Interior Width |
20.0" (51 cm) |
| Oven Interior Depth |
17.5" (44 cm) |
| Power Source |
220V |
| Storage Compartment |
Yes |
| Broiler Location |
Inside Oven |
| Exterior |
| RangeCord4P - Installed 4-pronged cord |
RangeCord3P - Installed 3-pronged cord |
|
24" width
Perfectly sized for apartments and smaller home kitchens
Storage drawer
Lower compartment offers the perfect space-saving storage solution for pots and pans
Oven window
Large window makes it easier to monitor your cooking
Oven light
Interior light included for easy viewing
Waist-high broiler
Broiler is located inside the oven, making it easier to use
Backsplash
High backing prevents stovetop contents from splashing up or boiling over and staining back walls
Four cooking zones
Surface features one 8" and three 6" coil elements to accommodate a range of sizes and cooking needs
Safety elements
Designed to comply with the latest UL safety standards, each coil element is equipped with a sensor to cycle off if the temperature nears the flashpoint. Coils will resume heating shortly after, causing little interruption to your cooking
Upfront controls
Control panel is conveniently located to prevent users from reaching over hot cooktop surface for adjustments
Chrome drip pans
Each element includes a removable chrome pan for easier cleaning
Textured cabinet
Fully finished white cabinet constructed from steel
Color matched knobs & handle
White-on-white design for an attractive look ideal for any kitchen
Indicator lights
Control panel includes an 'on' light for the oven and burners for added safety when using the range
Safety brake system for oven racks
Sliding racks will stay in your oven with special brake mechanism
Push-to-turn knobs
To prevent accidents, knobs require a small amount of force when turning
Cord not included
Compatible with standard 40 amp 3 or 4-wire range cords
ADA compliant design
Upfront controls and easy-to-operate knobs offer easier accessibility
