Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens.
The WEM2171Q is an apartment-sized 220V electric range featured to meet ADA guidelines and ideal for use in senior living facilities, HUD applications, and other types of community living with added safety needs. It includes a pre-installed 3-prong line cord, as well as individual indicator lights for each cooking element and an interior oven light with an exterior on/off rocker switch. Sized at 30" wide, it has a full-sized 3.7 cu.ft oven interior that can accommodate large trays. Two adjustable oven racks are included. The waist-high broiler is located inside the oven, allowing you to switch functions without moving contents to a separate compartment on the floor. The lower drop-down storage compartment is ideal for keeping pots and pans out of the way in small kitchens.
Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric ranges, allowing for a slow but steady heating process that will not cycle off. Upfront push-to-turn knobs offer additional protection, ensuring users won't reach over hot burners to adjust the heat. This unit complies with ADA guidelines.
The WEM2171Q comes in a classic white finish to suit any kitchen setting. It has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts. Porcelain and steel construction help the unit hold up to years of daily use. We include an anti-tip bracket for added safety.
With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 20", 24", and 36" wide fits.
|
Overview
|
| Height of Cabinet |
40.0" (102 cm) |
| Width |
30.0" (76 cm) |
| Depth |
24.0" (61 cm) |
| Door |
White |
| Cabinet |
White |
| US Electrical Safety |
CSA |
| Voltage/Frequency |
220 V AC/60 Hz |
| Weight |
175.0 lbs. (79 kg) |
| Parts & Labor Warranty |
1 Year |
| UPC |
761101019758 |
|
Electric Range
|
| Oven Capacity |
3.7 cu.ft. (105 L) |
| Cooktop Surface |
Porcelain |
| Element Type |
Coils |
| Number of Elements |
4 |
| Element #1 Size |
6.0" (15 cm) |
| Element #1 Wattage |
675.0 |
| Element #2 Size |
6.0" (15 cm) |
| Element #2 Wattage |
675.0 |
| Element #3 Size |
6.0" (15 cm) |
| Element #3 Wattage |
675.0 |
| Element #4 Size |
8.0" (20 cm) |
| Element #4 Wattage |
950.0 |
| Burner Controls |
Dial |
| Oven Controls |
Dial |
| Oven Light |
Yes |
| Backguard |
Yes |
| Cleaning Type |
Manual |
| Oven Rack Qty |
2 |
| Oven Interior Height |
14.0" (36 cm) |
| Oven Interior Width |
24.0" (61 cm) |
| Oven Interior Depth |
19.0" (48 cm) |
| Individual Indicator Lights |
Yes |
| Storage Compartment |
Yes |
| Broiler Location |
Inside Oven |
| Oven Door |
White |
| HUD Qualified |
Yes |
Made in the USA
Designed and constructed domestically
Advanced safety features
Low wattage elements, individual indicator lights, and additional features to ensure added safety in senior living, HUD kitchens, and other group facilities
30 inch wide range
Standard size ideal for most kitchens
24 inch depth
Shallower fit is ideal for L-shaped and galley kitchens
Four coil elements
Three standard 6" and one large 8" element
Safety burners with low wattage outputs
Designed to comply with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off
Chrome drip pans
Each coil element includes a removable chrome pan for easier cleaning
Individual indicator lights
Control panel includes five indicator lights to show when every cooking element in use
Cord included
Pre-installed 3-prong 40 amp range cord
Upfront controls
All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners
Push-to-turn knobs
Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn
Recessed oven door
Smart design limits the depth and protects adjacent cabinets
Porcelain and steel construction
Solid construction built to hold up to everyday use
Waist-high broiler
Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor
Oven light
Exterior on/off rocker switch control for the oven interior

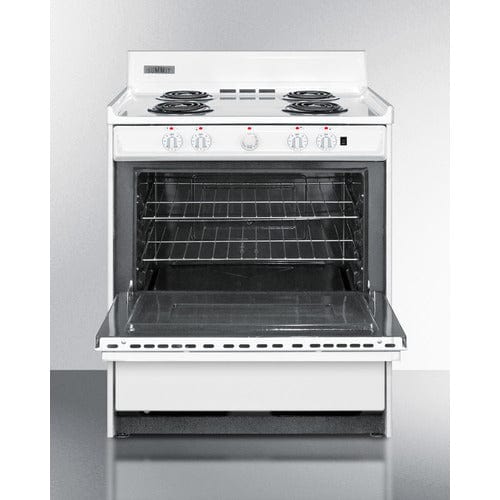

Adjustable oven racks
Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
Storage compartment
Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen
Removable oven door and range top
Allows for easier cleaning as needed
Broiler tray included
Two-piece porcelain broiler tray with grease well
Anti-tip bracket
Included for user installation to help prevent tipping
ADA compliant design
Upfront controls and easy-to-operate knobs offer easier accessibility that complies with the Americans for Disabilities Act (ADA) guidelines
