Quickly and efficiently produce up to 25 lbs of ice daily with the Summit 15" Wide 25 lb. Drain-Free Icemaker. Enjoy the convenience of a drain-free system, perfect for spaces without easy access to a drain. This compact icemaker is a must-have for any busy kitchen or bar, providing a steady supply of ice for all your needs.
Get long-lasting ice where and when it's needed + No drain required!
Summit combines convenience and luxury to craft the BIM26H34IF - an undercounter icemaker finished in complete 304-grade stainless steel.
Sized at just under 15" wide, the BIM26H34IF features a front-breathing design for built-in installation but also has a fully finished cabinet to allow freestanding use. With a height of 34", Summit designed this icemaker to be compatible with standard counters. This unit can be lowered just under 32" to fit ADA-compliant spaces. A smaller kickplate is included for a streamlined and cohesive look.

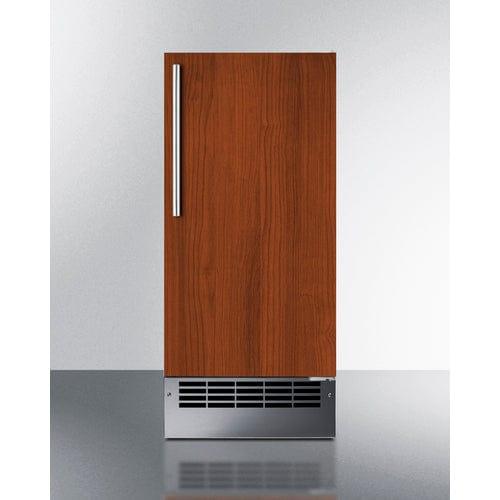

This model features a panel-ready door with an integrated stainless steel frame that lets you install an overlay to match or complement surrounding cabinetry (recommended panel dimensions: 27 9/16" H x 14 13/16" W at 3/4" thick). The sealed back design allows more flush installation. An optional water filter is included and designed to be mounted in the rear.
A look inside the BIM26H34IF shows it can produce 25 lbs of crescent-shaped ice daily. The static manual defrost cooling system allows ice to stay solid longer. No drain or pump is required, offering more placement flexibility. For optimal convenience, Summit has pre-installed the connection hose. Plus, this icemaker comes with a removable ice bucket, ice scoop, and a holder for the scoop.
With its customizable exterior, stainless steel cabinet, and low maintenance design, the BIM26H34IF drain-free icemaker is a great way to finish any undercounter kitchen space and allows you to maintain an entire supply of ice with less waste.
|
Overview
|
| Height of Cabinet |
34.0" (86 cm) |
| Width |
14.88" (38 cm) |
| Depth |
20.13" (51 cm) |
| Depth with door at 90° |
34.38" (87 cm) |
| Defrost Type |
Manual |
| Door |
Panel-Ready |
| Cabinet |
Stainless Steel |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Amps |
1.9 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
65.0 lbs. (29 kg) |
| Shipping Weight |
94.5 lbs. (43 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101108438 |
|
Icemaker
|
| Door Swing |
RHD |
| Reversible |
Yes |
| Height Adjustable |
Yes |
| Daily Ice Production |
25.0 lbs. (11 kg) |
| Ice Storage Capacity |
22.0 lbs. (10 kg) |
| Ice Shape |
Crescent |
| Size of Cube |
1 |
| Number of Ice Cube Sizes |
1 |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
1.58 oz. |
| High Side PSI |
120.0 |
| Low Side PSI |
55.0 |
| Interior Height |
15.88" (40 cm) |
| Interior Width |
11.88" (30 cm) |
| Interior Depth |
12.38" (31 cm) |
| Level Legs |
4 |
| Exterior |
| LHD - Left hand door swing |
|
15" Wide No-Drain Icemaker
No drain is required for more flexibility in placing the icemaker indoors or outside
Adjustable Height
This unit can be lowered just under 32", with a smaller kickplate included for a seamless aesthetic
Panel-ready door
Integrated door frame allows you to install overlay panels for a custom look that blends into your cabinetry (panel size: 27 9/16" H x 14 13/16" W at 3/4" thick)
Large capacity
Produces and stores more than 20 lbs of ice per day cycle
Drain-free design
Convenient design allows more flexibility in positioning the unit
Manual defrost
Static cooling system helps to keep ice frozen for longer periods of time compared to other systems
Stainless steel exterior
304-grade stainless steel allows the icemaker to be used freestanding
Built-In capable
Make the best use of space by installing your ice maker under the counter
Reversible door
User-reversible door swing for flexible placement
Sealed back
Space-saving design with easier cleanability
Standard water hookup
Operates with a standard 1/4” OD water supply line
Modern handle
Horizontally mounted towel bar style handle in stainless steel
Filter included
Water filter is included for optional use
Ice scoop included
Large ice scoop and holder included for your convenience
Lasting ice cube production
Crescent-shaped ice provides a harder and longer-lasting ice
Removable bin
Users can remove the ice bucket for fast and easy cleaning
Insulated storage bin
Ice stays solid longer in this cold-protected bin
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
Lead-free certified
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
