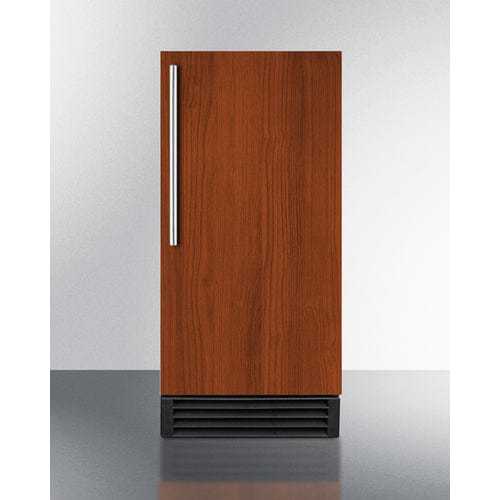

Panel-ready door lets you customize your icemaker to blend into your own cabinetry design
SUMMIT BIM44GIFADARHD is an auto defrost clear icemaker designed for true convenience under the counter in ADA compliant settings.
At just under 15" wide, the BIM44GIFADARHD is ideal for finishing any kitchen or wet bar. The door includes an integrated stainless steel frame that can accept full overlay panels for a seamless look that blends into matching cabinetry. Users supply their own handles. This unit is 32 3/8" high to fit under lower counters following ADA guidelines.
Automatic defrost makes maintenance simple and stress-free, while the BIM44GIFADARHD's front-breathing cooling system and fully finished sides allow built-in or freestanding use.
The BIM44GIFADARHD can make up to 50 pounds of clear cube-shaped ice, with an adjustable bin capacity that can temporarily hold up to 25 pounds. The ice is produced in sheets and can be easily broken into cubes using the provided scoop. This unit must be used with a drain. It is NSF listed to commercial standards and is ENERGY STAR certified for commercial use.
|
Overview
|
| Nominal Height |
32.0" (81 cm) |
| Height of Cabinet |
32.38" (82 cm) |
| Nominal Width |
15.0" (38 cm) |
| Width |
14.5" (37 cm) |
| Nominal Depth |
24.0" (61 cm) |
| Depth |
23.5" (60 cm) |
| Defrost Type |
Automatic |
| Door |
Panel-Ready |
| Cabinet |
Black |
| US Electrical Safety |
UL |
| Canadian Electrical Safety |
ULC |
| Sanitation |
NSF |
| Amps |
4.8 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
100.0 lbs. (45 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101093192 |
|
Icemaker
|
| Door Swing |
RHD |
| Drain Required |
Yes |
| Daily Ice Production |
50.0 lbs. (23 kg) |
| Ice Storage Capacity |
25.0 lbs. (11 kg) |
| Ice Shape |
Cube |
| Size of Cube |
7/8" x 7/8" x 7/8" |
| Number of Ice Cube Sizes |
1 |
| Fan Type |
Exterior |
| Refrigerant Type |
R134a |
| Refrigerant Amount |
3.88 oz. |
| High Side PSI |
350.0 |
| Low Side PSI |
130.0 |
| Interior Height |
18.5" (47 cm) |
| Interior Width |
12.0" (30 cm) |
| Interior Depth |
16.0" (41 cm) |
| Level Legs |
4 |
ENERGY STAR certified commercial performance
Efficient performance for commercial use
ADA compliant
32 3/8" height fits under lower ADA compliant counters
Commercially approved
NSF listed for use in commercial establishments
Built-in pump
Internal pump allows more flexibility in placing the unit
Built-in capable
Make the best use of space by installing your appliance under the counter
Panel-ready door
Stainless steel door frame accepts full overlay panels to match adjacent cabinetry (panel size: 27 7/8" H x14 5/8" W and at least 3/4" thick; maximum weight: 10 lbs.)
Clear ice cube production
Clear cubes offer the perfect cooling of your beverages; NOTE: ice is produced in sheets and can easily be broken into cubes using the provided scoop
Automatic defrost
Reduced maintenance with auto defrost system
Insulated storage bin
Ice stays frozen longer inside this cold-protected bin
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
Lead-free certified
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
