Includes an internal pump for more flexibility

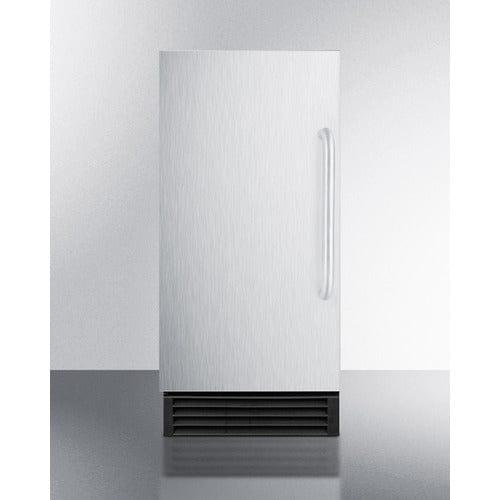

SUMMIT BIM44G is an auto defrost clear icemaker designed for true convenience in operation and placement.
Automatic defrost makes maintenance simple and stress-free, while the BIM44G's front-breathing cooling system and fully finished sides allow built-in or freestanding use. A 15 inch width makes it ideal for any tight location. This model now comes equipped with an internal pump.
The BIM44G can make up to 50 pounds of clear cube-shaped ice, with an adjustable bin capacity that can temporarily hold up to 25 pounds. The ice is produced in sheets and can be easily broken into cubes using the provided scoop.
The BIM44G has a jet black cabinet with user-reversible stainless steel door (LHD is default door swing; specify upon ordering for RHD). A curved towel bar handle in brushed stainless steel is included.
This unit is NSF listed for use in commercial establishments and is ENERGY STAR certified for commercial use.
|
Overview
|
| Height of Cabinet |
33.0" (84 cm) |
| Width |
14.5" (37 cm) |
| Depth |
23.5" (60 cm) |
| Depth with Handle |
25.0" (64 cm) |
| Depth with door at 90° |
37.0" (94 cm) |
| Defrost Type |
Automatic |
| Door |
Stainless Steel |
| Cabinet |
Black |
| US Electrical Safety |
UL |
| Canadian Electrical Safety |
ULC |
| Sanitation |
NSF |
| Amps |
4.8 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
100.0 lbs. (45 kg) |
| Shipping Weight |
109.5 lbs. (50 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101012261 |
|
Icemaker
|
| Door Swing |
LHD |
| Reversible |
Yes |
| Drain Required |
Yes |
| Daily Ice Production |
50.0 lbs. (23 kg) |
| Ice Storage Capacity |
25.0 lbs. (11 kg) |
| Ice Shape |
Cube |
| Size of Cube |
7/8" x 7/8" x 7/8" |
| Number of Ice Cube Sizes |
1 |
| Fan Type |
Exterior |
| Refrigerant Type |
R134a |
| Refrigerant Amount |
3.88 oz. |
| High Side PSI |
350.0 |
| Low Side PSI |
130.0 |
| Interior Height |
18.5" (47 cm) |
| Interior Width |
12.0" (30 cm) |
| Interior Depth |
16.0" (41 cm) |
| Level Legs |
4 |
| Exterior |
| Latch - Factory-installed door latch requires manual release to open unit |
|
| Lock |
|
|
ENERGY STAR certified commercial performance
Efficient performance for commercial use
Commercially approved
NSF listed for use in commercial establishments
Built-in pump
Internal pump allows more flexibility in placing the unit
Reversible door
Keep your options flexible with a reversible door that is easy to switch when your arrangement changes; Unit ships LHD but can be reversed in our factory or by the user
Automatic defrost
Reduced maintenance with auto defrost system
Built-in capable
Make the best use of space by installing your icemaker under the counter
Stainless steel door
Professional styling with lasting durability
Professional towel bar handle
A curved handle in brushed stainless steel offers an easy grip
Clear ice cube production
Clear cubes offer the perfect cooling of your beverages; NOTE: ice is produced in sheets and can easily be broken into cubes using the provided scoop
Insulated storage bin
Ice stays solid longer in this cold-protected bin
Ice scoop
Included for your convenience
Fully finished black cabinet
Allows the icemaker to be used as a freestanding model
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
Lead-free certified
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
