Panel-ready door allows you to customize the front to achieve the perfect style for every indoor or outdoor kitchen space
Summit manufactures a complete line of versatile kegerators capable of built-in installation in indoor or outdoor home settings.

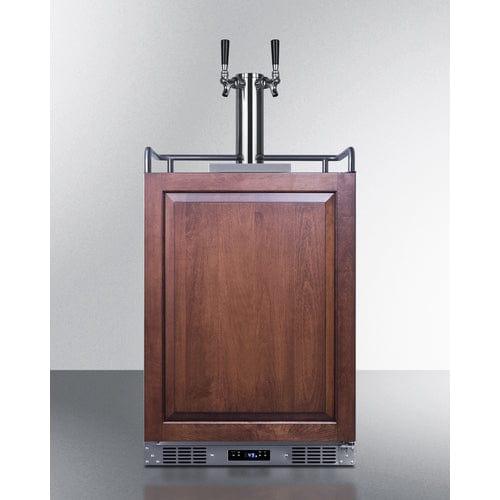

The SBC682PNRTWIN is a full-sized dual tap beer dispenser approved for both residential or commercial use. Sized at just 24" wide, it features a front-breathing system for built-in installation and a fully-finished cabinet that also allows freestanding use, with an included caster set for optional mobility. The exterior features 304 grade stainless steel construction for safe, weatherproof use in the outdoors. The door is designed to accept overlay panels (sized at 29 3/4" H x 23 5/16" W at a 3/4" thickness) to allow you to create a custom look to best suit your own kitchen design. This unit ships with a right hand door swing. For a left hand version, add option "LHDHinge." Additional features include a removable two-piece stainless steel drip tray to collect spills and a chrome guard rail to help keep glasses and mugs in place. This unit has a sealed rear for added protection from the elements.
Inside, the 5.6 cu. ft. interior can accommodate a full half or quarter keg, or up to three Cornelius or sixth barrel kegs. We include a complete commercial grade dual tap kit for dispensing your favorite beer, including a Sankey tap system and twin tap draft tower, along with a CO2 tank and regulator. A tap cool system keeps your beer cold as it goes through your tower, and a Velcro strap holds the tank in place. The floor is constructed from stainless steel for added protection when loading and removing kegs. Two chrome shelves, with six placement options, allow the kegerator to also function as a beverage refrigerator. A digital thermostat makes it easy to manage the wide range temperature, while the external digital display has a readout in Celsius or Fahrenheit. Automatic defrost operation ensures minimal user maintenance. The Memory IC function recovers the unit's last settings in the case of a power outage or disruption.
With its solid construction, user-friendly features, and attractive design, the SBC682PNRTWIN is the perfect beer dispenser for indoor or outdoor kitchens. Additional choices are available with alternate tapping options, including choices to dispense wine and coffee. Browse the full Summit line to explore all of your options.
|
Overview
|
| Height of Cabinet |
33.63" (85 cm) |
| Width |
23.75" (60 cm) |
| Depth |
24.25" (62 cm) |
| Depth with door at 90° |
46.75" (119 cm) |
| Capacity |
5.6 cu.ft. (159 L) |
| Defrost Type |
Automatic |
| Door |
Panel-Ready |
| Cabinet |
Stainless Steel |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S |
| Energy Usage/Year |
305.0kWh/year |
| Amps |
1.25 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
120.0 lbs. (54 kg) |
| Shipping Weight |
156.0 lbs. (71 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101083964 |
|
Kegerator
|
| Door Swing |
RHD |
| Reversible |
Factory Reversible |
| Tap Kit |
Yes |
| Height with Tap |
51.5" (131 cm) |
| Number of Taps |
2 |
| Adjustable Shelves |
Yes |
| Shelf Type |
Chrome |
| Shelf Qty |
2 |
| Thermostat Type |
Digital |
| Fan Type |
Interior |
| Refrigerant |
R600a |
| Refrigerant Amount |
1.06 oz. |
| High Side PSI |
150.0 |
| Low Side PSI |
50.0 |
| Inter Height |
26.75" (68 cm) |
| Interior Width |
20.0" (51 cm) |
| Interior Depth |
19.0" (48 cm) |
| Level Legs Qty |
4 |
| Wheel Qty |
4 |
| Temperature Range |
34°F to 68°F (1°C to 20°C) |
| Sound Level |
34.0 db |
| Exterior |
| Latch - Factory-installed door latch requires manual release to open unit |
LHD - Left hand door swing |
|
Large capacity kegerator
5.6 cu.ft. interior can accept a full half barrel keg, two slim quarter kegs, or up to three sixth barrel or Cornelius style kegs
Built-in capable
Front-breathing design allows fully recessed installation under counters
Panel-ready door
Extended hinging allows you to install your own panel overlay on the door, creating a custom look to complement or blend into your own cabinetry (panel size: 29 3/4" H x 23 5/16" W at a 3/4" thickness)
Indoor/Outdoor compatible
Weatherproof construction for safe use in the outdoors
Durable design
Solid 304 grade stainless steel construction ensures long-lasting durability
Complete tap kit
Includes a 5 lb. CO2 tank and regulator, dual tap draft arm, Sankey American tap, connection hardware, and cleaning kit
Twin tap system
Twin draft tower allows you to serve from two slim quarter kegs
Automatic defrost
Reduced user maintenance with auto defrost operation
Digital thermostat
Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit
Tap cool system
Keeps cold air flowing to the tower for consistently cold beer
Stainless steel floor cover
Interior includes steel cover to protect the floor when loading kegs
Top guard rail (ships unassembled)
Attractive chrome guard rail helps to reduce spills and neaten service
Stainless steel drip tray
Removable two-piece drip tray catches spills to help contain the mess
Wire shelves
2 wire shelves (with six placement options) allow unit to also function as a beverage refrigerator
Memory IC function
Recovers the unit's last settings in the case of a power outage or disruption
Fully finished stainless steel cabinet
Allows the dispenser to be used freestanding
Sealed back
Space saving design with easier cleanability
Right hand door swing
Default swing is RHD. For hinges that will allow this door to open from the left, add upgrade "LHDHinge"
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
