Innovative drawer style ideal for wall, island, or under cabinet installation
Summit's innovative one-touch drawer microwave brings new style and function under the counter.
Sized for 24" wide openings, model MDR245SS is a 1.2 cu.ft. microwave with a pull-out drawer that can be installed in wall openings and kitchen islands, helping to free up counter space. One-touch open and close buttons make it easy to access and the top-loading design lets you monitor your cooking progress from the perfect position. The white interior includes a light, making it safer to remove hot items. This unit comes with a brushed stainless steel and jet black exterior for a modern look to suit any kitchen. This unit can be installed in compliance with ADA guidelines to ensure user accessibility. The control panel is set at a slight angle, making it easier to keep the settings in full view from any position.
Enjoy full microwave functionality with the MDR245SS's convenient features. 11 power levels let you select the right conditions for any meal. The "defrost by weight" setting helps to ensure a more efficient thawing process. Additional one-touch settings include a +30 seconds setting, popcorn button, beverage button, and melt setting that lets you choose from butter, chocolate, cheese, or marshmallow. A "soften" setting lets you achieve the best conditions for butter, cream cheese, or ice cream. This unit has an audible buzzer, which can be disabled if you prefer a quieter operation. A child lock and clock/timer are also included.
Model MDR245SS is designed to fit inside traditional 24" wide cabinet openings (for detailed installation guidelines, see page 12 of the use and care manual). In addition to our built-in drawer microwave, Summit offers other integrated appliances including gas and electric wall ovens, wine cellars, and single drawer refrigerators. Browse our full selection to explore your options.
|
Overview
|

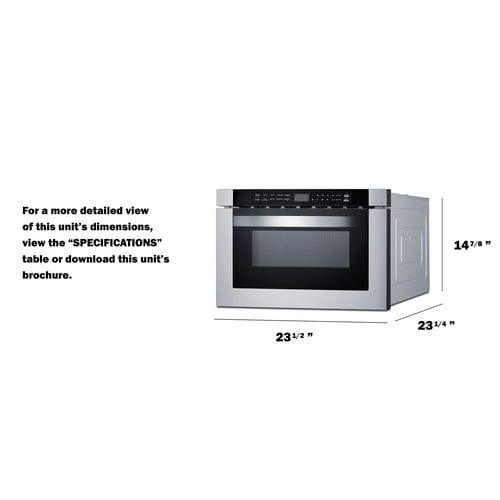

| Height of Cabinet |
14.88" (38 cm) |
| Width |
23.5" (60 cm) |
| Depth |
23.25" (59 cm) |
| Depth with Handle |
25.13" (64 cm) |
| Depth with door at 90° |
38.38" (97 cm) |
| Capacity |
1.2 cu.ft. (34 L) |
| Door |
Black/SS |
| Cabinet |
Gray |
| US Electrical Safety |
UL |
| Canadian Electrical Safety |
ULC |
| Amps |
12.0 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
33.0 lbs. (15 kg) |
| Parts & Labor Warranty |
1 Year |
| UPC |
761101086750 |
|
Microwave
|
| Type |
Drawer |
| Wattage |
1000.0 |
| Controls |
Digital |
| Digital Display |
Yes |
| Specialized Cooking Buttons |
Yes |
| Cutout Height |
14.81" (38 cm) |
| Cutout Width |
22.13" (56 cm) |
| Cutout Depth |
23.5" (60 cm) |
| Interior Height |
7.13" (18 cm) |
| Interior Width |
16.13" (41 cm) |
| Interior Depth |
16.75" (43 cm) |
24" wide drawer microwave
Built-in microwave designed for installation in wall or island openings
Easy access with touch open/close
Simply hold down the "open" and "close" buttons to access the microwave with minimal effort

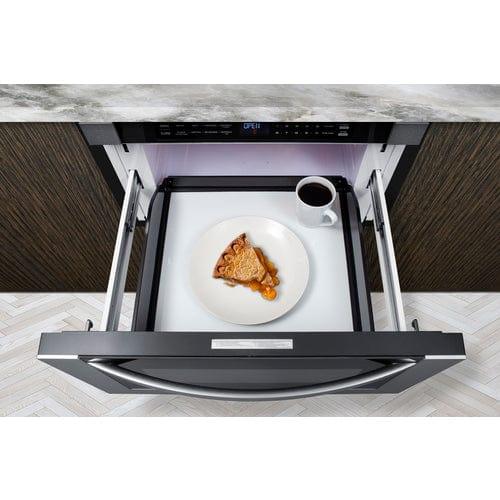

Top-load design

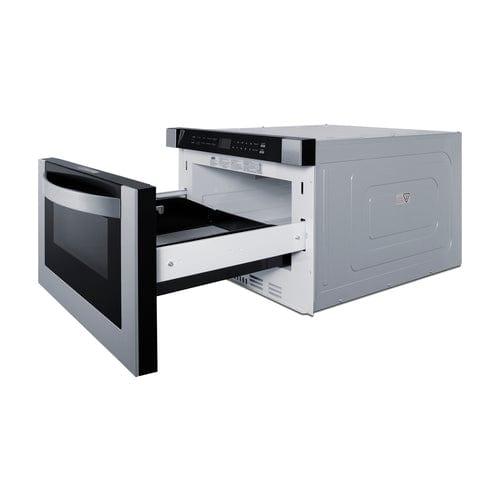

Slide-out drawer lets you check your cooking without removing it from the microwave, helping to reduce spills
Large capacity
1.2 cu.ft. interior offers plenty of space for large dishes
Stainless steel finish
Exterior features a brushed stainless steel trim to elevate your kitchen design
Blade style handle
Brushed stainless steel in a modern shape that suits any kitchen style
Easy-to-read controls
Control panel is set at a slight angle, making it easier to read all of the functions in any position
One-touch cooking
Includes buttons for popcorn, beverages, melting, and softening
Melt and soften options
"Melt" setting lets you choose from commonly melted items (buter, chocolate, cheese, or marshmallows) and "soften" lets you choose from butter, ice cream, or cream cheese
+30 Seconds Function
One-touch setting lets you add 30 seconds at the same cook setting
Multiple power levels
11 levels of heat allow you to find the proper settings for every dish
Defrost options
Defrost by weight or time to best suit your preference

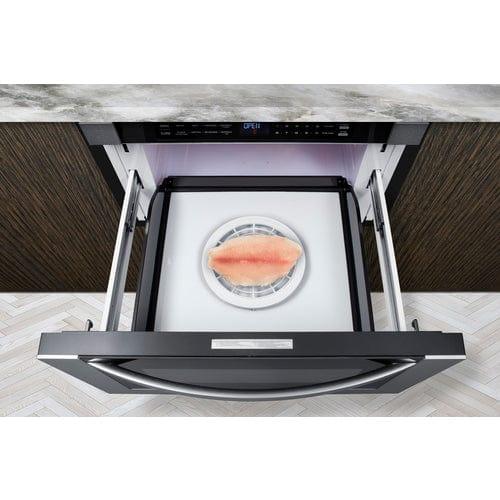

Defrost tray included
Round rack to hold meat and other items in place when using the defrost setting
Mute function
Option allows you to disable the end of cycle alert
Clock and timer
Centered display shows a digital readout of the time or timer countdown
Child lock
Control lockout setting lets you protect the microwave from accidental changes

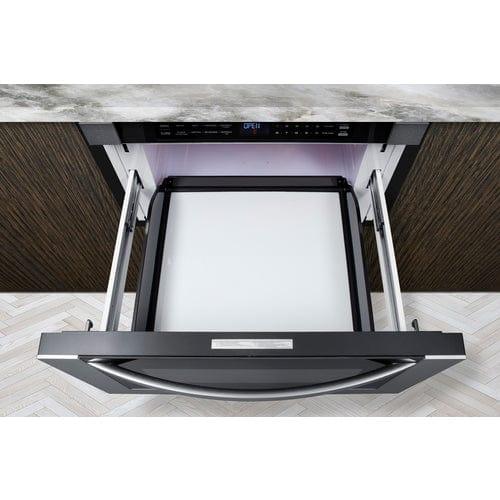

Drawer lighting
Interior light will remain on when the drawer is open, making it easier to see your progress in the clean white interior

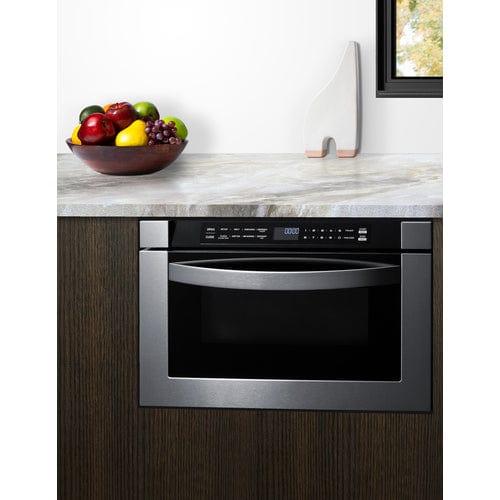

Versatile installation
Drawer microwave oven can be installed in a wall or island cutout and under a built-in wall oven
115V with cord included
Includes a pre-installed right angle NEMA 5-15 plug on a 54" long cord
ADA compliant
Accessible design to conform to the Americans with Disabilities Act when installed according to the guidelines
Full warranty
Limited 1-year parts and labor
