Slim-fitting undercounter freezer ideal for providing extra storage to small-spaced residential settings
Summit Appliance offers a quality selection of 20" wide built-in undercounter all-freezers designed for installation under lower ADA compliant counters, with advanced features for user convenience.

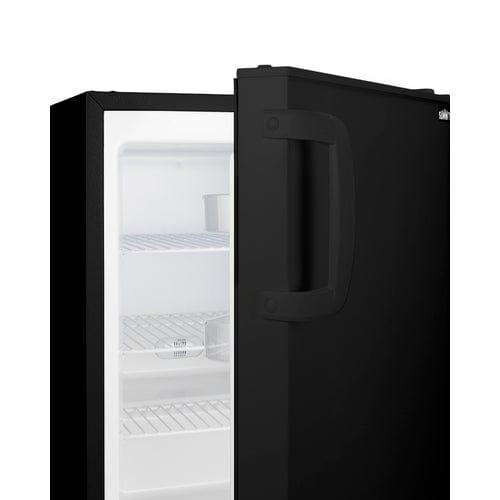

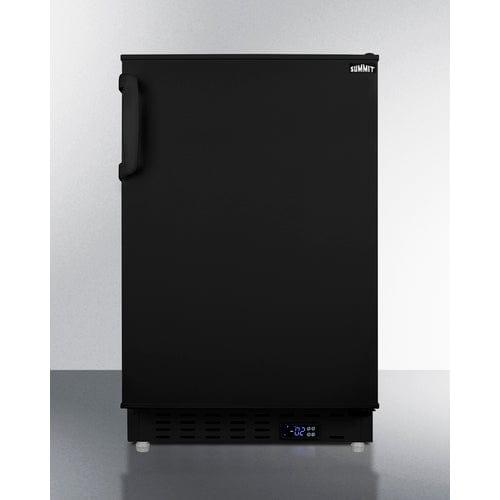

The ALFZ37B is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured black cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The user-reversible door is 3" thick for efficient insulation, with a handle included for added convenience. This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius.

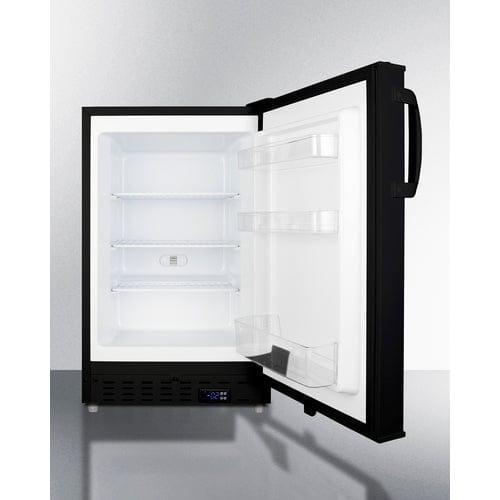

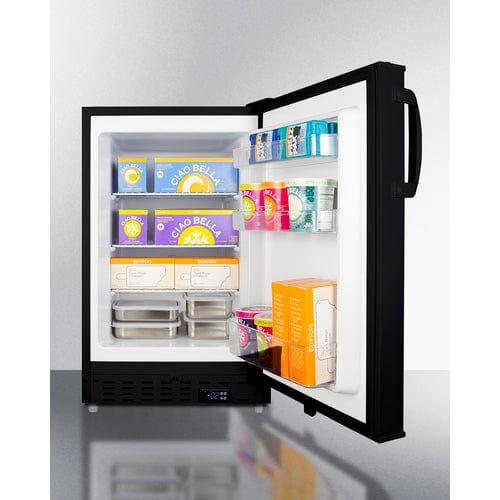

Inside, the ALFZ37B features an all-white interior for easy cleaning and viewing of contents. Static manual defrost operation provides efficient cooling inside the 2.68 cu.ft. interior. Three adjustable wire shelves offer optimal storage options for large and small items, while three removable door racks accommodate additional storage as needed. The user-set high and low temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar over one minute for added peace-of-mind. These alarms can be disabled depending on your needs.
Sized at just 20" wide, the ALFZ37B is the perfect addition for space-challenged spaces seeking dependable freezer options in a durable design. For a complete set, pair this unit with the matching ALR47B all-refrigerator. Additional choices with a stainless steel cabinet and panel-ready styles are available.
|
Overview
|
| Height of Cabinet |
31.75" (81 cm) |
| Height to Hinge Cap |
32.0" (81 cm) |
| Width |
19.75" (50 cm) |
| Width with Door Open |
20.25" (51 cm) |
| Depth |
22.5" (57 cm) |
| Depth with Handle |
24.38" (62 cm) |
| Depth with door at 90° |
40.25" (102 cm) |
| Capacity |
2.68 cu.ft. (76 L) |
| Defrost Type |
Manual |
| Door |
Black |
| Cabinet |
Black |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Energy Usage/Year |
266.0kWh/year |
| Amps |
0.6 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
65.0 lbs. (29 kg) |
| Shipping Weight |
94.0 lbs. (43 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101074016 |
|
Freezer
|
| Door Swing |
RHD |
| Reversible |
Yes |
| Interior Height |
23.75" (60 cm) |
| Interior Width |
14.5" (37 cm) |
| Interior Depth |
17.0" (43 cm) |
| Shelf Type |
Wire |
| Shelf Qty |
3 |
| Full Door Shelves |
3 |
| Adjustable Shelves |
Yes |
| Thermostat Type |
Digital |
| Fan Type |
Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
1.83 oz. |
| High Side PSI |
180.0 |
| Low Side PSI |
80.0 |
| Level Legs |
2 |
| Wheels |
2 |
| Compressor Step Height |
5.75" (15 cm) |
| Compressor Step Width |
14.5" (37 cm) |
| Compressor Step Depth |
6.0" (15 cm) |
| Temperature Range |
-13 to 5ºF |
| Sound Level |
33.1 dBa |
| Exterior |
| DL2B - Factory installed NIST calibrated digital data logger (DDL) |
CAS3 3" casters |
| Alarm/Thermometer - Factory-installed alarm with external temperature readout |
|
| Lock |
| L-SideLock |
KEYPAD - Battery-powered keypad door lock |
| AC Keypad - AC powered keypad lock |
|
| Handle |
| TBC Copper Towel Bar Handle |
CP Full-Length Copper Pipe Handle |
|
ADA compliant design
32" height allows easy installation under lower ADA compliant counters
Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Adjustable thermostat
Digital thermostat offers easy temperature management with a readout in Fahrenheit or Celsius

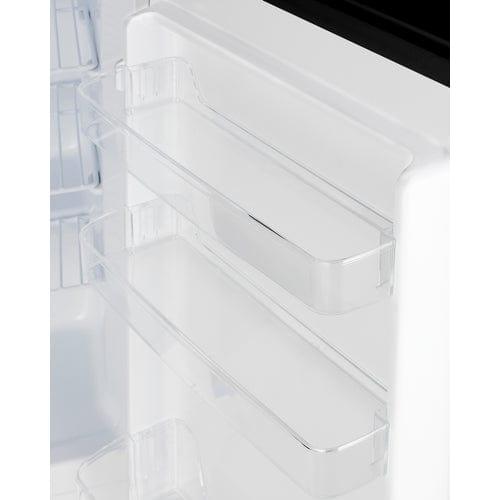

Door shelves
Three removable door racks for additional storage of larger items
Adjustable shelves
Three adjustable wire shelves for optimal storage in 2.68 cu. ft. interior
Reversible door
User-reversible door swing for added flexibility to best accommodate your setting
3" thick door
Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this refrigerator against a wall, please see our drawings to ensure adequate space
Temperature alarms
User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
Open door alarm
Audible alarm will sound if the door is left ajar for over a minute
Sealed back
Space-saving design that offers easier cleanability
Right-angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Manual defrost
More temperature stability with an energy efficient manual defrost system

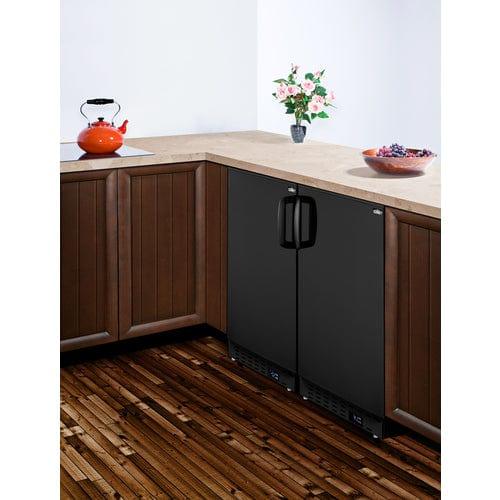

Matching all-refrigerator
This unit can be paired with the ALR47B all-refrigerator for a complete set
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
