Designed to fit under lower ADA compliant counters
Summit manufactures the industry's largest selection of built-in appliances sized for use under lower ADA compliant counters, including frost-free freezers specially designed to match our popular ADA compliant refrigerators.

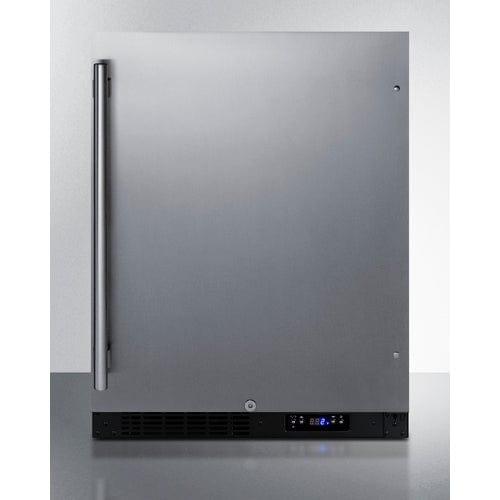

The ALFZ51 is a 24 inch wide all-freezer designed and approved for residential or commercial use. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. Sized just under 32 inches high and 24 inches wide, this unit makes an ideal fit under lower ADA compliant counters. The user-reversible door comes in a stainless steel finish and a pro style handle provides a professional, elegant look for any setting. A temperature alarm offers added security should the temperature go beyond the setpoint, and the optional Sabbath Mode can be used to disable certain electrical features during periods of religious observance for up to 96 hours. The frost-free cooling system keeps the unit running efficiently with little user maintenance, and the internal fan ensures the unit is evenly cooled.
Digital controls ensure easy temperature management. Inside, three easy-glide glass shelves that extend 50% provide flexible storage, and the shelving brake system keeps unit contents safe when loading and unloading. Two door racks are ideal for keeping commonly accessed items in easy reach.
With its advanced user features and versatile design, the ALFZ51 is an excellent addition to any ADA compliant setting looking for a frost-free freezer with a modern, elegant look. To create a matching set, pair with the AL55 refrigerator.
|
Overview
|
| Height of Cabinet |
31.63" (80 cm) |
| Width |
23.38" (59 cm) |
| Depth |
23.38" (59 cm) |
| Depth with Handle |
25.38" (64 cm) |
| Depth with door at 90° |
45.75" (116 cm) |
| Capacity |
4.0 cu.ft. (113 L) |
| Defrost Type |
Automatic |
| Door |
Stainless Steel |
| Cabinet |
Black |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S |
| Energy Usage/Year |
380.0kWh/year |
| Amps |
1.3 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
95.0 lbs. (43 kg) |
| Shipping Weight |
132.5 lbs. (60 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101085043 |
|
Freezer
|
| Door Swing |
RHD |
| Reversible |
Yes |
| Interior Height |
23.75" (60 cm) |
| Interior Width |
18.5" (47 cm) |
| Interior Depth |
16.75" (43 cm) |
| Shelf Type |
Glass |
| Shelf Qty |
3 |
| Adjustable Shelves |
Yes |
| Thermostat Type |
Digital |
| Fan Type |
Interior and Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
1.06 oz. |
| High Side PSI |
150.0 |
| Low Side PSI |
50.0 |
| Level Legs |
4 |
| Compressor Step Height |
5.0" (13 cm) |
| Compressor Step Width |
18.5" (47 cm) |
| Compressor Step Depth |
5.0" (13 cm) |
| Temperature Range |
-11°F to 11°F |
| Sabbath Mode |
Yes |
| Sound Level |
40.1 dB |
| Exterior |
| Latch - Factory-installed door latch requires manual release to open unit |
LHD - Left hand door swing |
|
| Handle |
| TBC Copper Towel Bar Handle |
CP Full-Length Copper Pipe Handle |
|
ADA compliant
32” height allows for installation within ADA compliant spaces
Commercially approved
ETL-S listed to NSF-7 commercial standards
Built-in capable
Front-breathing design allows the unit to be built-in under counters
Digital control panel
Makes for easy temperature reading/management with electronic controls inside
Factory installed lock
Keyed lock for secure interior, with two keys included
Stainless steel door
Durable construction with an stylish look
White interior
Classic interior allows for easy cleaning and viewing of products
Adjustable shelving
Three easy-glide shelves that extend 50% give space and flexibility when organizing the interior’s contents
Brake shelving system
Provides added safety when loading and unloading the unit's 3 shelves
Automatic defrost
Reduced maintenance with auto defrost system
Internal fan
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Professional handle
Stainless steel handle adds style to any setting
Temperature alarm
Alarm sounds if temperature goes out of recommended range after 2 hours
Sabbath mode
Optional feature disables alarms, interior light, and displays for up to 96 hours
Reversible door
User-reversible door swing makes it easy to best accommodate your setting
Integrated hinge
Flat stainless steel hinge ensures no added height is needed when installing under a counter
Fully finished black cabinet
Allows unit to be used freestanding
Matching refrigerator
Pair with Summit AL55 to create a matching ADA height set
100% CFC free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
