Lavender purple door finish brings modern elegance under the counter
Make a statement under the counter with Summit's exclusive collection of boldly colored refrigerators and matching freezers.

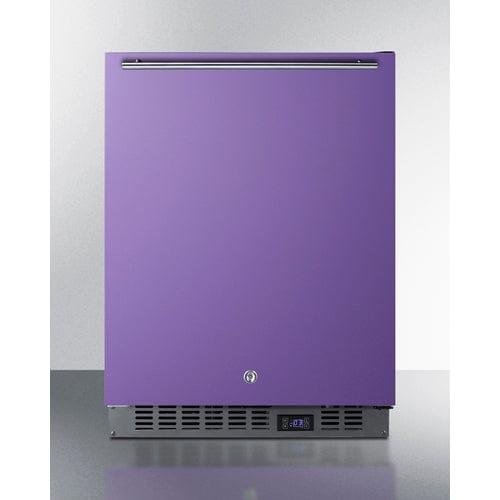

Model ALFZ53P is a 24" wide freezer sized at just 32" high for easy installation under lower ADA compliant counters. The front-breathing cooling system allows built-in use, while the fully finished black cabinet also enables freestanding applications. The door finish comes in an attractive lavender purple hue, with a sleek horizontally mounted stainless steel handle and matching stainless steel kickplate to complete the unique look.
Inside, the ALFZ53P utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat (located in the kickplate) makes it easy to manage the interior temperature. Three adjustable chrome shelves can be set at five different positions to best accommodate your storage needs. An open door alarm and high temperature alarm audibly warn if stored items are being exposed. An optional Sabbath mode setting lets you disable some of the electrical elements during periods of observance.
Additional features include a factory-installed lock for optional security, user-reversible door swing to best fit your space, right angle plug to save on depth, and sealed rear to ensure easier cleaning. The ALFZ53P can be paired with the AL54P all-refrigerator to create a matching undercounter ADA compliant set. Additional colors are available, including saffron gold, emerald green, and cobalt blue. Browse the full Summit selection to find the perfect addition to your kitchen.
|
Overview
|
| Height of Cabinet |
32.0" (81 cm) |
| Width |
23.63" (60 cm) |
| Depth |
22.63" (57 cm) |
| Depth with Handle |
24.13" (61 cm) |
| Depth with door at 90° |
45.0" (114 cm) |
| Capacity |
3.7 cu.ft. (105 L) |
| Defrost Type |
Frost-Free |
| Door |
Purple |
| Cabinet |
Black |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Energy Usage/Year |
345.0kWh/year |
| Amps |
1.5 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
92.0 lbs. (42 kg) |
| Shipping Weight |
125.5 lbs. (57 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101087672 |
|
Freezer
|
| Door Swing |
RHD |
| Reversible |
Yes |
| Interior Height |
23.5" (60 cm) |
| Interior Width |
18.75" (48 cm) |
| Interior Depth |
15.5" (39 cm) |
| Shelf Type |
Chrome |
| Shelf Qty |
3 |
| Adjustable Shelves |
Yes |
| Thermostat Type |
Digital |
| Interior Light |
Yes |
| Fan Type |
Interior and Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
1.31 oz. |
| High Side PSI |
270.0 |
| Low Side PSI |
105.0 |
| Level Legs |
4 |
| Compressor Step Height |
3.75" (10 cm) |
| Compressor Step Width |
18.75" (48 cm) |
| Compressor Step Depth |
4.5" (11 cm) |
| Temperature Range |
-11°F to 11°F |
| Sabbath Mode |
Yes |
| Sound Level |
33.7 dB |
| Exterior |
| Latch - Factory-installed door latch requires manual release to open unit |
LHD - Left hand door swing |
|
ADA compliant design
32" height allows easy installation under lower ADA compliant counters
Built-in capable
Make the best use of space by installing your freezer under the counter and flush with other cabinets
Frost-free operation
No-frost convenience eliminates the need to manually defrost the unit
Lavender purple door
Elegant purple finish with a slight gloss to elevate your undercounter space
Professional handle
Brushed stainless steel handle with a thin 14mm diameter is mounted horizontally across the door for a sleek look
Digital thermostat
Electronic controls offer easy and intuitive temperature management
Recessed LED light
Elegant lighting with an on/off switch located on the control panel
Reversible door
User-reversible door swing for added flexibility
Adjustable shelves
Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Factory installed lock
Keyed lock for a secure interior (2 keys included)
Open door alarm
Audible alarm will sound if the door is left open longer than one minute
Sabbath mode setting
Optional setting lets you disable the lighting and alarm for up to 48 hours
High temperature alarm
High temperature alarm sounds if the unit's interior goes out of the recommended range
Temperature Memory Function
Unit will retain its last settings when power is restored in the event of power loss
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Stainless steel kickplate
Added touch of style to complement the handle and complete the look
Sealed back
Space-saving design with no exposed coils for easier cleanability
Matching refrigerator available
Pair with the AL54P for a matching side-by-side set under lower ADA compliant counters
Fully finished cabinet
Allows the freezer to be used as a freestanding model
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
