The Summit 24" Wide Built-In All-Freezer, ADA Compliant, offers optimal storage space for frozen goods without sacrificing style or accessibility. With its wide design, this all-freezer provides ample room for all your frozen essentials. Perfect for those with mobility needs, the ADA compliant structure ensures ease of use. (Panel Not Included)
Designed to fit under lower ADA compliant counters, with a frost-free cooling system for minimum user maintenance
Summit manufactures the industry's largest selection of built-in appliances sized for use under lower ADA compliant counters, including frost-free freezers specially designed to match our popular ADA compliant refrigerators.

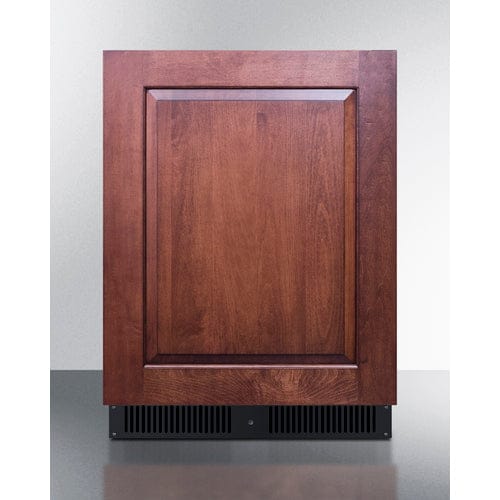

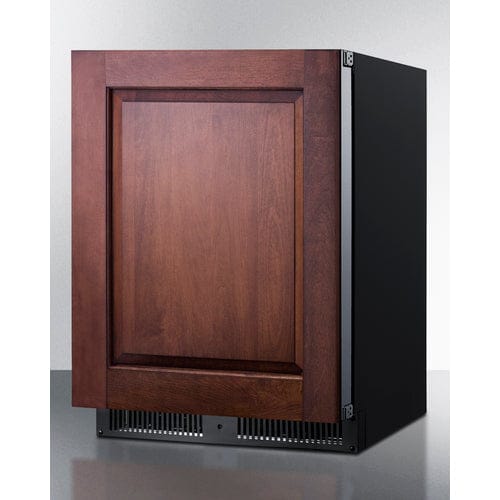

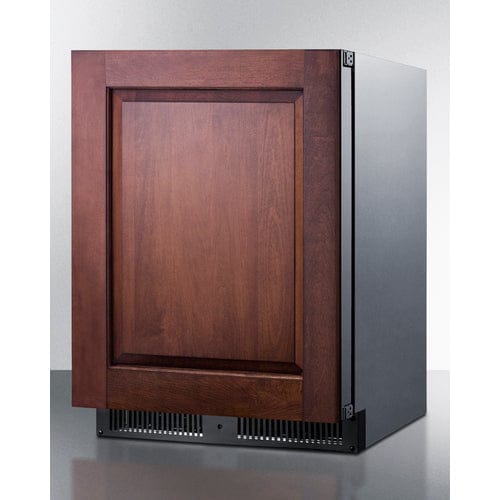

Model ALFZ53IF is a 24" wide all-freezer that can be paired with our AL54 all-refrigerator. Sized at just 32" high, it can easily be installed under an ADA compliant counter. The door features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 28 3/16" H x 23 5/16" W; maximum weight: 10 lbs.). This unit has a flush back for easy cleaning and a right angle cord.

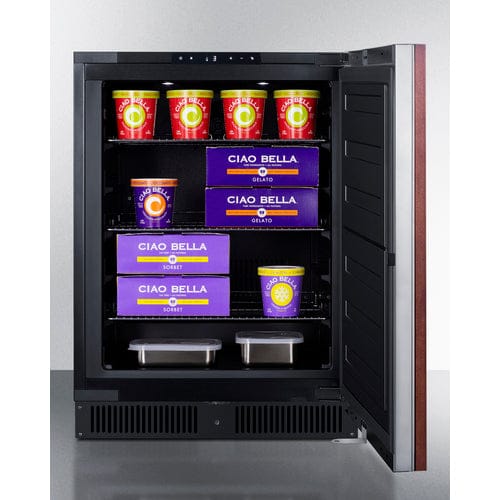

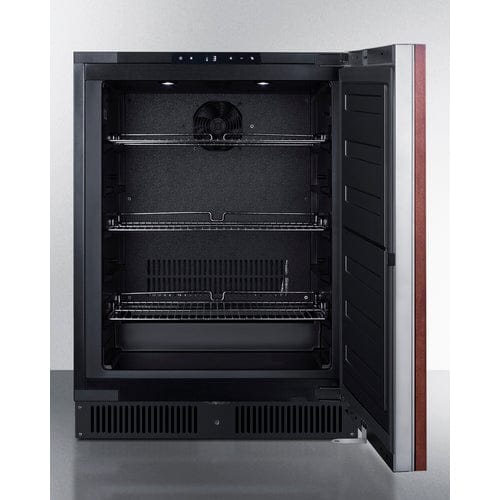

Inside, the ALFZ53IF utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look inside the black interior. Three adjustable chrome shelves can be set at five different positions to best accommodate your storage needs. Additional user-friendly features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. This unit features intuitive digital controls located in the external kickplate.
The ALFZ53IF freezer is approved for residential use and also ETL-S listed to NSF-7 standards for commercial applications. With its deluxe style and user-friendly features, this unit is the perfect choice for home or commercial kitchens. It's a perfect match for our AL54IF all-refrigerator, both panel-ready to create a truly custom refrigerator/freezer set under ADA compliant counters. Additional door finishes are available, including stainless and black stainless steel, and our new vibrant colors. Browse the full selection to explore your options.
|
Overview
|
| Height of Cabinet |
32.0" (81 cm) |
| Width |
23.63" (60 cm) |
| Depth |
22.63" (57 cm) |
| Depth with Handle |
24.63" (63 cm) |
| Depth with door at 90° |
45.0" (114 cm) |
| Capacity |
3.7 cu.ft. (105 L) |
| Defrost Type |
Frost-Free |
| Door |
Panel-Ready |
| Cabinet |
Black |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S |
| Energy Usage/Year |
345.0kWh/year |
| Amps |
1.5 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
90.0 lbs. (41 kg) |
| Shipping Weight |
117.5 lbs. (53 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101088037 |
|
Freezer
|
| Door Swing |
RHD |
| Reversible |
Factory Reversible |
| Interior Height |
23.5" (60 cm) |
| Interior Width |
18.75" (48 cm) |
| Interior Depth |
15.5" (39 cm) |
| Shelf Type |
Chrome |
| Shelf Qty |
3 |
| Adjustable Shelves |
Yes |
| Thermostat Type |
Digital |
| Interior Light |
Yes |
| Fan Type |
Interior and Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
1.31 oz. |
| High Side PSI |
270.0 |
| Low Side PSI |
105.0 |
| Level Legs |
4 |
| Compressor Step Height |
3.75" (10 cm) |
| Compressor Step Width |
18.75" (48 cm) |
| Compressor Step Depth |
4.5" (11 cm) |
| Temperature Range |
-11°F to 11°F |
| Sabbath Mode |
Yes |
| Sound Level |
33.7 dB |
| Exterior |
| SSK - Stainless steel kickplate |
Latch - Factory-installed door latch requires manual release to open unit |
| LHD - Left hand door swing |
|
ADA compliant design
32" height allows easy installation under lower ADA compliant counters
Built-in capable
Make the best use of space by installing your freezer under the counter and flush with other cabinets

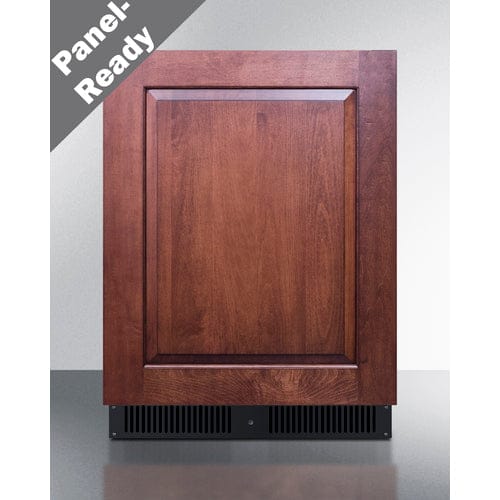

Panel-ready door
Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 23 5/16" W x 28 3/16" H and at least 3/4" thick; 10 lbs. maximum; customers provide their own handles
Frost-free operation
No-frost convenience eliminates the need to manually defrost the unit
Digital thermostat
Electronic controls offer easy and intuitive temperature management
Recessed LED light
Elegant lighting with an on/off switch located on the control panel
Factory-reversible door
Right hand door swing by default; if you require the door to open from the other direction, add upgrade "LHD" upon order
Adjustable shelves
Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Open door alarm
Audible alarm will sound if the door is left open longer than one minute
Sabbath mode setting
Optional setting lets you disable the lighting and alarm for up to 48 hours
High temperature alarm
High temperature alarm sounds if the unit's interior goes out of the recommended range
Temperature Memory Function
Unit will retain its last settings when power is restored in the event of power loss
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Sealed back
Space-saving design with no exposed coils for easier cleanability
Matching refrigerator available
Pair with the AL54IF for a matching side-by-side set under lower ADA compliant counters
Commercially approved
ETL-S listed to NSF-7 commercial standards
Fully finished cabinet
Allows the freezer to be used as a freestanding model
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
