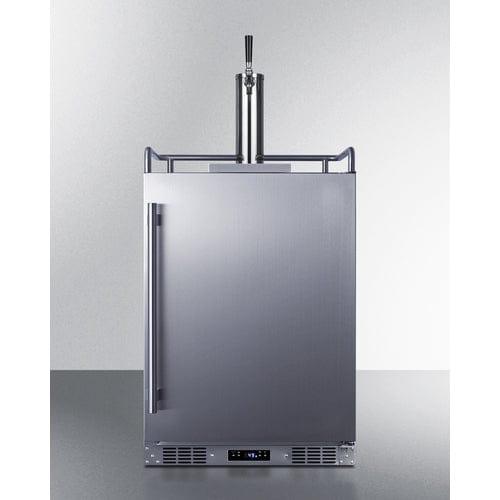

Introducing the Summit 24" Wide Built-In Outdoor Beer Kegerator SBC683OS, the perfect addition to your outdoor entertaining space. With its spacious design, easily store and dispense your favorite beers in any weather. Enjoy perfectly chilled and carbonated beverages with this expertly designed kegerator.
Summit manufactures a complete line of versatile kegerators capable of built-in installation in indoor or outdoor home settings.
The SBC683OS is a full-sized beer dispensers approved for both residential or commercial use. Sized at just 24" wide, it features a front-breathing system for built-in installation and a fully-finished cabinet that also allows freestanding use, with an included caster set for optional mobility. The exterior door and cabinet feature 304 grade stainless steel construction for safe, weatherproof use in the outdoors. The user-reversible door includes a pro style vertically mounted handle to complete the look. Additional features include a removable two-piece stainless steel drip tray to collect spills and a chrome guard rail to help keep glasses and mugs in place. This unit has a sealed rear for added protection from the elements.
Inside, the 5.6 cu. ft. interior can accommodate a full half or quarter keg, or up to three Cornelius or sixth barrel kegs. We include a complete commercial grade tap kit for dispensing your favorite beer, including a Sankey tap system and single tap draft tower, along with a CO2 tank and regulator. A tap cool system keeps your beer cold as it goes through your tower, and a Velcro strap holds the tank in place. The floor is constructed from stainless steel for added protection when loading and removing kegs. Two chrome shelves, with six placement options, allow the kegerator to also function as a beverage refrigerator. A digital thermostat makes it easy to manage the wide range temperature, while the external digital display has a readout in Celsius or Fahrenheit. Automatic defrost operation ensures minimal user maintenance. The Memory IC function recovers the unit's last settings in the case of a power outage or disruption.
With its solid construction, user-friendly features, and attractive design, the SBC683OS is the perfect beer dispenser for indoor or outdoor kitchens. Additional choices are available with alternate tapping options, including choices to dispense wine and coffee. Browse the full Summit line to explore all of your options.
|
Overview
|
| Height of Cabinet |
33.63" (85 cm) |
| Width |
23.75" (60 cm) |
| Depth |
24.25" (62 cm) |
| Depth with Handle |
26.25" (67 cm) |
| Depth with door at 90° |
46.75" (119 cm) |
| Capacity |
5.6 cu.ft. (159 L) |
| Defrost Type |
Automatic |
| Door |
Stainless Steel |
| Cabinet |
Stainless Steel |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S |
| Energy Usage/Year |
305.0kWh/year |
| Amps |
1.25 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
120.0 lbs. (54 kg) |
| Shipping Weight |
135.0 lbs. (61 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101083926 |
|
Kegerator
|
| Door Swing |
RHD |
| Reversible |
Yes |
| Tap Kit |
Yes |
| Height with Tap |
51.5" (131 cm) |
| Number of Taps |
1 |
| Adjustable Shelves |
Yes |
| Shelf Type |
Chrome |
| Shelf Qty |
2 |
| Thermostat Type |
Digital |
| Fan Type |
Interior and Exterior |
| Refrigerant |
R600a |
| Refrigerant Amount |
1.06 oz. |
| High Side PSI |
150.0 |
| Low Side PSI |
50.0 |
| Inter Height |
26.75" (68 cm) |
| Interior Width |
20.0" (51 cm) |
| Interior Depth |
19.0" (48 cm) |
| Level Legs Qty |
4 |
| Wheel Qty |
4 |
| Temperature Range |
34°F to 68°F (1°C to 20°C) |
| Sound Level |
34.0 db |
| Exterior |
| Latch - Factory-installed door latch requires manual release to open unit |
LHD - Left hand door swing |
|
Large capacity kegerator
5.6 cu.ft. interior can accept a full half barrel or quarter keg, or up to three sixth barrels or Cornelius style kegs
Weatherproof design
Solid 304 grade stainless steel construction allows placement in the outdoors
Built-in capable
Front-breathing design allows fully recessed installation under counters
Complete tap kit
Includes a CO2 tank and regulator, draft arm, Sankey American tap, connection hardware, and cleaning kit
Automatic defrost
Reduced user maintenance with auto defrost operation
Digital thermostat
Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit
Tap cool system
Interior tube allows you to extend the cold air flow up into draft tower, ensuring beer freshly tapped stays cold
Stainless steel floor cover
Interior includes steel cover to protect the floor when loading kegs
Top guard rail (ships unassembled)
Attractive chrome guard rail helps to reduce spills and neaten service
Stainless steel drip tray
Removable two-piece drip tray catches spills to help contain the mess
Adjustable shelves
2 chrome shelves (with six placement options) allow unit to also function as a beverage refrigerator
Memory IC function
Recovers the unit's last settings in the case of a power outage or disruption
Reversible door
User-reversible door swing for added flexibility
Casters included (ship unassembled)
Four casters (two locking) afford easy portability
Pro style handle
Stainless steel handle adds style to any setting
Fully finished stainless steel cabinet
Allows the dispenser to be used freestanding
Sealed back
Space saving design with easier cleanability
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
