Made in Europe with a unique dual evaporator system to ensure better cooling in each section
SUMMIT brings quality and value under the counter with the industry’s largest collection of ADA compliant undercounter refrigeration. The ENERGY STAR certified CT663BKADA Series features residential refrigerator-freezers made in Europe and designed for reliable cold storage under lower ADA counters.
Sized with a 24” footprint, the CT663BKIFADA refrigerator-freezer offers a generous 5.1 cu.ft. storage capacity, larger than many units in this size class. The 32” height makes it ideal for installation under lower counters complying with ADA guidelines for height restriction. The fully finished cabinet also enables freestanding use. This unit comes in a black exterior finish. The integrated stainless steel door frame is designed to accept overlay panels (sized 23 5/16" W x 28 1/4" H), allowing you to customize the front to seamlessly match your own cabinetry style. Customers provide their own handle.

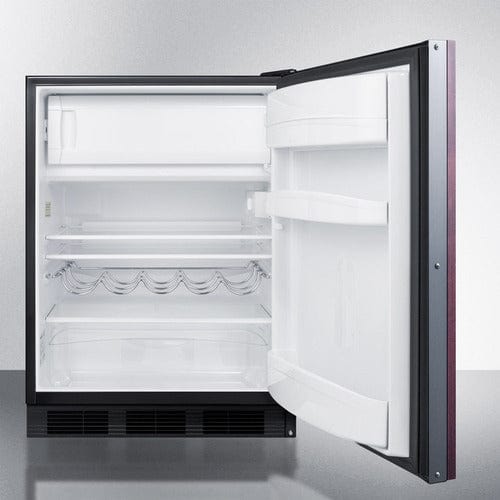

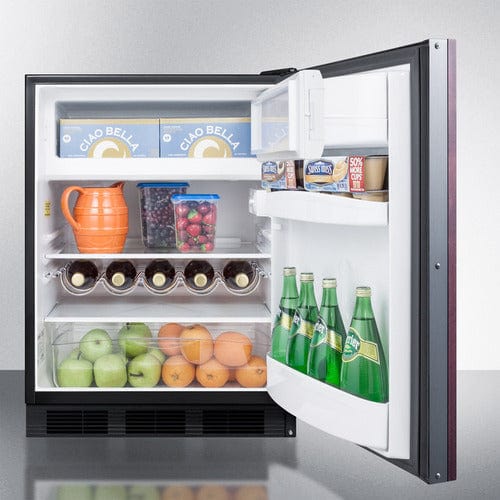

Inside, the CT663BKIFADA features a dual evaporator to allow separated cooling of the fresh and frozen food sections. The refrigerated compartment utilizes low maintenance automatic defrost, while the interior freezer compartment is manual defrost to achieve lower storage temperatures ideal for ice cream and other frozen food. The deluxe interior includes adjustable glass shelves for spill-proof storage and easier cleaning, as well as a scalloped wine shelf to hold wine and champagne bottles safely in place. Door racks offer additional convenience for tall bottles and condiments and a clear crisper drawer ensures your produce is stored under the ideal conditions. These models include automatic interior lighting and an adjustable dial thermostat.
With its ideal dimensions and user-friendly features, the CT663BKIFADA is the perfect refrigerator-freezer for any ADA compliant setting in need of versatile storage under the counter.

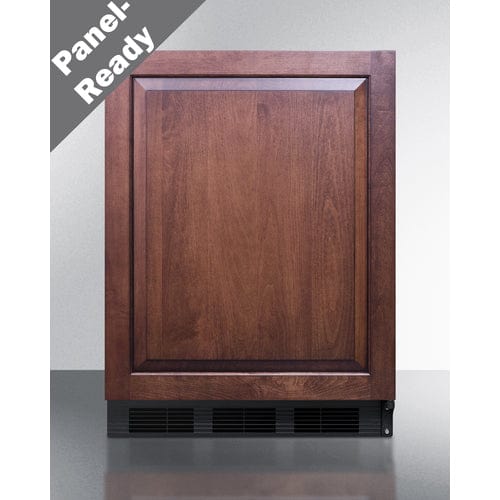

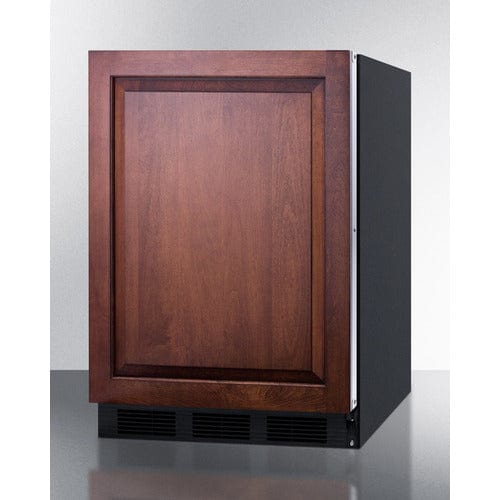

Note: Panel is not included. The images provided are meant only to be suggestive of what the product with a wood panel installed could look like. Users must supply their own wood panel.
|
Overview
|
| Nominal Height |
32.0" (81 cm) |
| Height of Cabinet |
32.0" (81 cm) |
| Height to Hinge Cap |
32.38" (82 cm) |
| Nominal Width |
24.0" (61 cm) |
| Width |
23.63" (60 cm) |
| Nominal Depth |
24.0" (61 cm) |
| Depth |
23.5" (60 cm) |
| Depth with door at 90° |
45.38" (115 cm) |
| Capacity |
5.04 cu.ft. (143 L) |
| Defrost Type |
Cycle |
| Door |
Panel-Ready |
| Cabinet |
Black |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Energy Usage/Year |
330.0kWh/year |
| Amps |
1.2 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
100.0 lbs. (45 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101068558 |
|
Refrigerator-Freezer
|
| Door Swing |
RHD |
| Reversible |
Factory Reversible |
| Adjustable Shelves |
Yes |
| Crisper Qty |
1 |
| Crisper Finish |
Transparent |
| Crisper Cover |
Glass |
| Wine Bottle Shelving |
Yes |
| Interior Light |
Yes |
| Refrigerator - Interior Height |
18.0" (46 cm) |
| Refrigerator - Interior Width |
21.0" (53 cm) |
| Refrigerator - Interior Depth |
18.0" (46 cm) |
| Refrigerator - Capacity |
4.5 cu.ft |
| Refrigerator - Shelf Type |
Glass |
| Refrigerator - Shelf Qty |
2 |
| Refrigerator - Full Door Shelves |
3 |
| Freezer - Interior Height |
5.25" (13 cm) |
| Freezer - Interior Width |
19.0" (48 cm) |
| Freezer - Interior Depth |
11.5" (29 cm) |
| Freezer - Capacity |
0.6 cu.ft |
| Thermostat Type |
Dial |
| Fan Type |
Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
0.92 oz. |
| High Side PSI |
180.0 |
| Low Side PSI |
80.0 |
| Compressor Step Height |
5.5" (14 cm) |
| Compressor Step Width |
21.0" (53 cm) |
| Compressor Step Depth |
6.0" (15 cm) |
| Door |
| CDP-Lavender purple door wrap |
CDB-Cobalt blue door wrap |
| CDY-Saffron gold door wrap |
CDG-Emerald green door |
|
| Exterior |
| HG - Hospital grade cord |
SSK - Stainless steel kickplate |
| LHD - Left hand door swing |
Alarm/Thermometer - Factory-installed alarm with external temperature readout |
| PH - Probe Hole |
DL2B - Factory installed NIST calibrated digital data logger (DDL) |
|
| Interior |
| FCGP internal fan with gel packs |
|
24" Wide European ADA Height Refrigerator-Freezer
Includes a full refrigerator and freezer section for undercounter use
ENERGY STAR certified
Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs
24" Wide European Refrigerator-Freezer
Full capacity for boht refrigerated and frozen foods, designed and manufactured in Europe for residential use
ADA compliant
32" high to fit under lower ADA compliant counters
Slim undercounter dimensions
Less than 24" wide with a generous storage capacity
Panel-ready door
Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
Cycle defrost
This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
Dual evaporator
Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
Adjustable glass shelves
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Door storage
Store tall bottles and condiments right on the door for convenient access
Wine shelf
Removable scalloped wine shelf is included to store champagne and wine bottles
Clear crisper drawer
Get the longest life and best taste out of produce by storing greens in a bottom crisper
Interior light
Automatically illuminates when you open the door
Hidden evaporator
Cold wall design with hidden evaporator creates a seamless, easy to clean interior
Adjustable thermostat
Dial thermostat located inside for easy temperature management
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
