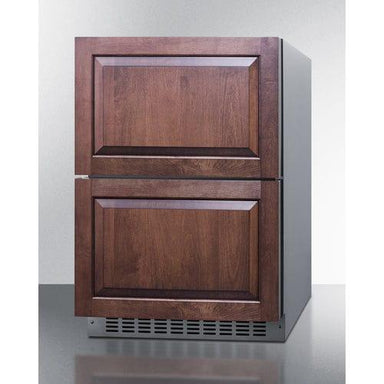

Versatile design allows you to install your panels over the stainless steel drawer fronts for a customized look

Summit manufactures an extensive selection of drawer refrigeration designed to bring elegant style and modern convenience to any undercounter space.

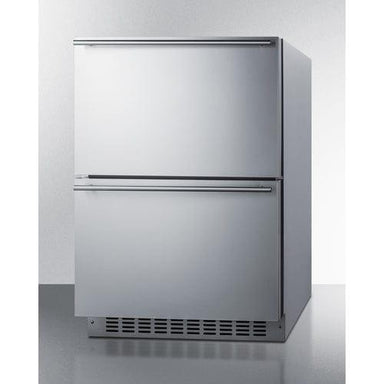

The SPRF34D is a 2-drawer refrigerator-freezer. It has a front-breathing design that allows built-in installation, while the fully finished stainless steel cabinet also enables freestanding use. Complete stainless steel construction inside and out offers long-lasting durability with professional elegance. The drawers can be customized with overlay panels to match or accent existing cabinetry design. The stainless steel kickplate and sleek, stainless steel handles complete the look, while a right-angle plug and sealed back offer added space savings when placing the unit.

Inside, the SPRF34D has a generous 3.9 cu.ft. capacity to accommodate your storage needs. Both the top drawer refrigerator and bottom drawer freezer utilize frost-free operation with fan-forced cooling, ensuring an even temperature distribution with minimum user maintenance. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two adjustable, removable dividers make it easy to separate the drawer compartments into two (freezer) or four (refrigerator) zones to easily accommodate a variety of sizes. A full-width sliding, removable chrome basket offers added storage convenience, while white LED lighting in the refrigerator drawer makes it easy to view stored contents. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, while a temporary memory function helps to recover all settings in the event of power loss. The Sabbath Mode setting disables certain electrical features during periods of religious observance.

With its durable construction and fully-featured design, the SPRF34D makes an attractive addition to any home.

NOTE: This unit comes with an anti-tip bracket that should be used to prevent tipping for user safety.

Overview
Height of Cabinet	34.0" (86 cm)
Width	23.63" (60 cm)
Depth	23.75" (60 cm)
Depth with Handle	25.13" (64 cm)
Depth with door at 90°	39.25" (100 cm)
Capacity	3.9 cu.ft. (110 L)
Defrost Type	Frost-Free
Door	Stainless Steel/Panel-Ready
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Energy Usage/Year	380.0kWh/year
Amps	1.0
Voltage/Frequency	115 V AC/60 Hz
Weight	108.0 lbs. (49 kg)
Shipping Weight	146.0 lbs. (66 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101073262
Refrigerator-Freezer
Door Swing	Drawer
Interior Light	Yes
Refrigerator - Interior Height	10.0" (25 cm)
Refrigerator - Interior Width	18.75" (48 cm)
Refrigerator - Interior Depth	15.5" (39 cm)
Refrigerator - Temperature Range	36°F to 43°F
Freezer - Interior Height	9.25" (23 cm)
Freezer - Interior Width	18.75" (48 cm)
Freezer - Interior Depth	15.5" (39 cm)
Thermostat Type	Digital
Fan Type	Interior
Refrigerant Type	R600a
Refrigerant Amount	1.13 oz.
High Side PSI	270.0
Low Side PSI	105.0
Freezer - Temperature Range	-11°F to 11°F
Compressor Step Height	3.5" (9 cm)
Compressor Step Width	18.75" (48 cm)
Compressor Step Depth	4.0" (10 cm)
Sabbath Mode	Yes
Sound Level	34.2 dB

Exterior

Latch - Factory-installed door latch requires manual release to open unit

24" Wide 2-Drawer Refrigerator-Freezer

Complete refrigeration storage solution with top drawer refrigerator and bottom drawer freezer

Built-in capable

Make the best use of space by installing this unit under the counter and flush with other cabinetry

Stainless steel construction

Interior and exterior are fully constructed from stainless steel to ensure lasting durability and easy cleanup

Panel-ready drawer fronts

Drawers accept overlay panels (size: 23.43" x 15" at 3/4" thick) to let you seamlessly blend the refrigerator into cabinetry design

Two sliding drawers

Smooth gliding stainless steel drawers for easy use

Frost-free operation

Minimum user maintenance with a fully no-frost operation system

Digital thermostat

Electronic controls located on the top drawer ensure easy temperature management, with an external readout of Celsius or Fahrenheit

LED lighting

Elegant LED lighting in a gentle white hue illuminates the refrigerator section for an easy view of the interior

Drawer dividers

Two adjustable dividers make it simple to organize the drawer interiors

Sliding basket

Removable chrome basket included for easier storage convenience

Internal fan

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Professional handles

Sleek stainless steel handles add an elegant touch to any setting

Temperature alarm

High temperature alarm sounds if the unit's interior goes out of the recommended range

Open drawer alarm

Audible alarm will sound if either drawer is left open longer than one minute

Temperature Memory Function

Unit will retain its last settings when power is restored in the event of power loss

Sabbath Mode

Optional setting lets you disable certain electrical functions during periods of religious observance

Child lock

Disables digital controls after two minutes of activity for added safety

Fully finished stainless steel cabinet

Allows the unit to be used freestanding

Sealed back

Space-saving design that offers easier cleanability

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Anti-tip bracket

Included and recommended for user-installation to reduce the risk of tipping

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
