Stackable design with a slide-out center rack that can hold up to 35 lbs.
Summit's selection of slim-fitting laundry options brings efficiency and convenience to apartments, tiny houses, and other homes with limited floor space.

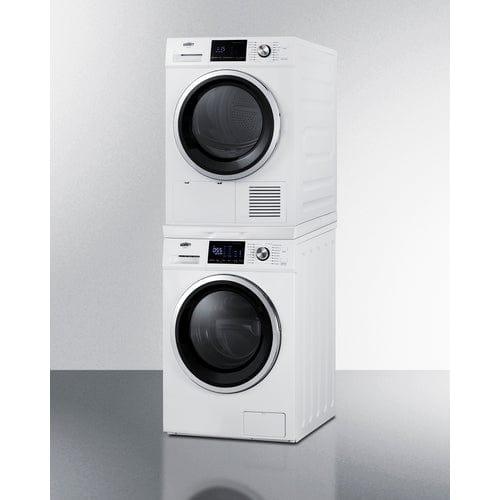

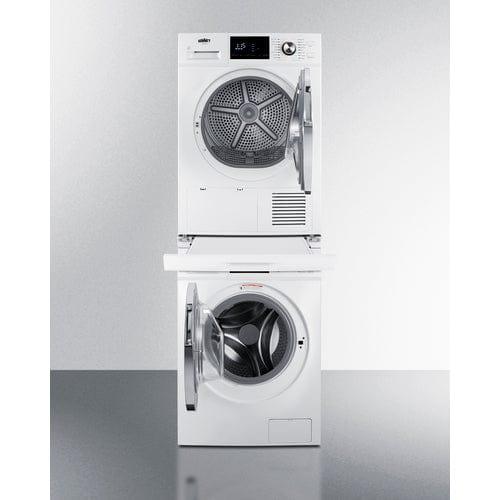

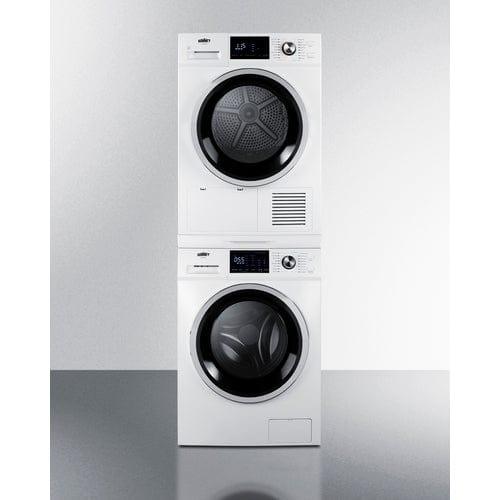

The LSWD24 is a laundry station set that includes the 2.7 cu.ft. LW2427 washer, 4.4 cu.ft. LD2444 heat pump dryer, and the LWSTACKKIT accessory that lets you stack the dryer on top. The stacking rack is specially designed for these two units and features a full-extension slide-out rack for added convenience when doing laundry.
Both laundry units are ENERGY STAR certified for energy and water savings. The 115V washer includes a pre-installed 3-prong cord. The 208-240V heat pump dryer is designed for professional installation to a 3 or 4-wire connection based on your local code.
The LW2427 washer can wash up to 26.4pounds of fabric with a choice of 15 wash programs including cottons, heavy duty, permanent press for wrinkle reduction, sportswear, sanitary, babywear, delicates, wool, and more. A tub clean setting lets you run a high temperature wash cycle to help sterilize the interior and remove any residue left from previous washes. Additional features include a child lock, 24 hour delay start, and add garment function. The pull-out detergent compartment makes it easy to load.

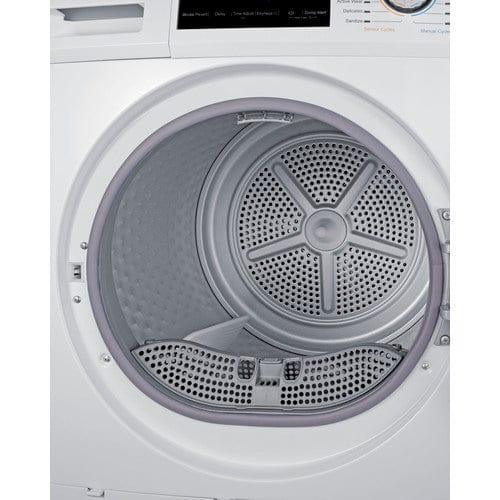

The LD2444 heat pump dryer offers non-vented operation and utilizes a heat pump for an energy efficient performance. It dries up to 19 pounds of fabric with 15 dry programs including options for wool, air fluff, jeans, delicates, and permanent press to help reduce wrinkles. Additional features include a child lock, 24 hour delay start, add garment function, and lint filter to ensure a cleaner performance. For improved water and energy savings, the LD2444 utilizes modern heat pump technology. This 2-stage drying system helps to allow more versatile placement and increased efficiency by separating the moisture produced by your dryer from hot air. The water is collected by the upper condensation tank and must be emptied (an icon on the digital screen will remind you after each dry cycle).
Both models have a front-loading design in a white cabinet finish, with windows for a clear view of the interior. Durable stainless steel interiors ensure long-lasting use. Dial controls allow users to choose their wash/dry cycle with ease, and digital touchscreens allow for efficient management of each unit.
With its slim-fitting design and fully wash & dry capacity, the LSWD24 is perfect for apartments, homes, and similar environments seeking full-capacity washer and dryer.
|
Overview
|
| Height of Cabinet |
66.0" (168 cm) |
| Width |
23.75" (60 cm) |
| Depth |
24.75" (63 cm) |
| Depth with door at 90° |
43.75" (111 cm) |
| Capacity |
7.1 cu.ft. (201 L) |
| Door |
Glass |
| Cabinet |
White |
| US Electrical Safety |
UL |
| Canadian Electrical Safety |
ULC |
| Energy Usage/Year |
101.0kWh/year |
| Other Energy Info |
15 amps for both the washer and dryer |
| Amps |
30.0 |
| Weight |
300.0 lbs. (136 kg) |
| Shipping Weight |
350.0 lbs. (159 kg) |
| Parts & Labor Warranty |
1 Year |
| UPC |
761101088150 |
|
Washer-Dryer
|
| Loading Style |
Front Loading |
| Door Window |
Yes |
| Door Swing |
French |
| Reversible |
No |
| Maximum Wash Weight |
26.4 lbs. (12 kg) |
| Maximum Dry Weight |
19.0 lbs. (9 kg) |
| Lint Trap |
Yes |
| Control Type |
Digital & Dial |
| Dispenser Compartment |
Yes |
| Wash Cycles |
15 |
| Dry Cycles |
15 |
| Maximum Drum Speed |
1400.0 |
| Delayed Start |
Yes |
| Delicate Cycle |
Yes |
| Permanent Press Cycle |
Yes |
| Level Legs |
8 |
Complete laundry station
Combines LW2427 washer & LD2444 heat pump dryer for a complete laundry station with a stacking kit
ENERGY STAR certified (washer & dryer)
Use less water and energy than national standards require to ensure more efficiency and lower utility bills

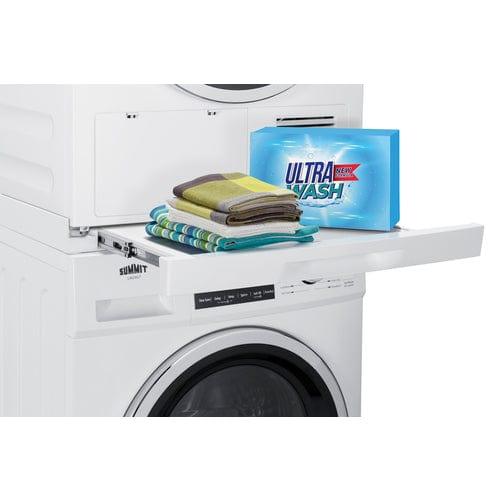

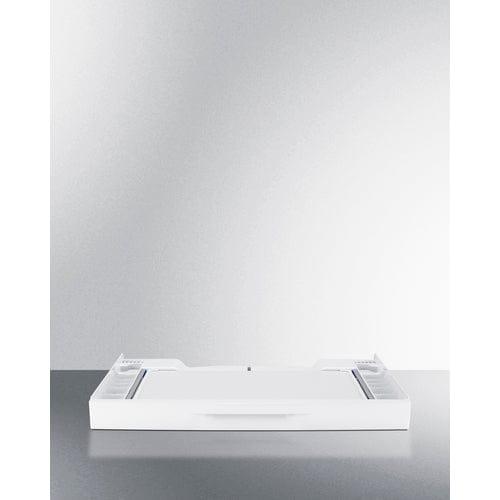

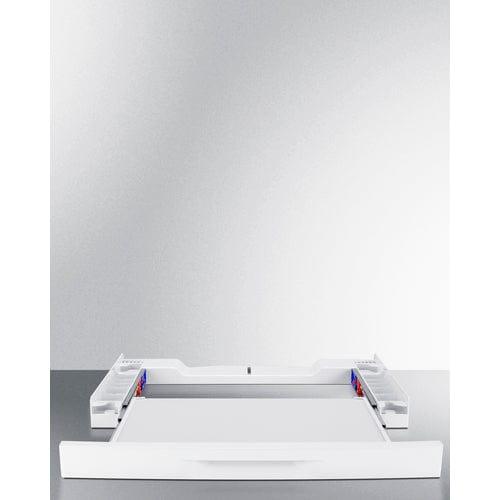

Stacking kit with slide-out rack
Easy to install stacking kit includes a full-extension glide-out base that can hold up to 35 lbs. of clothes
110-120V Operation (washer)
Versatile non-vented washer for use with standard 15 amp circuits
208-240V Operation (dryer)
Requires professional installation to a 3 or 4-wire connection
Large interiors
Washer has 2.7 cu.ft drum (wash up to 26.4 lbs. of fabric), while the dryer has a 4.4 cu.ft. drum (dry up to 19 lbs. of fabric)
Front-loading design (washer & dryer)
Easy to load, with a glass door for a clear view inside

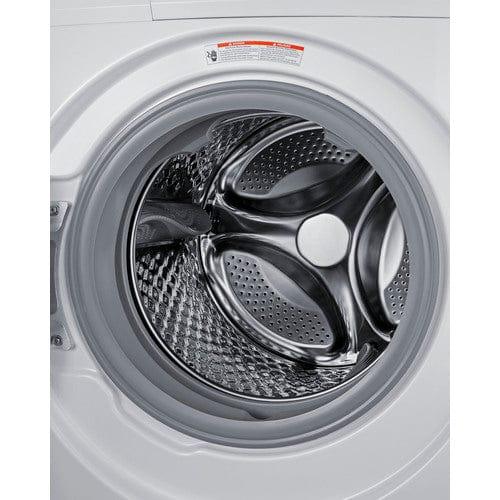

Stainless steel tub (washer) & drum (dryer)
Durable interiors holds up load after load
Touchscreen display (washer & dryer)
Digital touchscreen controls ensure easy operation of speciality programs
Cycle selector knob (washer & dryer)
Allows users to easily cycle through the 15 wash and dry programs
Heat pump operation (dryer)
Non-vented, energy efficient operation that uses recycled air to better save on energy use and costs
Wash settings
Get the proper fabric care with settings for cottons, quick wash, activewear, babywear, delicates, wool, and more
15 dry settings
Multiple options to meet all of your fabric needs, including specialty settings for jeans, quick dry, wool, air fluff, delicates, activewear, and more
Permanent press (washer & dryer
Popular function to help reduce wrinkles
Tub clean setting (washer)
Allows you to run an empty wash cycle at high temperatures to help sterilize the interior drum and remove lingering residue
1400 RPM (dryer)
Provides better water extraction for dryer clothing
Condensation drainage hose (dryer)
Included for users who prefer a more traditional drainage system (not required for operation of the unit)

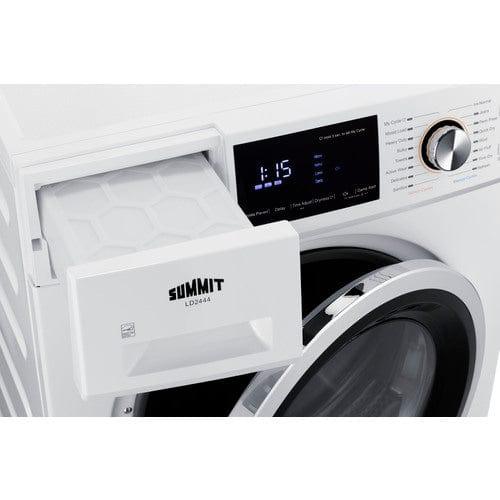

Condensation tank (dryer)
Pull-out tank for easy disposal of collected moisture after drying (Note: the tank should be emptied every other cycle)
Lint filter
Included inside the door to help catch clothing debris

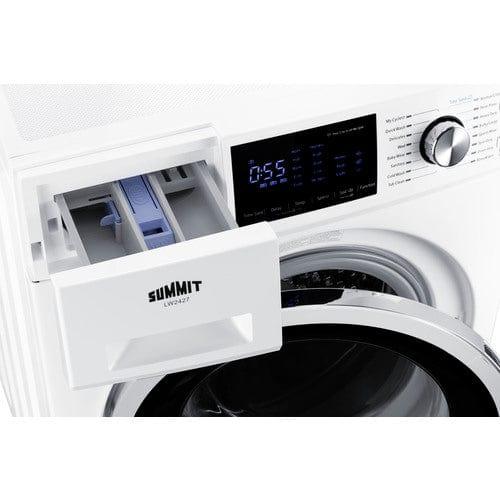

Detergent dispenser
Pull-out compartment for prewash, regular detergent, and fabric softener
Delay start option (washer & dryer)
Allows you to pre-set your laundry for the ideal finish time
Easy iron function (washer)
Helpful setting can be added to most wash cycles as needed
Add garment function
Lets you pause the wash or dry cycle to add or remove fabric
Control lock (both units)
Child lock allows you to disable the controls to prevent accidental use
