Just 6" wide to convert any undercounter opening into a fully featured wine station with optimum temperature control

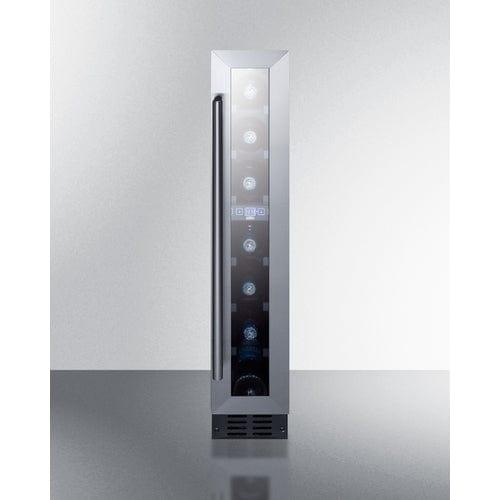

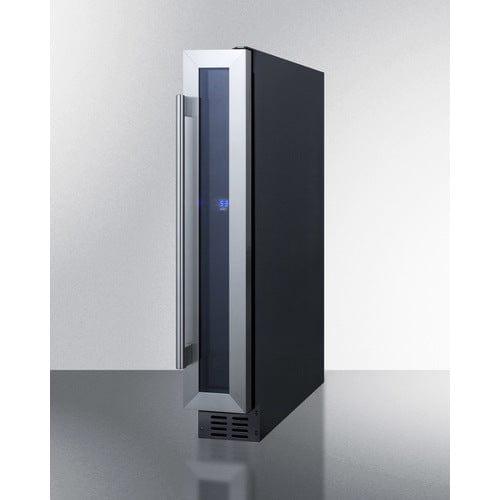

Complete any undercounter space in style with Summit's SWC007, a 6 inch wide wine cellar fully featured for user convenience.
Designed for built-in installation, the SWC007 features a front-breathing compressor-based cooling system. The stainless steel trimmed glass door includes a pro style handle and is user-reversible for added flexibility. This unit has a jet black exterior finish. The sealed back and right angle plug make it easy to install flush with cabinetry. At just 32 1/4 inches high, this unit can easily fit under most ADA compliant counters. We include a kickplate extender and leveling legs that allow you to raise the height an additional 2 1/2 inches, ensuring an easy fit under standard countertops as well.

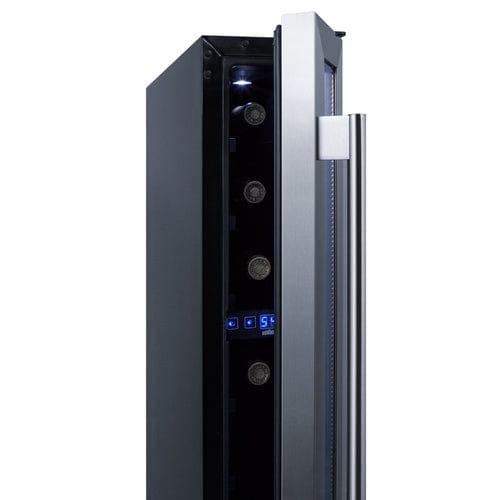

Inside, the SWC007 features a digital thermostat with easy touch controls and a temperature readout that can be viewed in Celsius or Fahrenheit at the touch of a button. Seven slots let you store wine bottles with ease, including a slightly angled floor slot that makes it easier to store bottles that have already been opened. This unit is equipped with an open door and high temperature alarm to help ensure your bottles are stored properly. The Sabbath mode setting allows you to disable certain features during periods of observance.
With its attractive design and innovative size, the SWC007 is the perfect way to finish any kitchen design.
|
Overview
|
| Height of Cabinet |
32.25" (82 cm) |
| Width |
5.88" (15 cm) |
| Depth |
20.75" (53 cm) |
| Depth with Handle |
22.38" (57 cm) |
| Depth with door at 90° |
25.5" (65 cm) |
| Bottles |
7 bottles |
| Defrost Type |
Automatic |
| Door |
Glass |
| Cabinet |
Black |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Amps |
1.0 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
40.0 lbs. (18 kg) |
| Shipping Weight |
43.5 lbs. (20 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101056319 |
|
Wine Cellar
|
| Number of Zones |
1 |
| Door Swing |
RHD |
| Reversible |
Yes |
| Height Adjustable |
Yes |
| Thermostat Type |
Digital |
| Interior Light |
Yes |
| Fan Type |
Interior and Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
0.57 oz. |
| High Side PSI |
270.0 |
| Low Side PSI |
105.0 |
| Interior Height 1 |
25.75" (65 cm) |
| Interior Width 1 |
3.5" (9 cm) |
| Interior Depth 1 |
14.25" (36 cm) |
| Compressor Step Width |
3.5" (9 cm) |
| Compressor Step Depth |
5.0" (13 cm) |
| Level Legs |
4 |
| Temperature Range |
41 to 72ºF |
| Sabbath Mode |
Yes |
| Sound Level |
33.8 dB |
| Door |
| T4 Door Tint |
T3 Door Tint |
| T2 Door Tint |
T1S Door Tint |
| T1 Door Tint |
|
| Exterior |
| LHD - Left hand door swing |
|
Slim 6 inch width
Perfectly sized to complete any extra undercounter space

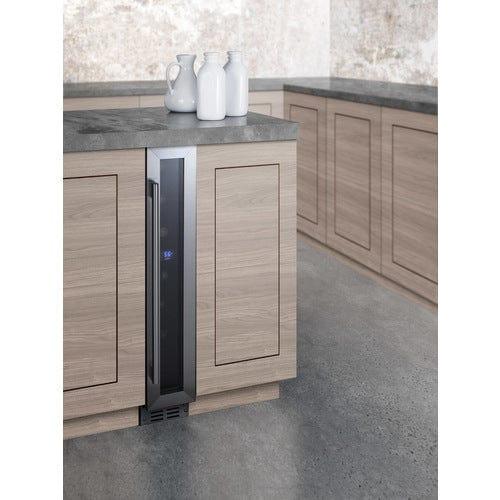

Designed for built-in use
Make the best use of space by installing your appliance under the counter
ADA compliant
Sized at 32 1/4" high to fit under most lower ADA compliant counters
Commercial design
Meets UL-471 commercial standards
Height adjustable
Leveling legs can be adjusted to raise the height up to 34.25" for an appropriate fit under standard counters
Glass door with stainless steel trim
Provides a full display of your stored collection with a heat-safe double tempered design
Digital thermostat
Electronic controls for precise temperature management
7 bottle capacity
Interior can hold up to 7 Bordeaux style bottles. Most wider Burgundy style bottles fit as well
Open bottle storage
The floor slight is slightly angled, allowing you store bottles that have been uncorked at a gentle tilt
Digital display
Temperature readout can be shown in Celsius or Fahrenheit
LED lighting
Provides an attractive and efficient bottle display
Automatic defrost
Reduced maintenance and steady temperature performance
Fan-forced cooling
Interior fan helps to ensure the temperature is evenly distributed
Professional handle
Stainless steel look for added elegance
Reversible door
User-reversible door swing allows you to easily adjust to better accommodate your setting
Open door alarm
Audible alarm will sound if the door is left ajar for over 60 seconds
High temperature alarm
If the interior temperature becomes too warm, an audible alarm will sound and the temperature display will flash until the proper temperature is restored
Sabbath mode setting
Optional setting lets you disable the lighting and alarm for up to 48 hours
Temperature memory function
Unit will retain last temperature settings in the event of a power failure
Right angle plug
Flat design offers added space savings by requiring no extra depth to plug the unit in
Flush back
Space saving design with easier cleanability
Kickplate extender included
Includes an extra kickplate to cover up the leveling legs if the unit's height is raised
Quiet operation
Runs at under 34 dB for a quiet performance in any setting
Quality storage
Compressor-based operation to ensure reliable temperature performance
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
