The Summit SWC007H34PNR is a high-quality, built-in wine cellar that is 6" wide. Its compact design allows for easy integration into any kitchen or bar setup. With precise temperature control and adjustable shelving, this wine cellar provides the perfect environment for storing and preserving your favorite wines. Keep your collection at its best with the Summit SWC007H34PNR wine cellar.
Panel-ready door trim lets you seamlessly integrate refrigerated wine storage into a 6" wide undercounter space
Summit lets you transform even the slimmest undercounter space into a fully functional wine cellar with our 6 inch wide SWC007PNR.
Designed for built-in installation, the SWC007PNR features a front-breathing compressor-based cooling system to ensure proper wine temperature is maintained. The double pane tempered glass door comes with specialized hinging that lets you install your own custom panel over the frame, allowing you to match or complement surrounding cabinetry (panel dimensions: 28 1/8" H x 5 5/8" W at 3/4" thickness). At just 32 1/4 inches high, this unit can easily fit under most ADA compliant counters. We include a kickplate extender and leveling legs that allow you to raise the height an additional 2 1/2 inches, ensuring an easy fit under standard countertops as well. This unit has a right angle plug and sealed rear for added space savings. For a left hand door swing, see model SWC007PNRLHD.
Inside, the SWC007PNR features a digital thermostat with easy touch controls and a temperature readout that can be viewed in Celsius or Fahrenheit at the touch of a button. The temperature can be set between 41 and 72ºF to suit red or white wine. Seven slots let you store wine bottles with ease. The floor is set at a slight angle, ideal for holding an open bottle. This unit is equipped with an open door and high temperature alarm for added assurance. The Sabbath mode setting allows you to disable certain electrical features during periods of observance. The commercial grade compressor operates quietly, keeping the sound levels under 34 dB.
With its innovative size and customizable design, the SWC007PNR can be installed in virtually any space to bring reliable wine storage to kitchens, home bars, offices, walk-in closets, and more.
|
Overview
|
| Nominal Height |
32.0" (81 cm) |
| Height of Cabinet |
32.25" (82 cm) |
| Nominal Width |
6.0" (15 cm) |
| Width |
5.88" (15 cm) |
| Nominal Depth |
21.0" (53 cm) |
| Depth |
20.75" (53 cm) |
| Depth with Handle |
22.38" (57 cm) |
| Depth with door at 90° |
25.5" (65 cm) |
| Bottles |
7 bottles |
| Defrost Type |
Automatic |
| Door |
Glass/Panel-Ready Frame |
| Cabinet |
Black |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Amps |
1.0 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
40.0 lbs. (18 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101146751 |
|
Wine Cellar
|
| Number of Zones |
1 |
| Door Swing |
RHD |
| Reversible |
Factory Reversible |
| Height Adjustable |
Yes |
| Thermostat Type |
Digital |
| Interior Light |
Yes |
| Fan Type |
Interior and Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
0.57 oz. |
| High Side PSI |
270.0 |
| Low Side PSI |
105.0 |
| Interior Height 1 |
25.75" (65 cm) |
| Interior Width 1 |
3.5" (9 cm) |
| Interior Depth 1 |
14.25" (36 cm) |
| Compressor Step Width |
3.5" (9 cm) |
| Compressor Step Depth |
5.0" (13 cm) |
| Level Legs |
4 |
| Temperature Range |
41 to 72ºF |
| Sabbath Mode |
Yes |
| Sound Level |
33.8 dB |
| Exterior |
| LHD - Left hand door swing |
|
| Door |
| T1 Door Tint |
T1S Door Tint |
| T2 Door Tint |
T3 Door Tint |
| T4 Door Tint |
|
Built-In Wine Cellar
Single zone wine cellar sized for built-in installation in 6" wide spaces
ADA compliant
Sized at 32 1/4" high to fit under most lower ADA compliant counters

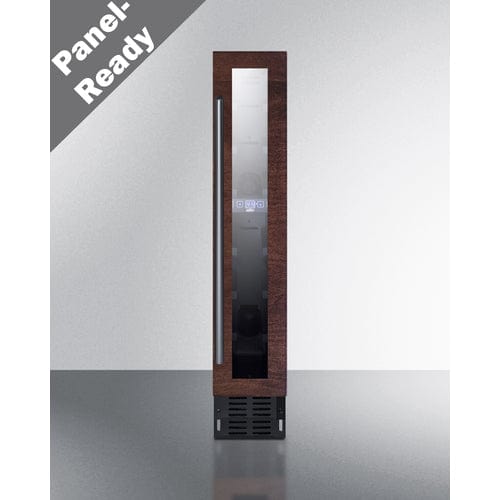

Panel-ready door trim
Specialized hinges allow you to install an overlay panel over the door trim to create a custom look that matches adjacent cabinetry (panel size: 28 1/8" H x 5 5/8" W at 3/4" thickness)
Slim 6 inch width
Uniquely slim fit lets you transform extra cabinet space into a 7-bottle wine storage center
Designed for built-in use
Make the best use of space by installing your appliance under the counter
Commercial design
Meets UL-471 commercial standards
Height adjustable
Leveling legs can be adjusted to raise the height up to 34.25" for an appropriate fit under standard counters
Glass door
Double pane tempered glass provides a full display of your collection
Digital thermostat
Electronic controls for precise temperature management
7 bottle capacity
Interior can hold up to 7 Bordeaux style bottles. Most wider Burgundy style bottles fit as well
Open bottle storage
The floor slight is slightly angled, allowing you store one bottle that has been uncorked at a gentle tilt
Digital display
Temperature readout can be shown in Celsius or Fahrenheit
LED lighting
Provides an attractive and efficient bottle display
Automatic defrost
Reduced maintenance and steady temperature performance
Fan-forced cooling
Interior fan helps to ensure the temperature is evenly distributed
Open door alarm
Audible alarm will sound if the door is left ajar for over 60 seconds
High temperature alarm
If the interior temperature becomes too warm, an audible alarm will sound and the temperature display will flash until the proper temperature is restored
Sabbath mode setting
Optional setting lets you disable the lighting and alarm for up to 48 hours
Temperature memory function
Unit will retain last temperature settings in the event of a power failure
Right angle plug
Flat design offers added space savings by requiring no extra depth to plug the unit in
Flush back
Space saving design with easier cleanability
Kickplate extender included
Includes an extra kickplate to cover up the leveling legs if the unit's height is raised
Quiet operation
Runs at under 34 dB for a quiet performance in any setting
Quality storage
Compressor-based operation to ensure reliable temperature performance
Right hand door swing
For this unit with the door opening from the other side, see model SWC007PNRLHD
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
