Slim-fitting ADA compliant undercounter refrigerator ideal for providing extra storage to small-spaced settings, with a pure copper handle for added protection from bacteria
Accucold offers a quality selection of 21" wide built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience.

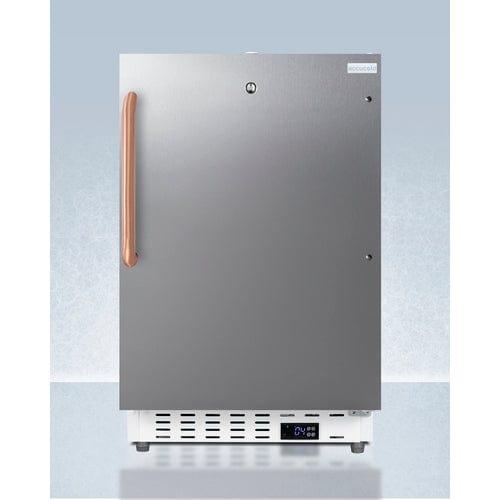

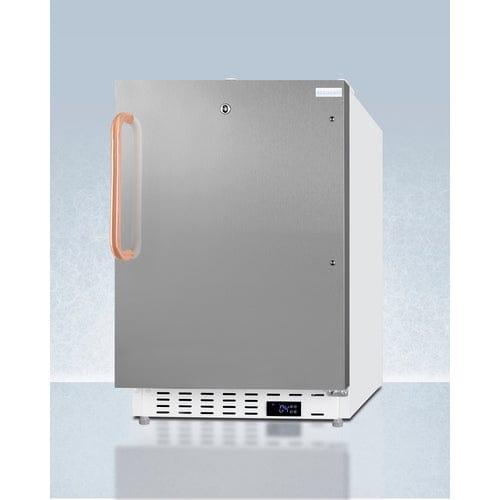

The ADA404REFSSTBC is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The user-reversible stainless steel door is 3" thick for efficient insulation, with a top-mounted lock for added security and convenient access. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius. This unit comes with a hospital grade cord with a green dot plug for added safety in high traffic areas. Powerful magnetic gaskets ensure a tight seal.
The ADA404REFSSTBC includes a factory-installed towel bar style handle made from pure copper. Through its natural antimicrobial properties, copper will kill microbes, including viruses, in a shorter timeframe than most other metal surfaces allowing for a safer, cleaner user experience.

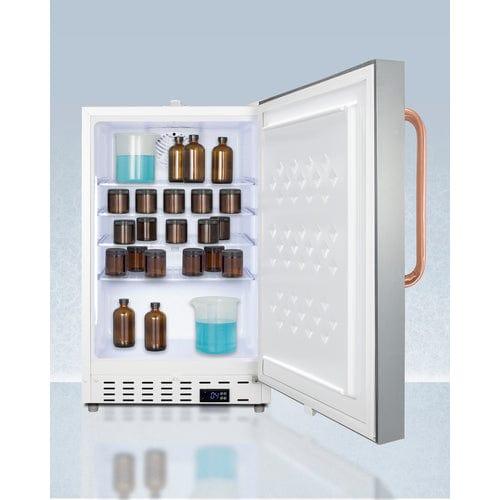

Inside, the ADA404REFSSTBC is designed to operate between +2°C and +8°C as recommended for the storage of select pharmaceuticals and other medical supplies. An LED light located on the front left side of the unit attractively illuminates the interior when the door opens. Automatic defrost operation ensures minimal user maintenance, with an internal fan to help promote even cooling throughout the 3.32 cu.ft. interior. Adjustable wire shelves allow you to rearrange the interior to best suit your storage needs. As recommended by the CDC, this unit has a flat door liner to ensure users don't store sensitive contents on the door. The user-set high and low temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar beyond one minute for added peace-of-mind. These alarms can be disabled depending on your needs. A preinstalled probe hole is included to allow users to connect their own monitoring equipment.
Sized at just under 21" wide, the ADA4040REFSSTBC makes an ideal choice for various facilities. For a complete set, pair this unit with the matching -20ºC ADA305AFSSTBC all-freezer.
|
Overview
|
| Height of Cabinet |
31.75" (81 cm) |
| Height to Hinge Cap |
32.0" (81 cm) |
| Width |
20.25" (51 cm) |
| Depth |
22.5" (57 cm) |
| Depth with Handle |
25.0" (64 cm) |
| Depth with door at 90° |
40.25" (102 cm) |
| Capacity |
3.32 cu.ft. (94 L) |
| Defrost Type |
Automatic |
| Door |
Stainless Steel |
| Cabinet |
White |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Amps |
1.1 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
69.0 lbs. (31 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101077758 |
|
Refrigerator Features
|
| Door Swing |
RHD |
| Reversible |
Yes |
| Shelf Type |
Wire |
| Shelf Qty |
4 |
| Thermostat Type |
Digital |
| Fan Type |
Interior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
0.99oz. |
| High Side PSI |
180.0 |
| Low Side PSI |
80.0 |
| Level Legs Qty |
2 |
| Interior Light |
Yes |
| Temperature Range |
2 to 8°C |
|
Dimensions
|
| Interior Height |
23.5" (60 cm) |
| Interior Width |
16.25" (41 cm) |
| Interior Depth |
17.0" (43 cm) |
| Compressor Step Height |
6.25" (16 cm) |
| Compressor Step Width |
16.25" (41 cm) |
| Compressor Step Depth |
6.0" (15 cm) |
| Exterior |
| TM1A - Factory-installed dry contacts with remote alarm |
LHD - Left hand door swing |
| DL2B - Factory installed NIST calibrated digital data logger (DDL) |
Alarm/Thermometer - Factory-installed alarm with external temperature readout |
|
| Lock |
| AC Keypad - AC powered keypad lock |
KEYPAD - Battery-powered keypad door lock |
|
ADA compliant design
32" height allows easy installation under lower ADA compliant counters
Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter
2 to 8º operation
Designed to safely store select pharmaceuticals and other materials with strict temperature requirements

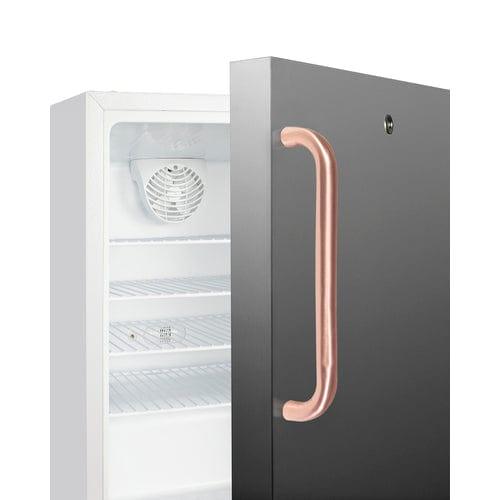

Copper handle
Naturally antimicrobial, the towel bar handle made from pure copper helps to protect against microbes for added safety and cleanliness
Factory-installed lock
Located towards the top of the door for easy access and to provide added security of unit (2 keys included)
Access port
Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

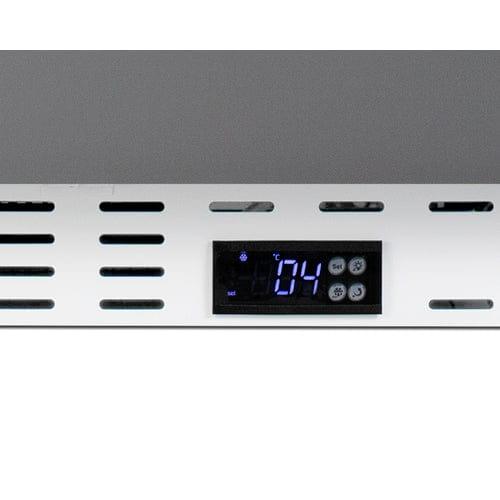

Adjustable digital thermostat
Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius

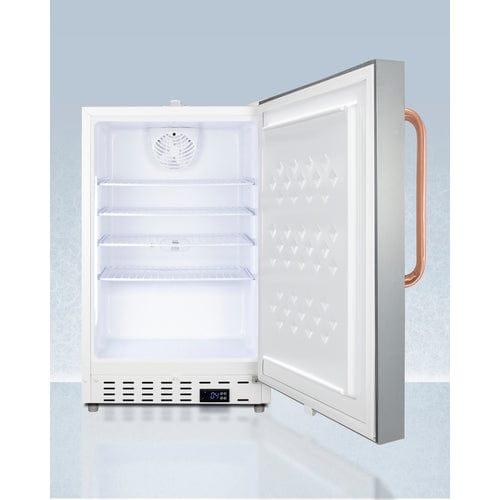

Adjustable wire shelves
Four wire shelves provide optimal storage and improved air circulation in the 3.32 cu. ft. interior
3" thick door
Improved insulation for an efficient performance
Temperature alarms
User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
Open door alarm
Audible alarm will sound if the door is left ajar for over a minute

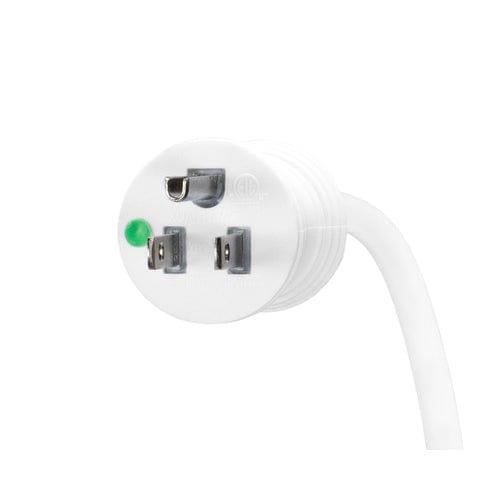

Hospital grade cord with 'green dot' plug
Secure three-pronged cord for added unit safety
Automatic defrost
Reduced user maintenance with an auto defrost system
Flat door liner
Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
Internal fan
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Reversible stainless steel door
User-reversible stainless steel door for added flexibility to best accommodate your setting
Sealed back
Space-saving design that offers easier cleanability

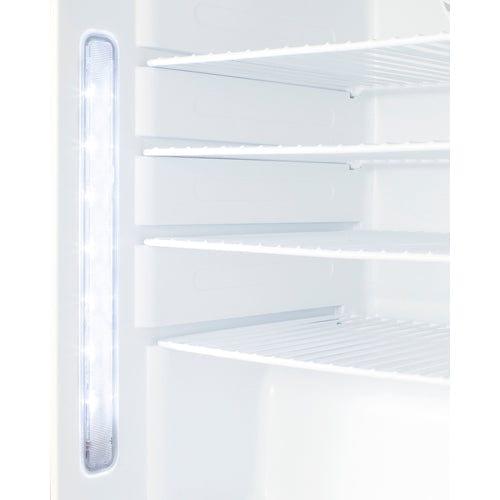

Interior light
Front-located LED light ensures entire interior is lit when door opens
Magnetic door gasket
Quality door gaskets ensure a tight seal for energy savings and improved performance
Matching all-freezer
This unit can be paired with the ADA305AFSSTBC all-freezer for a complete set
Fully finished white cabinet
Allows the unit to be freestanding
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
