Introducing the Accucold Upright Pharmacy Refrigerator ARG23MLLH! With 23 Cu.Ft. of storage space, this refrigerator provides ample room for all of your pharmaceutical needs. Its sleek design and precise temperature control make it the perfect choice for safely storing medication. Trust the experts and invest in the Accucold Upright Pharmacy Refrigerator.
Designed and Purpose built to meet demanding needs of life science, vaccine, laboratory and medical cold storage applications
Accucold's Pharma-Lab Performance Series features reach-in refrigerators and matching freezers designed and purpose-built to meet the demanding needs for pharmacy, medication, vaccine, laboratory, and life science applications.
The ARG23MLLH is a 23 cu.ft. glass door all-refrigerator with an adjustable control range from +2 to +10ºC. The microprocessor temperature controller features a large digital LED display viewable in Celsius or Fahrenheit, making it easy for staff to manage and monitor the temperature. The unit is equipped with an air sensor for rapid control response and a product sensor for a more accurate reading of the interior, including a display of the min/max temperature in 15 minute increments The audible and visual temperature alarm sounds if the unit rises or falls above a user-set range. Additional alarms include a power failure alert, door open alarm, and a condenser cleaning reminder.
Inside, the ARG23MLLH utilizes adjustable cycle defrost operation to avoid temperature spikes, with a top-mounted forced air cooling system to ensure rapid temperature recovery. Four vinyl-coated wire shelves on cantilevered clips allow you to accommodate virtually any sized item. The LED lighting displays automatically when the door is open, providing a full and energy efficient display.
The ARG23MLLH features a durable stainless steel cabinet and interior, with a sealed back for easier cleanup. The double pane tempered glass door provides a full display of the interior. We include a set of casters (2 locking) for optional installation. A factory-installed lock offers added security, with two keys included for your facility. Magnetic door gaskets ensure a strong seal. The door is self-closing to help protect contents, but will remain open at 90º for easier loading. This unit has a left hand door swing. For the same model with the door opening from the other side, see the ARS23ML.
Designed with hydrocarbon refrigerant, the ARG23MLLH provides an energy efficient solution to large capacity storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible and meets NSF-7 commercial standards. For a matching frost-free freezer, see the AFS23ML.
NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. At this time, Accucold refrigerators have not been evaluated to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.
|
Overview
|
| Height of Cabinet |
83.75" (213 cm) |
| Width |
27.5" (70 cm) |
| Depth |
31.0" (79 cm) |
| Depth with Handle |
32.75" (83 cm) |
| Depth with door at 90° |
56.5" (144 cm) |
| Capacity |
23.0 cu.ft. (651 L) |
| Defrost Type |
Automatic |
| Door |
Glass |
| Cabinet |
Stainless Steel |
| US Electrical Safety |
UL |
| Canadian Electrical Safety |
ULC |
| Sanitation |
ETL-S |
| Amps |
7.5 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
282.0 lbs. (128 kg) |
| Shipping Weight |
329.5 lbs. (149 kg) |
| Parts & Labor Warranty |
2 Years |
| Compressor Warranty |
5 Years |
| UPC |
761101066745 |
|
Refrigerator Features
|
| Door Swing |
LHD |
| Reversible |
No |
| Shelf Type |
Wire |
| Shelf Qty |
4 |
| Adjustable Shelves |
Yes |
| Thermostat Type |
Digital |
| Fan Type |
Interior |
| Refrigerant Type |
R290a |
| Refrigerant Amount |
2.5oz. |
| High Side PSI |
290.0 |
| Low Side PSI |
155.0 |
| Wheel Qty |
4 |
| Interior Light |
Yes |
| Temperature Range |
2 to 10ºC |
| Sound Level |
34.6 dB |
|
Dimensions
|
| Interior Height |
51.5" (131 cm) |
| Interior Width |
23.5" (60 cm) |
| Interior Depth |
27.0" (69 cm) |
| Exterior |
| TM1A - Factory-installed dry contacts with remote alarm |
PHRI - Probe Hole |
| DL2B - Factory installed NIST calibrated digital data logger (DDL) |
|
Purpose-built design
Designed and engineered to store vaccines and other sensitive materials under stable temperature conditions
Adjustable temperature
Interior is pre-set to 5ºC, with an adjustable control range from 2 to 10ºC
Temperature alarm
Visual and audible alarms alert if the interior temperature rises or falls out of set range
Complete stainless steel construction
Interior and exterior are entirely constructed from stainless steel for lasting durability and easy cleanup
Glass door
Full display of the interior, with an anti-condensate door frame heater to ensure a clear view
Forced air cooling
Top-mounted commercial fan ensures rapid temperature recovery
Automatic defrost with adjustable cycle defrost
Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup
Self-closing door
Closes to save energy but will remain open when the door is opened at a 90º angle for easier loading
Open door alarm
Alarm will beep 3 times if the door is left open for 30 seconds, 5 times at 60 seconds, and will sound continuously if the door is open for more than 5 minutes
6 inch casters
Ships with a set of casters (2 locking) for optional user installation
Microprocessor control panel
Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
Min/max display
Control panel provides a readout of the low and high temperatures in 15 minute increments
Factory-installed lock
Keyed lock conveniently located towards the top of the door for added security (2 keys included)

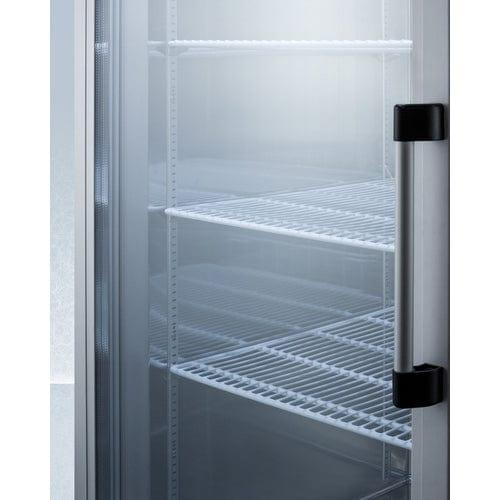

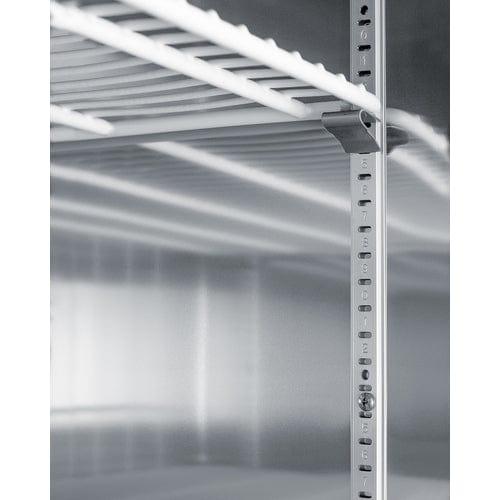

Adjustable plastic-coated wire shelves for improved circulation
Multiple shelf positions spaced at 1/2" to allow flexible adjusting to support smaller items
Interior light
Energy efficient LED lighting with internal on/off switch
Large capacity
23 cubic feet of storage space inside
Left hand door swing
For the same unit with the door opening from the other side, see the ARG23ML
Sealed back
Space-saving design that ensures easier cleanup
Magnetic door gasket
Quality door gaskets ensure a tight seal for energy savings and improved performance
Condenser cleaning alarm
In order to prevent dust from impeding performance, this unit is equipped with audible and visual alarm that reminds you to clean the condenser every 6 months
Extended warranty
2 years parts and labor/5 years compressor
Commercially approved
Commercial construction meeting UL commercial listing standards
Eco-Friendly
Using environmentally friendly hydrocarbons refrigerants for a greener footprint
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
