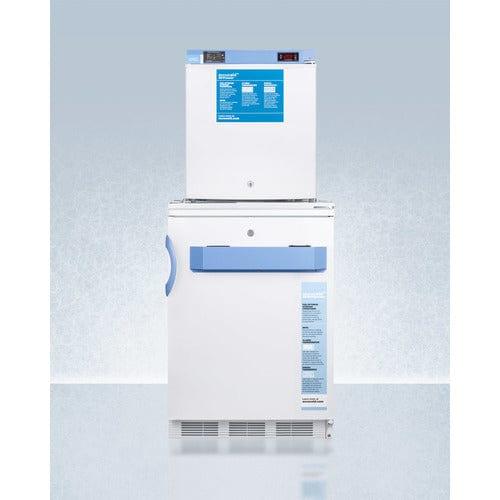

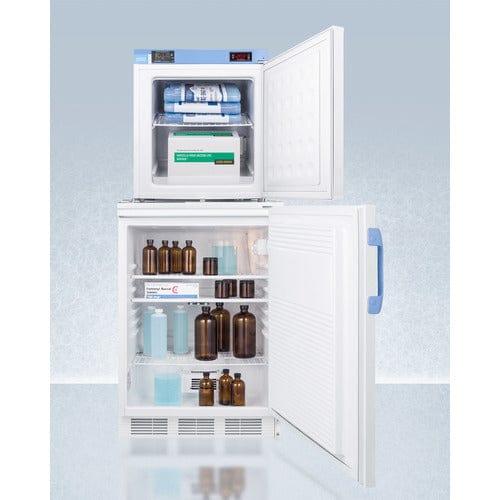

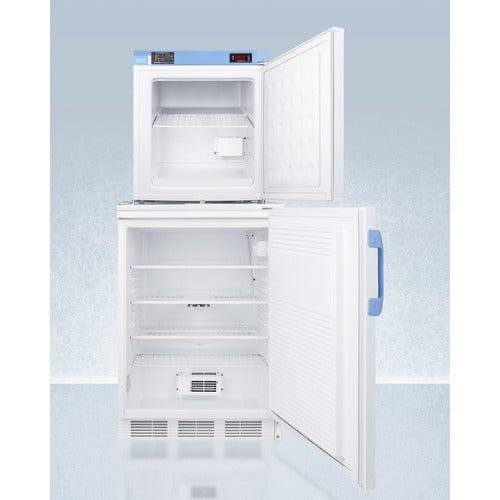

Accucold provides an innovative solution to vaccine storage with the STACKMED2 stackable refrigerator-freezer combination series. According to the CDC's recommendations, separate storage for refrigerated and frozen supplies is crucial. The compact FF7LW-FS24LSTACKMED2 offers a slim profile, measuring just under 24" wide, while providing a total of 5.5 cu.ft. of combined storage space. Made in Europe, this combination includes the FF7LWBIMED2 all-refrigerator, equipped with fan-forced cooling and adjustable wire shelves for even temperature distribution, and the FS24LMED2 all-freezer, utilizing manual defrost cooling.
Both units feature front-located control panels equipped with digital thermostats and NIST calibrated thermometers with high/low temperature alarms. Calibration is done in our ISO/IEC certified laboratory. The buffered temperature probes are encased in a glycol-filled bottle and secured inside the center shelf to best simulate the temperature of other stored contents, resulting in the utmost accuracy for temperature reporting. We include a pre-installed 3/8" probe hole for users who wish to install additional monitoring equipment in the rear of both units. Additional features include front locks and hospital grade cords. Products in the MED2 series come with a two year warranty on parts and labor and a five year warranty on the compressor.
All Accucold STACKMED2 units ship in three boxes and require some minor assembly upon delivery. Additional stacked combinations can be created by ordering virtually any two units with our StackRack. These units can also be customized with a variety of refrigeration options, including NIST calibrated thermometers, USB data loggers, open door alarms, and much more. To create a custom combination, contact our sales team at 718-893-3900.
*NOTE: Thermostats come pre-set for Celsius. If you prefer Fahrenheit, add complimentary option DTMEDF or let your sales representative know upon order.
|
Overview
|
| Height of Cabinet |
56.0" (142 cm) |
| Width |
24.0" (61 cm) |
| Depth |
23.5" (60 cm) |
| Capacity |
6.9 cu.ft. (195 L) |
| Door |
White |
| Cabinet |
White |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Amps |
1.3 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Parts & Labor Warranty |
2 Years |
| Compressor Warranty |
5 Years |
| UPC |
761101073798 |
|
Refrigerator-Freezer
|
| Door Swing |
RHD |
| Reversible |
Factory Reversible |
| Adjustable Shelves |
Yes |
| Interior Light |
Yes |
| Refrigerator - Interior Height |
26.25" (67 cm) |
| Refrigerator - Interior Width |
21.0" (53 cm) |
| Refrigerator - Interior Depth |
18.0" (46 cm) |
| Refrigerator - Capacity |
5.5 cu.ft |
| Refrigerator - Shelf Type |
Wire |
| Refrigerator - Shelf Qty |
3 |
| Refrigerator - Temperature Range |
2º to 8ºC |
| Refrigerator - Refrigerant Type |
R600a |
| Refrigerator - Refrigerant Amount |
0.64 oz. |
| Freezer - Interior Height |
14.38" (37 cm) |
| Freezer - Interior Width |
13.5" (34 cm) |
| Freezer - Interior Depth |
13.25" (34 cm) |
| Freezer - Capacity |
1.4 cu.ft |
| Freezer - Shelf Type |
Wire |
| Freezer - Shelf Qty |
1 |
| Thermostat Type |
Digital |
| Fan Type |
Interior and Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
0.64 oz. |
| High Side PSI |
180.0 |
| Low Side PSI |
80.0 |
| Freezer - Temperature Range |
-20º to -15ºC |
| Freezer - Refrigerant Type |
R600a |
| Freezer - Refrigerant Amount |
0.8 oz. |
| Exterior |
| TM1A - Factory-installed dry contacts with remote alarm |
Latch - Factory-installed door latch requires manual release to open unit |
| LHD - Left hand door swing |
DTMEDF - Digital thermostat with Fahrenheit readout |
| DL2B - Factory installed NIST calibrated digital data logger (DDL) |
|
| Interior |
| LockBox24 - Interior locking compartment |
|
| Lock |
| AC Keypad - AC powered keypad lock |
KEYPAD - Battery-powered keypad door lock |
|
| Handle |
| TBC Copper Towel Bar Handles |
CP Full-Length Copper Pipe Handles |
|
Meets CDC & VFC guidelines
Designed to comply with the most current guidelines for vaccine storage
Space-saving design
Allows you to create a full refrigerator-freezer with independent controls in a slim-fitting footprint
FF7LWBIMED2 all-refrigerator
5.5 cu.ft. auto defrost all-refrigerator with digital controls, internal fan, flat door liner, and adjustable shelving
FS24LMED2 all-freezer
Compact manual defrost all-freezer with digital thermostat and wire shelving
Easy assembly
Unit ships in three boxes for customer to install the StackRack on the bottom refrigerator/freezer and place and secure the other unit on top
Digital thermostats
Digital microprocessor for easy and precise temperature management, with all controls externally located for added convenience
Access ports
Rear-mounted 3/8" access port in both units allows users to install their own monitoring equipment
High/low temperature alarms
Audible alarm sounds if the interior temperature rises or falls out of set range
NIST calibrated temperature display
Alarms include continuous NIST calibrated display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button
Buffered temperature probes
Thermometer probe is encased in a glycol-filled bottle and stored in a fixed box on the center shelf. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC and VFC's guidelines
Hospital grade cords with 'green dot' plugs
Secure three-pronged cord for added unit safety (both units)
Factory installed locks
Both models include front locks for added security, with two keys included for each unit
Anti-tip bracket included
StackRack ships with anti-tip bracket for easy aftermarket installation
Foamed-in-place cabinets
Designed to ensure a sufficiently insulated interior
Magnetic door gaskets
Quality door gaskets ensure a tight seal for energy savings and improved performance
Approved for use in the USA and Canada
ETL and ETL-C listed for North American sales
Factory reversible door swing
Standard unit ships with a right hand door swing. For a left hand door swing, add option LHD upon order (due to its construction, this door is not reversible in the field)
Extended warranty
This unit comes with a two-year limited warranty on parts & labor and five-year warranty on the compressor
100% CFC free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Both units utilize eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
