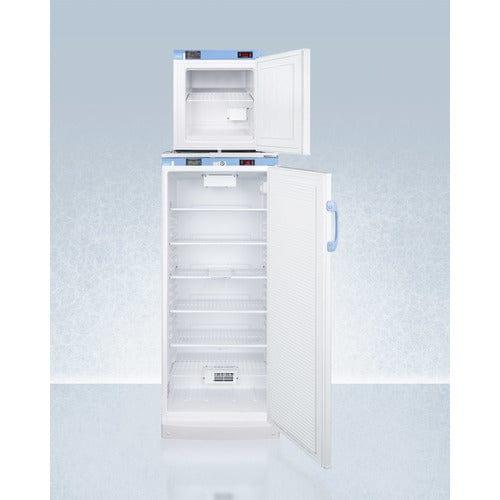

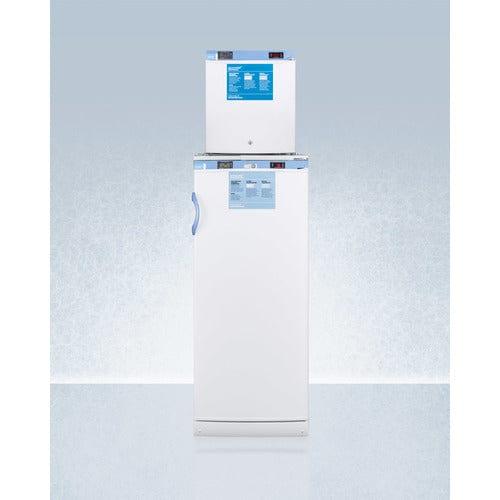

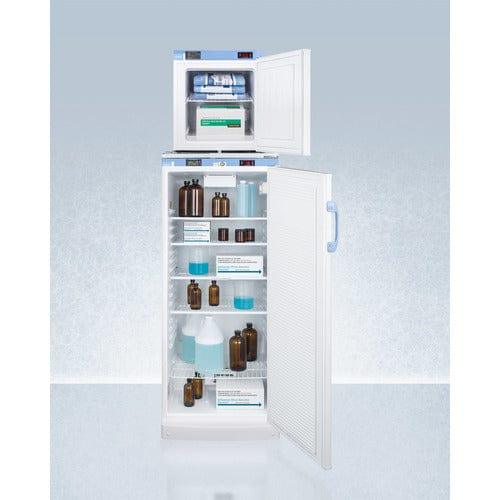

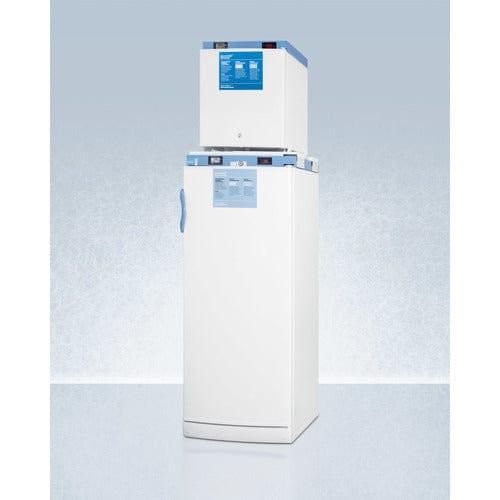

Measuring slightly less than 24 inches in width, the FFAR10-FS24LSTACKMED2 integrates our full-sized FFAR10MED2 automatic defrost all-refrigerator with the compact FS24LMED2 all-freezer, resulting in a slim profile. Manufactured in Europe, the FFAR10MED2 provides 10.1 cubic feet of storage capacity, boasting fan-forced cooling and adjustable wire shelves for consistent temperature distribution. The FS24LMED2 freezer employs static manual defrost cooling.
Stacked combination offers separate refrigerator/freezer storage as recommended by the CDC
Accucold offers innovative solutions to vaccine storage with the STACKMED2 stackable refrigerator-freezer combination series.
Both units feature front-located control panels equipped with digital thermostats and NIST calibrated thermometers with high/low temperature alarms. Calibration is done in our ISO/IEC certified laboratory. The buffered temperature probes are encased in a glycol-filled bottle and secured inside the center shelf to best simulate the temperature of other stored contents, resulting in the utmost accuracy for temperature reporting. We include a pre-installed 3/8" probe hole for users who wish to install additional monitoring equipment in the rear of both units. Additional features include front locks and hospital grade cords. Products in the MED2 series come with a two year warranty on parts and labor and a five year warranty on the compressor.
All Accucold STACKMED2 units ship in three boxes and require some minor assembly upon delivery. Additional stacked combinations can be created by ordering virtually any two units with our StackRack. These units can also be customized with a variety of refrigeration options, including NIST calibrated thermometers, USB data loggers, open door alarms, and much more. To create a custom combination, contact our sales team at 718-893-3900.
*NOTE: Thermostats come pre-set for Celsius. If you prefer Fahrenheit, add complimentary option DTMEDF or let your sales representative know upon order.
|
Overview
|
| Height of Cabinet |
78.75" (200 cm) |
| Width |
24.0" (61 cm) |
| Depth |
23.5" (60 cm) |
| Depth with Handle |
24.75" (63 cm) |
| Depth with door at 90° |
45.5" (116 cm) |
| Capacity |
11.5 cu.ft. (326 L) |
| Door |
White |
| Cabinet |
White |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Voltage/Frequency |
115 V AC/60 Hz |
| Parts & Labor Warranty |
2 Years |
| Compressor Warranty |
5 Years |
| UPC |
761101058702 |
|
Refrigerator-Freezer
|
| Door Swing |
RHD |
| Reversible |
Factory Reversible |
| Adjustable Shelves |
Yes |
| Interior Light |
Yes |
| Refrigerator - Interior Height |
48.25" (123 cm) |
| Refrigerator - Interior Width |
20.5" (52 cm) |
| Refrigerator - Interior Depth |
17.75" (45 cm) |
| Refrigerator - Capacity |
10.1 cu.ft |
| Refrigerator - Shelf Type |
Wire |
| Refrigerator - Shelf Qty |
4 |
| Refrigerator - Temperature Range |
2ºC to 8ºC |
| Refrigerator - Refrigerant Type |
R134a |
| Refrigerator - Refrigerant Amount |
3.0 oz. |
| Freezer - Interior Height |
14.38" (37 cm) |
| Freezer - Interior Width |
13.5" (34 cm) |
| Freezer - Interior Depth |
13.25" (34 cm) |
| Freezer - Capacity |
1.4 cu.ft |
| Freezer - Shelf Type |
Wire |
| Freezer - Shelf Qty |
1 |
| Thermostat Type |
Digital |
| Fan Type |
Interior |
| Freezer - Temperature Range |
-20º to -15ºC |
| Freezer - Refrigerant Type |
R600a |
| Freezer - Refrigerant Amount |
0.8 oz. |
| Exterior |
| TM1A - Factory-installed dry contacts with remote alarm |
LHD - Left hand door swing |
| DTMEDF - Digital thermostat with Fahrenheit readout |
DL2B - Factory installed NIST calibrated digital data logger (DDL) |
|
| Lock |
| KEYPAD - Battery-powered keypad door lock |
AC Keypad - AC powered keypad lock |
|
| Interior |
| LockBox24 - Interior locking compartment |
|
| Handle |
| TBC Copper Towel Bar Handles |
CP Full-Length Copper Pipe Handles |
|
Space-saving design
Allows you to create a full refrigerator-freezer with independent controls in a slim-fitting footprint
Meets CDC & VFC guidelines
Designed to comply with the most current guidelines for vaccine storage
FFAR10MED2 all-refrigerator
10.1 cu.ft. auto defrost all-refrigerator with digital controls, internal fan, flat door liner, and adjustable shelving
FS24LMED2 all-freezer
Compact manual defrost all-freezer with digital thermostat and wire shelving
Easy assembly
Unit ships in three boxes for customer to install the StackRack on the bottom refrigerator/freezer and place and secure the other unit on top
Access ports
Rear-mounted 3/8" access port in both units allows users to install their own monitoring equipment
High/low temperature alarms
Audible alarm sounds if the interior temperature rises or falls out of set range
NIST calibrated temperature display
Alarms include continuous NIST calibrated display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button
Buffered temperature probes
Thermometer probe is encased in a glycol-filled bottle and stored in a fixed box on the center shelf. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC and VFC's guidelines
Hospital grade cords with 'green dot' plugs
Secure three-pronged cord for added unit safety (both units)
Factory installed locks
Both models include locks for added security, with two keys included for each unit
Anti-tip bracket included
StackRack ships with anti-tip bracket for easy aftermarket installation
Foamed-in-place cabinets
Designed to ensure a sufficiently insulated interior
Magnetic door gaskets
Quality door gaskets ensure a tight seal for energy savings and improved performance
Approved for use in the USA and Canada
ETL and ETL-C listed for North American sales
Factory reversible door swing
Standard unit ships with a right hand door swing. For a left hand door swing, add option LHD upon order (due to its construction, this door is not reversible in the field)
Extended warranty
This unit comes with a two-year limited warranty on parts & labor and five-year warranty on the compressor
100% CFC free
Environmentally friendly design with no ozone-damaging chemicals
