-25°C storage with extra thick insulation and slide-out drawers that help protect stored contents
Accucold VT65MBIADA medical all-freezers offer low temperature storage in a perfectly sized footprint designed for built-in installation under lower ADA compliant counters.
The 32” high VT65MLCSSADA can be used built-in or freestanding in any 24” space, with low temperature manual defrost operation that can reach -25ºC. The interior includes three slide-out basket drawers for convenient storage that keep items cold when the door is opened. Additional features include an adjustable thermostat and one-piece interior liner for easier cleanup.

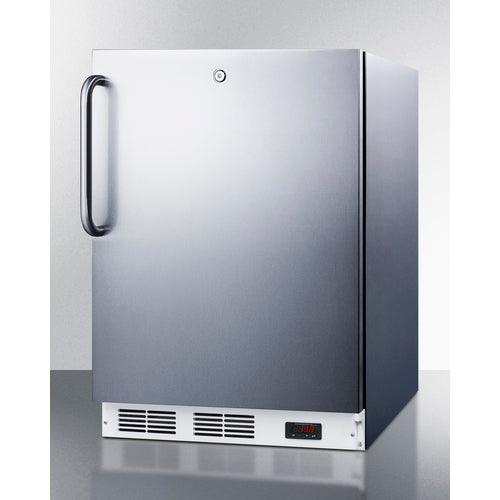

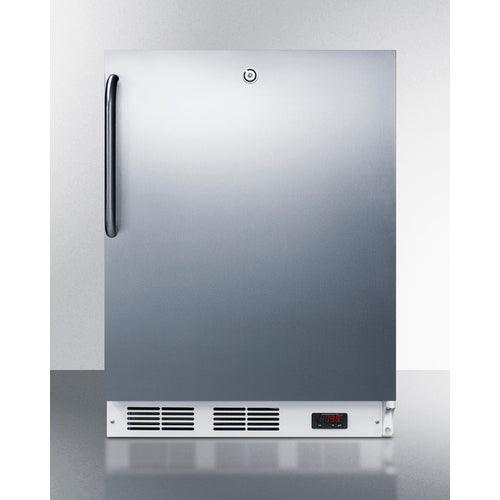

This medical unit has a stainless steel wrapped cabinet and door. A curved towel bar style handle in brushed stainless steel completes the look and a factory installed lock offers added security.
NOTE: ALL VT65M FREEZERS ARE DESIGNED FOR MEDICAL OR COMMERCIAL USE ONLY. THESE ARE NOT HOUSEHOLD FREEZERS.
|
Overview
|
| Height of Cabinet |
32.0" (81 cm) |
| Height to Hinge Cap |
32.25" (82 cm) |
| Width |
23.63" (60 cm) |
| Depth |
23.5" (60 cm) |
| Depth with Handle |
25.13" (64 cm) |
| Depth with door at 90° |
46.0" (117 cm) |
| Capacity |
3.5 cu.ft. (99 L) |
| Defrost Type |
Manual |
| Door |
Stainless Steel |
| Cabinet |
Stainless Steel |
| US Electrical Safety |
UL |
| Canadian Electrical Safety |
ULC |
| Amps |
1.3 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
105.0 lbs. (48 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101043524 |
|
Freezer
|
| Door Swing |
RHD |
| Reversible |
Factory Reversible |
| Height Adjustable |
1 |
| Interior Height |
24.25" (62 cm) |
| Interior Width |
17.75" (45 cm) |
| Interior Depth |
16.5" (42 cm) |
| Thermostat Type |
Digital |
| Fan Type |
Exterior |
| Refrigerant Type |
R134a |
| Refrigerant Amount |
2.7 oz. |
| High Side PSI |
235.0 |
| Low Side PSI |
70.0 |
| Level Legs |
4 |
| Interior Drawers |
Yes |
| Drawers Qty |
3 |
| Compressor Step Height |
6.5" (17 cm) |
| Compressor Step Width |
17.5" (44 cm) |
| Compressor Step Depth |
5.5" (14 cm) |
| Temperature Range |
-12ºC to -25ºC |
| Exterior |
| HG - Hospital grade cord |
SSK - Stainless steel kickplate |
| Latch - Factory-installed door latch requires manual release to open unit |
LHD - Left hand door swing |
| SCD - Self-closing door |
SS Hinges |
| Alarm/Thermometer - Factory-installed alarm with external temperature readout |
PH - Probe Hole |
| DL2B - Factory installed NIST calibrated digital data logger (DDL) |
|
| Lock |
| AC Keypad - AC powered keypad lock |
KEYPAD - Battery-powered keypad door lock |
|
| Handle |
| TBC Copper Towel Bar Handle Upgrade |
|
| Door |
| STO-Step-To-Open Door Pedal |
|
Stainless steel wrapped exterior
Cabinet and door are wrapped in high quality stainless steel for long-lasting durability
ADA compliant
32" height allows the unit to be installed under lower ADA compliant counters
Slim undercounter dimensions
Less than 24 inches wide to fit tight spaces
Built-in capable
Make the best use of space by installing your appliance under the counter and flush with other cabinets
Factory installed lock
Keep contents secure with a key lock on the door
Professional towel bar handle
A curved stainless steel handle provides generous room for a comfortable grip
-25º C capable
Low temperature operation is ideal for vaccine, pharmaceuticals, and other temperature sensitive materials
Manual defrost
No temperature fluctuations with an energy efficient manual defrost system
No internal fans
Static cooling system

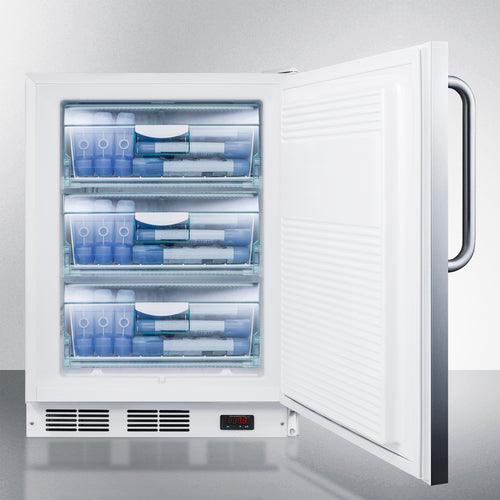

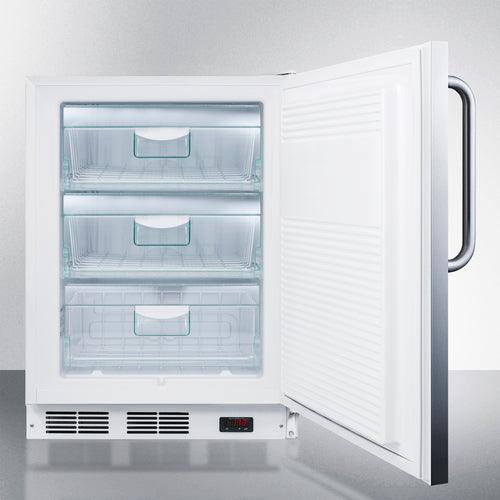

Three removable storage baskets
Conveniently organize your items while keeping the temperature stable when the door is opened
Digital thermostat
Electronic controls located in the front kickplate for easy and intuitive temperature management
One piece interior liner
Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
