The Accucold 24" Wide Built-In All-Refrigerator is the perfect addition to any kitchen. With its ADA compliance, this refrigerator is easily accessible for all users. The 24" width ensures ample storage space, while the built-in design seamlessly blends into your cabinetry.
Made in Europe and meets NSF-7 commercial standards
Accucold by Summit Appliance offers a wide range of all-refrigerators for general purpose storage. The commercially listed FF7BIADA Series features 24" wide all-refrigerators designed for built-in installation under lower ADA compliant counters.

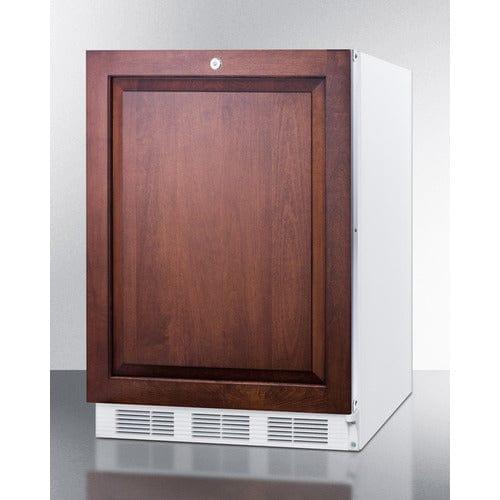

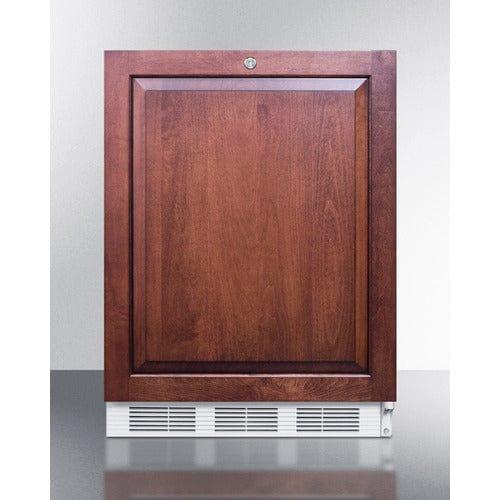

The FF7LWBIIFADA is a 32" high all-refrigerator with a full 5.5 cu.ft. capacity inside a slim 24" footprint. The front-breathing design allows built-in use under counters, while the fully finished cabinet also lets this unit be used freestanding. This model has a white cabinet. The door includes a factory installed lock and an integrated stainless steel frame to accept overlay panels for a custom look. Users provide their own handle.

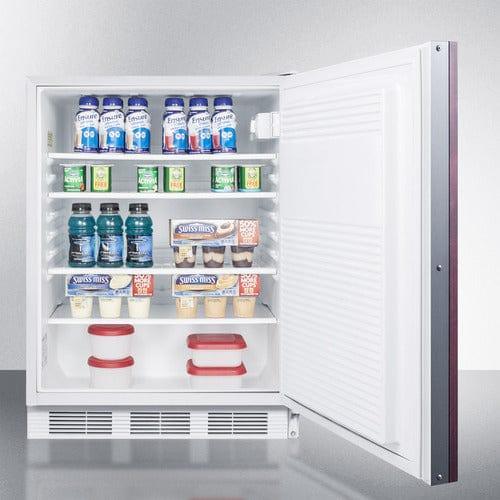

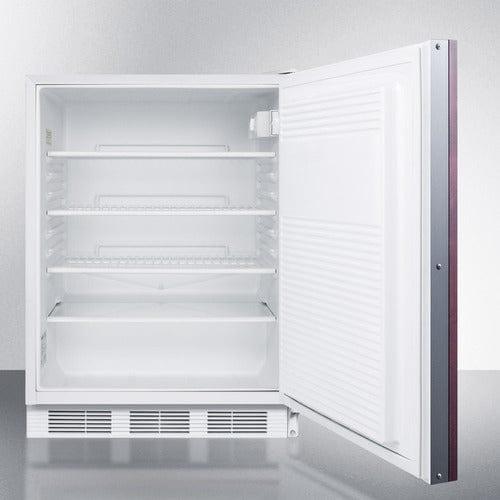

Inside, the FF7LWBIIFADA utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator is set behind the rear wall to create a seamless, easy-to-clean interior that also maximizes shelf space. This unit has a flat door liner that allows it to accept larger trays (up to 19 1/2" x 16"). Adjustable wire shelves allow users to reconfigure the interior to accommodate a variety of sizes. The interior light is controlled by an on/off rocker switch located behind the thermostat dial.
The FF7LWBIIFADA is ETL-S listed to NSF-7 standards for use in commercial establishments. For more finish options, browse the entire FF7BIADA Series.
NOTE: This unit is designed for general purpose or commercial applications and does not meet DOE energy standards for residential use.
|
Overview
|
| Height of Cabinet |
32.0" (81 cm) |
| Height to Hinge Cap |
32.25" (82 cm) |
| Width |
23.63" (60 cm) |
| Depth |
23.5" (60 cm) |
| Depth with door at 90° |
45.63" (116 cm) |
| Capacity |
5.5 cu.ft. (156 L) |
| Defrost Type |
Automatic |
| Door |
Panel-Ready |
| Cabinet |
White |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S |
| Amps |
1.4 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
100.0 lbs. (45 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101072449 |
|
Refrigerator Features
|
| Door Swing |
RHD |
| Reversible |
Factory Reversible |
| Shelf Type |
Wire |
| Shelf Qty |
3 |
| Adjustable Shelves |
Yes |
| Thermostat Type |
Dial |
| Fan Type |
Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
0.64oz. |
| High Side PSI |
180.0 |
| Low Side PSI |
80.0 |
| Level Legs Qty |
4 |
| Interior Light |
Yes |
|
Dimensions
|
| Interior Height |
26.25" (67 cm) |
| Interior Width |
21.0" (53 cm) |
| Interior Depth |
17.75" (45 cm) |
| Compressor Step Height |
5.5" (14 cm) |
| Compressor Step Width |
21.0" (53 cm) |
| Compressor Step Depth |
5.5" (14 cm) |
| Exterior |
| HG - Hospital grade cord |
SSK - Stainless steel kickplate |
| LHD - Left hand door swing |
Alarm/Thermometer - Factory-installed alarm with external temperature readout |
| DT - Digital thermostat |
PH - Probe Hole |
| Extra key for IF door |
DL2B - Factory installed NIST calibrated digital data logger (DDL) |
|
| Interior |
| FC - Internal Fan |
FCGP internal fan with gel packs |
| LockBox24 - Interior locking compartment |
|
ADA compliant
32" height to fit under lower ADA compliant counters
Commercially approved
ETL-S listed to NSF-7 Standards for use in commercial establishments
Slim undercounter dimensions
Less than 24 inches wide with a full 5.5 c.f. capacity
Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Factory installed lock
Keyed lock for a secure interior
Integrated door frame
Customize the front by mounting an overlay panel over the door; seamless look can blend into other cabinetry with no exposed frame. Handle not included (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
Automatic defrost
Reduced user maintenance with automatic defrost
One piece interior liner
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Hidden evaporator
Cold wall design with hidden evaporator and seamless interior
Adjustable shelves
Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Deep shelf space
Interior accommodates large trays up to 19 1/2" x 15 1/2"
Adjustable thermostat
Dial thermostat located inside for easy temperature management
Interior light on rocker switch
Turn the light on when you need it and off when you're done with a convenient rocker switch
Fully finished white cabinet
Allows the refrigerator to be used freestanding
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
