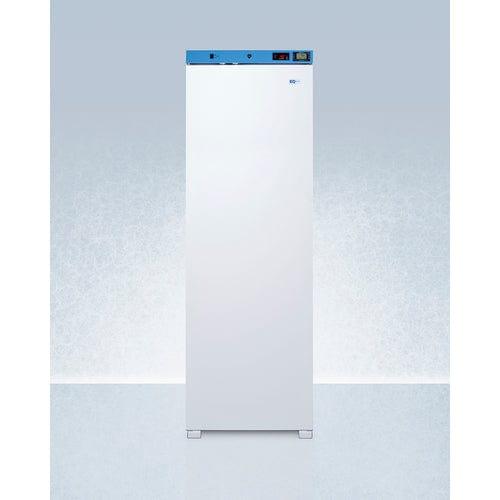

Accucold's ACR1601WLHD is a healthcare refrigerator designed for convenient, affordable, and reliable cold storage in medical facilities. This new series from EQTemp offers specialized refrigeration solutions at an affordable price for healthcare facilities. This upright all-refrigerator has a 15.53 cu.ft. capacity, a clean white exterior, and a blue-accented control panel. The solid door features a self-closing mechanism to prevent stored items from being exposed to room temperature. Additional security is provided by a factory-installed lock and a hospital-grade cord with a 'green dot' plug for a secure connection in high-traffic areas.
The ACR1601W includes an external readout of the interior temperature and the high/low temperature. The buffered temperature probe is encased in a bottle filled with glass beads for improved accuracy. The digital temperature controls allow you to set the interior between 2 and 8ºC. An audible alarm sounds if the temperature goes out of range. We also include a pre-installed 3/8" access port for users to add their own monitoring equipment if preferred.

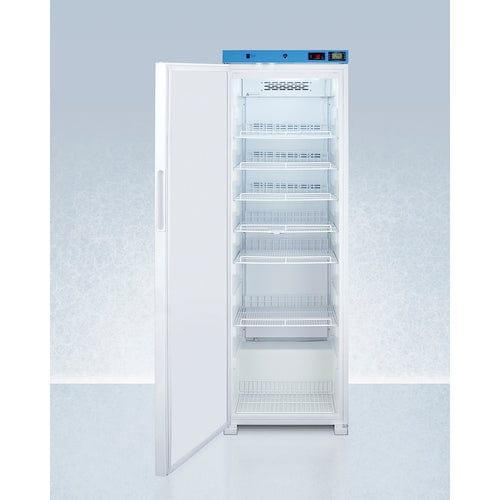

The interior includes one wire shelf in the center to hold the temperature probe, as well as four additional adjustable shelves to accommodate different sizes. Internal LED lighting provides an efficient and convenient view. Automatic defrost reduces user maintenance, and an internal fan ensures robust temperature recovery after door openings.
This unit ships with a left-hand door swing (for a right-hand version, see model ACR1011W). This unit is also available certified to the NSF/ANSI 456 Vaccine Storage Standard with the upgrade of a NIST calibrated temperature readout (see model ACR1601WNSF456). Additional sizes are available, as well as more advanced cold storage equipment purpose-built for laboratory and life science storage. Browse the complete product line to explore our extensive selection.
Note: EQTemp's ACR Series refrigerators are intended for various healthcare storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals requires a product offering tighter temperature control and/or alarms, monitoring, and backup. For these applications, browse Accucold's purpose-built PHARMA-VAC line or contact our product specialists at 1-888-4-MED-LAB.
|
Overview
|
| Height of Cabinet |
76.75" (195 cm) |
| Width |
23.38" (59 cm) |
| Width with Door Open |
23.63" (60 cm) |
| Depth |
28.13" (71 cm) |
| Depth with door at 90° |
28.38" (72 cm) |
| Capacity |
15.53 cu.ft. (440 L) |
| Defrost Type |
Automatic |
| Door |
White |
| Cabinet |
White |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Amps |
2.0 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
143.0 lbs. (65 kg) |
| Shipping Weight |
236.5 lbs. (107 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101107585 |
|
Refrigerator Features
|
| Door Swing |
LHD |
| Reversible |
Factory Reversible |
| Height Adjustable |
No |
| Shelf Type |
Wire |
| Shelf Qty |
6 |
| Adjustable Shelves |
Yes |
| Thermostat Type |
Digital |
| Fan Type |
Interior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
2.0oz. |
| High Side PSI |
1.45 |
| Low Side PSI |
0.85 |
| Level Legs Qty |
2 |
| Interior Light |
Yes |
| Temperature Range |
2º to 8ºC |
|
Dimensions
|
| Interior Height |
68.25" (173 cm) |
| Interior Width |
20.0" (51 cm) |
| Interior Depth |
21.5" (55 cm) |
| Compressor Step Height |
9.0" (23 cm) |
| Compressor Step Width |
20.0" (51 cm) |
| Compressor Step Depth |
8.0" (20 cm) |
EQTemp Healthcare Refrigerator
All-refrigerator designed to operate between 2 and 8ºC for a variety of storage application in medical offices and other healthcare facilities

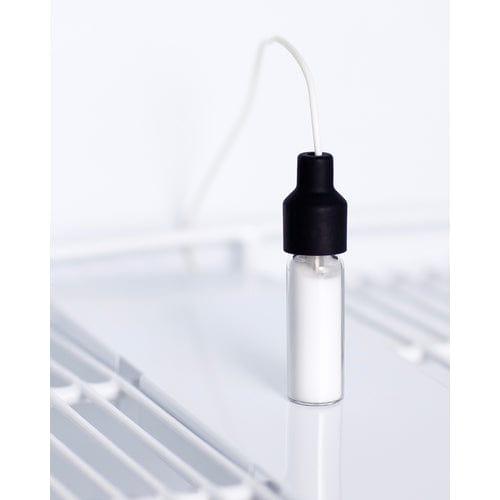

Buffered temperature probe
Thermometer probe is encased in a glass bead-filled bottle and stored in a fixed box on the center shelf. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC and VFC's guidelines
High/low temperature alarm
Thermometer probe is encased in a glass bead-filled bottle and stored in a fixed box on the center shelf. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC and VFC's guidelines

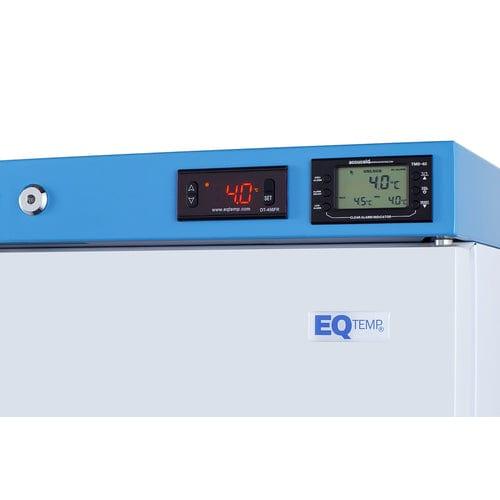

External temperature readout
Audible alarm sounds if the interior temperature rises or falls out of set range
Large capacity
Full 15.53 cu.ft. capacity inside conveniently slim footprint
Temperature Range: 2º to 8ºC
Preset to 5ºC as recommended for many storage applications

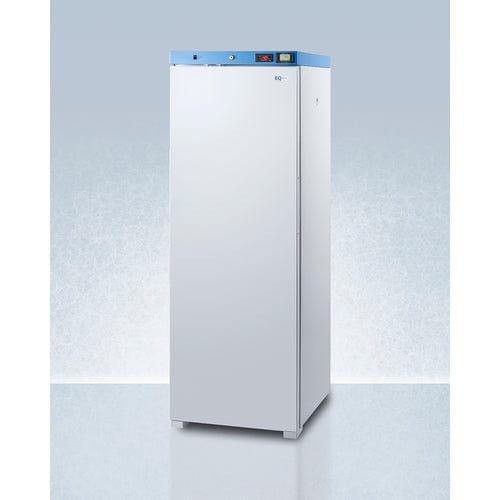

Fully finished white cabinet
Allows the unit to be used freestanding
Magnetic door gasket
Quality door gaskets ensure a tight seal for energy savings and improved performance
Digital thermostat
Digital microprocessor for easy and precise temperature management, with all controls externally located for added convenience
Open door alarm
Audible alarm sounds if the door is left open for more than one minute
Pocket handle
Handle is recessed into the side of the door to ensure no added depth
Self-closing door
Door will automatically close when left ajar, preventing items from accidentally being left exposed to ambient temperatures
Temperature memory function
Unit will retain its last settings when power is restored in the event of power loss
Foamed-in-place cabinet
Quality design ensures efficiently insulated interior

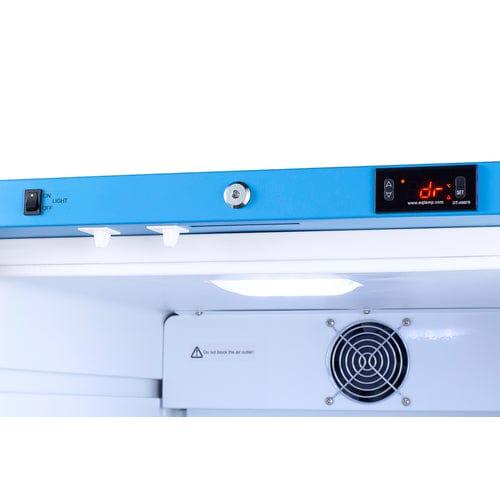

LED lighting
Attractively illuminates the interior in a gentle white hue for easy viewing
Flat door liner
No door storage to allow for the interior to accommodate deeper trays

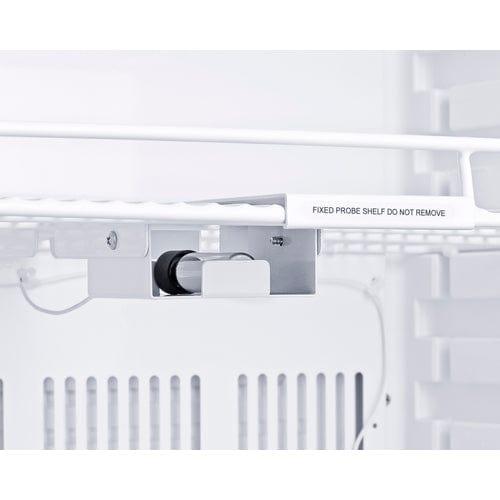

Fixed center shelf
Center shelf is fixed in place in order to provide the optimum position for the TMD to provide the most accurate temperature readings
Hospital grade cord with 'green dot' plug
Secure three-pronged cord for added unit safety in high traffic areas
Internal fan
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Automatic defrost
Reduced user maintenance with automatic defrost
Factory installed lock
Keyed lock for a secure interior (2 keys included)

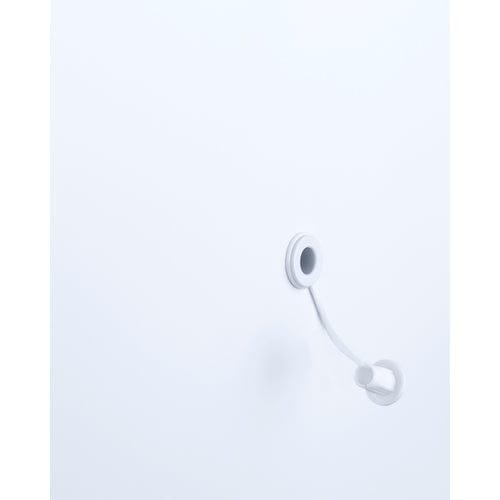

Access port
3/8" probe hole with cover is pre-installed in unit's side to allow easy installation of user-provided monitoring equipment
Left hand door swing
For this unit with a standard right hand door swing, see model ACR1601W
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
