Slim-fitting ADA-compliant undercounter refrigerator ideal for providing extra storage to healthcare settings
Accucold offers a quality selection of 20" wide built-in undercounter all-refrigerators designed for installation under lower ADA-compliant counters. These refrigerators have advanced features for user convenience.

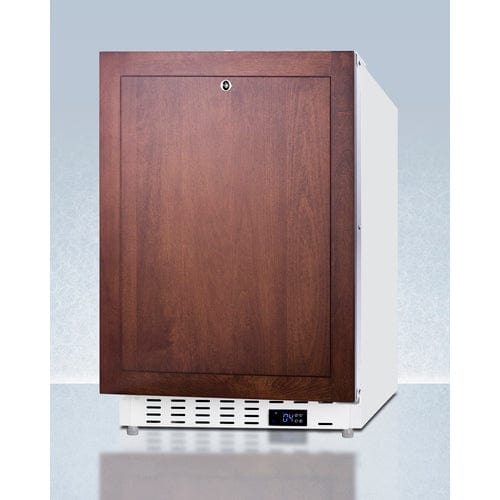

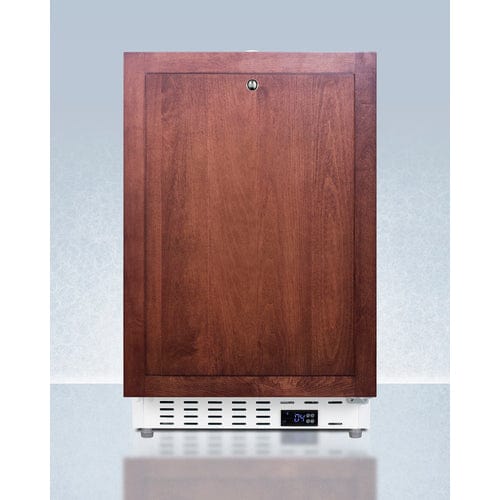

The ADA404REFIF is sized at 32" high for use in ADA-compliant settings. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The door is 3" thick for efficient insulation and features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 19 13/16" W x 27 1/8" H). This unit comes with a right angle cord to allow for easier placement without added depth.

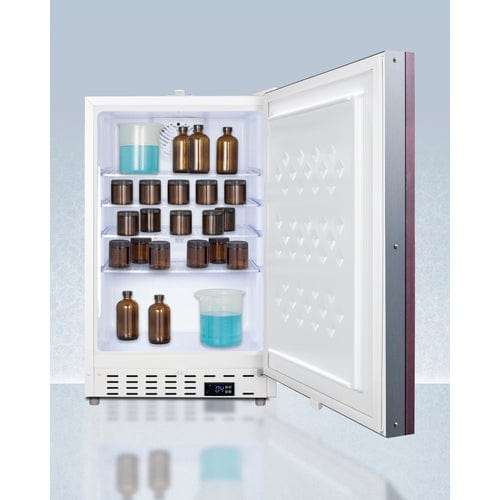

Inside, the ADA404REFIF is designed to operate between +2°C and +8°C as recommended for storing select pharmaceuticals and other medical supplies. An LED light located on the front left side of the unit attractively illuminates the interior when the door opens. Automatic defrost operation ensures minimal user maintenance, with an internal fan to help promote even cooling throughout the 3.32 cu.ft. interior. Adjustable wire shelves allow you to rearrange the interior to suit your storage needs best. As recommended by the CDC, this unit has a flat door liner to ensure users don't store sensitive contents on the door.
The user-set high and low-temperature alarms provide added security should the temperature exceed the set point. The open door alarm sounds if the door is ajar for more than a minute for added peace of mind. These alarms can be turned off depending on your needs. A preinstalled probe hole is included to allow users to connect their own monitoring equipment.
Sized at just under 21" wide, the ADA404REFIF makes an ideal choice for various healthcare facilities. For a matching freezer, see the ADA305AFIF.
|
Overview
|
| Nominal Height |
32.0" (81 cm) |
| Height of Cabinet |
31.75" (81 cm) |
| Height to Hinge Cap |
32.0" (81 cm) |
| Nominal Width |
21.0" (53 cm) |
| Width |
20.25" (51 cm) |
| Nominal Depth |
23.0" (58 cm) |
| Depth |
23.0" (58 cm) |
| Depth with Handle |
25.0" (64 cm) |
| Capacity |
3.32 cu.ft. (94 L) |
| Defrost Type |
Automatic |
| Door |
Panel-Ready |
| Cabinet |
White |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Amps |
1.1 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
75.0 lbs. (34 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101151311 |
|
Refrigerator Features
|
| Door Swing |
RHD |
| Reversible |
Factory Reversible |
| Height Adjustable |
No |
| Shelf Type |
Wire |
| Adjustable Shelves |
Yes |
| Thermostat Type |
Digital |
| Fan Type |
Interior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
0.99oz. |
| High Side PSI |
180.0 |
| Low Side PSI |
80.0 |
| Level Legs Qty |
4 |
| Interior Light |
Yes |
| Temperature Range |
2 to 8°C |
|
Dimensions
|
| Interior Height |
23.5" (60 cm) |
| Interior Width |
16.25" (41 cm) |
| Interior Depth |
17.0" (43 cm) |
| Compressor Step Height |
6.25" (16 cm) |
| Compressor Step Width |
16.25" (41 cm) |
| Compressor Step Depth |
6.0" (15 cm) |
| Exterior |
| TM1A - Factory-installed remote contacts with remote alarm |
Alarm/Thermometer - Factory-installed alarm with external temperature readout |
| DL2B - Factory installed NIST calibrated digital data logger (DDL) |
LHD - Left hand door swing |
|
| Lock |
| AC Keypad - AC powered keypad lock |
KEYPAD - Battery-powered keypad door lock |
|
20" Wide Built-In Healthcare All-Refrigerator, ADA-Compliant
Slim-fitting all-refrigerator for general healthcare applications at an ADA-compliant height
Built-In Capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter
ADA-Compliant Design
32" height allows easy installation under lower ADA compliant counters

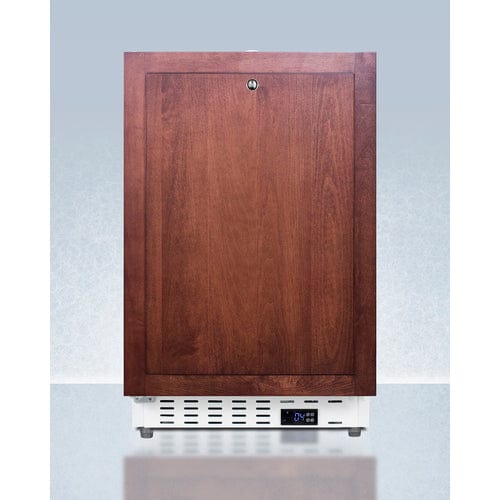

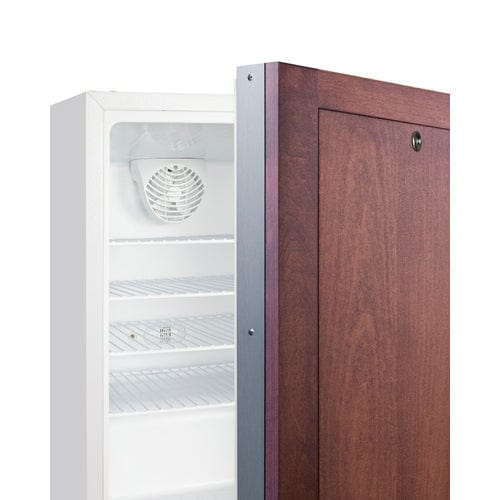

Panel-Ready Door
Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size:19 13/16" W x 27 1/8" H; customers provide their own handles
2 to 8ºC Operation
Designed to safely store select pharmaceuticals and other materials with strict temperature requirements
Automatic Defrost
Reduced user maintenance with an auto defrost system
Access Port
Unit comes with a factory installed probe hole for users to connect their own monitoring equipment
Factory-Installed Lock
Located towards the top of the door for easy access and to provide added security of unit (2 keys included)

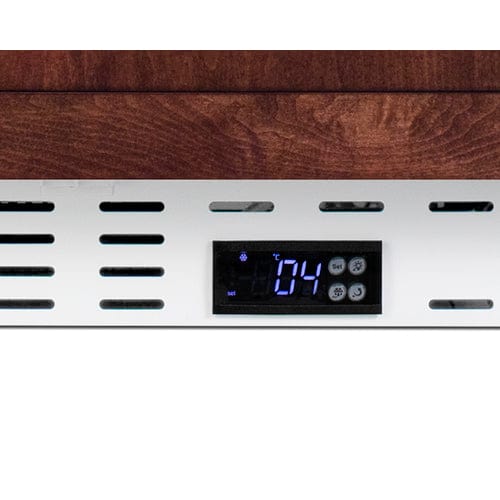

Adjustable Digital Thermostat
Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius
Adjustable Wire Shelves
Four wire shelves provide optimal storage and improved air circulation in the 3.32 cu. ft. interior
Reversible Door
User-reversible door swing for added flexibility to best accommodate your setting
Temperature Alarms
User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
Open Door Alarm
Audible alarm will sound if the door is left ajar for over a minute
Flat Door Liner
Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

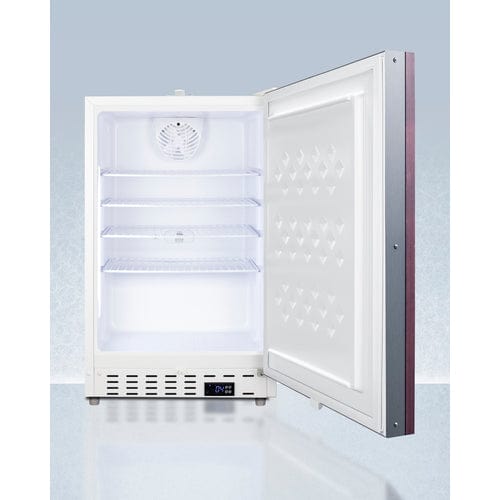

Internal Fan
Fan-forced cooling ensures the unit is evenly cooled from top to bottom

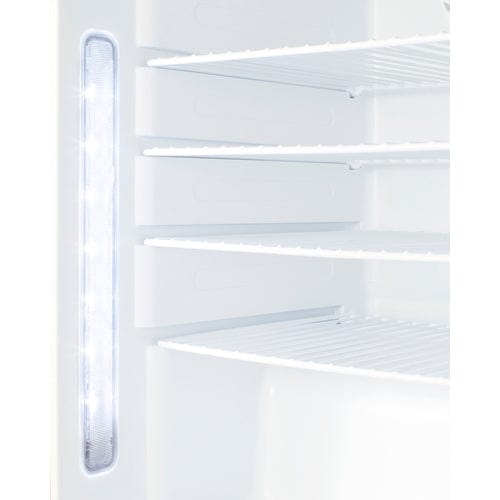

Interior Light
Front-located LED light ensures entire interior is lit when door opens
Magnetic Door Gasket
Quality door gaskets ensure a tight seal for energy savings and improved performance

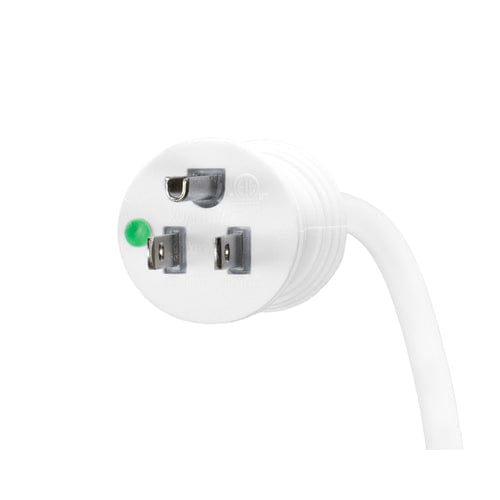

Hospital Grade Cord With 'Green Dot' Plug
Secure three-pronged cord for added unit safety
Sealed Back
Space-saving design that offers easier cleanability
Fully Finished Cabinet
Allows the unit to be freestanding
Matching All-Freezer
This unit can be paired with the ADA305AFIF all-freezer for a complete set
100% CFC Free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
