Sized to fit under lower ADA compliant counters, with a built-in pump for added flexibility
Summit's commercially approved icemakers are an attractive and durable solution to keeping a continuous supply of clear ice on hand in virtually any kitchen space.

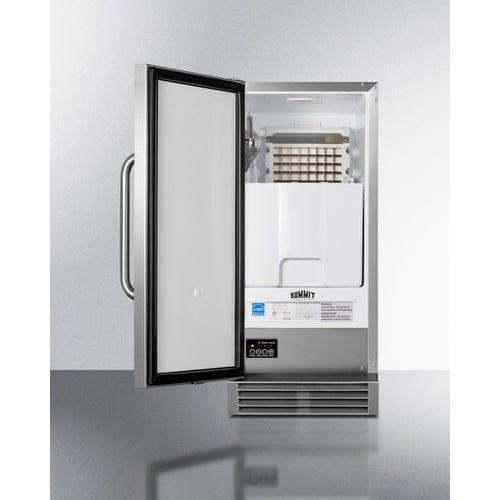

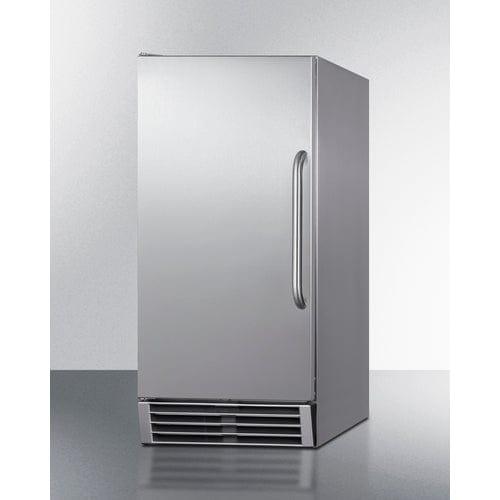

ENERGY STAR certified for commercial use, BIM44GCSSADA is just 32 3/8" high, ideal for use under lower counters following ADA compliant guidelines. It features a complete stainless steel exterior for added durability and long-term use. The front-breathing design allows built-in use under counters, while the fully finished stainless steel cabinet also allows freestanding use, with a sealed back for easier cleanup. The user-reversible stainless steel door includes a curved towel bar handle for a professional look. NOTE: this unit ships with a left hand door swing that can be reversed before delivery (add suffix RHD) or at home.
Inside, the BIM44GCSSADA has a touch control panel for easy operation. Indicator lights alert users to each step in the production process, as well as to when the bin is full. This unit can produce up to 50 lbs. of clear cube-shaped ice, with an adjustable bin capacity that can hold up to 25 lbs. The ice is produced in sheets and can easily be broken into cubes with the provided stainless steel scoop, which can be mounted on brackets inside for easy use. An interior light in a blue hue allows for easy viewing of the interior, while automatic defrost operation makes maintenance simple and stress-free. This model comes equipped with an internal pump, while four adjustable leveling legs keep the unit level on uneven surfaces.
Sized at 15" wide, BIM44GCSSADA is ETL-S listed to NSF-12 for use in foodservice settings and can also be installed in any kitchen or wet bar. A panel-ready version (see BIM44GCSSIFADA) is also available.
|
Overview
|
| Height of Cabinet |
32.38" (82 cm) |
| Width |
14.5" (37 cm) |
| Depth |
23.25" (59 cm) |
| Depth with Handle |
25.25" (64 cm) |
| Depth with door at 90° |
36.75" (93 cm) |
| Defrost Type |
Automatic |
| Door |
Stainless Steel |
| Cabinet |
Stainless Steel |
| US Electrical Safety |
UL |
| Canadian Electrical Safety |
ULC |
| Sanitation |
ETL-S |
| Amps |
4.8 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
100.0 lbs. (45 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101067773 |
|
Icemaker
|
| Door Swing |
LHD |
| Reversible |
Yes |
| Drain Required |
Yes |
| Daily Ice Production |
50.0 lbs. (23 kg) |
| Ice Storage Capacity |
25.0 lbs. (11 kg) |
| Ice Shape |
Cube |
| Size of Cube |
7/8" x 7/8" x 7/8" |
| Number of Ice Cube Sizes |
1 |
| Fan Type |
Exterior |
| Refrigerant Type |
R134a |
| Refrigerant Amount |
3.88 oz. |
| High Side PSI |
350.0 |
| Low Side PSI |
130.0 |
| Interior Height |
18.5" (47 cm) |
| Interior Width |
12.0" (30 cm) |
| Interior Depth |
16.0" (41 cm) |
| Level Legs |
4 |
| Exterior |
| Latch - Factory-installed door latch requires manual release to open unit |
RHD - Right hand door swing |
|
Commercially approved
ETL-S listed to NSF-12 commercial standards
ADA compliant
32 3/8" height fits under lower ADA compliant counters
Built-in capable

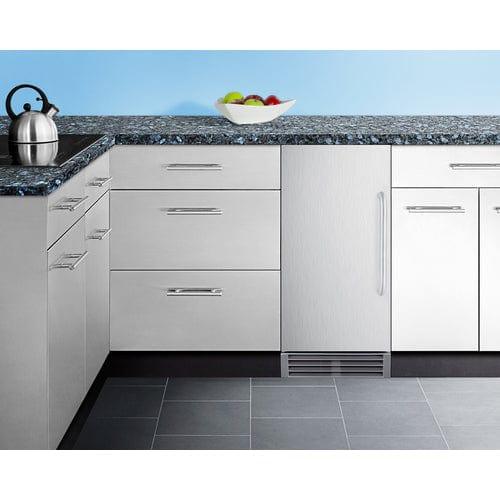

Make the best use of space by installing your icemaker under the counter
50 lb. production capacity
Can make up to 50 lbs. of clear ice cubes in a day cycle and store up to 25 lbs. per day (Note: ice is produced in sheets and can easily be broken into cubes using the provided scoop.)
ENERGY STAR certified commercial performance
Efficient performance saves on energy use and costs
Built-in pump
Internal pump affords more flexibility in placing the unit
Automatic defrost
Reduced maintenance with auto defrost system
Clear ice cube production
Produces 7/8" x 7/8" x 7/8" clear ice cubes
Touch control panel

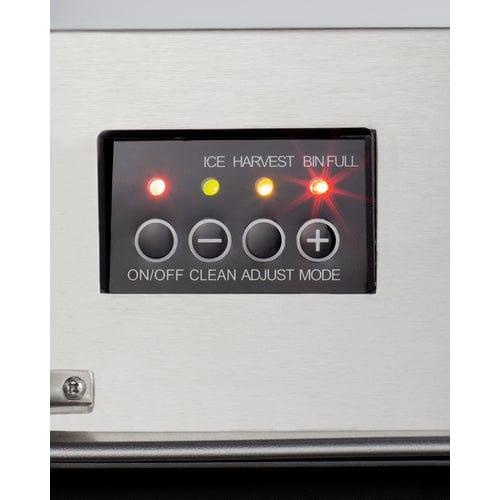

Provides easy operation of the unit with indicator lights for each stage of the production process
Reversible stainless steel door
User-reversible door swing for flexible placement
Professional towel bar handle
A curved handle in brushed stainless steel offers an easy grip
Insulated storage bin
Ice stays solid longer in this cold-protected bin
Interior light

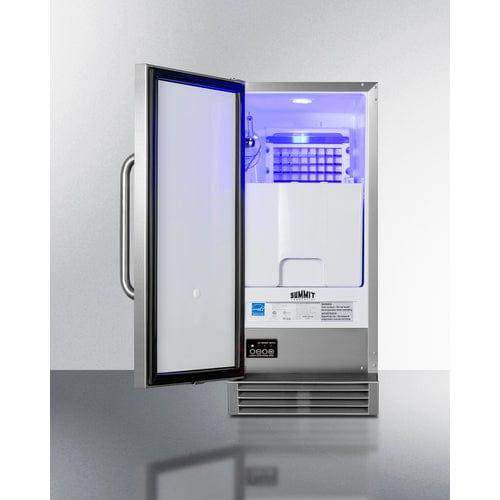

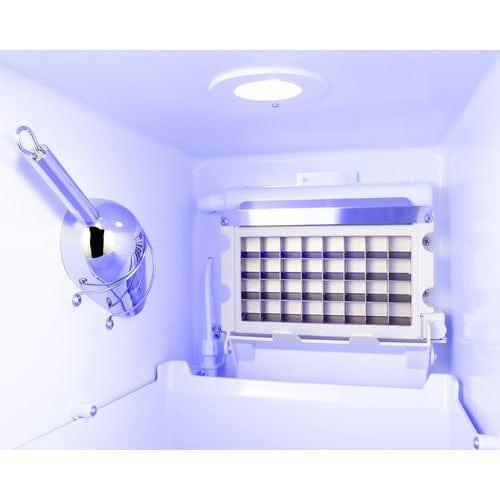

Lighting in a soft blue hue for easy viewing of the interior
Lead-free certified
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
Ice scoop included

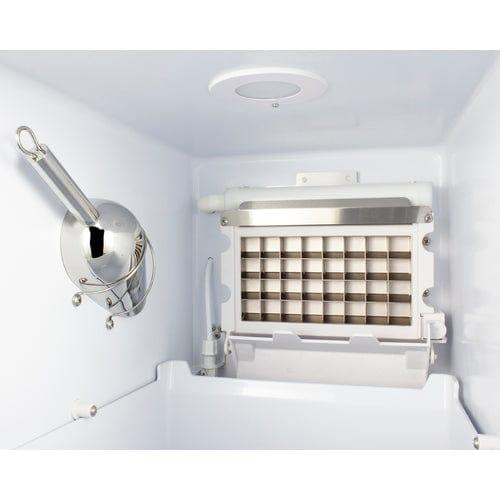

Interior wall includes brackets to hang for easy storage
Fully finished stainless steel cabinet
Allows the unit to be used freestanding
Sealed back
Space saving design for easier cleanability
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
Leveling legs
Four leveling legs help to keep the unit level on uneven surfaces
