The Accucold DL22BWiFiKIT is a WiFi-enabled dual channel digital data logger (DDL) that provides precise temperature and humidity monitoring for your laboratory or medical storage needs. With remote access capabilities, this DDL offers convenience and peace of mind for accurate recording and documentation.
Cloud monitoring solution provides instant data access and alert notifications to ensure you never miss a critical event

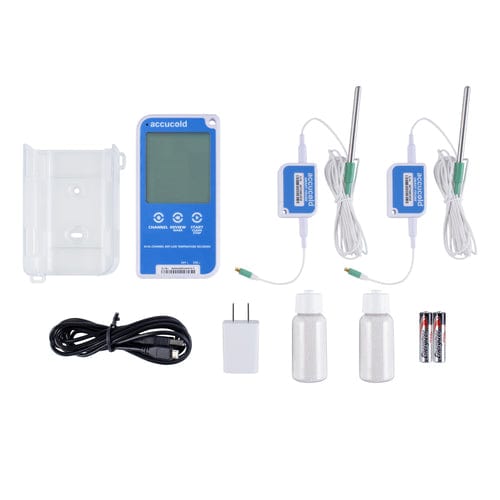

NOTE: The D22BWIFIKIT is for aftermarket installation. It ships in a single box with the following items included: temperature logger, calibrated smart probe, certificate of NIST calibration, 115V wall plug, micro USB cable, buffer bottle, wall-mount case, (2) AAA batteries, and a CR2032 backup battery.
Accucold brings true convenience and trusted reliability to temperature logging with the DL22BWIFIKIT digital data logger (DDL). With a NIST calibrated probe and large display, this data logger offers all the features needed for accurate and convenient temperature monitoring in a cloud-based system compatible with WiFi or Bluetooth. The basic data plan allows you to set up 2 email addresses for temperature alerts. Through LogTag Online (LTO), you can upgrade the logger with a 12-month paid subscription that includes unlimited email addresses, SMS alerts, and WhatsApp notifications (note: maximum of 25/month for use outside the U.S.). The mobile app enables access of the paid account to record, store, and share logger data, as well as to receive alarm notifications and to view readings without a computer. Data is uploaded to the cloud in real time for immediate notifications. Reports can easily be downloaded to your device
Designed for easy use with virtually any refrigerator or freezer, the DL22BWIFIKIT lets you set your own recording intervals (configurable from 30 seconds to 18 hours) for logging that meets your specific logging needs. This digital data logger can store up to 32,000 readings (16,000 per channel). Temperature accuracy is better than ±0.5°C when measuring between -20°C to +10°C, ±0.7°C for -50°C to -20°C and +10°C to +30°C, better than ±1°C for -80°C to -50°C and +30°C to +40°C, and better than ±1.8°C for -90°C to -80°C measurements.
This logger includes a mounting case with adhesive for sturdy but removable connection to your cold storage equipment. The smart calibrated probe connects to a non-breakable buffer bottle filled with glass beads. It is powered by a 115V wall plug and micro USB cable (included). We include a set of AAA batteries as the backup source, allowing you to continue to log readings in the event of a power outage.
With its flexible programming capabilities and user-friendly interface, the DL22BWIFIKIT creates an easy and reliable solution to temperature logging. By providing a detailed and accurate temperature record, this DDL meets CDC and VFC recommendations for logging and monitoring vaccine storage.
|
Overview
|
| Height of Cabinet |
3.5" (9 cm) |
| Width |
7.25" (18 cm) |
| Depth |
3.25" (8 cm) |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
3.0 lbs. (1 kg) |
| Parts & Labor Warranty |
1 Year |
| UPC |
761101146744 |
WiFi/Bluetooth Enabled Dual Channel Data Logger
Real-time monitoring with a fully enabled system to alert via the cloud
-90°C to +40°C Operating Range
Wide range to accommodate a variety of storage applications
Supports CDC guidelines recommending a "digital data logger"
Calibrated design and temperature display helps facilities meet CDC and VFC guidelines for monitoring vaccine storage
Large storage capacity
Sttores up to 32,000 readings (16,000 per channel)
Secure data collection
Meets FDA21 CFR Part 11
User-friendly design
Free intuitive software for convenient logging
Premium software tier
Optional 2-year program includes email, text, and call options
Real-time data
Temperature readings are updated to the cloud in real time
Temperature alarm
Audible and visual alarm will sound and indicator light will flash if temperature rises or falls below the specified approved range
External readout
Logger provides a continuous readout of the current and high/low temperatures to the nearest tenth of a degree
Continous temperature display
Large screen keeps the current, minimum, and maximum temperatures in view at all times, with a readout in Celsius or Fahrenheit to the nearest tenth of a degree
User-set logging interval
Users can program the timing interval for data logging, with a wide range of anywhere between 30 seconds and 18 hours
Reliable logging
Rated temperature reading accuracy: Better than ±0.5°C for -20°C to +10°C; Better than ±0.7°C for -50°C to -20°Cand +10°C to +30°C; Better than ±1°C for -80°C to -50°C and +30°C to +40°C; Better than ±1.8°C for -90°C to -80°C
Non-breakable buffer bottle with glass beads
Temperature sensor is enclosed inside a pharma-grade non-breakable bottle filled with glass beads
NIST calibrated digital data logger (DDL)
Unit is calibrated to NIST standards and ships with a 2-year certificate
Plug and cable included
Ships with a micro USB cable and wall plug
Backup battery system
Includes (2) AAA batteries and a CR2032 battery to maintain logging in the event of power loss
Easy installation
Mounting bracket and adhesive strips included to help position and stabilize the logger on any surface
