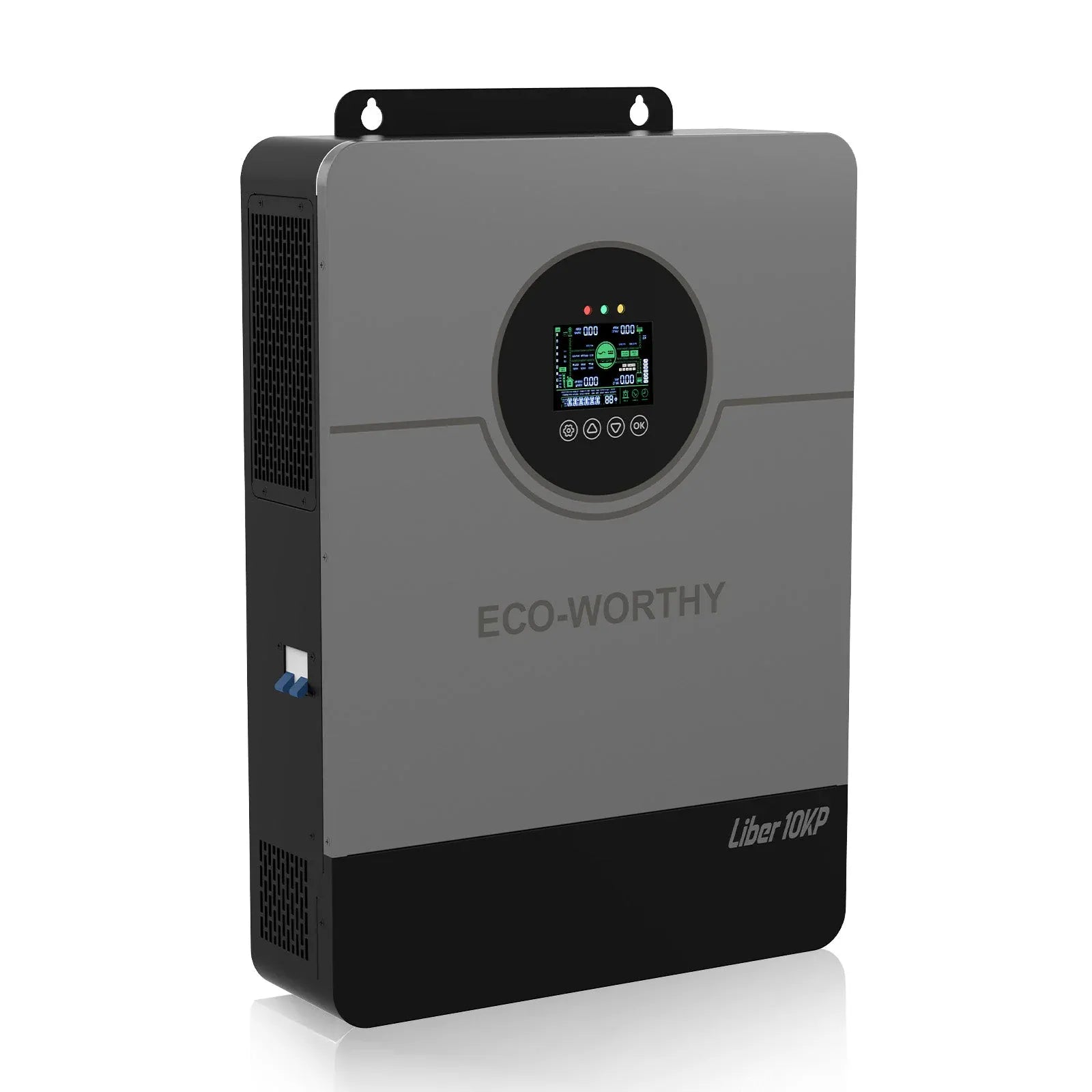

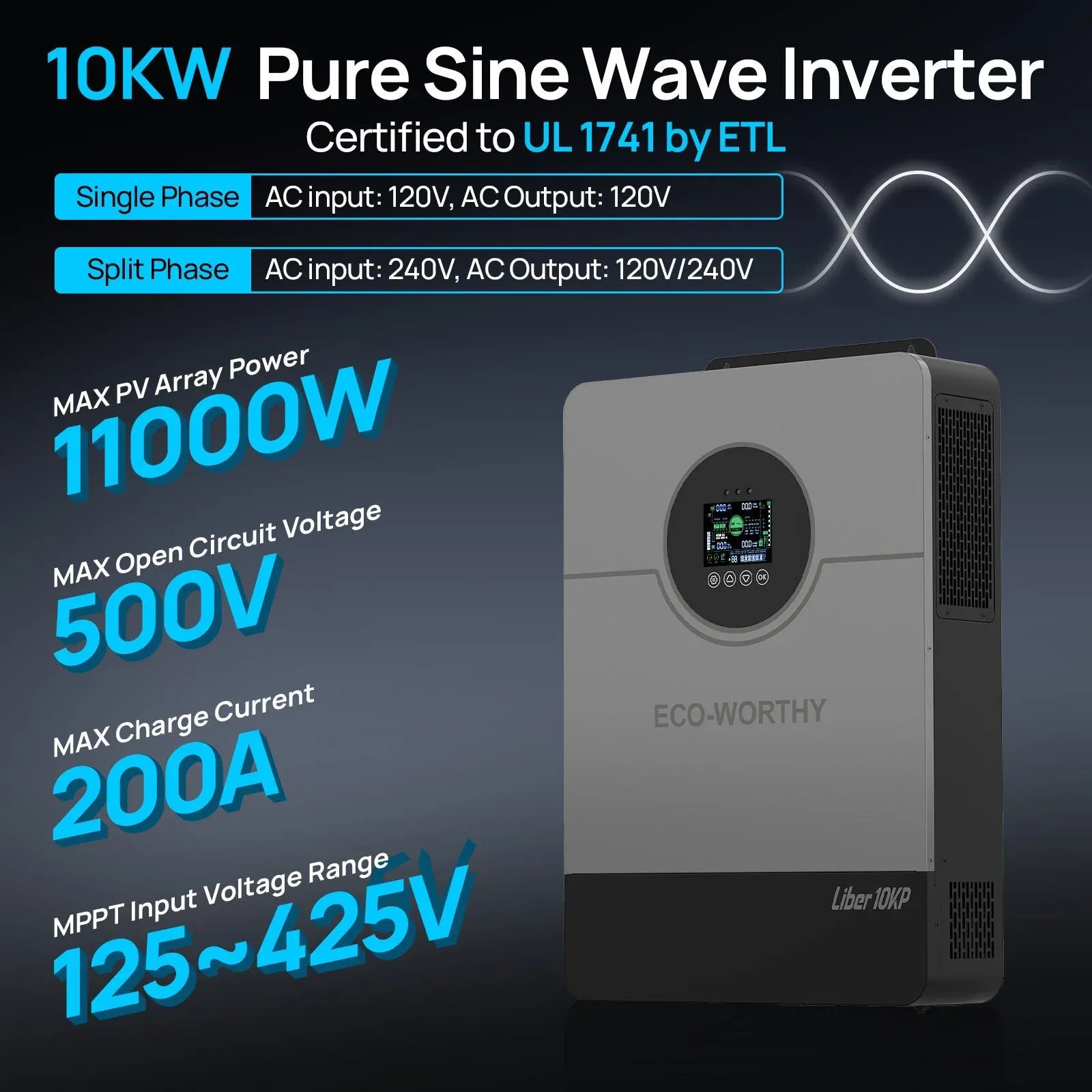

ECO-WORTHY Liber 10KP Split-phase AIO Solar Inverter | 48Vdc to 120Vac/240Vac | 10000W@500V PV Input | UL 1741 - In Store Offer Only
High-Power ECO-WORTHY 10000W Off-Grid Solar Inverter Charger for Reliable Energy Supply
Features:
10KW 48V AIO Solar Inverter Charger for Off-Grid & Backup

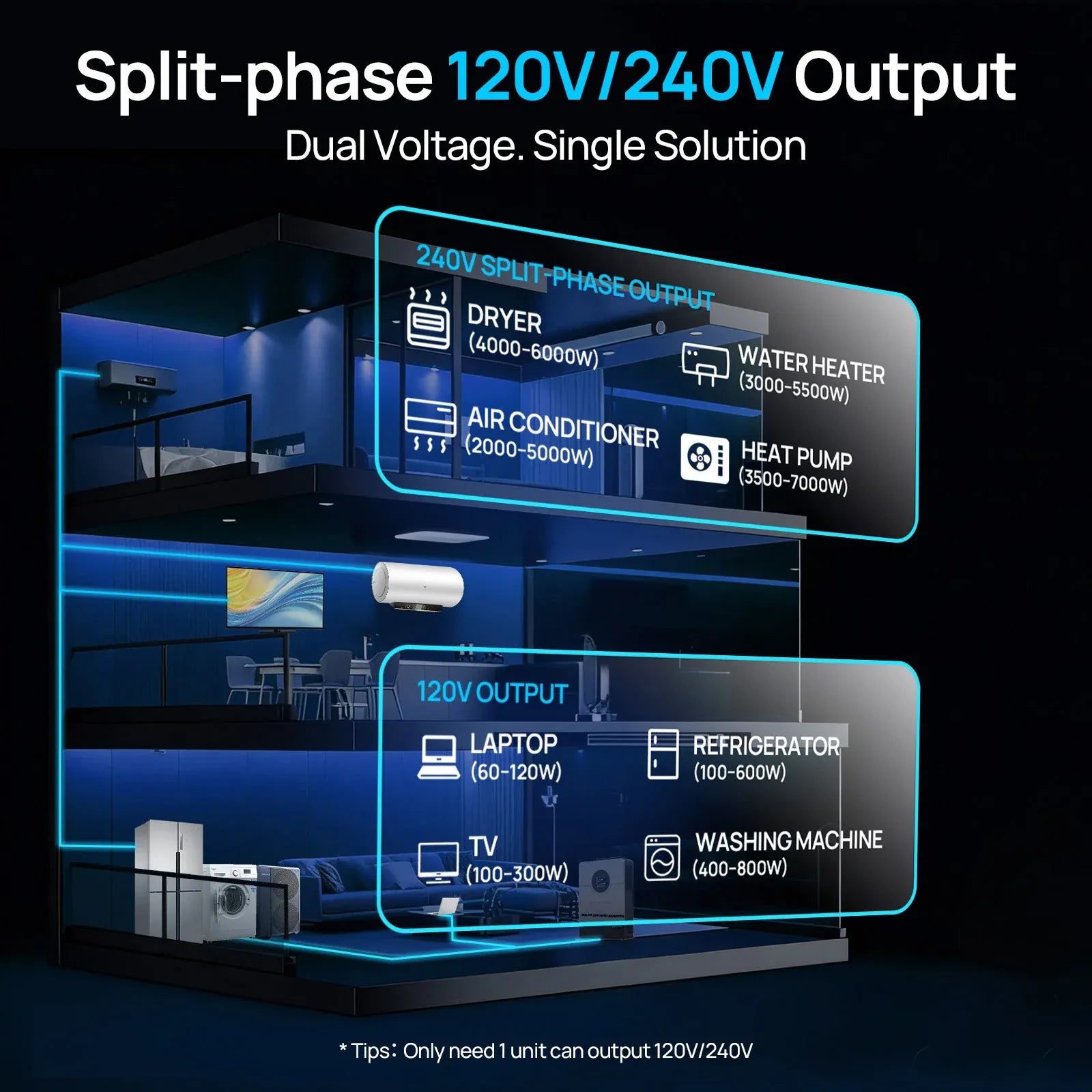

ECO-WORTHY 10000 watt pure sine wave inverter combines solar inverter + inverter charger + dual MPPT charge controller in one unit. Designed for 48V battery systems, delivering stable 120V / 240V split-phase or 120V single-phase output, ideal for home and off-grid solar power setups.

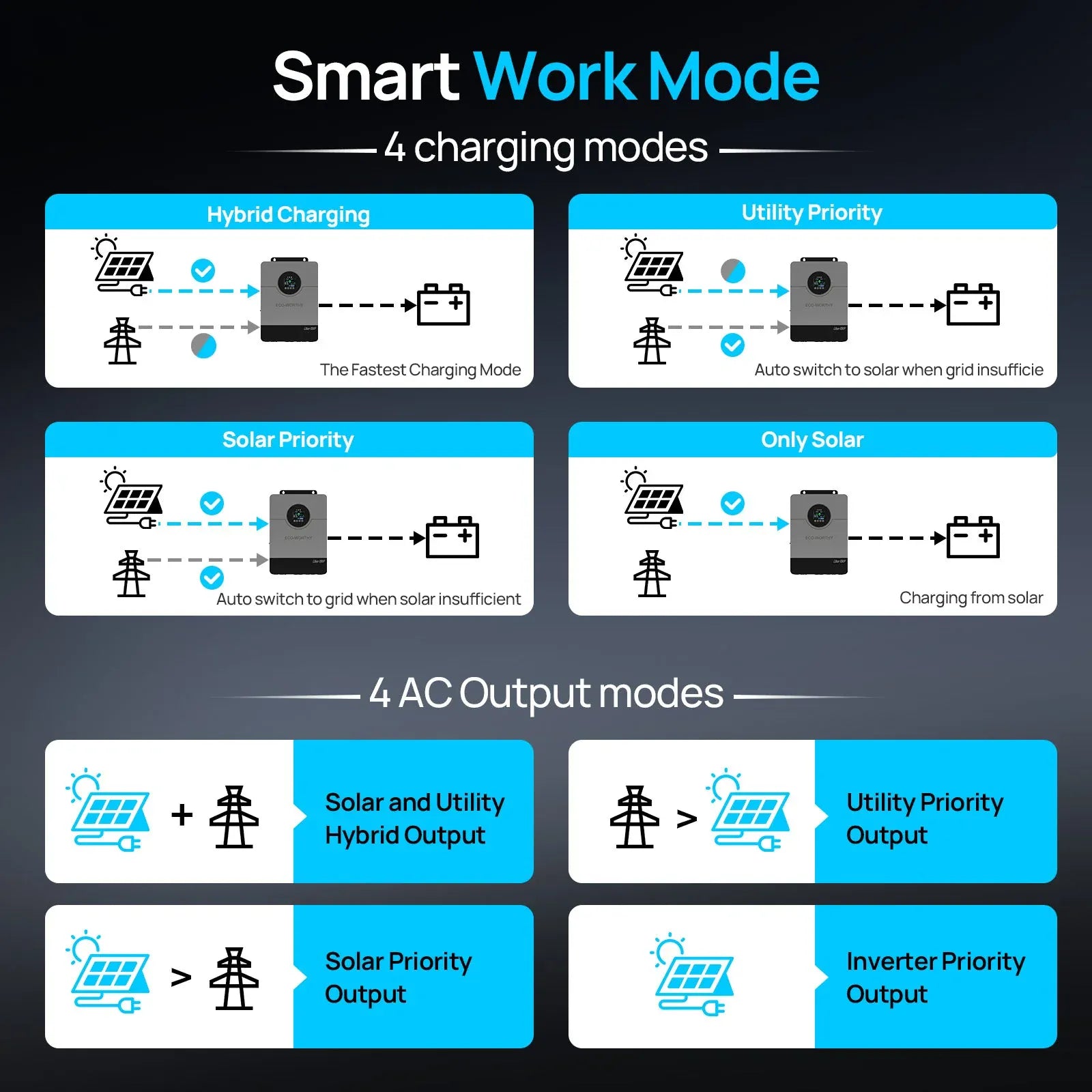

[Dual MPPT & High Charging Capacity]Built with two independent MPPT solar controllers, supporting dual 5500W PV input (11,000W total) and up to 200A max battery charging (AC 120A / PV 200A / Hybrid 200A). 500VDC max open-circuit voltage ensures flexible solar array design and higher energy harvest efficiency.

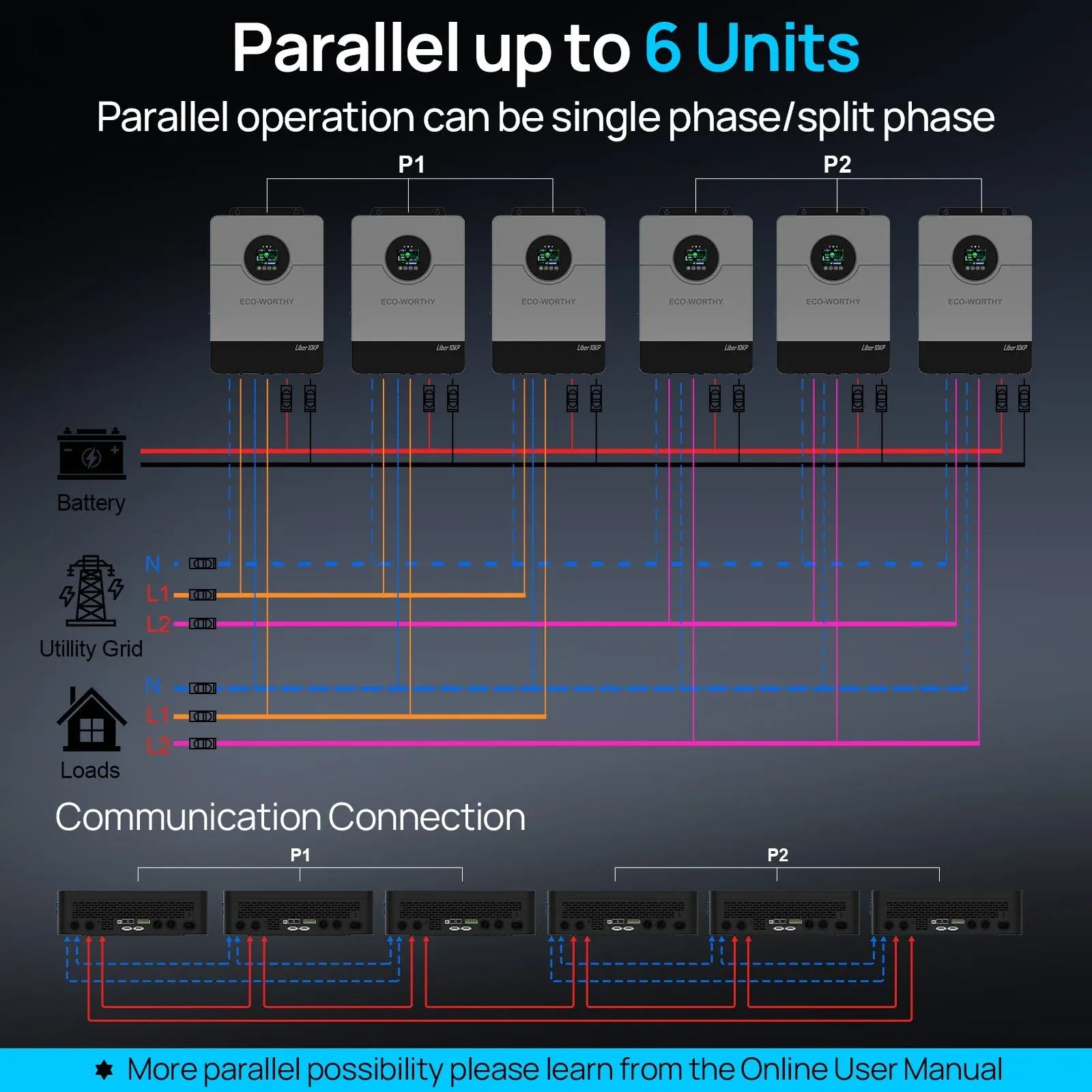

Expandable System & Battery Compatibility

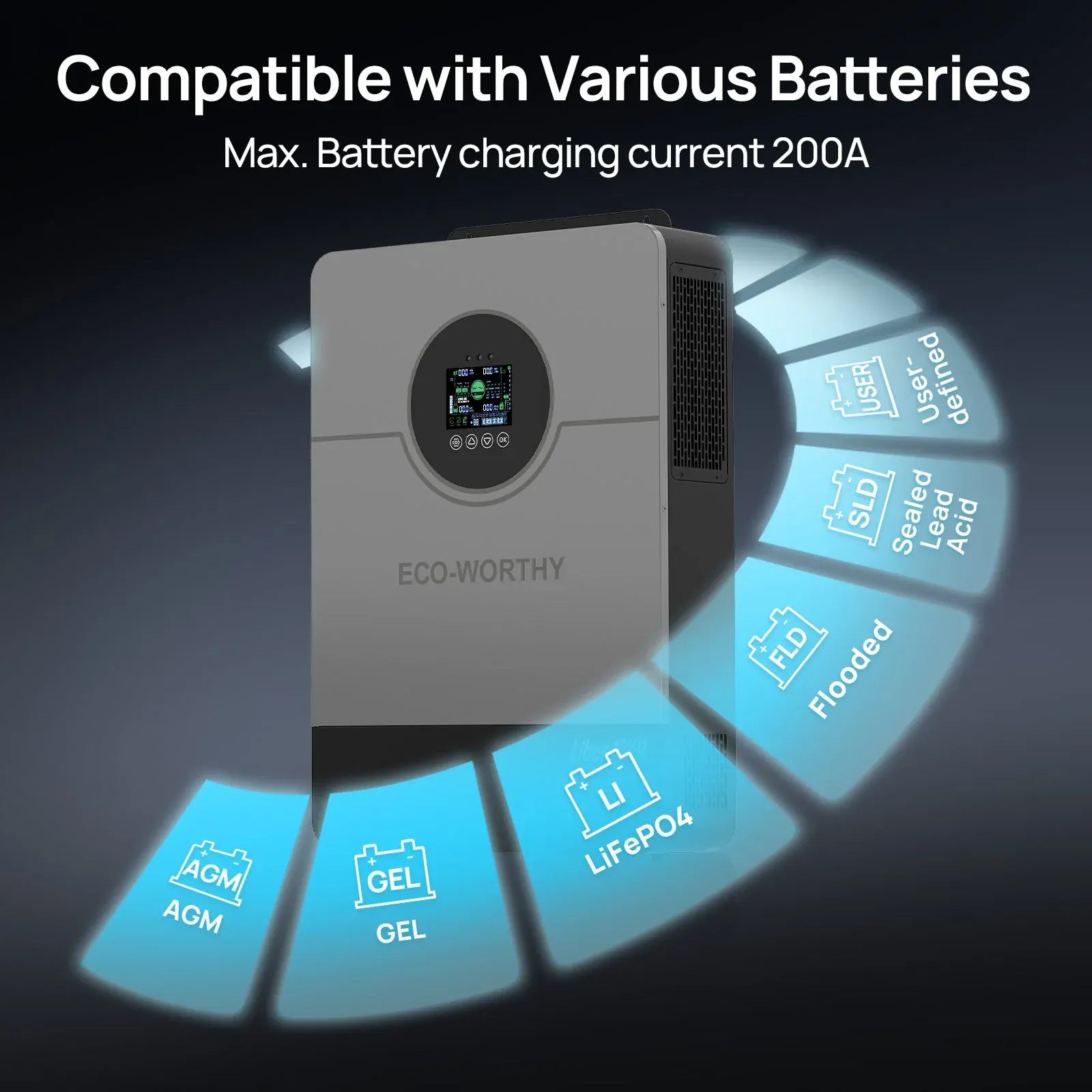

Supports parallel connection of up to 6 units (60KW total output) for scalable power needs. Compatible with multiple 48V battery types, including AGM, Gel, Flooded, and Lithium batteries. Communication ports include CAN, USB, and RS485 for seamless system integration.

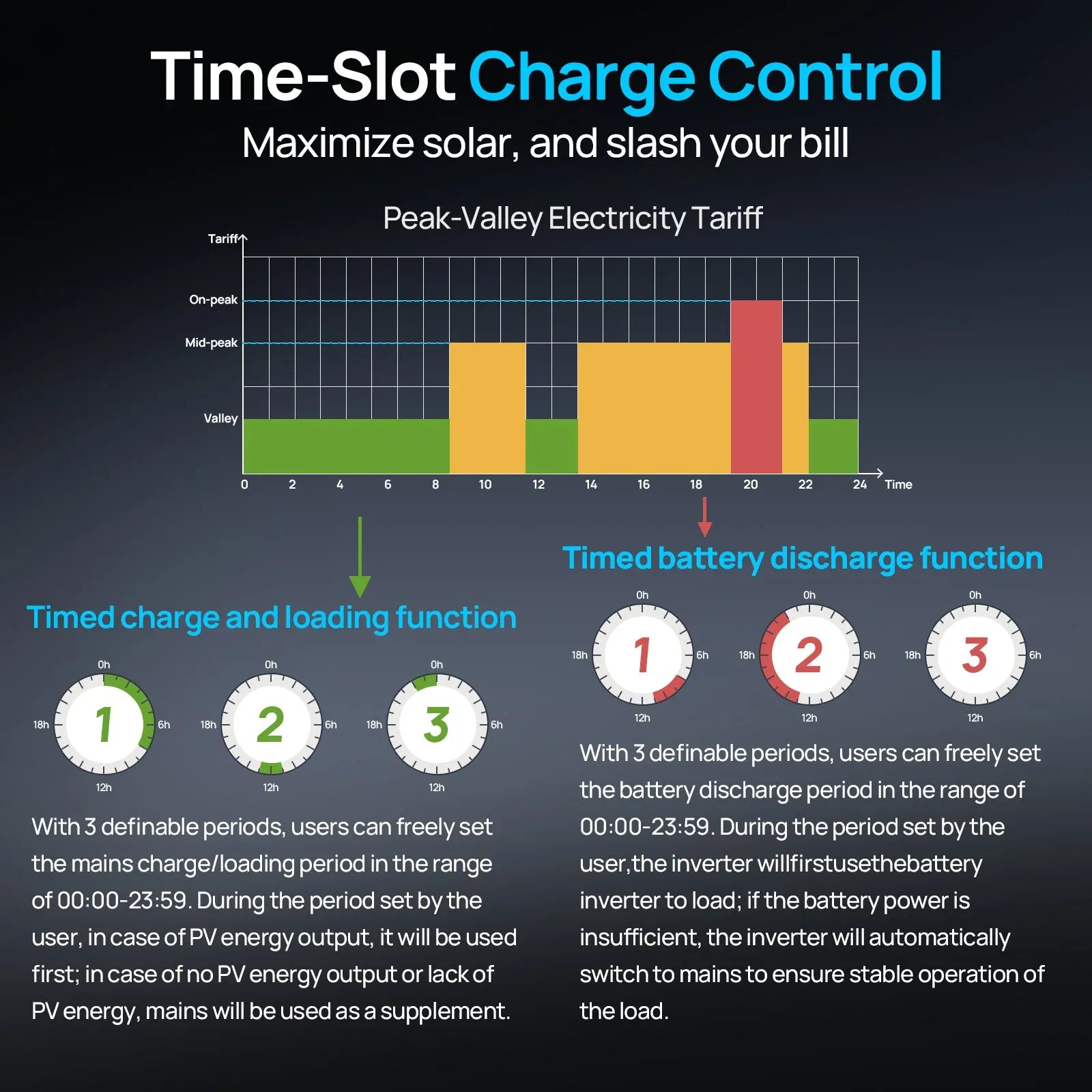

Smart Monitoring & TOU Energy Control

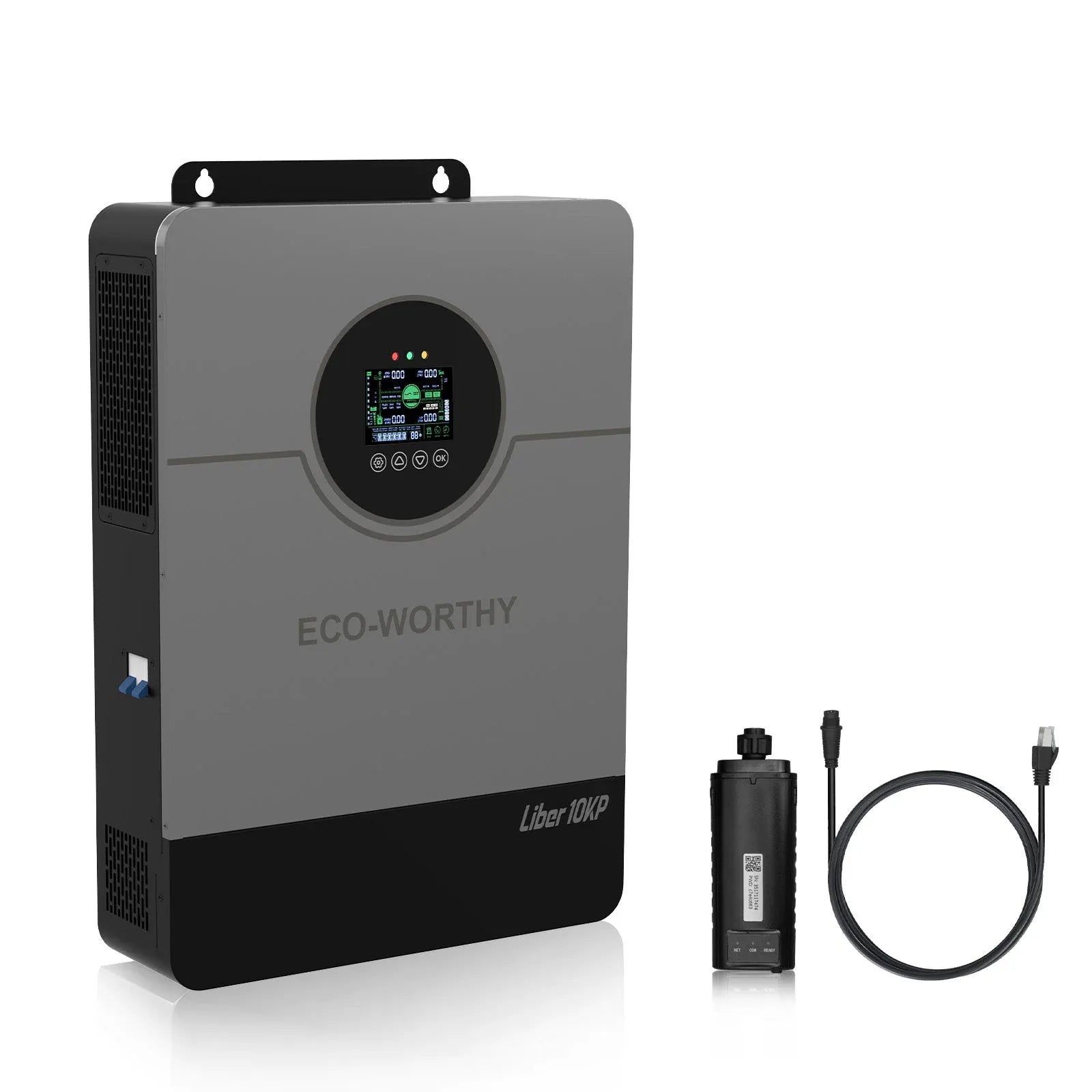

Clear LED display for real-time system status and easy operation. Standard WiFi module included enables remote monitoring via mobile app. Built-in Time-of-Use (TOU) charging and discharging allows you to schedule power usage based on peak and off-peak electricity rates, maximizing solar savings.

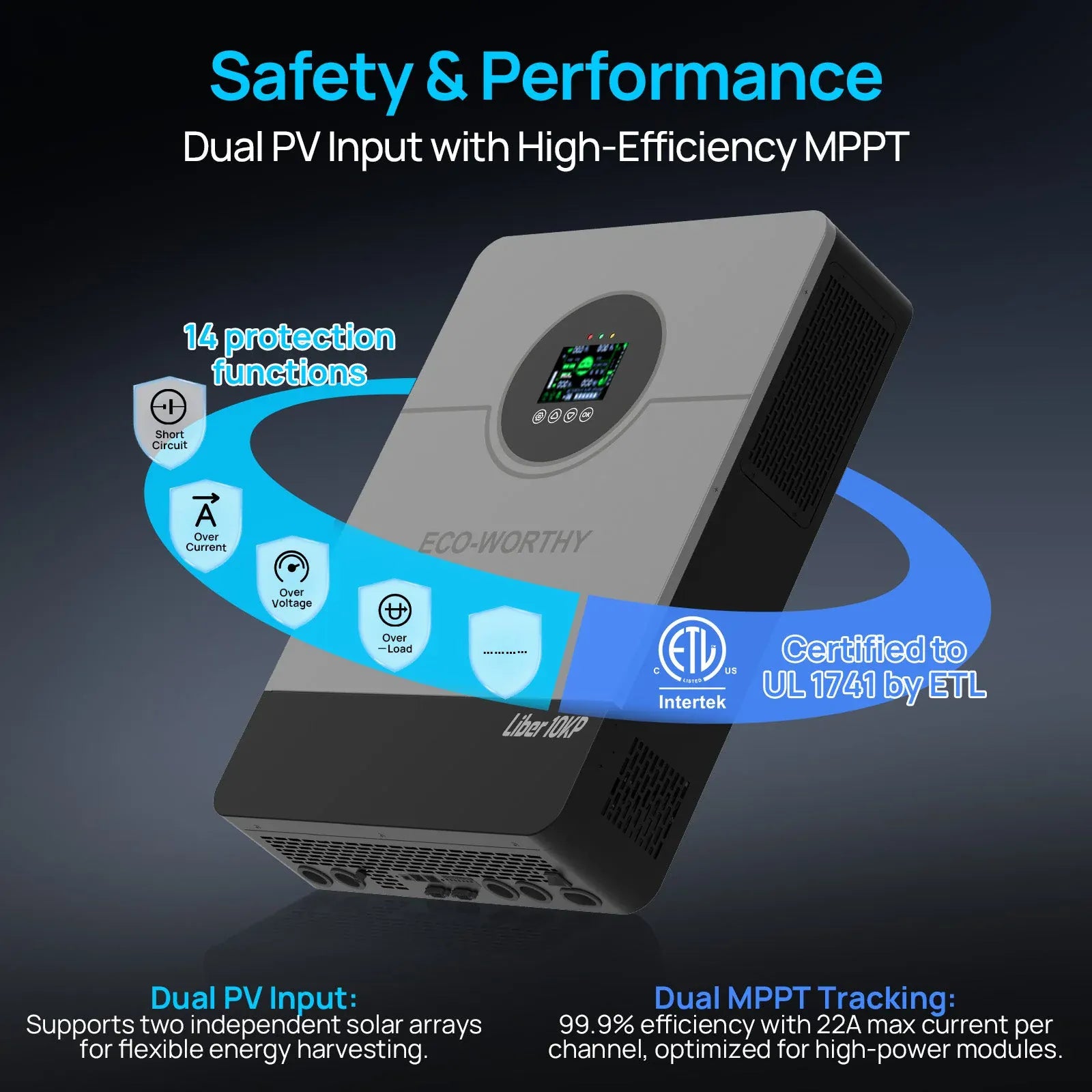

Certified Safety & Versatile Applications
UL1741 certified for North American safety standards. Equipped with 14 comprehensive protection functions, including short-circuit, overload, and voltage fluctuation protection. Perfect for homes, cabins, RVs, workshops, and off-grid solar systems, delivering reliable power wherever you need it.
Specifications:
| Feature / Parameter | Specification |
| Product Name | ECO-WORTHY Liber 10KP Split-phase AIO Solar Inverter |
| Availability | In Store and Free Shipping |
| Certification | UL 1741 |
| Rated Output Power | 10,000 W (Peak 20,000 W) |
| Rated Battery Voltage | 48 Vdc (Operating range: 40–60 Vdc) |
| Output Voltage | 120 Vac / 240 Vac (Single-Phase / Split-Phase) |
| Output Frequency | 50 Hz / 60 Hz |
| Waveform | Pure Sine Wave |
| Max PV Input Power | 11,000 W |
| Max Open Circuit Voltage (Voc) | 500 Vdc |
| MPPT Operating Voltage Range | 125 Vdc – 425 Vdc |
| Number of MPPT Channels | 2 Independent Channels (Max 22A/22A Input) |
| Max PV Charge Current | 200 A |
| Max Mains/Generator Charge Current | 120 A |
| Max Combined Hybrid Charge Current | 200 A |
| Transfer Time | 10 ms (typical) |
| Parallel Capability | Up to 6 units (60 kW maximum) |
| Battery Compatibility | LiFePO4 / Lead-Acid / User-Defined |
| Communication Interfaces | RS485 / CAN / USB / Dry Contact |
| Dimensions (L x W x H) | 620 mm × 445 mm × 130 mm (24.4 in × 17.5 in × 5.1 in) |
| Weight | 27 kg (59.5 lbs) |
