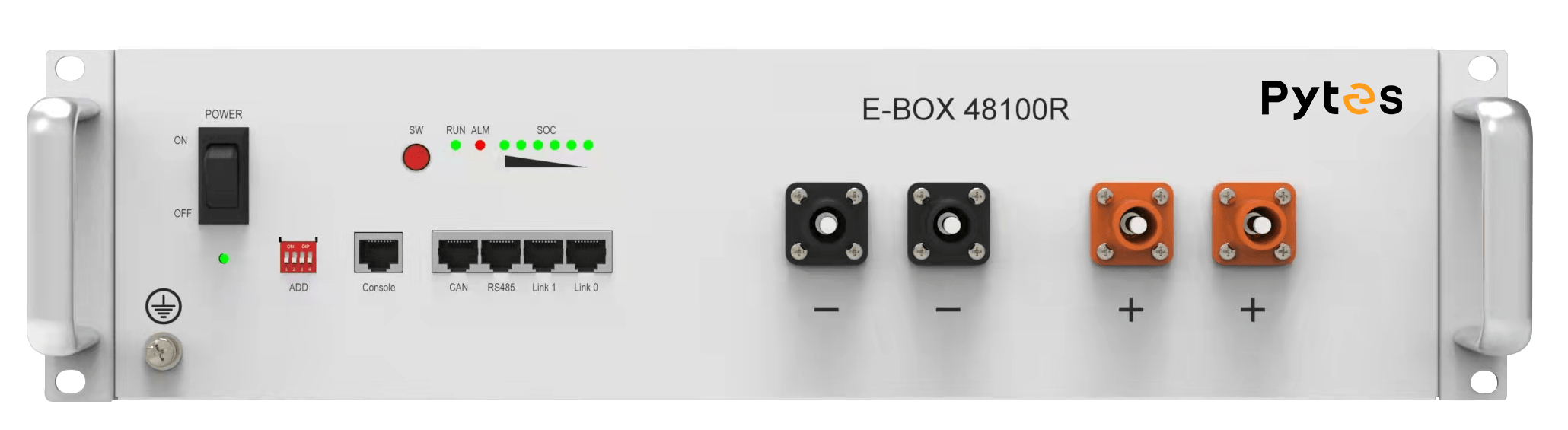

Pytes E-BOX-48100R | 5.12kWh | 51.2V | 100Ah | Lithium Iron Phosphate
by Zonna Energy
SKU 110402100129
$1,199.00
E-BOX series, the new generation LFP battery for home energy storage system. It provides safe,well-designed and high-performance standard LFP battery pack for you. The battery pack is compact, easy to install, free of maintenance, and could be deployed to the building block of energy storage system by being assembled in parallel. It is widely applied in home applications, small commercial and industrial energy storage system as well as Telecom stations.
Specifications:
|
Chemistry
|
LFP
|
|
Nominal Voltage
|
51.2V
|
|
Voltage Range
|
47.5V-58V
|
|
Nominal Capacity
|
100Ah
|
|
Nominal Energy
|
5.12kWh
|
|
Unit Dimension
|
L440mm* W620mm* H117mm (2.6U)
|
|
Unit Weight
|
51kg
|
|
Standard Charge Current
|
50A
|
|
Maximum Charge Current
|
50A
|
|
Standard Discharge
|
50A
|
|
Maximum Discharge Rate
|
50A
|
|
Round-Trip Efficiency
|
≥95%
|
|
Communication Protocol
|
RS232, RS485, CAN
|
|
Cycle Life
|
≥6000cycles
|
|
Calendar Life
|
≥10years
|
|
Operating Temperature
|
-10°C~50°C
|
|
Connect style
|
Parallel
|
|
Storage Temperature
|
Within 1month:
-20~55°C,
1-3months: 0~35°C,
3-12months: 20~25°C
|
