Dive into Overland Travel

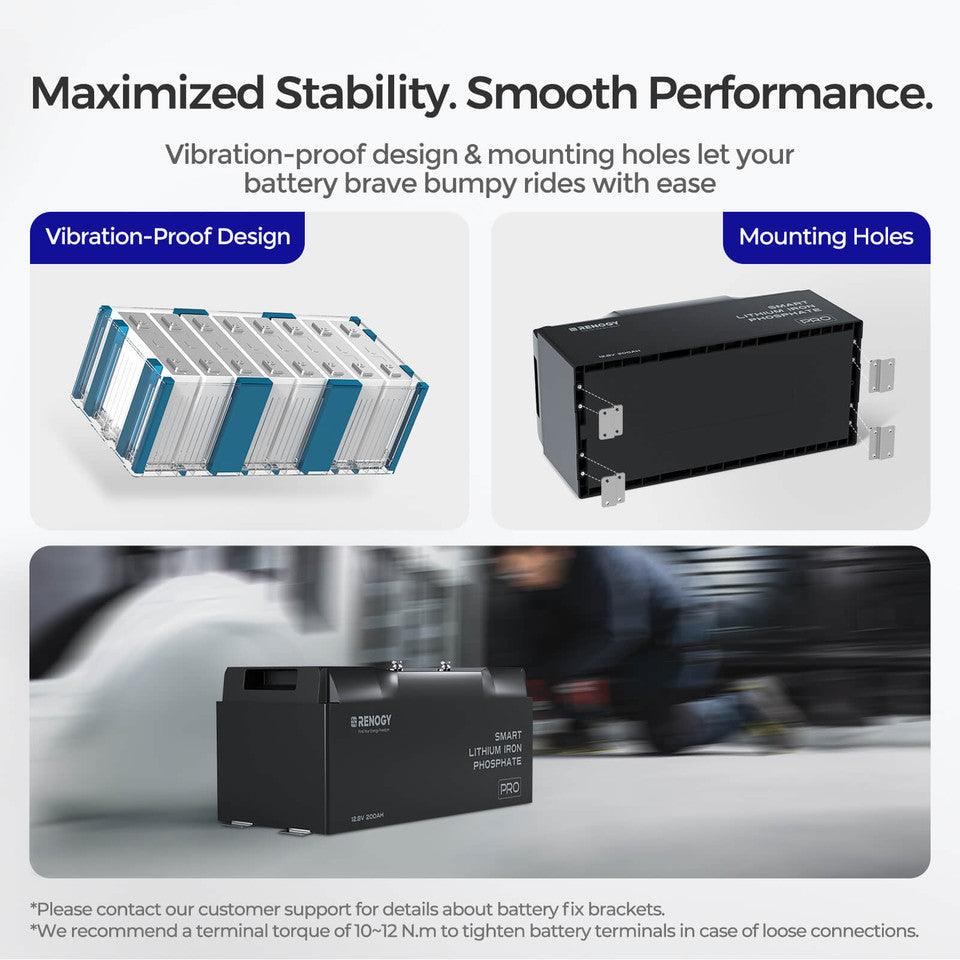

Staying tough in an overland journey is not easy. The Renogy 12V 200Ah Pro LiFePO4 Battery makes getting access to safe, trusted power easier. It is built to withstand splashes, heat, vibrations, and other challenges. So you can reach your dream destination refreshed.
Discover Pro-Level Safety
Renogy's safest 12V 200Ah LiFePO4 battery for all-weather living
Find Added Comfort in Your 4WD
Enjoy the comfort of home even when you are miles away from your familiar place. A 12V 200Ah Pro LiFePO4 battery can pump out max. 2.56kWh of power to juice up devices longer before hitting your goal.

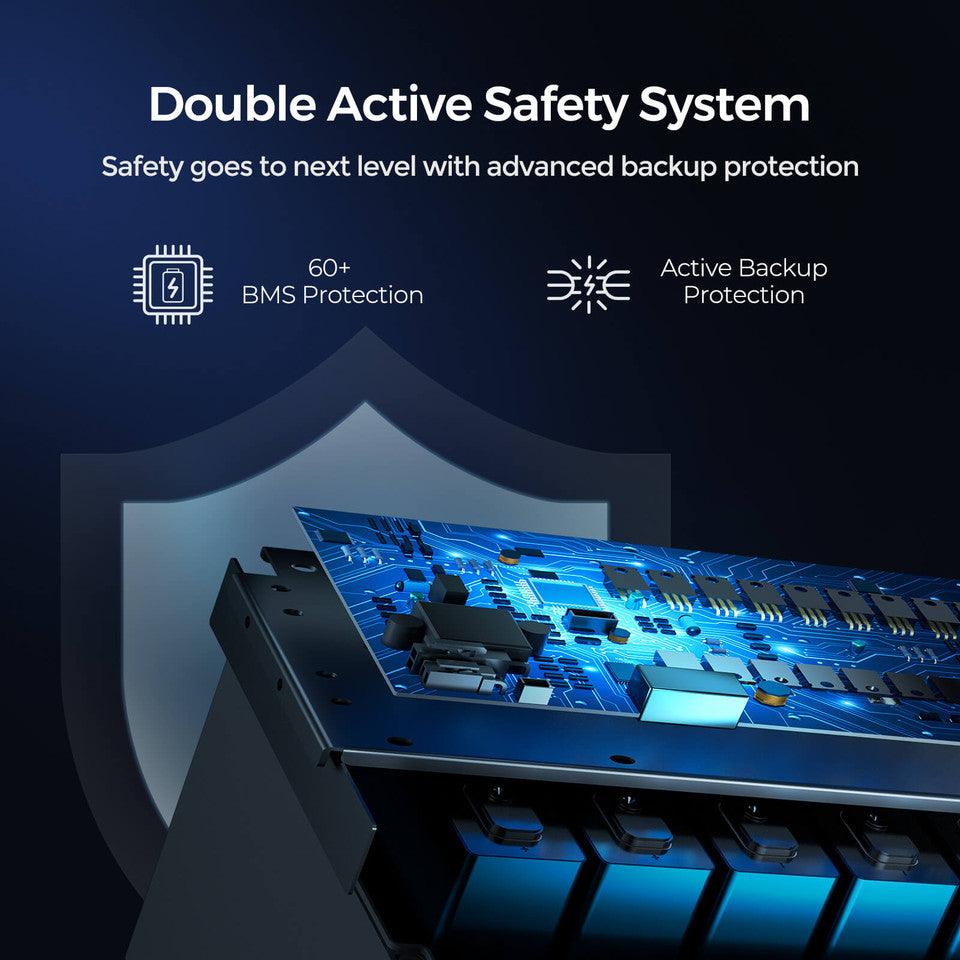

Primary Safety: 60+ EV-Grade BMS Protection
The automotive-grade battery management system built in the 12V 200Ah Pro battery provides over 60 protection and alerts. This brings greater capability and more precise monitoring in all kinds of environments to identify and reduce electrical & thermal hazards.
Easy-to-Replace BMS Design
For the first time, Renogy introduces a hassle-free replaceable BMS design for the Pro LiFePO4 battery lineup, complete with easy-to-follow replacement guides. Make your own repairs and extend your battery's life for maximum cost savings.
Secondary Safety: Active Backup Protection
For the first time, our 12V 200Ah Pro LiFePO4 battery features active backup protection. It helps to cut off the circuit 40x faster than conventional passive protection when a MOSFET switch fails, keeping the battery from overheating and bringing more damage.
Brave the Cold for Winter Journeys

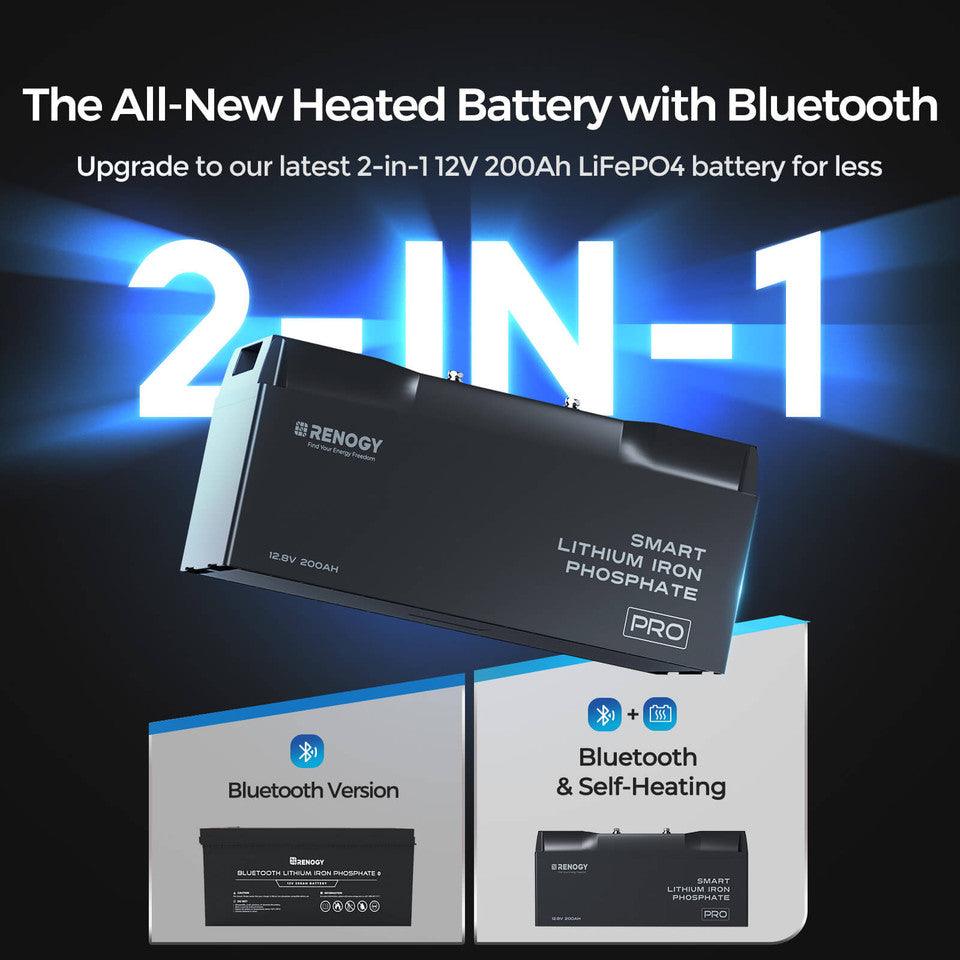

For enthusiasts of winter outdoor pursuits, a self-heated LiFePO4 battery is a must-have. This 12V 200Ah Pro LiFePO4 battery can automatically heat up with a charging current greater than 6A to ensure safe charging in sub-zero temperatures, providing consistent power to prolong the runtime of your freezers and other essentials.
Robust Power Even in Heatwaves

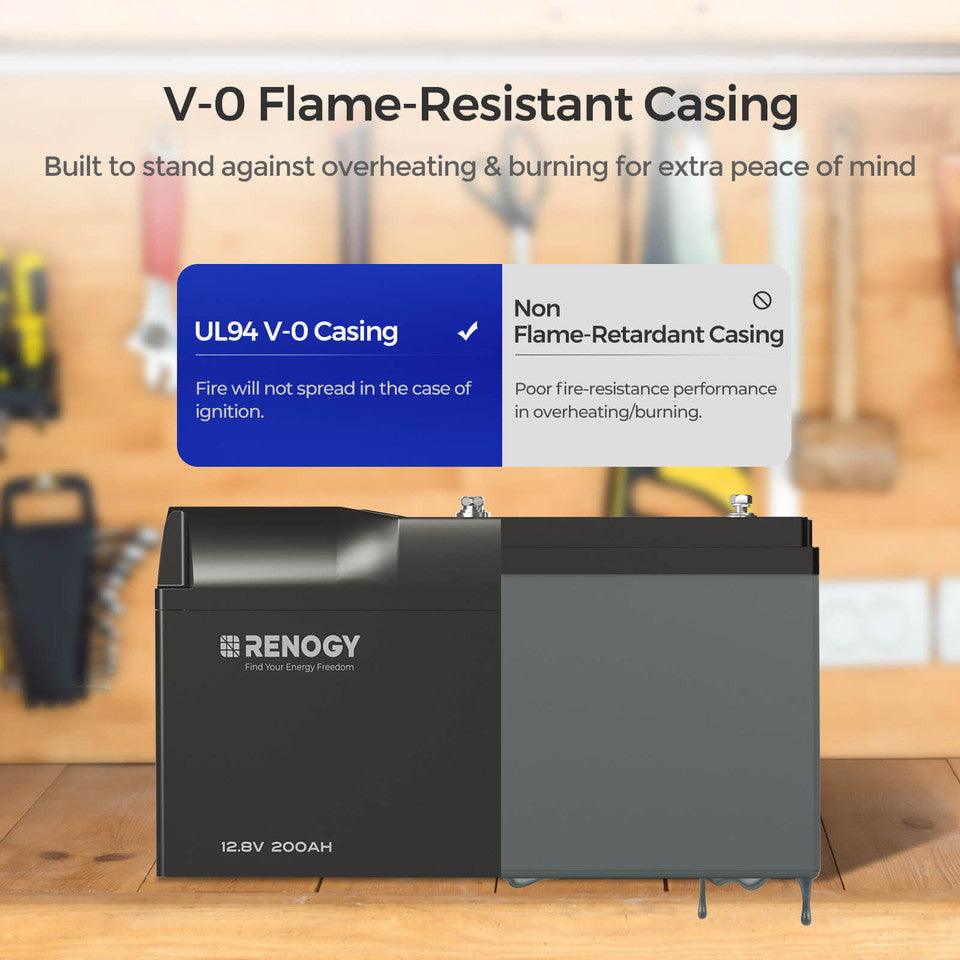

Living in a warmer climate off the grid is made safer than ever with the all-new Pro series lithium battery thanks to the fire-resistant casing (UL94 V-0). It offers outstanding fire resistance to vertical burning, a crucial safety feature to safeguard your power supply against fire hazards and reduce the risks of fire spreading, especially when living in remote areas where emergency response can be delayed.
Performance You Can Count on
With advanced safety features, Renogy 12V 100Ah Pro takes performance further than ever while ensuring a longer battery lifespan.
Get Power Ready for Off-Road Trips
Complete your 4x4 build with this tough 12V 200Ah Pro LiFePO4 Battery along with our popular solar panel, charge controller, and inverter to go the extra mile effortlessly.
Dimensional Reference Guide
Before installing the battery, please note that you need to leave 1.97-3.94 in (50-100 mm) for the top of the battery; the side with busbars needs to be left at least 7.87 in (200 mm).
Package Includes
Battery only option
- Pro - 12V 200Ah Lithium Iron Phosphate Battery x 1
- Terminal Bolts (M8 x 1.25 x 12 mm) x 2
- Long Terminal Bolts (M8 x 1.25 x 16 mm) x 2
- User Manual x 1
Specifications
-

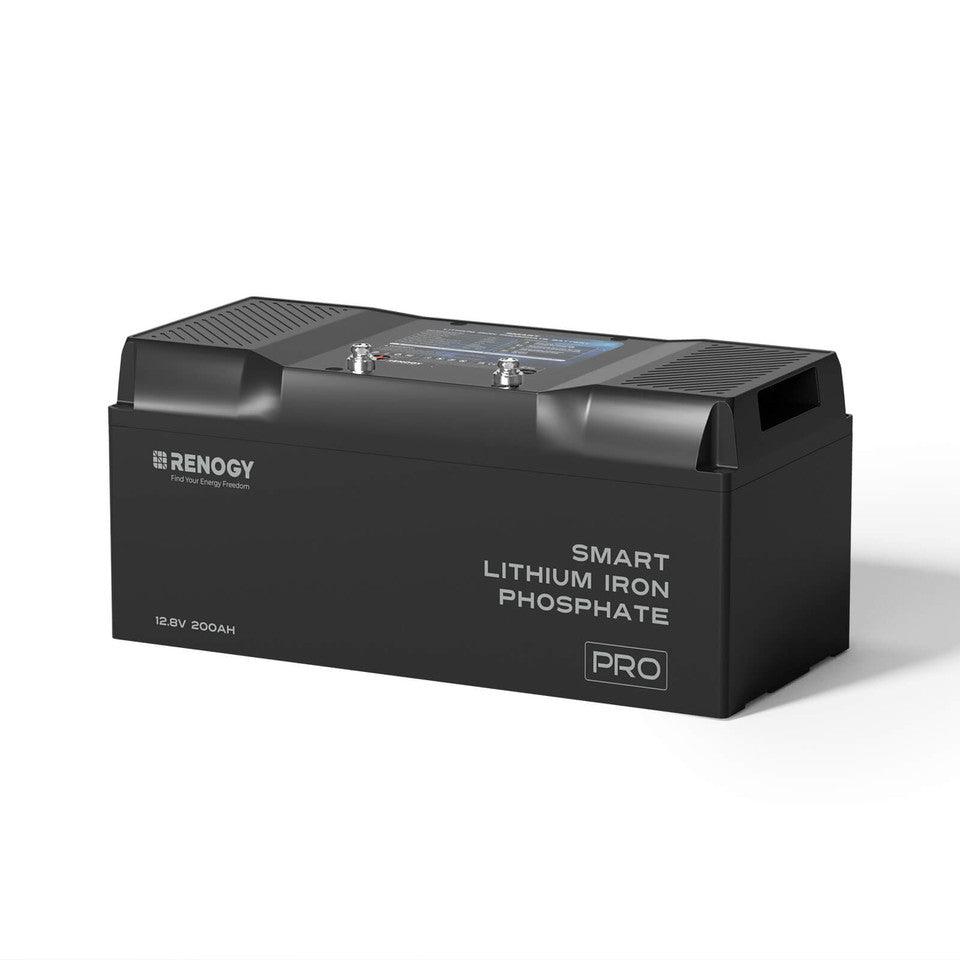

Battery Type: Lithium Iron Phosphate
- Nominal Voltage: 12.8V
- Rated Capacity: 200Ah (0.5C, 25℃)
- Voltage Range: 10V to 14.8V
- Maximum Charge Current: 200A
- Maximum Discharge Current: 200A
- Peak Discharge Current: 270A@30s
- Cycle Life (0.5C, 25℃): 5000 Cycles (80% DOD, 80% EOL)
- Charge Temperature Range: -4°F to 131°F (-20°C to 55°C)
- Discharge Temperature Range: -4°F to 140°F (-20°C to 60°C)
- Storage Temperature Range: -13°F to 149°F (-25°C to 65°C)
- Operation Relative Humidity: 10% to 95%
- Connection Method: Parallel (Up to 8)
- Communication Protocol: Bluetooth
- Terminal Bolt Size: Terminal Bolt: M8 x 1.25 x 12 mm Long Terminal Bolt: M8 x 1.25 x 16 mm
- Recommended Terminal Torque: 70.8 inch·lbs / 8 N·m
- Housing Material: PC/ABS
- Protection Rating: IP67
- Flame Retardancy: UL94 V-0
- Dimensions: 18.4 x 8.4 x 8.2 in (467 x 212 x 208 mm)
- Weight: 50.7 lb (23 kg)
Accessories
-
Terminal Bolts (2): 2 x M8 x 1.25 x 12 mm
- Long Terminal Bolts (2): 2 x M8 x 1.25 x 16 mm
Warranty
-
Material and Workmanship Warranty: 7 Years
Certifications
-
UL, MSDS, UN38.3, FCC, CE, PSE, and UKCA: Yes
