Light & Efficient
High-Performance Power Keeps You Trolling
Renogy offers a lightweight 24V solution with more juice and faster charging, allowing you to effortlessly stay on the water all day.
Stay Charged with Our Long-Lasting Battery

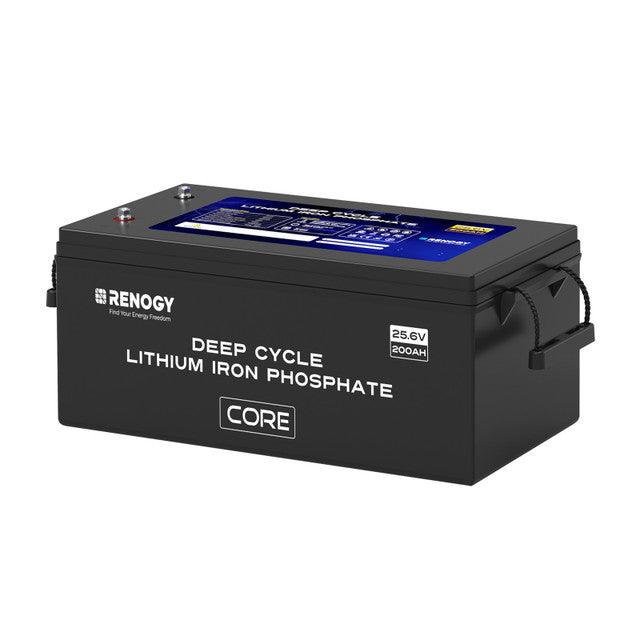

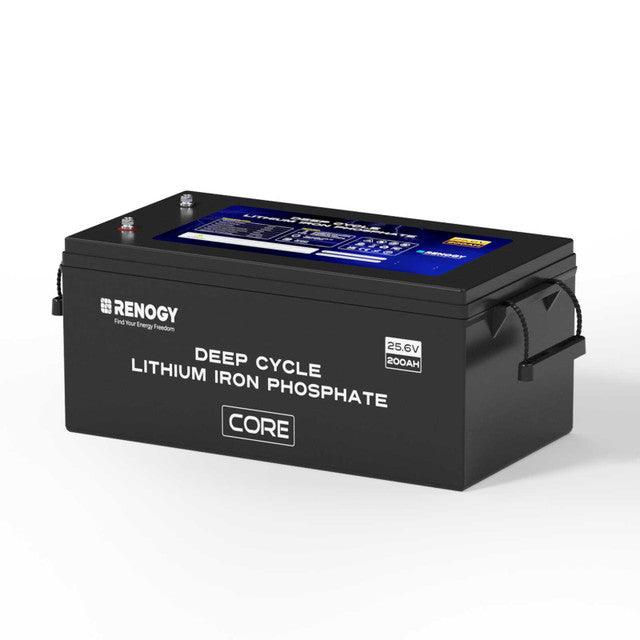

The top-notch 24V 200Ah LiFePO4 battery is designed to supply sustainable power for your every move.
Dependable Power Made Affordable
Access all-seasoned and solid power that won't break the bank in the long run.

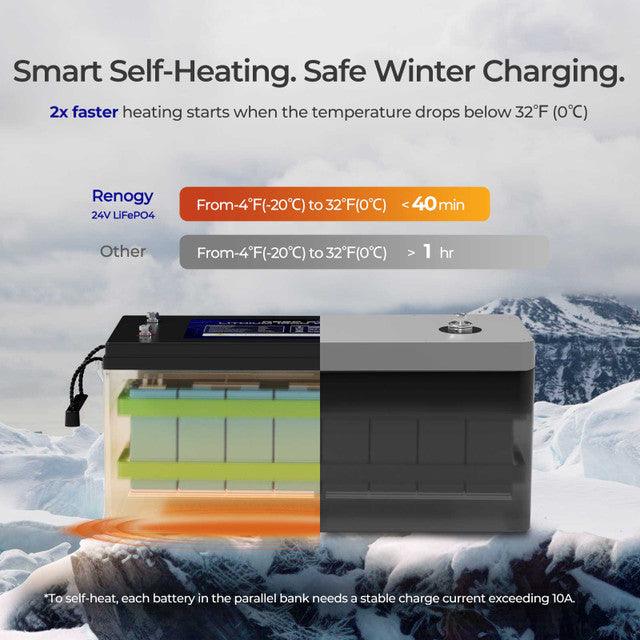

Smart Self-Heating
The Heat You Need
The battery's game-changing self-heating function saves you the trouble of choosing between performance and safety in freezing temperatures.

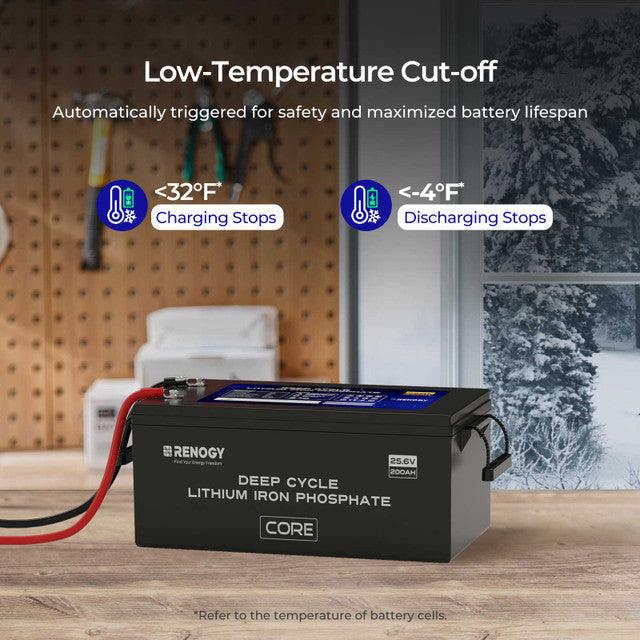

Low-Temp Cut-Off
Auto Protection for Longer Use
Charging and discharging in cold environments without worrying about shortening the battery's lifetime.

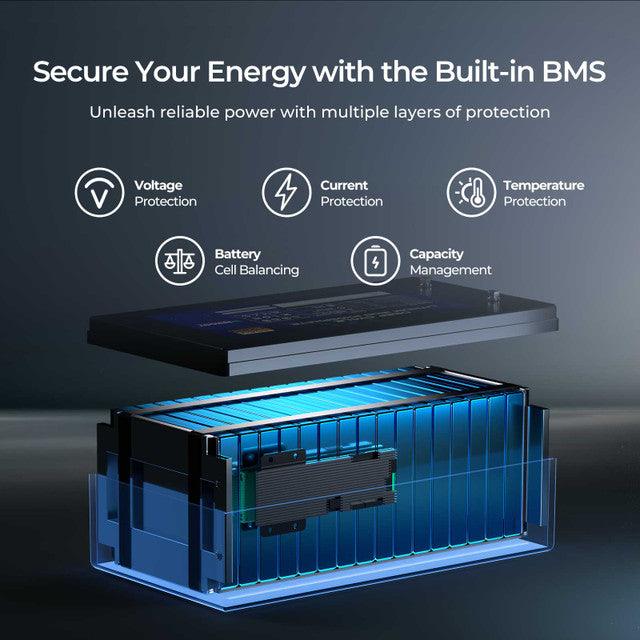

Automatic Battery Cell Balancing
Automatically balance the capacity and voltage of individual cells to maintain the overall capacity, longevity, and charging efficiency of the battery pack in an optimal state.
Sufficient Runtime for Your Cabins
Whether you need a battery system for daily use or backup, our expandable capacity of up to 40.96 kWh always has you covered.
Dimensional Reference Guide
Before installing the battery, please note that you need to leave 1.97-3.94 in (50-100 mm) for the top of the battery; the side with busbars needs to be left at least 7.87 in (200 mm).
Package Includes
- 24V 200Ah Deep Cycle Lithium Iron Phosphate Battery x1
- Long Terminal Bolts x 2
- Insulating Sleeve x 2
- User Manual x 1
Specifications
- Battery Type: Lithium Iron Phosphate
- Voltage: 24V
- Energy: 5120Wh
- Rated Capacity: 200Ah (0.5C)
- Charge Voltage: 29.0V
- Maximum Charge Current: 200A
- Maximum Discharge Current: 200A
- Peak Discharge Current: 390A@5s
- Cycle Life (0.5C, 25℃): 5000 Cycles (80% DOD)
- Automatically Self-heating: Yes
- Charge Temperature Range: '-4°F to 131°F (-20°C to 55°C)
- Discharge Temperature Range: '-4°F to 140°F (-20°C to 60°C)
- Storage Temperature Range: '-13°F to 149°F (-25°C to 65°C)
- Operation Relative Humidity: 10% to 95%
- Connection Method: Series & Parallel (2S4P)
- Terminal Bolt Size: M8 x 1.25 x 15 mm
- Recommended Terminal Torque: 88.5 inch·lbs to 106.2 inch·lbs / 10 N·m to 12 N·m
- Housing Material: ABS
- Protection Rating: IP65
- Dimensions: 20.55 x 10.55 x 8.62 in / 522 x 268 x 219 mm
- Weight: 88.6 lbs. / 40.2 kg
Accessories
- Long Terminal Bolts x 2: M8*1.25*20 mm
- Insulating Sleeve × 2: Yes
Warranty
- Material and Workmanship Warranty: 5 Years
Certifications
- MSDS, UN38.3, FCC, CE, PSE, and UKCA: Yes
- Shop By Scenario: RV, Vans & Camper
