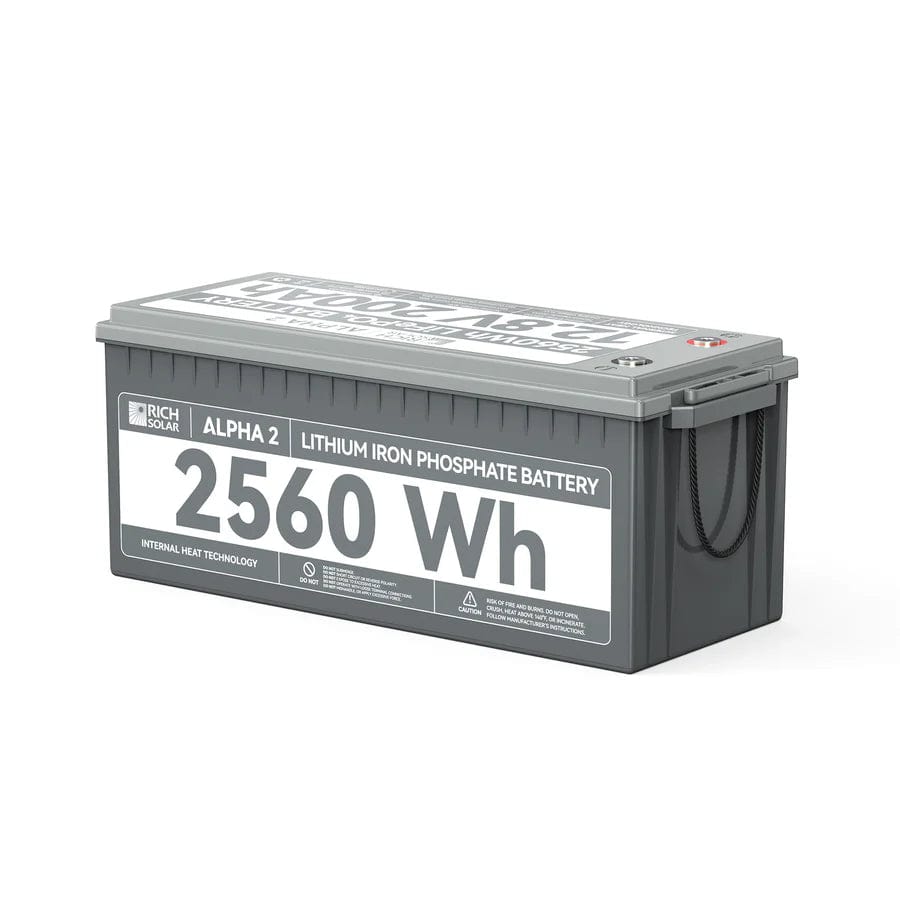

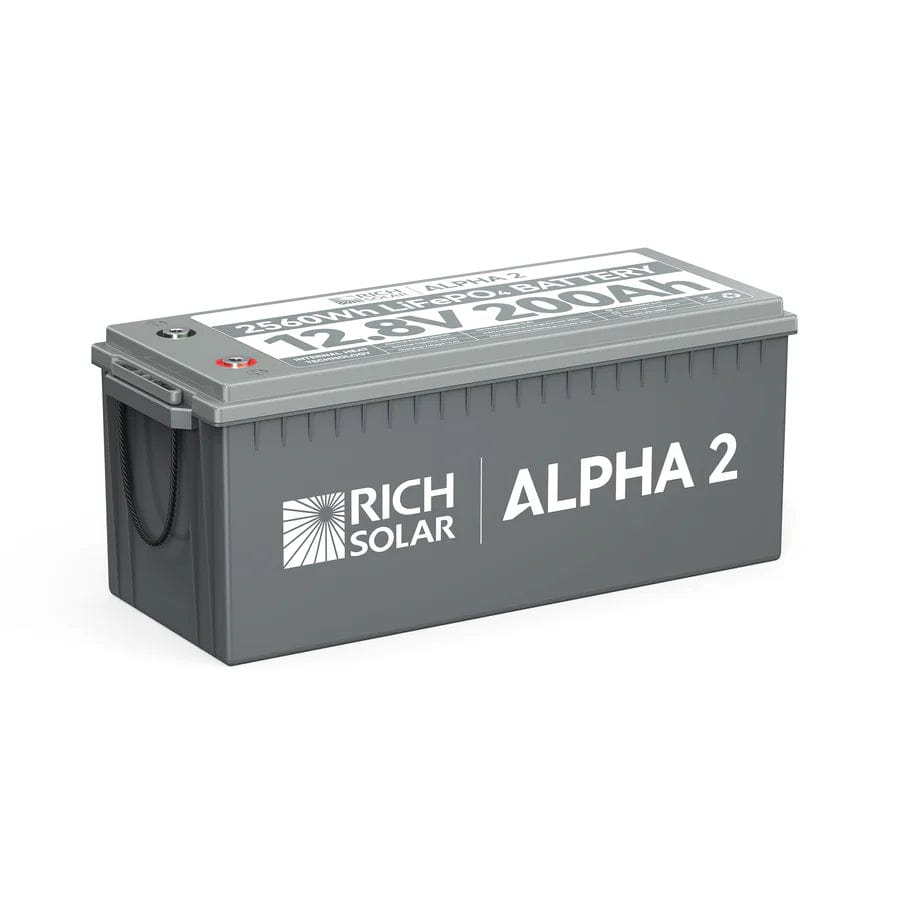

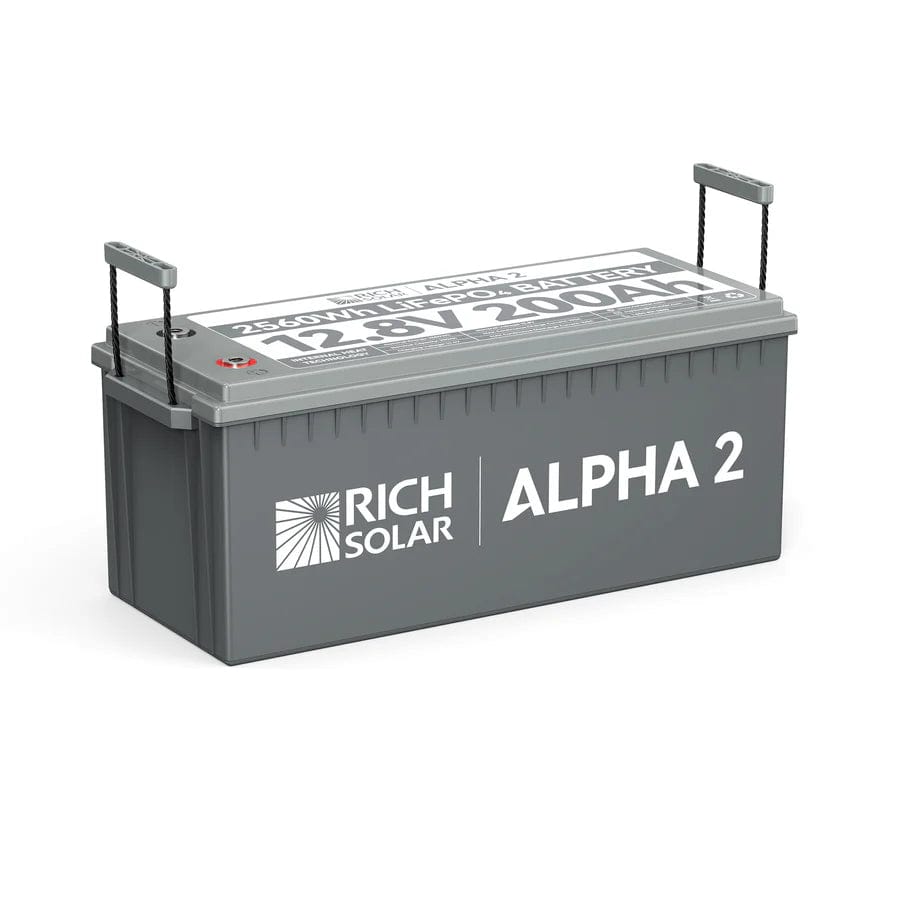

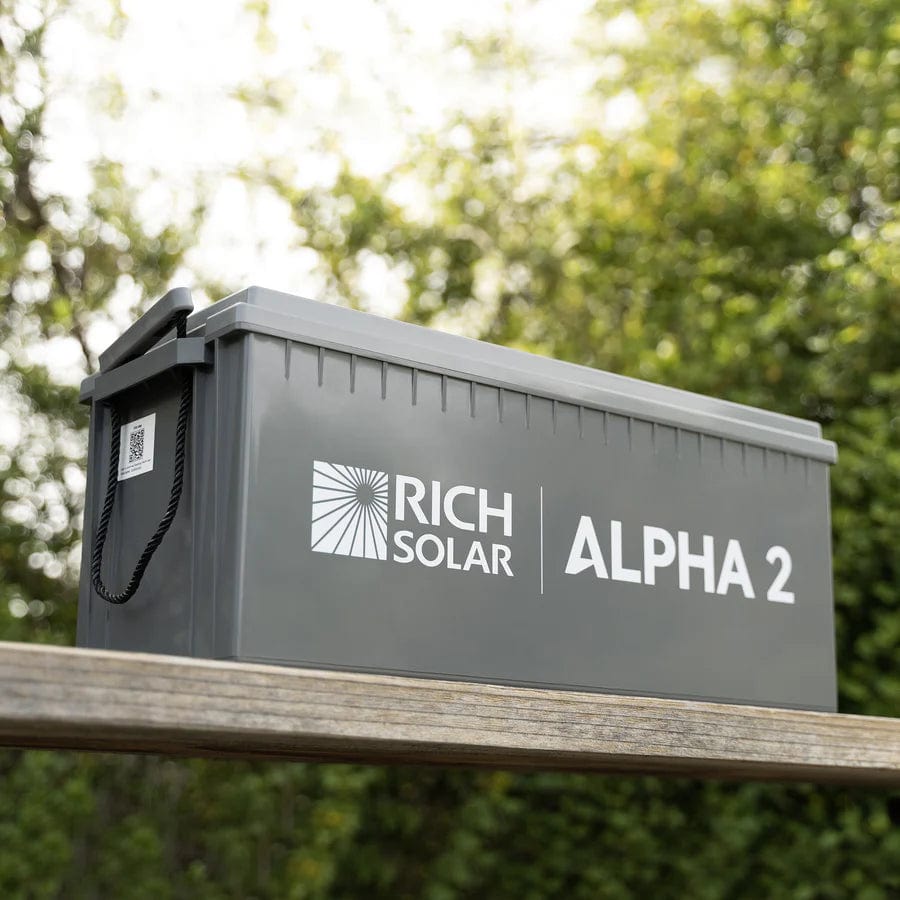

The Rich Solar ALPHA 2 LiFePO4 Battery is a powerful and efficient 12V lithium battery designed for use in RVs, trailers, vans, boats, and off-grid systems. With a 5,000 lifetime cycle, this battery offers long-lasting performance and reliability. It also features Bluetooth connectivity and internal heat technology for improved functionality.
Specifications
BATTERY
- Cell Type:LiFePO4 Battery
- Nominal Voltage:12.8V
- Nominal Capacity:200Ah
- Nominal Energy:2560Wh

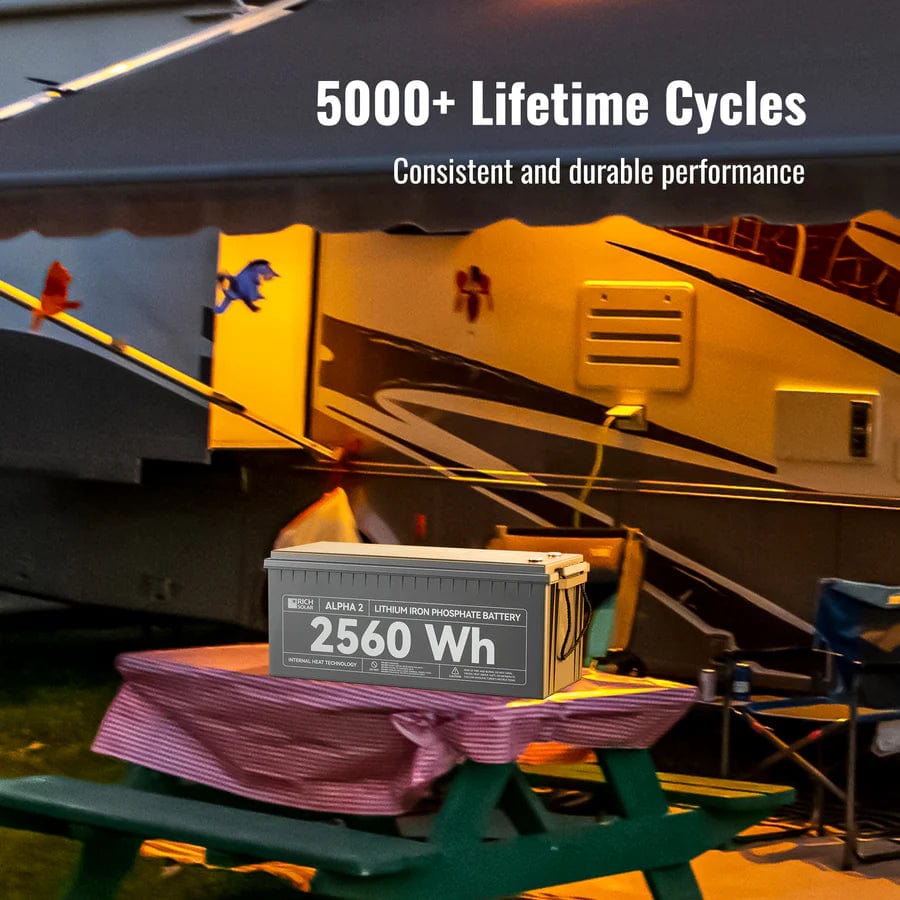

- Cycle Life:5000 cycles
- Maximum Expansion (Parallel & Series):4P4S
BMS
- BMS:100A
- Maximum Continuous Charge Current:100A
- Maximum Continuous Discharge Current:100A
- Maximum Discharge Current 10 Seconds:110A
CHARGE
- Charge Method:CC/CV
- Charge Voltage:14.4V ± 0.2V
- Recommend Charge Current:50A (0.2C)
TEMPERATURE
- Charge Temperature:32℉ to 131℉ (0℃ to 55℃)
- Discharge Temperature:-4℉ to 140℉ (-20℃ to 60℃)
- Storage Temperature:14℉ to 113℉ (-10℃ to 45℃)

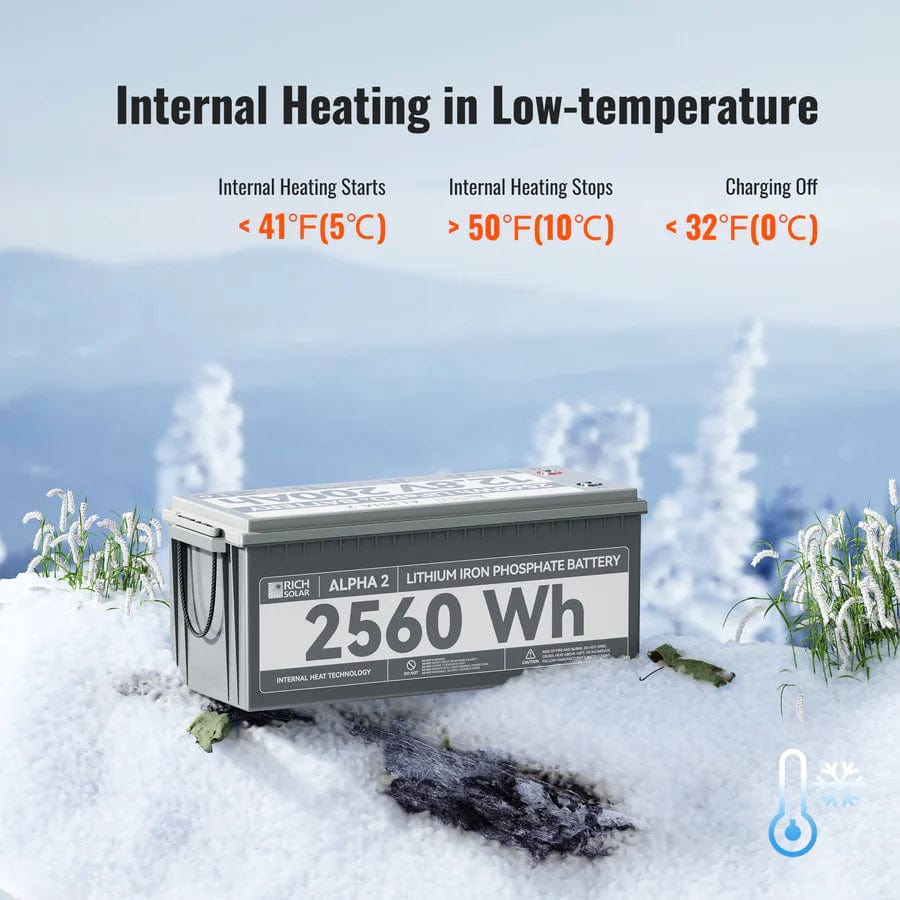

SELF-HEATING
- Heating Function:100W
- Internal Heating Starts:< 41℉ (5℃)
- Internal Heating Stops:> 50℉ (10℃)
OTHERS
- Net Battery Weight: 48.5lb
- Size(L*W*H): 20.9x8.1x8.5in (Group 31 size)
- Housing Material: ABS (Flame Retardant Plastic)
- Protection Class:IP65
- Warranty:5 Years
