Rich Solar Complete Off-Grid Solar Kit | 13,000W 120/240V Output | 48VDC
This Rich Solar Complete Off-Grid Solar Kit provides a reliable and powerful 13,000W 120/240V output, perfect for off-grid living or backup power during emergencies. With a 48VDC system, you'll have consistent energy for your home or remote cabin without relying on traditional electricity sources. Invest in sustainable and efficient energy with this complete kit.
Everything you need to go completely Off-Grid!
This travel trailer solar system includes flexible solar panels for RV and tiny homes, so you can jumpstart your off-grid solar trailer adventure today.
Best value on the market! Ships from California! Call us for any questions! Free technical support!

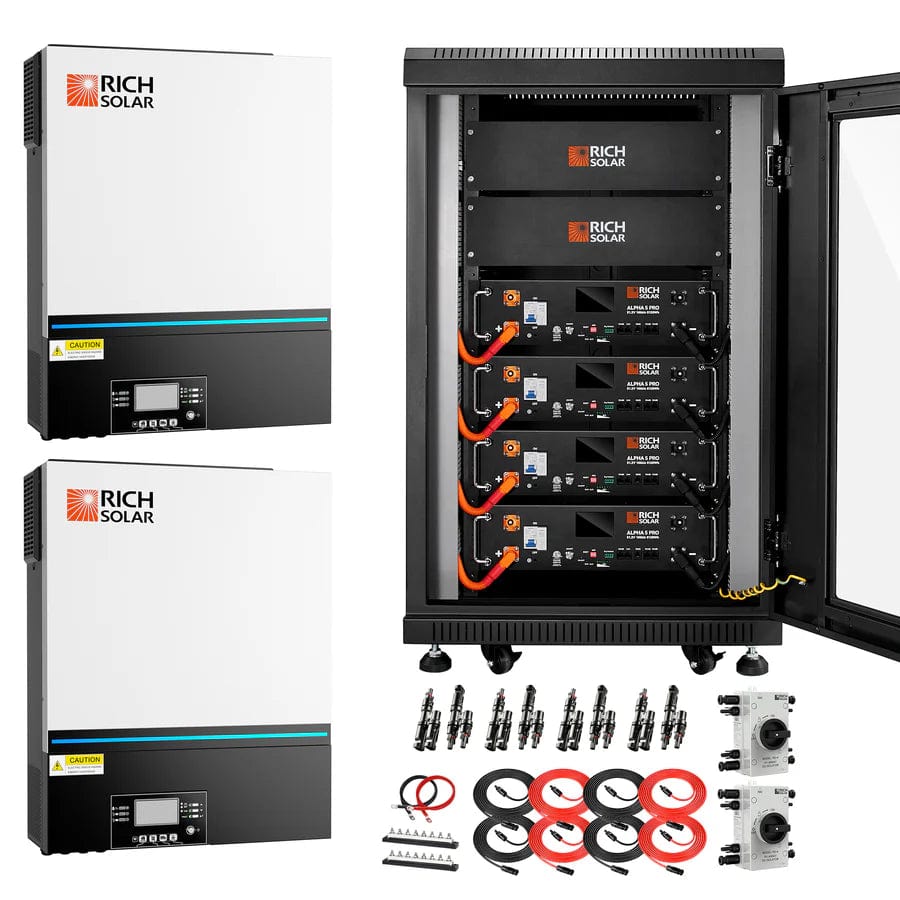

What's Included in the Kit:
- 2 x 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter (RS-H6548)
- 4 x 5.12kWh ALPHA 5 PRO Server Lithium Iron Phosphate Battery (RS-B5121P1)
- 2 x Solar PV DC Quick Disconnect Switch (RS-i4)
- 2 x Busbar 600 AMP
- 4 x 4 Foot 2/0 Gauge AWG Wire Set 3/8"
- 8 x 10 Gauge 50 Feet Solar Extension Cable (RS-50102)
- 4 x 10 Gauge 30 Feet Solar Extension Cable (RS-30102-T2)
- 1 x Free Battery Rack
Solar Panel Options：

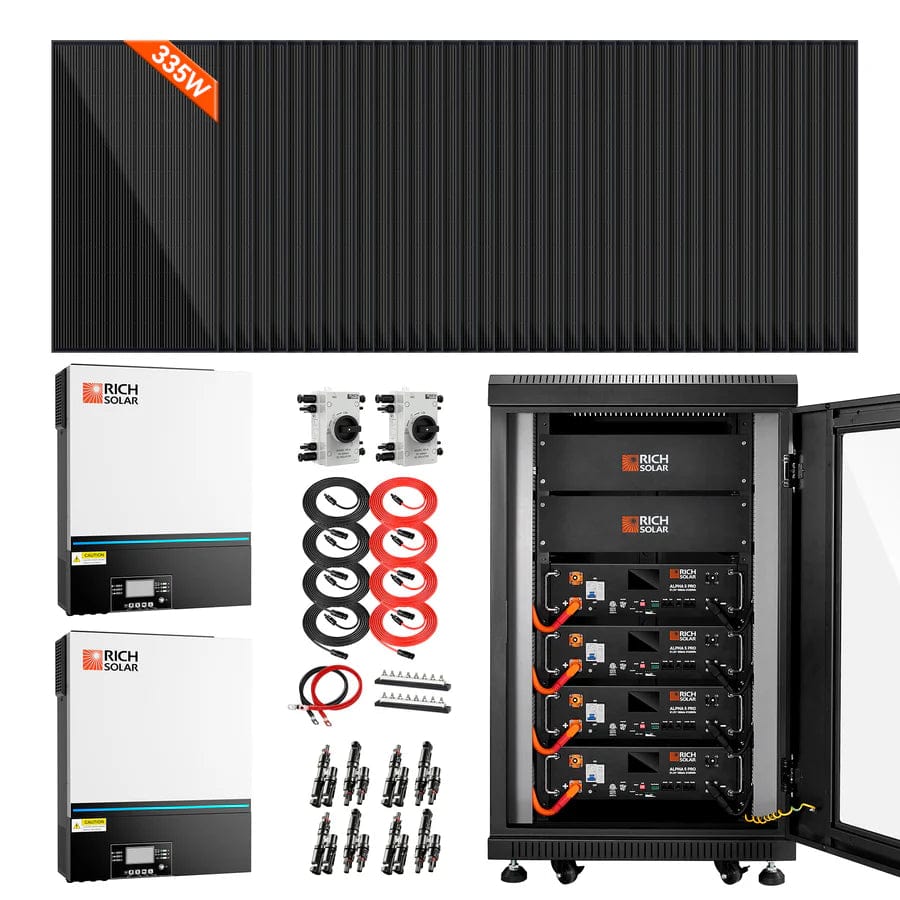

- 38 x MEGA 335 Watt Monocrystalline Solar Panel (RS-M335)
- 32 x MEGA 400 Watt Monocrystalline Solar Panel (RS-M400)
- 30 x MEGA 410 Watt Monocrystalline Solar Panel (RS-M410)
6.5kW Inverter Features:
Power for Off-Grid
6500W Continuous Output
80-140 VAC Selectable Voltage
Parallel up to 6 Units
Performance Components
15000 VA High Surge Capacity
Overload Protection
Over Temperature Protection
Advanced Configurability
Built-in Wi-Fi for mobile monitoring (Android/iOS App is available)
Supports USB On-the-Go function
Reliability & Safety
UL Certification
5120Wh Server ALPHA 5 PRO Features:
LiFePO4 Lithium Battery
Certification: UL1973, UL9540A, FCC
7,000 Deep Cycles Life
5120 Watt Hours Energy
100A Continuous Charge Current
Performance Components
Compatible with multiple brands of inverters
Low maintenance
Over charging or discharging protection.
Over current & short circuit protection.
Advanced Configurability
Parallel up to 15 Batteries
Connect in Parallel for Larger Capacity
With Sophisticated Battery Management System (BMS)
Reliable & Warranty
10 Years Lifespan
Specifications:
12000 Watt (12kW) 120/240V Hybrid Off-grid Solar Inverter
Maximum PV Input Power: 12000W
Parallel Capability: 6 units
INPUT
Maximum PV input Power: 12000W
Maximum DC Voltage: 600VDC
Start-up Voltage/initial Feeding Voltage: 125VDC/160VDC
MPP Voltage Range: 120VDC-550VDC
Number of MPPT Trackers/Maximum Input Current: 2/18A
OUTPUT
Rated Output Power: 10000VA/10000W
Nominal Output Voltage: 120VAC(P-N)/208VAC(P-P)/240VAC(P-P)
Output Voltage Range: 105.5-132VAC per phase
Nominal Output Current: 41.5A per phase
BATTERY
Battery DC Voltage Range: 40-62VDC / 48VDC
Maximum Solar Charging Current: 200A
Maximum AC Charging Current: 200A
Maximum Charging Current: 200A
OPERATING ENVIRONMENT
Operating Temperature Range: -25°C to 60°C(>45°C derating)
Protection Degree: IP 65
Communication Port: RS232, RS485, WI-FI, USB
PHYSICAL
Dimension (DxWxH): 8.5x20.3x28.1in / 215.5x515x715mm
Net Weight: 99.2lb / 45kg
CERTIFICATE
UL 1741SA, UL 1741SB, CSA 22.2.107.1, CEC
ALPHA 5 PRO
Electrical Specifications
- Nominal Voltage:51.2V
- Nominal Capacity (at .5C, 77°F):100Ah
- Minimum Capacity (at .5C, 77°F):99.5Ah
- Nominal Capacity:5120Wh
Operating Specifications
- Charging Voltage:57.6 V
- Discharging Cutoff Voltage:44.8V
- Maximum Charging Current:100A
- Continuous Charge Current:100A
- Maximum Discharge Current:100A
Physical Specifications
- Battery Dimensions:17.7″L x 17.8″W x 5.2″H
- Weight:99.2 lb
BMS Operation
- Operation Voltage:43.2~58.4V
- Maximum Charging Current:100A
- Maximum Discharging Current:100A
- Maximum Charge Voltage(CC/CV):57.6V
- Overcharge Protection Voltage (Battery):58.4V
- Overcharge Protection Release Voltage (Battery):54V
- Over Discharge Protection Voltage (Battery):43.2V
- Over Discharge Protection Release Voltage (Battery):47.2V
- Over Discharge Primary Charge Overcurrent Protection Value:110A
- First Stage Charge Over Current Delay:1s
- Primary Discharge Overcurrent Protection Value:110A
- Primary Discharge Overcurrent Protection Delay:1s
- Secondary Discharge Overcurrent Protection Value:150A
- Primary Discharge Overcurrent Protection Delay:500ms
Temperature Performance
- Charge Temperature:0.1C@(0℃~10℃); 0.2C@(10℃~20℃); 0.5C@(20℃~25℃); 1C@(25℃~45℃); 0.3C@(45℃~55℃); 0.2C@(55℃~60℃);
- Discharge Temperature:-20℃~65℃ (The surface temperature of the cell should not exceed 65℃)
- Storage Temperature:-20℃~45℃ 90%RH Max(1 month); 0℃~35℃ 90RH Max(6 Months)
- Recommended Storage Temperature:
- 0℃~35℃ 85%RH Max (The battery life would be reduced if battery is stored in high temperature)
Others
- Certification:UL1973, UL9540A, FCC
- Max. Expansion:15 pcs in parallel
Communication Ports: RS485/RS232/CAN
Warranty: 10 Years Manufacturer Defect
BATTERY SERVER RACK
- Dimensions (LxWxH): 27.6 x 27.6 x 44 in
- Net Weight: 196 lb
