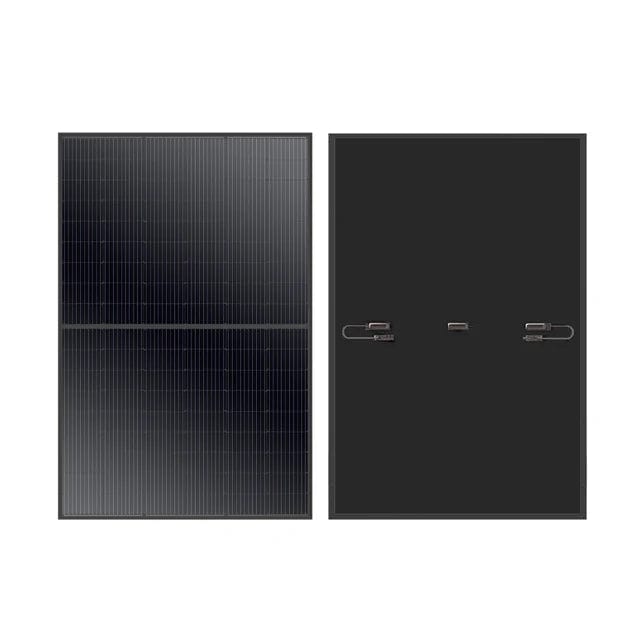

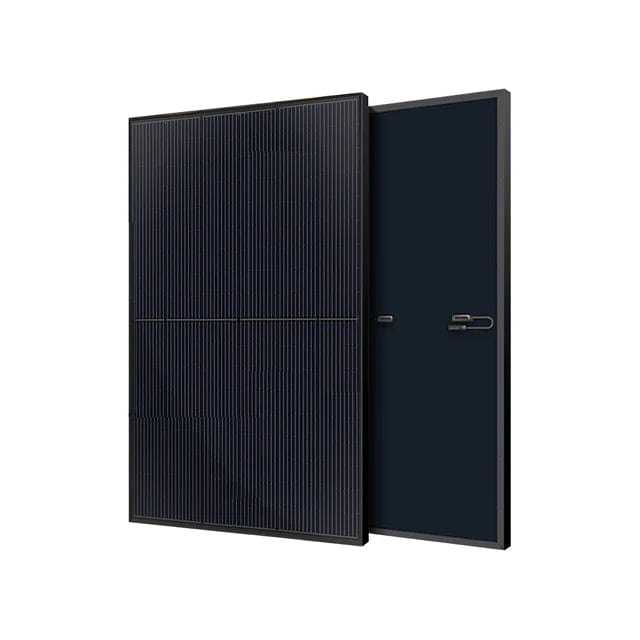

Rich Solar MEGA 400 | 400 Watt Solar Panel
by Rich Solar
SKU BDRS-M400-8
$2,699.00
The Rich Solar MEGA 400 is a powerful 400 watt solar panel that is perfect for both residential and commercial use. With its premium grid-tie or off-grid capabilities, it provides reliable energy for a variety of applications. Backed by a 25-year output warranty and UL certification, this panel is a smart investment for any solar energy system.
FEATURES
- 10-busbar solar cell configuration
- Mono PERC Technology
- Lightweight anodized aluminum frame
- High Transmission, AR (anti-reflective) Coated Tempered Glass
- Plug-and-play junction box
- Industry-standard quick-connect cables work in series or parallel
- Certified to withstand challenging environmental conditions
- Excellent low-light performance on cloudy days, mornings, and evenings
INSTALLATION
- Easy installation and handling for various applications (high-end off-grid and mobile applications)
- Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
- Compatible with on-grid and off-grid inverters
WARRANTY
- 25-year output warranty
- 10-year workmanship warranty
BUILT-IN COMPONENTS
- 550 watt solar panel
- Panel leads (pair): 2 feet each
- IP68-rated waterproof junction box
- IP67-rated waterproof solar connectors
- Bypass diodes built into the junction box
SPECIFICATIONS
| ATTRIBUTE | VALUE |
| Maximum Power(Pmax) | 410W |
| Maximum Power Voltage(Vmp | 31.3V |
| Maximum Power Current(Imp) | 13.1A |
| Open Circuit Voltage(Voc) |
37.5V
|
| Short Circuit Current(Isc) | 13.8A |
| Maximum System Voltage(Vmax) | 1500VDC |
| Temperature Range | -40°F ~ 185°F |
| Max Series Fuse Rating | 25A |
| Weight | 45.2 lb |
| Dimensions | 67.9 x 44.6 x 1.2 in |
