Rich Solar NOVA 12K PV Hybrid Inverter Solar Kit
The Rich Solar NOVA 12K PV Hybrid Inverter Solar Kit provides a reliable and efficient energy solution. Equipped with a powerful NOVA 12K PV Hybrid Inverter and a 61.44kWH Server Lithium Battery, this kit offers a sustainable and cost-effective way to power your home. Experience the benefits of solar energy with the NOVA 12K PV Hybrid Inverter Solar Kit.
Everything you need to go completely Off-Grid!
This travel trailer solar system includes flexible solar panels for RV and tiny homes, so you can jumpstart your off-grid solar trailer adventure today.
Best value on the market! Ships from California! Call us for any questions! Free technical support!
What's Included in the Kit:

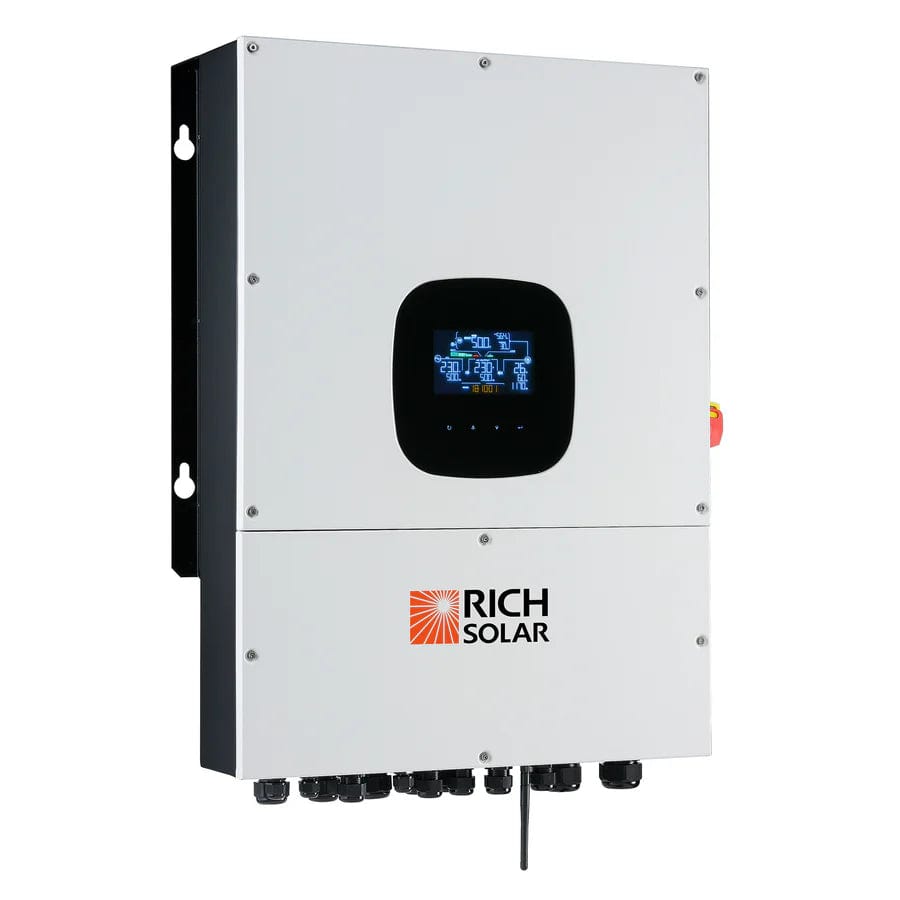

- 1 x NOVA 12K PV Hybrid Inverter 12000W PV Input | 10000W Output | 48V 120/240V Split Phase (RS-H12K)
- 12 x 5.12kWh ALPHA 5 PRO Server Lithium Iron Phosphate Battery (RS-B5121P1)
- 1 x Free Battery Rack
Specifications:
12000 Watt (12kW) 120/240V Hybrid Off-grid Solar Inverter
Maximum PV Input Power: 12000W
Parallel Capability: 6 units
INPUT
Maximum PV input Power: 12000W
Maximum DC Voltage: 600VDC
Start-up Voltage/initial Feeding Voltage: 125VDC/160VDC
MPP Voltage Range: 120VDC-550VDC
Number of MPPT Trackers/Maximum Input Current: 2/18A
OUTPUT
Rated Output Power: 10000VA/10000W
Nominal Output Voltage: 120VAC(P-N)/208VAC(P-P)/240VAC(P-P)
Output Voltage Range: 105.5-132VAC per phase
Nominal Output Current: 41.5A per phase
BATTERY
Battery DC Voltage Range: 40-62VDC / 48VDC
Maximum Solar Charging Current: 200A
Maximum AC Charging Current: 200A
Maximum Charging Current: 200A
OPERATING ENVIRONMENT
Operating Temperature Range: -25°C to 60°C(>45°C derating)
Protection Degree: IP 65
Communication Port: RS232, RS485, WI-FI, USB
PHYSICAL
Dimension (DxWxH): 8.5x20.3x28.1in / 215.5x515x715mm
Net Weight: 99.2lb / 45kg
CERTIFICATE
UL 1741SA, UL 1741SB, CSA 22.2.107.1, CEC

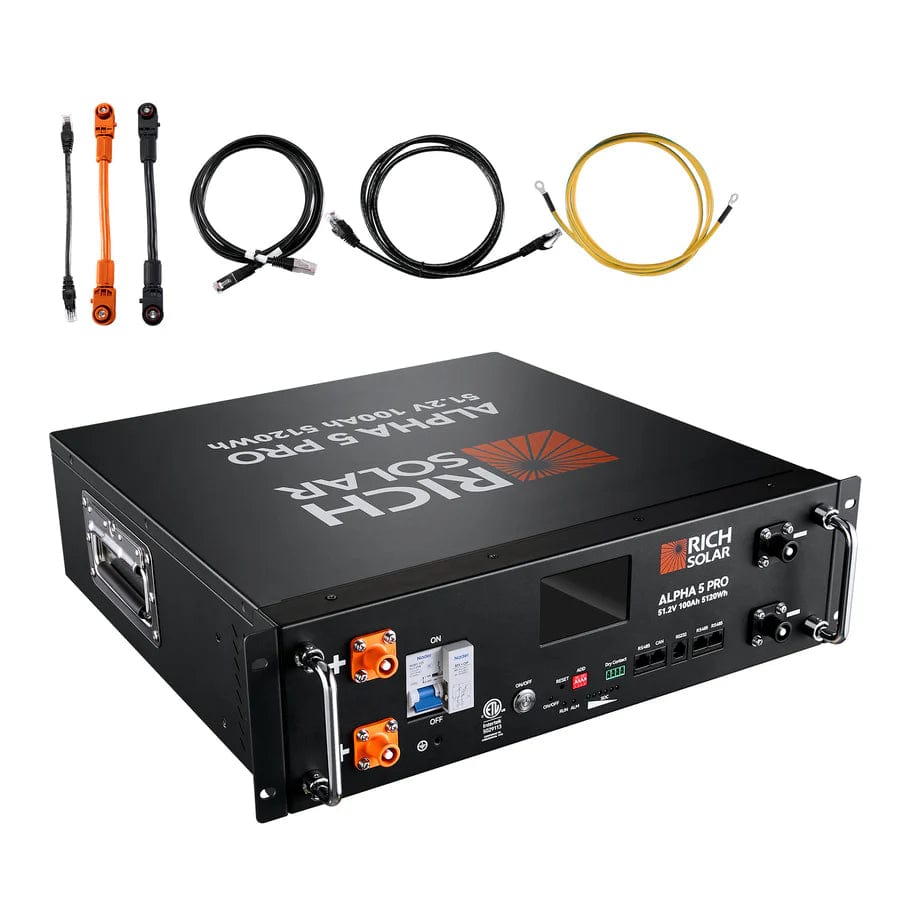

ALPHA 5 PRO
Electrical Specifications
- Nominal Voltage:51.2V
- Nominal Capacity (at .5C, 77°F):100Ah
- Minimum Capacity (at .5C, 77°F):99.5Ah
- Nominal Capacity:5120Wh
Operating Specifications
- Charging Voltage:57.6 V
- Discharging Cutoff Voltage:44.8V
- Maximum Charging Current:100A
- Continuous Charge Current:100A
- Maximum Discharge Current:100A
Physical Specifications
- Battery Dimensions:17.7″L x 17.8″W x 5.2″H
- Weight:99.2 lb
BMS Operation
- Operation Voltage:43.2~58.4V
- Maximum Charging Current:100A
- Maximum Discharging Current:100A
- Maximum Charge Voltage(CC/CV):57.6V
- Overcharge Protection Voltage (Battery):58.4V
- Overcharge Protection Release Voltage (Battery):54V
- Over Discharge Protection Voltage (Battery):43.2V
- Over Discharge Protection Release Voltage (Battery):47.2V
- Over Discharge Primary Charge Overcurrent Protection Value:110A
- First Stage Charge Over Current Delay:1s
- Primary Discharge Overcurrent Protection Value:110A
- Primary Discharge Overcurrent Protection Delay:1s
- Secondary Discharge Overcurrent Protection Value:150A
- Primary Discharge Overcurrent Protection Delay:500ms
Temperature Performance
- Charge Temperature:0.1C@(0℃~10℃); 0.2C@(10℃~20℃); 0.5C@(20℃~25℃); 1C@(25℃~45℃); 0.3C@(45℃~55℃); 0.2C@(55℃~60℃);
- Discharge Temperature:-20℃~65℃ (The surface temperature of the cell should not exceed 65℃)
- Storage Temperature:-20℃~45℃ 90%RH Max(1 month); 0℃~35℃ 90RH Max(6 Months)
- Recommended Storage Temperature:
- 0℃~35℃ 85%RH Max (The battery life would be reduced if battery is stored in high temperature)
Others
- Certification:UL1973, UL9540A, FCC
- Max. Expansion:15 pcs in parallel
Communication Ports: RS485/RS232/CAN
Warranty: 10 Years Manufacturer Defect
BATTERY SERVER RACK
- Dimensions (LxWxH): 27.6 x 27.6 x 44 in
- Net Weight: 196 lb
