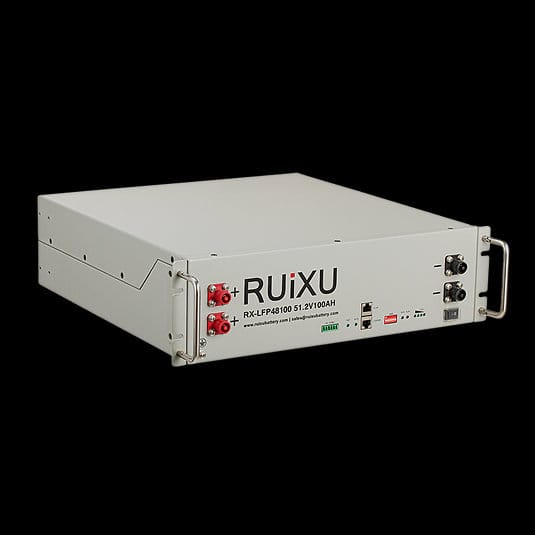

Ruixu RX-LFP48100 | 19" Rack Mounted 3U Module | UL1973 | UL9540A| CEC | SGIP
by Ruixu
SKU RX-LFP48100
$1,059.00
RX-LFP48100
- Nominal voltage ：51.2V
- Nominal capacity@0.2C ：100 Ah
- Min. capacity@0.2C：100 Ah
- Nominal energy :5120Wh
- Dimesion(W*D*H):482.6x460x133mm | 19 x 18.1 x 5.23 inch
- Weight: ~47kg (103.6lb)
Modular
Support up to 32 units in parallel, scale from 5 kWh to 160 kWh configuration without external controller.
Inverter Protocol Choosing
Use DIP address to set the RS485 baud rate and inverter protocol choosing
Communications
Canbus : Victron,SMA,Studer Innotec,Sofar,Solark,Solis,Goodwe,Deye,
Growatt,SAJ,LUXPOWER,Megarevo,INVT,Sermatec,TBB,
MUST,Sunsynk,Schneider
RS485 : MPP,Voltronic,RCT,Alpha outback
Standard Included
- (1) RUiXU 48V Server Rack battery (RX-LFP48100)
- (1) RJ45/CAT5e Patch Cables
- (1) Ground Cable
- (1) Set of Parallel 4AWG Cables per battery
***Cables***
1.6 slot cabinet installation,300MM cable (battery to cabinet busbar) included.
2.No busbar connection,250MM cable (battery to battery) included,only available for 48V system 2000W-5000W.
