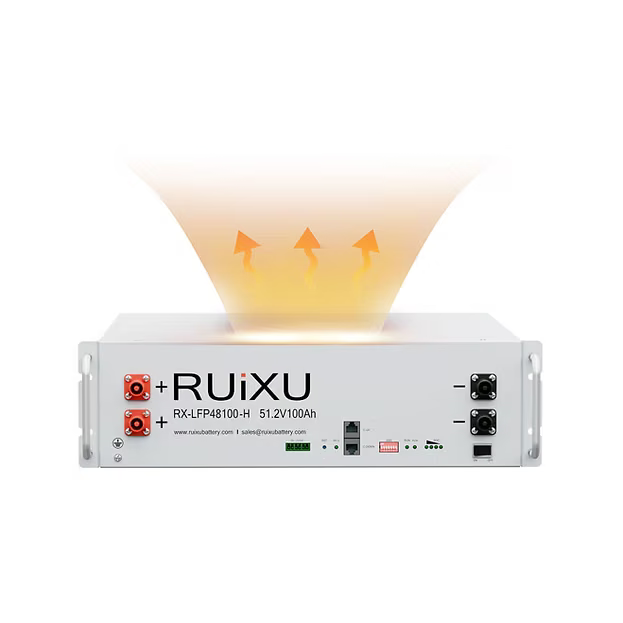

Ruixu Ruixu RX-LFP48100-H| 19" Rack Mounted 3U Module| Self-heating| UL1973 9540A CEC SGIP

Ruixu RX-LFP48100-H| 19" Rack Mounted 3U Module| Self-heating| UL1973 9540A CEC SGIP

by Ruixu
SKU RX-LFP48100-H
$1,099.00

Notify me when back in stock

RX-LFP48100-H
Self-heating 48V server rack battery  is designed for cold weather using!
Can safely charge at temperatures down to -20°C (-4°F) by a standard charger or solar charger.
The heater pads which draws power from the charger itself.



RX-LFP48100-H

  • Nominal voltage ：51.2V
  • Nominal capacity@0.2C ：100 Ah
  • Min. capacity@0.2C：100 Ah
  • Nominal energy :5120Wh
  • Dimesion(W*D*H):482.6x460x133mm | 19 x 18.1 x 5.23 inch
  • Weight: ~47kg (103.6lb)

Modular

Support up to 32 units in parallel, scale from 5 kWh to 160 kWh configuration without external controller.



Inverter Protocol Choosing

Use DIP address to set the RS485 baud rate and inverter protocol choosing

Communications

Canbus : Victron,SMA,Studer Innotec,Sofar,Solark,Solis,Goodwe,Deye,

Growatt,SAJ,LUXPOWER,Megarevo,INVT,Sermatec,TBB,

MUST,Sunsynk,Schneider
RS485 : MPP,Voltronic,RCT,Alpha outback

Standard Included

(1) RUiXU 48V Server Rack battery (RX-LFP48100)
(1) RJ45/CAT5e Patch Cable

(1) Ground Cable

(1) Set of Parallel 4AWG Cables  per battery

***Cables***

1.6 slot cabinet installation,300MM cable (battery to cabinet busbar) included.
2.No busbar connection,250MM cable (battery to battery) included,only available for 48V system 2000W-5000W.
