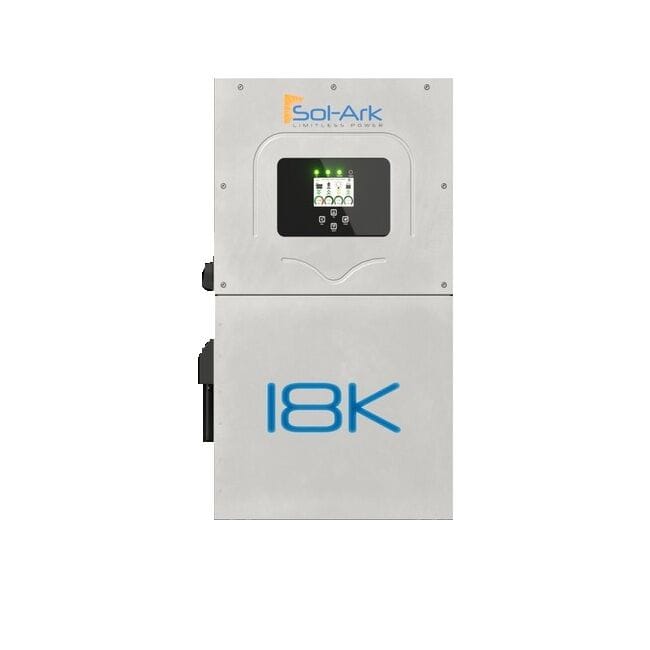

Sol-Ark 18K 2P-N Inverter
THE MOST POWERFUL HYBRID INVERTER ON THE MARKET
Rising electricity costs, greater grid instability, and growing consumer demand for resilient home energy solutions are reshaping how homeowners evaluate solar energy systems
The Sol-Ark® Premium 18K-2P (18K-2P-N) hybrid inverter stands at the forefront of this market transformation.
Engineered for the most grueling off-grid or back-up needs, the 18K-2P delivers up to 18kW of continuous power directly from battery storage to support large loads and 36kVA of surge power for 10s to ensure demanding loads like HVAC units and motors have no problem starting in a grid-down scenario.
The 18K 2P supports more PV than any other residential inverter (over 40kW when utilizing AC coupled functionality). This power-house unit runs American engineered firmware, keeps your data stateside, and comes standard with a 10 year warranty. Don’t rely on the grid, take control of your energy.
Features:
- 18 kW AC
- 200A Grid Pass-Through
- MULTIPLE SOLAR OPTIONS
- 6X DC Solar Ports
- 3X Full Sized MPPTs
- 36A Per MPPT
- FLEXIBLE BATTERY CHOICE
- 350A Battery Charger
- 2X – 48V Battery Ports
- Upgrade for UL9540 Options
- SEAMLESS GRID CONTROL
- Multi-Season Time-of-Day Settings
- Automatic 5ms Transfer Time
- Virtual Power Plant Ready
- GENERATOR READY
- Dedicated GEN Port
- AutoStart Capable
- Generators or AC Coupling
Specifications:
- Continuous output power: 18kW @ 120/240V
- 3x MPPTs, up to 500Vdc max
- 2x inputs per MPPT
- MPPT operating voltage range: 150-425V
- Max. usable input current per MPPT: 36A
- Max. short circuit current per MPPT: 54A
- Max. utilized solar power: 28.8kW
- Max. charge/discharge current: 350A
- Max. grid bypass: 200A
- Certified to UL 1741 Standards
- Weight: 137lbs
- Dimensions (H×W×D): 33.98×18.27×11.10in
