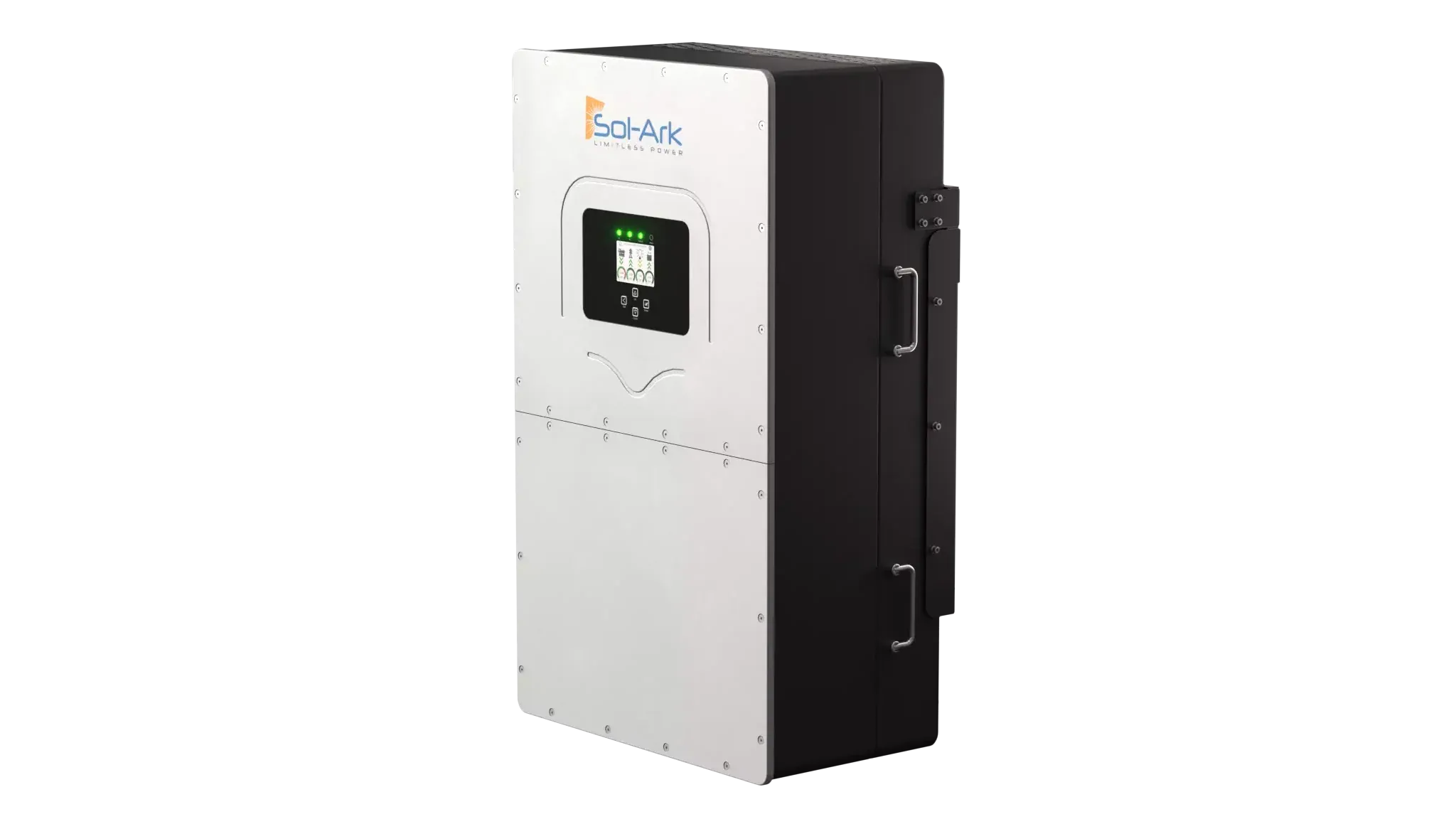

Sol-Ark 60K-3P 480V Commercial Hybrid Inverter
by Zonna Energy
SKU Sol-Ark 60K-3P 480V
$14,625.00
The Sol-Ark® 60K-3P-480V commercial hybrid inverter is an energy storage solution built for demanding commercial and industrial applications. Delivering high efficiency, scalability, and resilience, it allows businesses to harness renewable energy, reduce utility costs, and maintain critical operations during grid outages.
With native 277/480V 3-phase output, both AC and DC coupling options, and a modular architecture, the 60K-3P-480V seamlessly integrates with new or existing solar and storage systems. Designed for rapid and simple expansion, businesses can parallel up to 10 inverters and 16 batteries per inverter, supporting projects from 40 kWh to 9.6 MWh. Standard 10-year Sol-Ark® warranty.
Features:
- 200A built-in transfer switch
- Able to be in parallel with up to 12 units
- Capable of different modes, including grid sell, limited power to home, limited power to load, and time of use
- Able to turn on loads when excess power is available
- UL 1741 certified
- It has AC and DC coupling, allowing for a combination of DC-coupled and AC-coupled solar panels
- Used with high-voltage batteries
- Built-in Rapid shutdown and emergency stop
- Built-in remote monitoring system
Specifications:
- 78,000W of Max PV Power
- 1,000VDC Max PV Power
- 4 MPPTs
- 100A of Battery Charge Current
- 96% Efficiency
- Idle Consumption: 60W
- 300V+ battery voltage
- Hybrid All-In-One unit
